Contemporary House Plan with Outdoor Living and Dining Areas

Plan 86031BW

  • 4,918

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • An intricate roof line with metal roofing makes this Contemporary house plan pop.
  • Two-story high transom windows brighten the interior of the gracious home, adding extra light.
  • There are striking ceiling treatments in almost all the rooms, adding a dramatic effect.
  • Fabulous sight-lines start right at the foyer where you can see straight through the enormous great room out onto the expansive outdoor living space.
  • With separate cooking, living and dining areas, this outdoor space is a dream lanai.
  • Best of all, a huge bonus space with tray ceiling also has double doors to take you right outside.
  • In the master suite, homeowners get a computer nook, sliders to the outdoor living area with its fireplace and two huge walk-in closets.
  • Each of the secondary bedrooms on the opposite side of the home has a private bathroom and walk-in closet.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

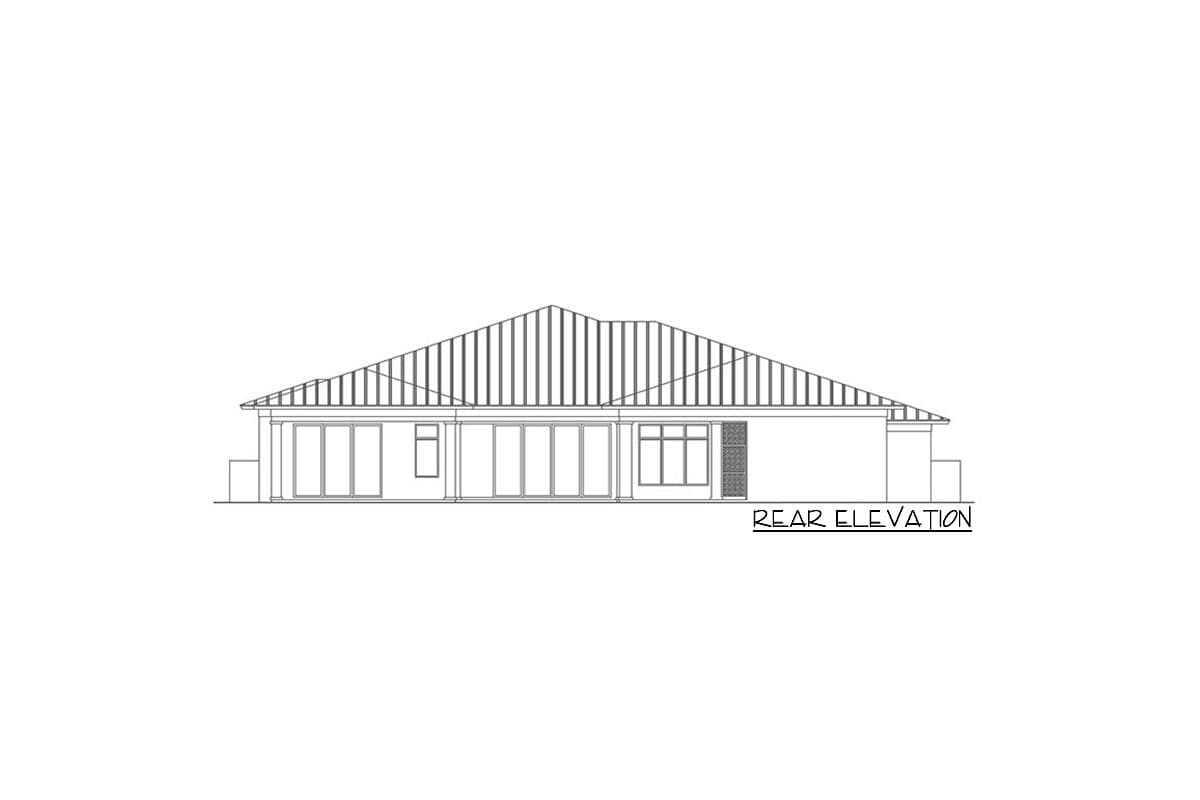

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

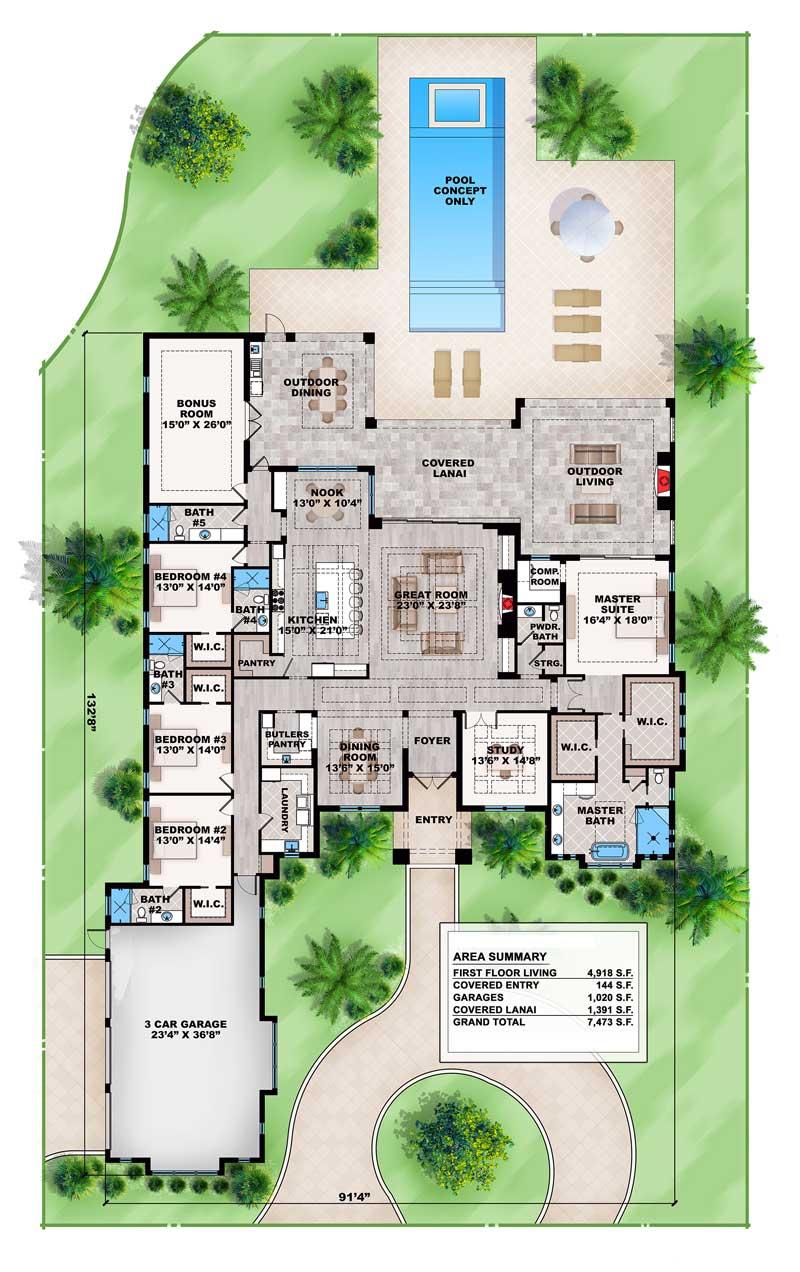

Contemporary House Plan with Outdoor Living and Dining Areas - 86031BW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,918 sq. ft.
  • 1st Floor: 4,918 sq. ft.
  • Lanai: 1,391 sq. ft.
  • Entry: 144 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 91' 4"
  • Depth: 132' 8"

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Type Height
Great Room Coffered 14' 0"
Dining Room Coffered 14' 0"
Kitchen Coffered 12' 0"
Dinette Coffered 12' 0"
Entry Flat 18' 6"
Foyer Flat 14' 0"
Study Coffered 14' 0"
Master Bedroom Coffered 13' 0"
Master Bath Coffered 13' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Contemporary House Plan with Outdoor Living and Dining Areas

  • 4,918

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,615
  • CAD - Single-Build $2,615
  • View all purchase option online
