Plan 737013LVL
Contemporary House Plan with Pass-Through Garage
Heated S.F.
2,312
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A unique pass-through garage gives you flexibility in this Contemporary house plan.
  • Two separate garage storage closets open with double doors.
  • Inside, contemporary living is enhanced by the wide open great room that combines the eating, cooking and living spaces all in one huge space.
  • A wide sliding glass doors brings in light and allows views of the covered rear patio.
  • Every bedroom is separated to allow privacy for all.
  • The master bedroom is the only one on the main floor.
  • Upstairs, a large loft with open railing separates the two family bedrooms.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plans
  • Roof framing plan
  • Building section and typical wall sections
  • Elevations
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary House Plan with Pass-Through Garage

  • 2,312

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

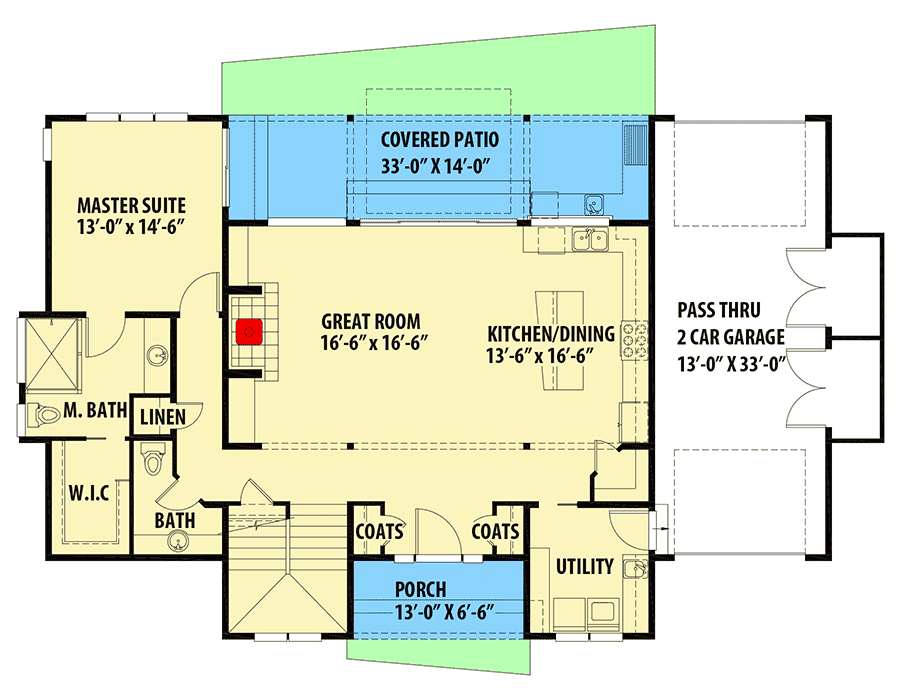

  • Main Level

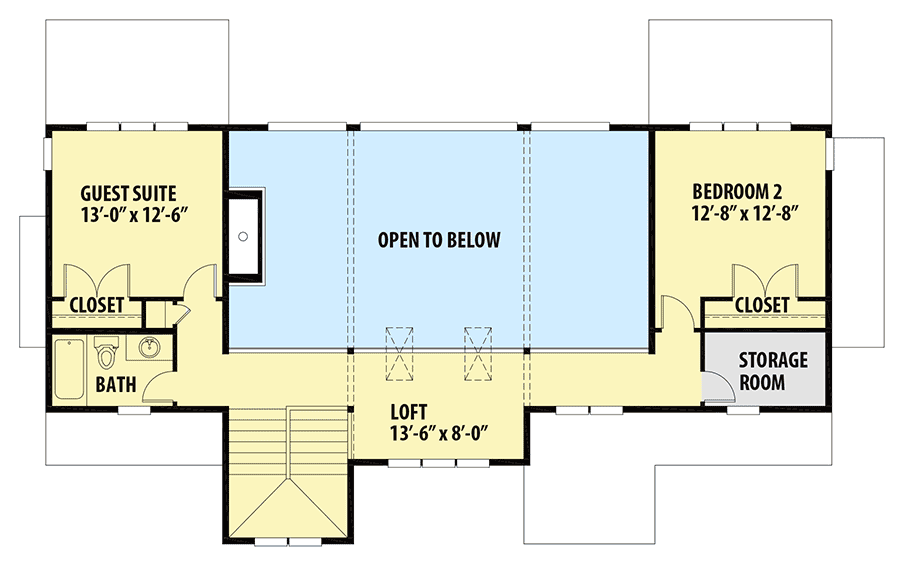

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,312 sq. ft.
  • 1st Floor: 1,461 sq. ft.
  • 2nd Floor: 851 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 40' 0"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 527 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss
