Contemporary House Plan with Scenic Mezzanine

Plan 68526VR

  • 1,457

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 3

    Stories

  • 1

    Cars

  • Tall and lean, this Contemporary house plan comes with balcony decks and a huge top floor scenic mezzanine.
  • Small in size, the open floor plan maximizes the feeling of spaciousness.
  • Start on the ground floor entry and climb up to the big great room that holds the main living area.
  • The two bedrooms are on the top floor with a desk area at the top of the landing.
  • Take the party upstairs where the best views can be found on the scenic mezzanine.
  • Related Plan: Get a front-entry garage with house plan 68525VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

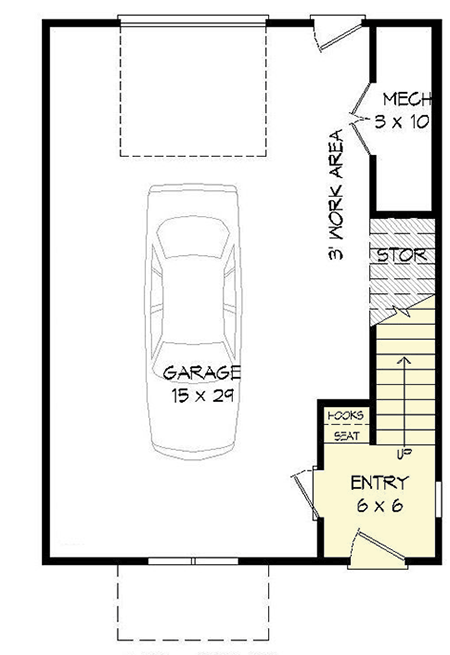

Contemporary House Plan with Scenic Mezzanine - 68526VR floor plan - Ground Level

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

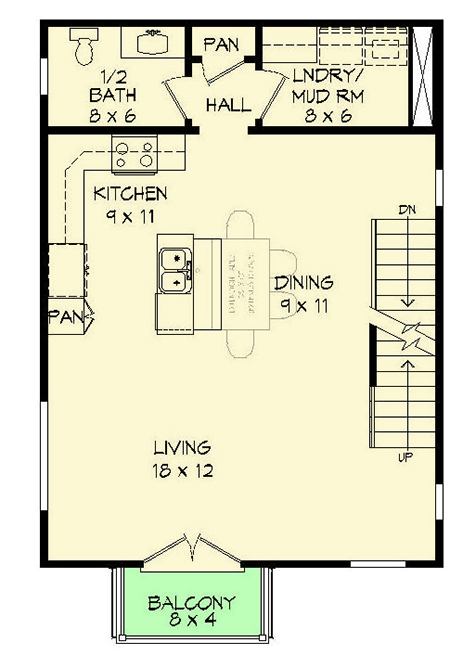

Contemporary House Plan with Scenic Mezzanine - 68526VR floor plan - Main Level

Upper Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

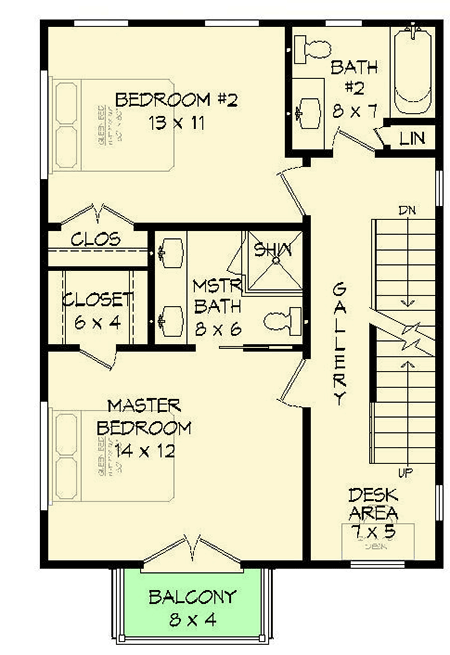

Contemporary House Plan with Scenic Mezzanine - 68526VR floor plan - Upper Level

Rooftop Mezzanine

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

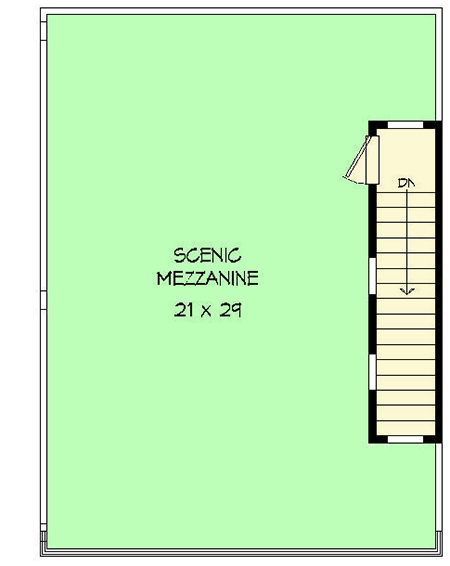

Contemporary House Plan with Scenic Mezzanine - 68526VR floor plan - Rooftop Mezzanine

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,457 sq. ft.
  • Lower Level: 64 sq. ft.
  • 1st Floor: 660 sq. ft.
  • 2nd Floor: 660 sq. ft.
  • 3rd Floor: 73 sq. ft.
  • Porch, Combined: 651 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 30' 0"
  • Max ridge height: 41' 0"

Garage

  • Type: Drive Under
  • Area: 596 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 0 on 12
  • Framing Type: Truss

Architectural Style
