Plan 666002RAF

Contemporary House Plan with Upstairs Flex Room - 2543 Sq Ft

Heated S.F.
2,543
Beds
3 - 4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 666002RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666002RAF

M-F 9am-5pm EST |

1-203-761-8500

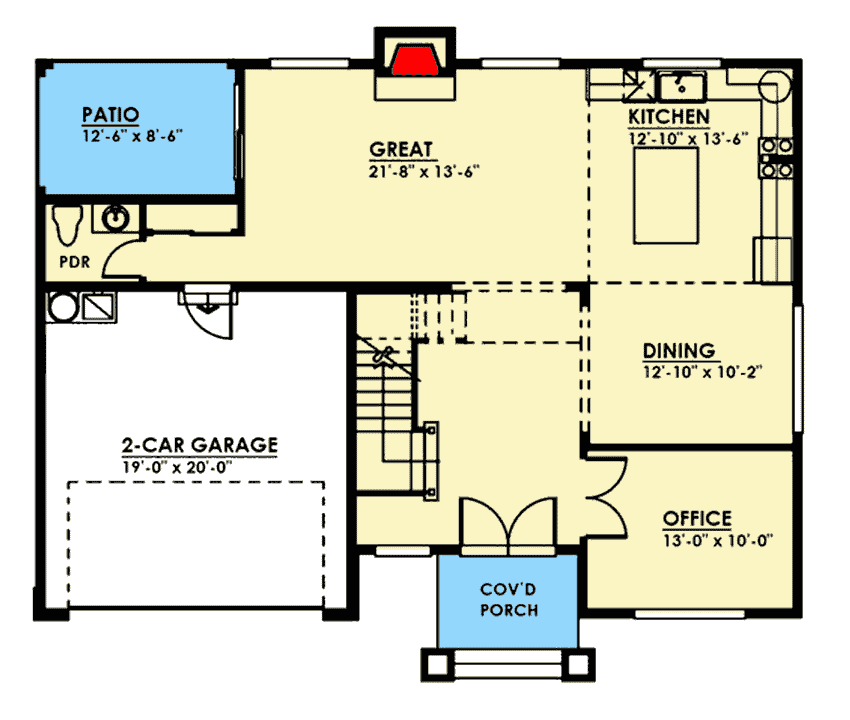

Main Level

Plan 666002RAF: Contemporary House Plan with Upstairs Flex Room - 2543 Sq Ft - Floor Plan - Main Level - Contemporary, Northwest

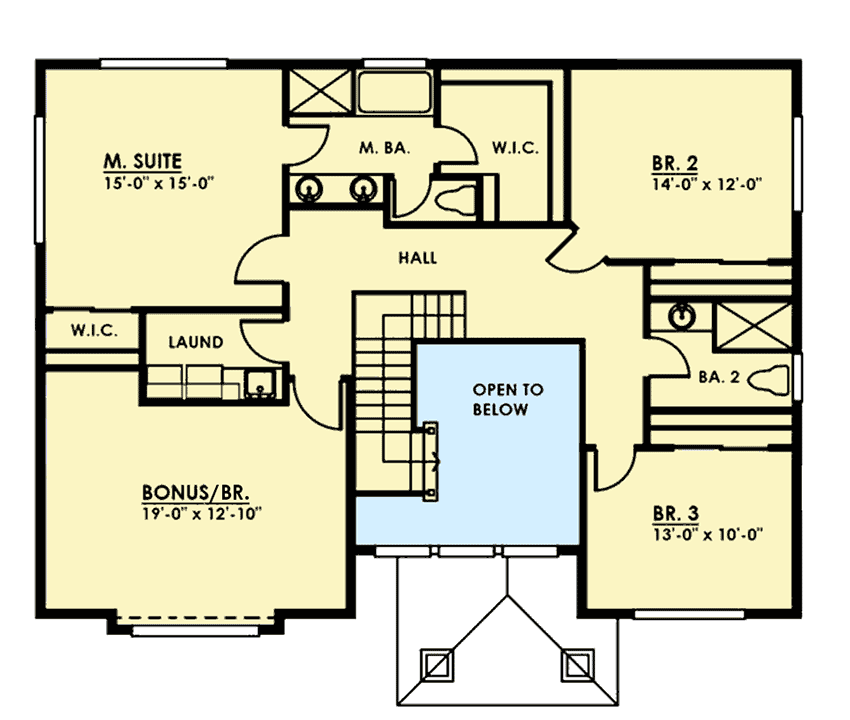

2nd Floor

Plan 666002RAF: Contemporary House Plan with Upstairs Flex Room - 2543 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Northwest

Plan Details

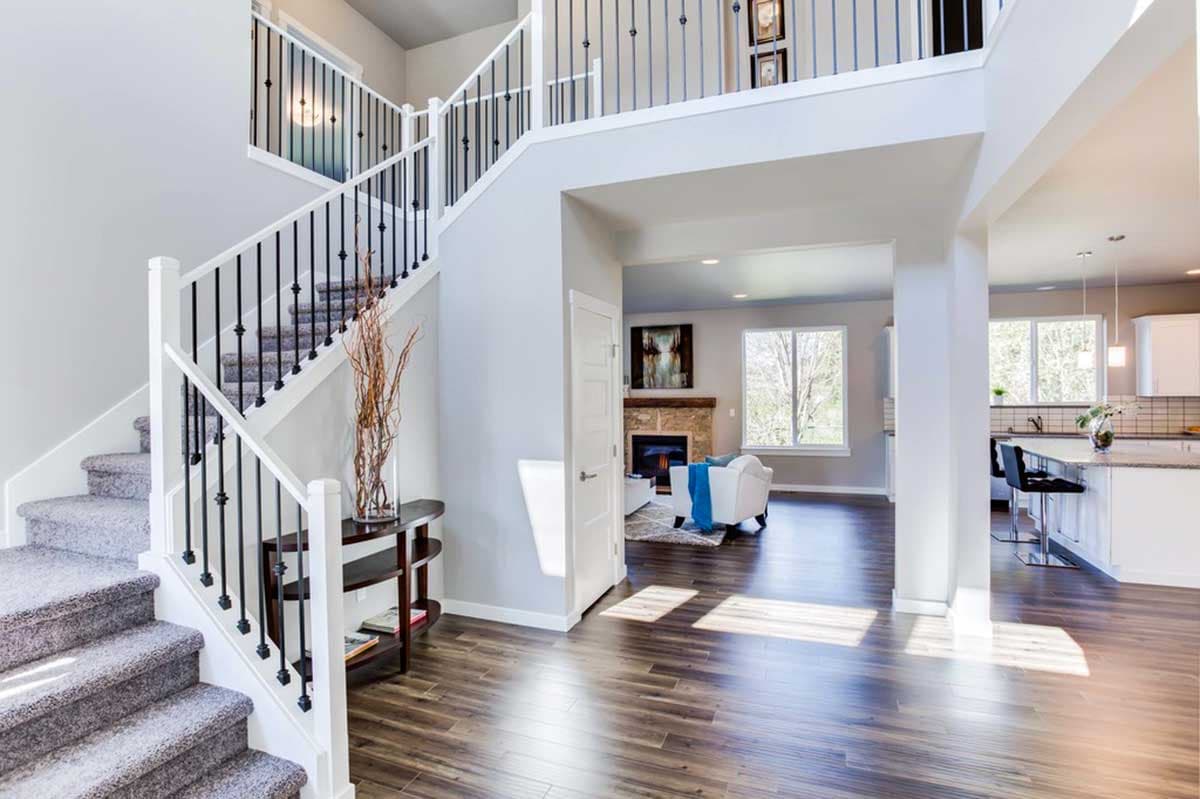

  • A double door at the front of this 2,543 square foot contemporary house plan with upstairs flex room ushers you into the wide two-story foyer.
  • Work from home in your home office at the front of the house.
  • An open floor plan connects the great room, kitchen and dining room with each room visible to the others.
  • Sliding glass doors lead out to a covered patio where you can sit in the shade or cook outdoors.
  • Three bedrooms on the upper floor share the second floor laundry room.
  • A spacious bonus room lies over the two car garage.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,543 sq. ft.

1st Floor

1,115 sq. ft.

2nd Floor

1,428 sq. ft.

Covered Patio

110 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

41' 0"

Garage

Type

Attached

Area

380 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Flex Room

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,543 sq. ft.

1st Floor

1,115 sq. ft.

2nd Floor

1,428 sq. ft.

Covered Patio

110 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

41' 0"

Garage

Type

Attached

Area

380 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Flex Room

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Home Office

Photo Gallery
