Plan 80749PM
Contemporary Marvel
Heated S.F.
1,222
Beds
3
Baths
1
Stories
2
Floor Plan

Plan 80749PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80749PM

1-800-854-7852

1-262-521-4596

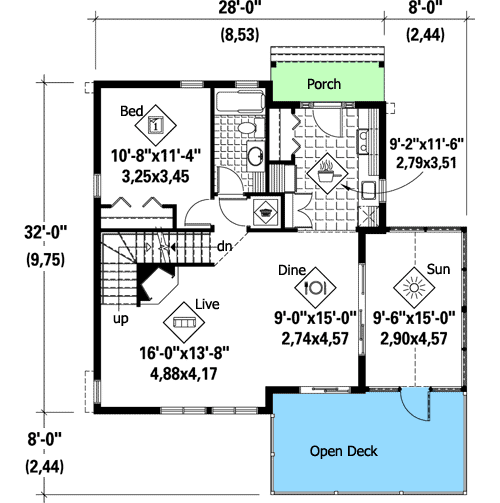

Main Level
floor plan image Main Level

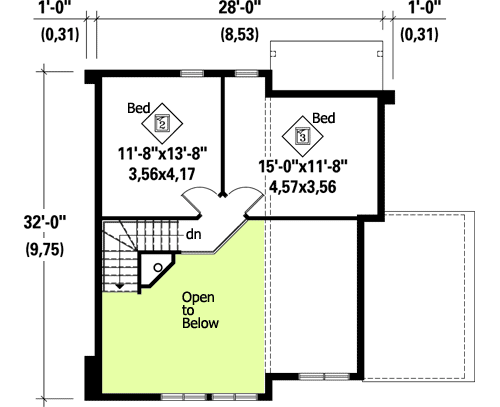

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Angled walls of glass flood the two-story living room, dining room and sun room with light in this Contemporary home plan that could be a vacation retreat or permanent home.
  • A corner fireplace warms the main living space and sliding glass doors open to the delightful sun room.
  • One bedroom occupies the first floor and two more can be found on the upper level.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,222 sq. ft.

1st Floor

821 sq. ft.

2nd Floor

401 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

32' 0"

Max Ridge Height

31' 0"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Vacation

Special Features

Master Suite - 1st Floor

Sunroom

Two Story Great Room

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,222 sq. ft.

1st Floor

821 sq. ft.

2nd Floor

401 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

32' 0"

Max Ridge Height

31' 0"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Vacation

Special Features

Master Suite - 1st Floor

Sunroom

Two Story Great Room

Plan Collections

Canadian House Plans

Metric

Sloping Lot
