Contemporary Mission-Inspired 3 Bedroom House Plan With Game Room Upstairs

Heated S.F.
3,416
Beds
3
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 430030LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430030LY

M-F 9am-5pm EST |

1-203-761-8500

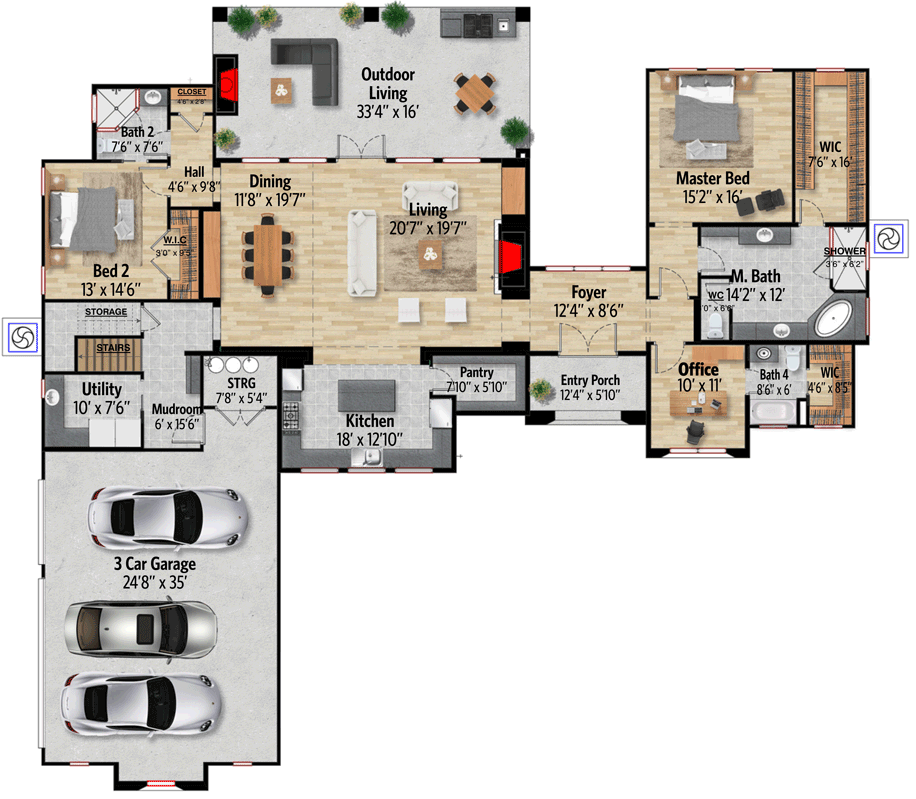

Main Level

Plan 430030LY: Contemporary Mission-Inspired 3 Bedroom House Plan With Game Room Upstairs - Floor Plan - Main Level - Contemporary, Southwest, Spanish

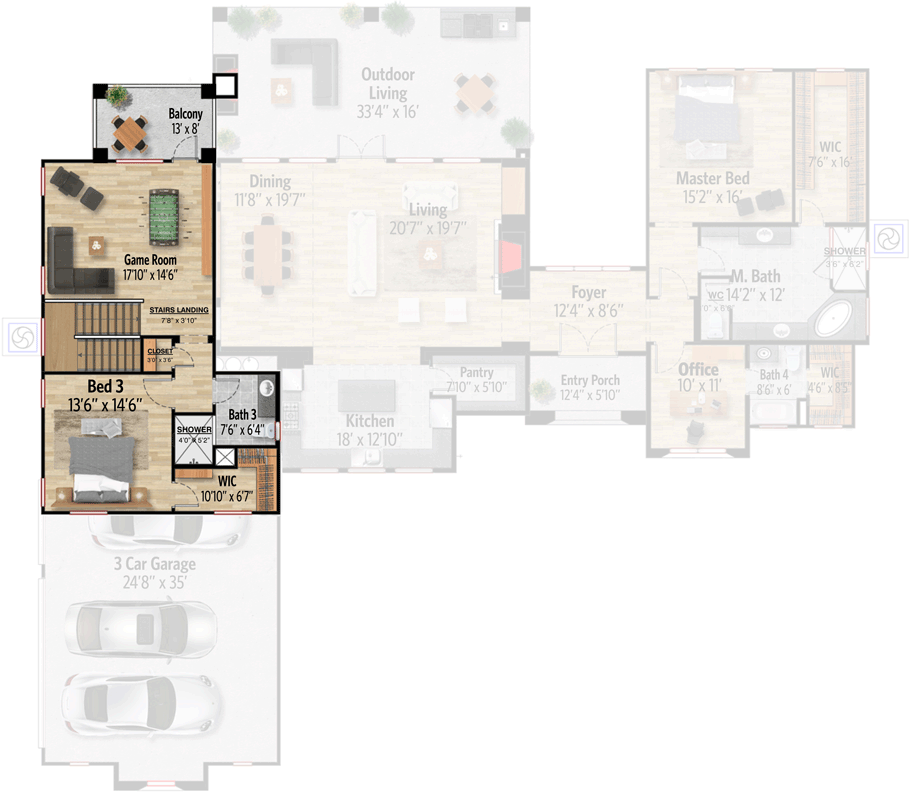

2nd Floor

Plan 430030LY: Contemporary Mission-Inspired 3 Bedroom House Plan With Game Room Upstairs - Floor Plan - 2nd Floor - Contemporary, Southwest, Spanish

Plan Details

  • A Spanish-Mission-style exterior greets you to this 3 bedroom house plan with a private master wing.
  • The foyer serves as the diving point between the private master suite and the family portion of the home.
  • The master wing has both a bedroom suite with two walk-in closet and a private study.
  • An open floor plan in the family section is great for entertaining. The living room is open to the dining room and kitchen and French doors along the back wall open to the outdoor living area.
  • Related Plan: Downsize to a 2-car garage and eliminate the game room with house plan 430029LY (2,934 sq. ft.)

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,416 sq. ft.

1st Floor

2,693 sq. ft.

2nd Floor

723 sq. ft.

Porch, Front

91 sq. ft.

Balcony / Veranda

104 sq. ft.

Covered Patio

536 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 10"

Depth

83' 2"

Garage

Type

Attached

Area

950 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

15' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Southwest

Spanish

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,416 sq. ft.

1st Floor

2,693 sq. ft.

2nd Floor

723 sq. ft.

Porch, Front

91 sq. ft.

Balcony / Veranda

104 sq. ft.

Covered Patio

536 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 10"

Depth

83' 2"

Garage

Type

Attached

Area

950 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

15' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Southwest

Spanish

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry
