Plan 147055RML

Contemporary Modern House Plan with Upstairs Master Suite

Heated S.F.
3,183
Beds
3
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 147055RML

Main Level
Main Level
2nd Floor
2nd Floor

Plan 147055RML

M-F 9am-5pm EST |

1-203-761-8500

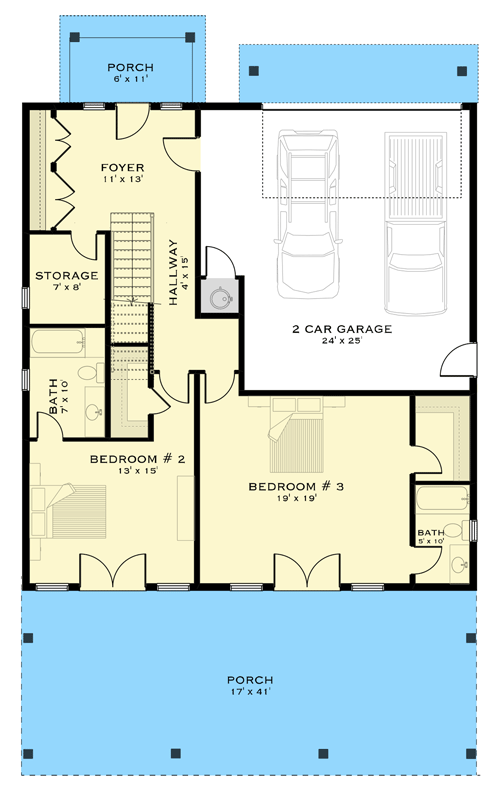

Main Level

Plan 147055RML: Contemporary Modern House Plan with Upstairs Master Suite - Floor Plan - Main Level - Contemporary, Modern, Northwest

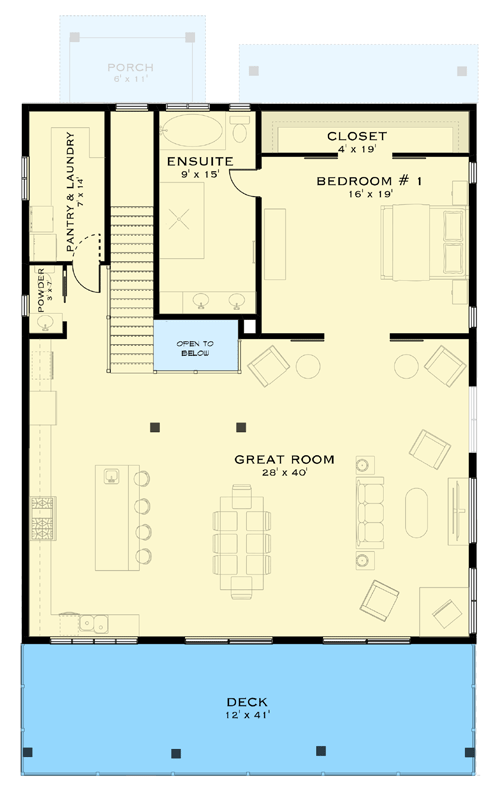

2nd Floor

Plan 147055RML: Contemporary Modern House Plan with Upstairs Master Suite - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

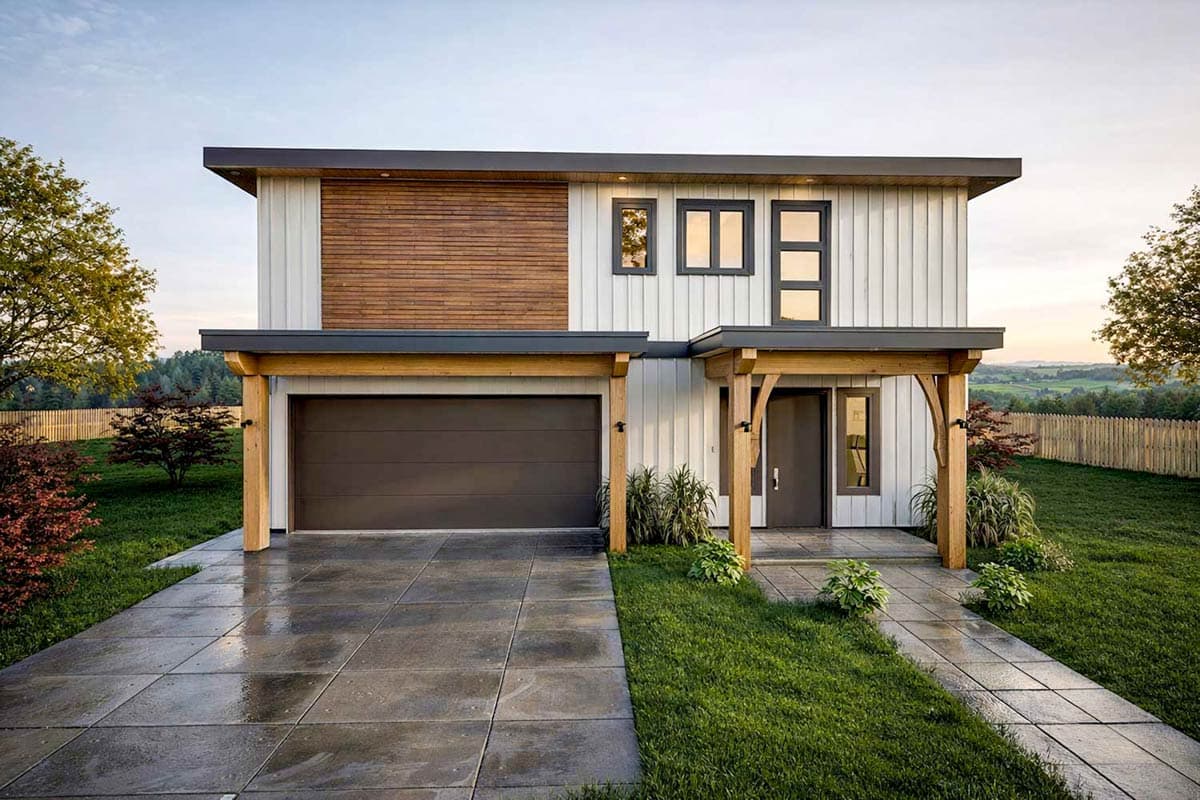

  • This striking 3,183 sq. ft. Modern plan offers a harmonious blend of style and function, featuring 3 bedrooms, 3 full bathrooms, and a generous 600 sq. ft. 2-car drive-under garage.
  • Step into the welcoming foyer on the first floor, where the convenience of a 2-car drive-under garage connects directly to the home, leading into a thoughtful split-bedroom layout designed for privacy and comfort.

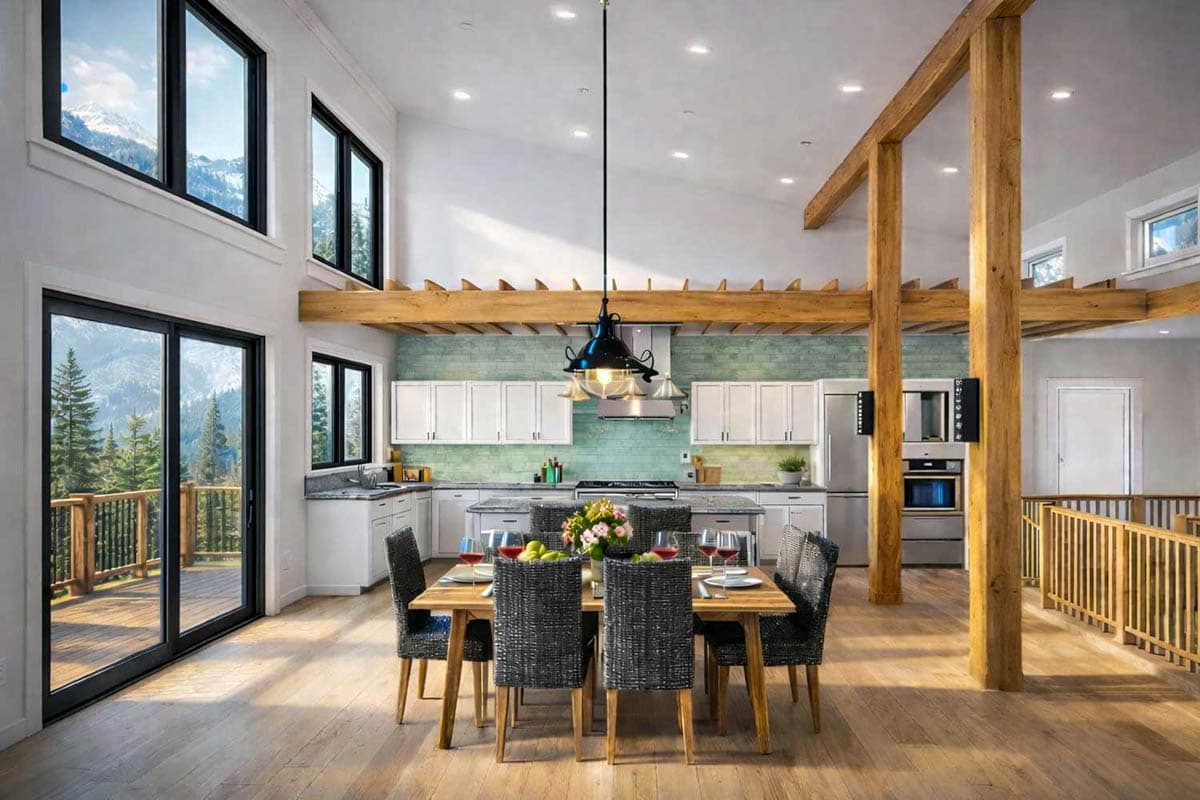

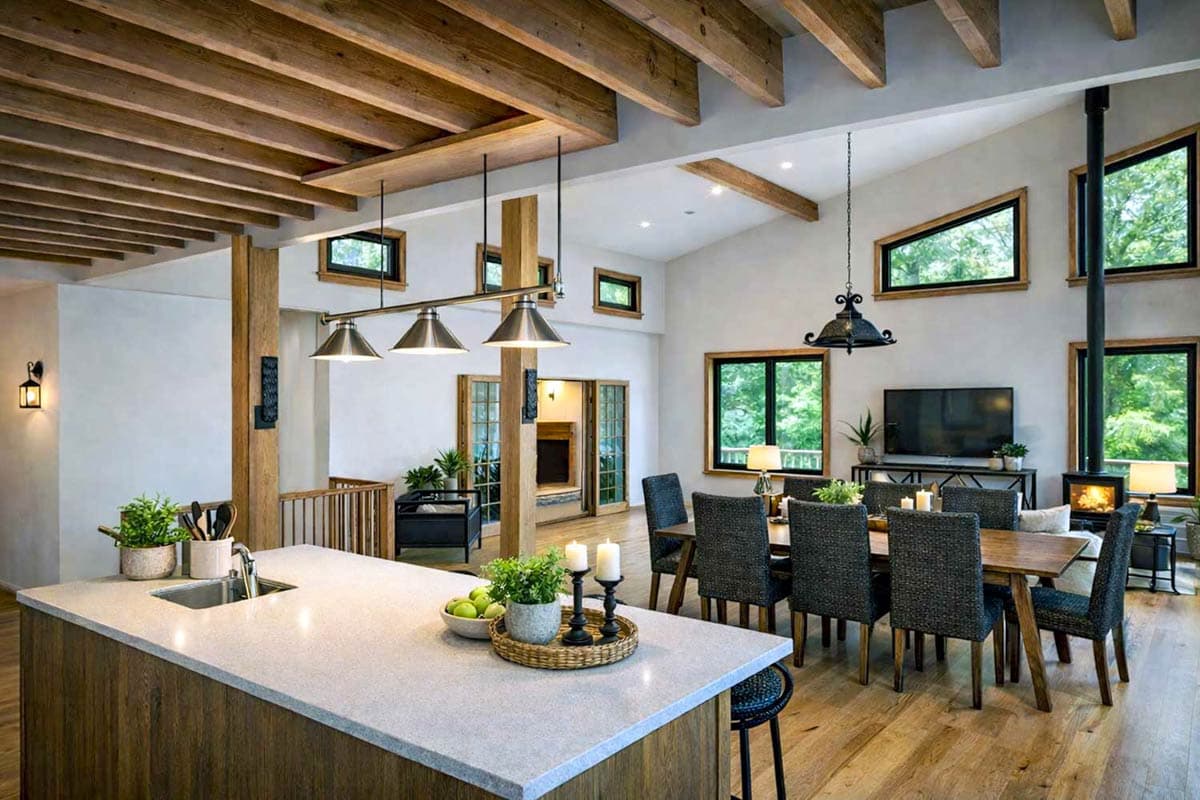

  • Ascend to the bright second floor, where an expansive, open-concept great room, stretching 28' x 40', seamlessly integrates the kitchen and dining areas. The gourmet kitchen, complete with a central island, is perfectly positioned for gathering, while a spacious butler's walk-in pantry ensures every culinary need is met with ease.
  • Perched on the second floor, the private master suite (Bedroom #1) offers a tranquil sanctuary, featuring a spacious 16' x 19' sleeping area, a luxurious ensuite bathroom, and an expansive walk-in closet. The first floor hosts two additional well-appointed bedrooms, each enjoying immediate access to their own full bathroom, providing comfortable and private accommodations for family or guests.

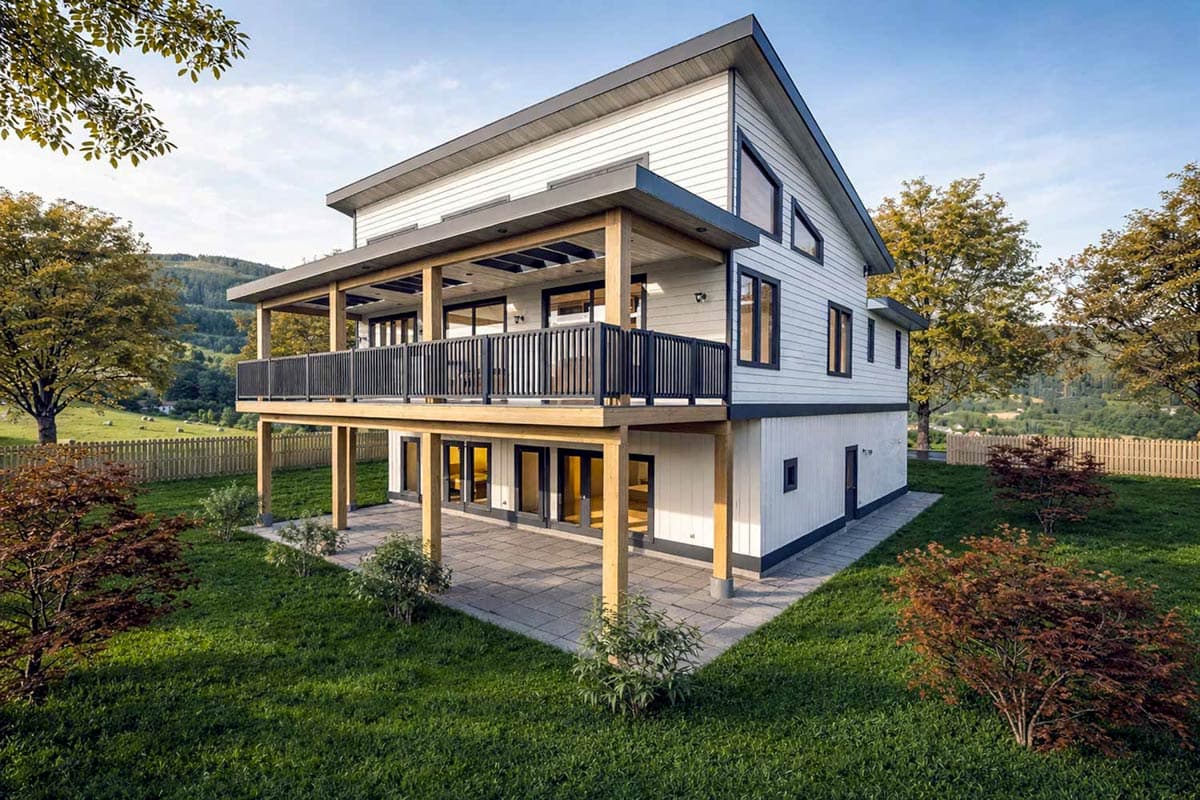

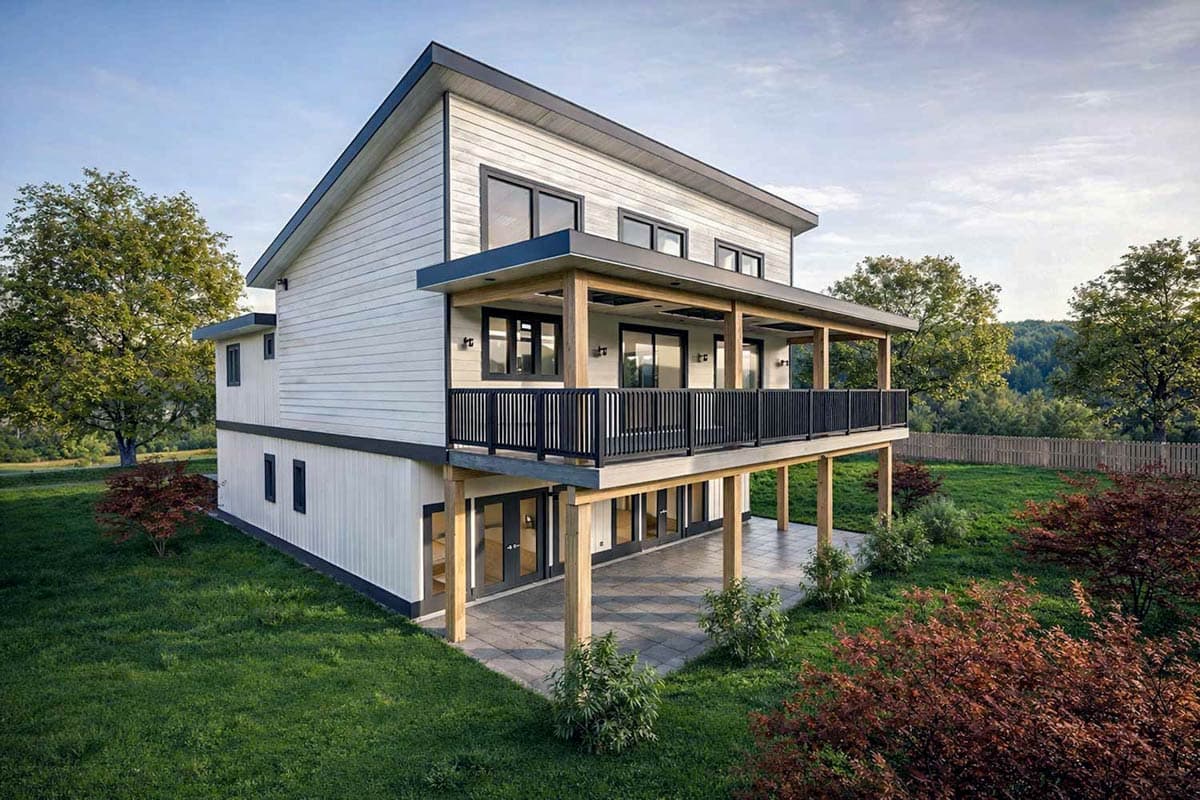

  • Extend your living space outdoors with multiple inviting areas, including a charming front porch, a substantial 17' x 41' rear porch perfect for morning coffee or evening gatherings, and an expansive 12' x 41' deck on the second level, offering seamless indoor-outdoor living.

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,183 sq. ft.

1st Floor

1,177 sq. ft.

2nd Floor

2,006 sq. ft.

Porch, Front

66 sq. ft.

Porch, Rear

697 sq. ft.

Deck & Porch

492 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 1"

Depth

65' 9"

Max Ridge Height

33' 3"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

0' 0''

Bedroom 3

10' 0''

Bedroom 2

Vaulted

10' 0''

Bedroom 1

9' 0''

Roof Details

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Two Story Great Room

Walk-in Pantry
