Contemporary Mountain Craftsman Home Plan Under 3000 Square Feet with 4-Car Garage

Plan 95184RW

  • 2,956

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

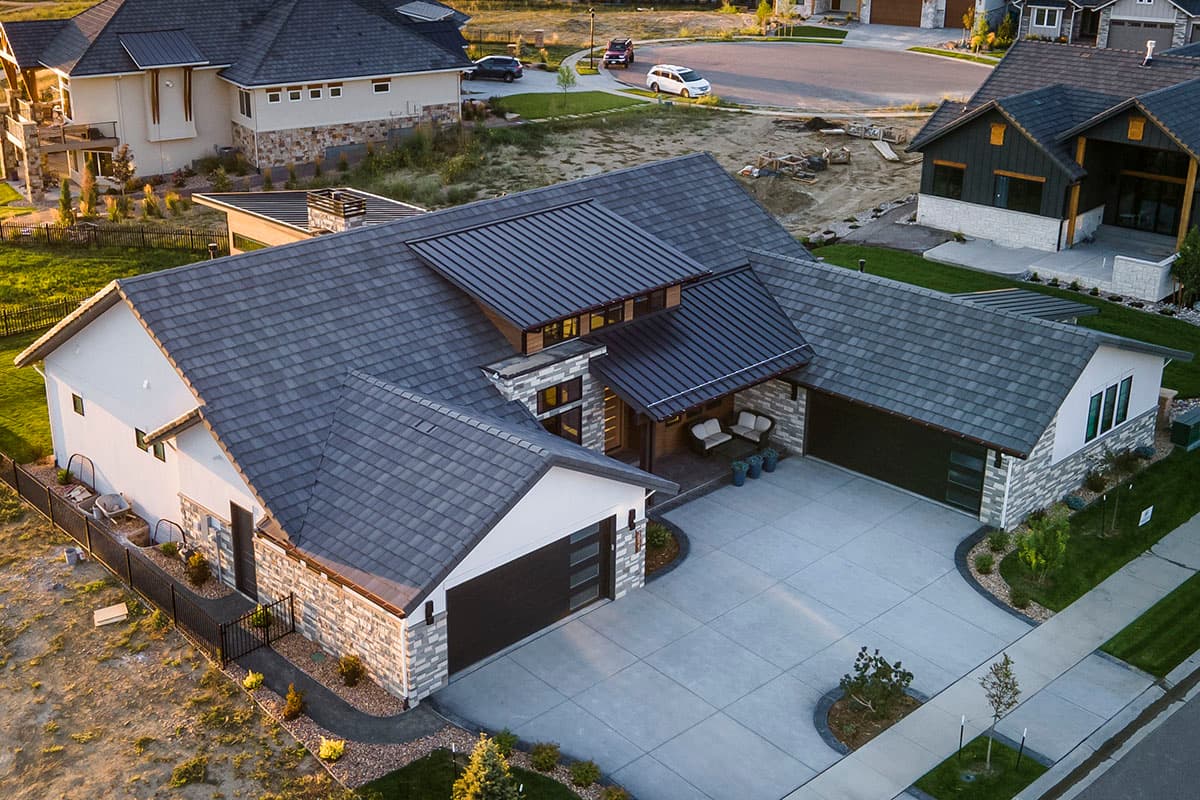

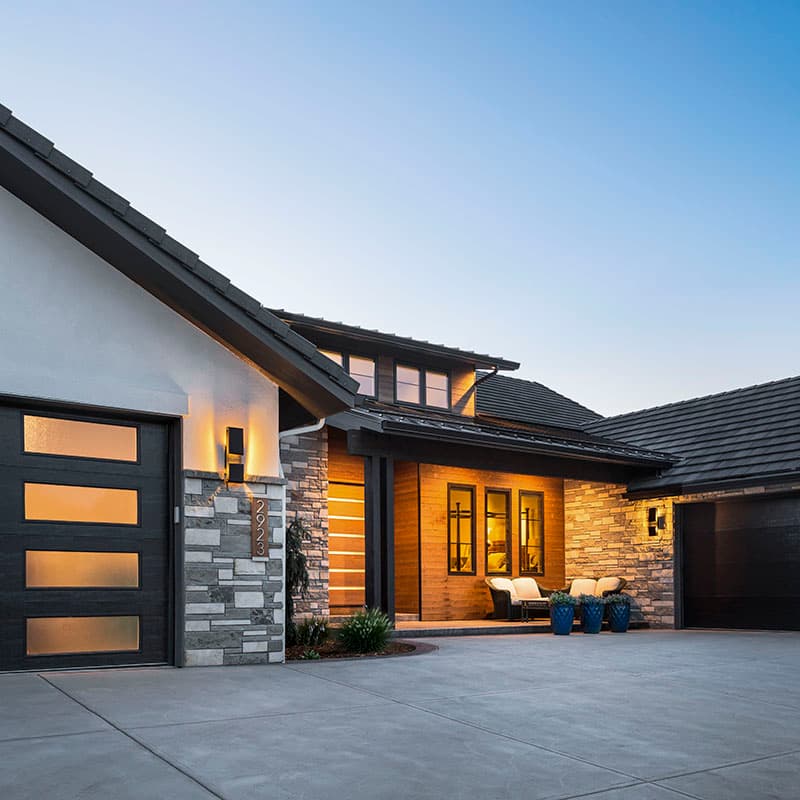

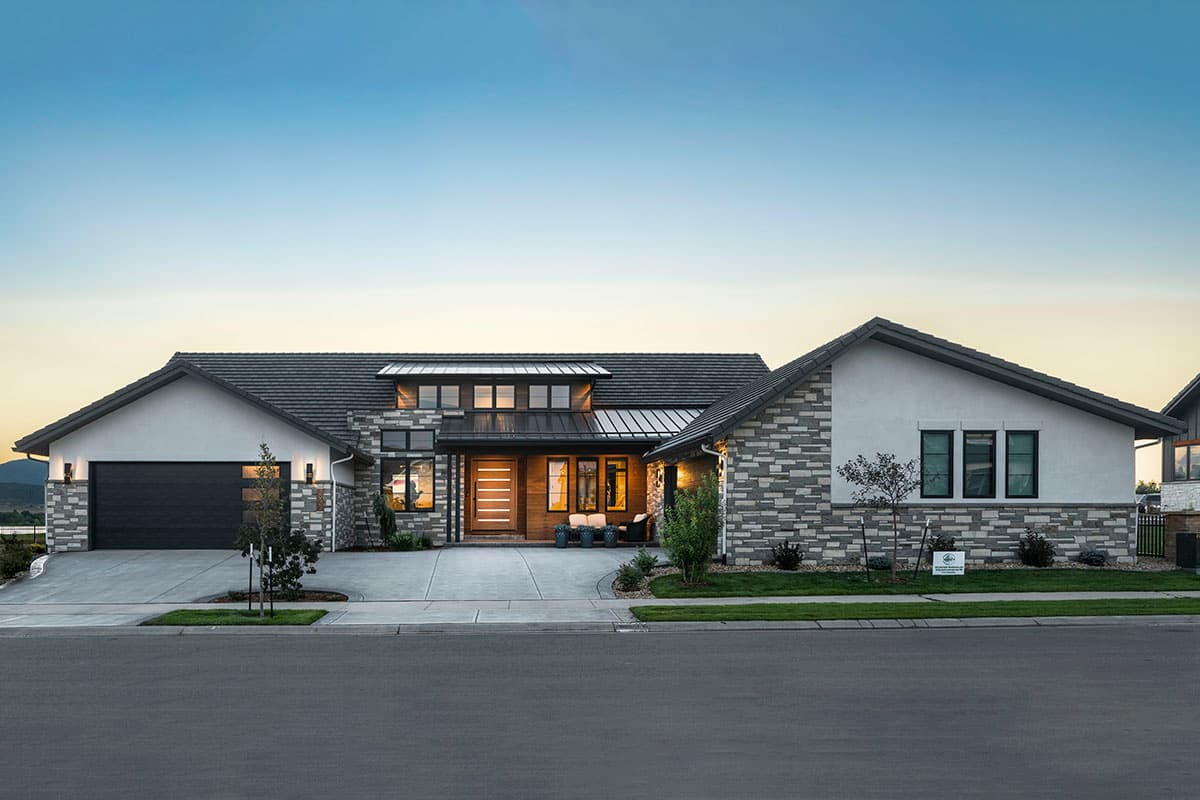

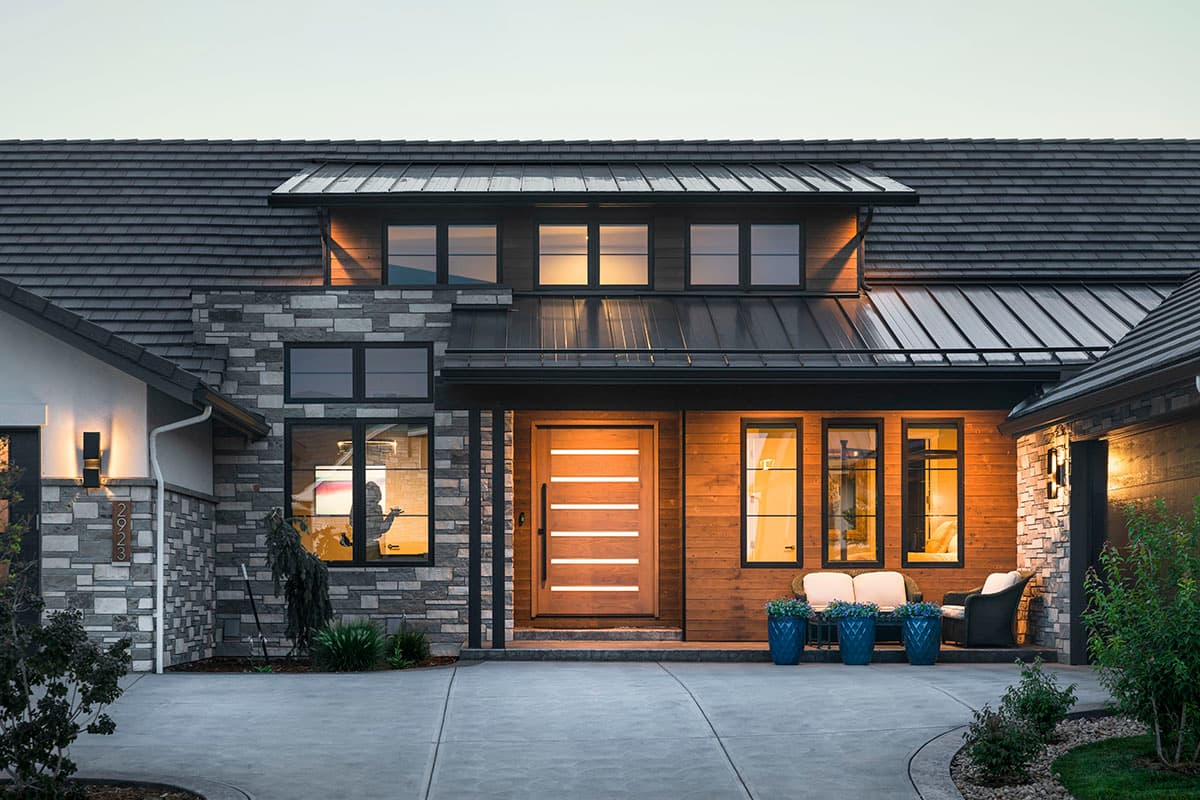

  • This contemporary mountain Craftsman-style house plan gives you 2,956 square feet of one-level heated living space with room to expand to the lower level. A 4-car garage - a 2-car front-facing one and a 2-car courtyard-entry one - each have 16' by 8' overhead garage doors. A shed dormer is centered above the front door and adds light to the inside and curb appeal to the outside.

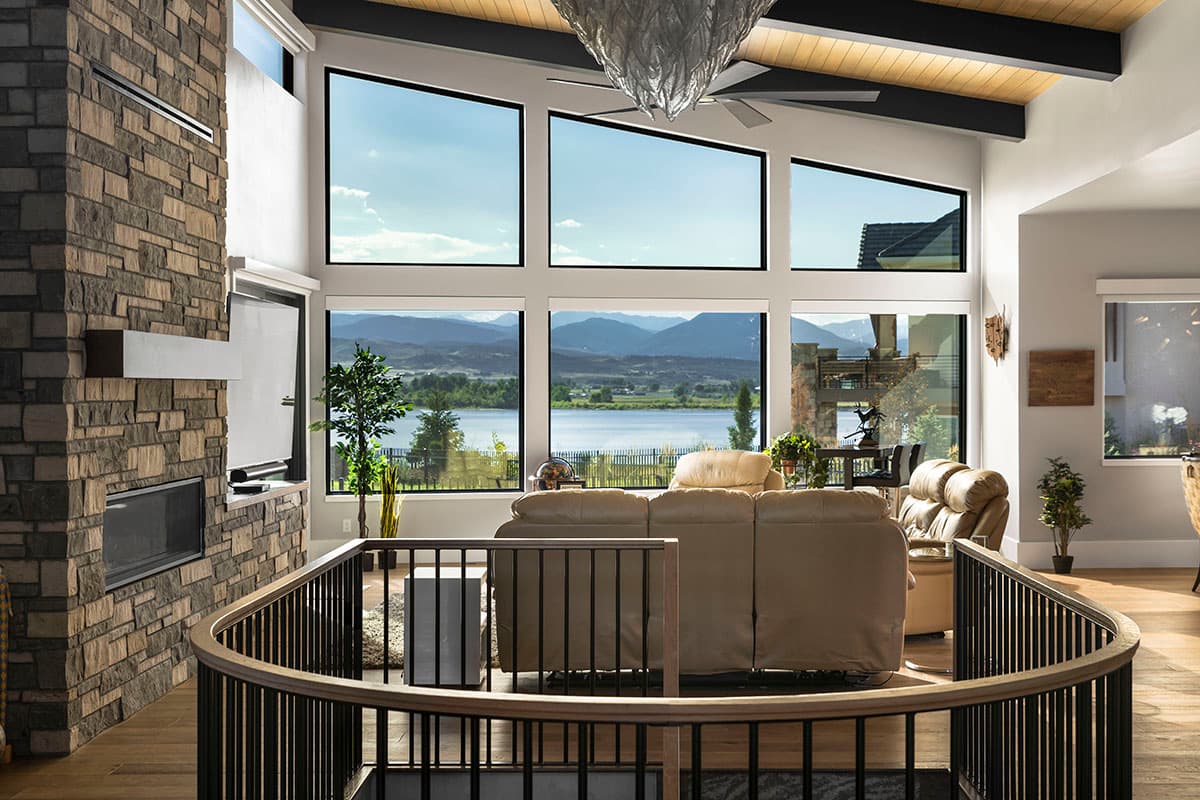

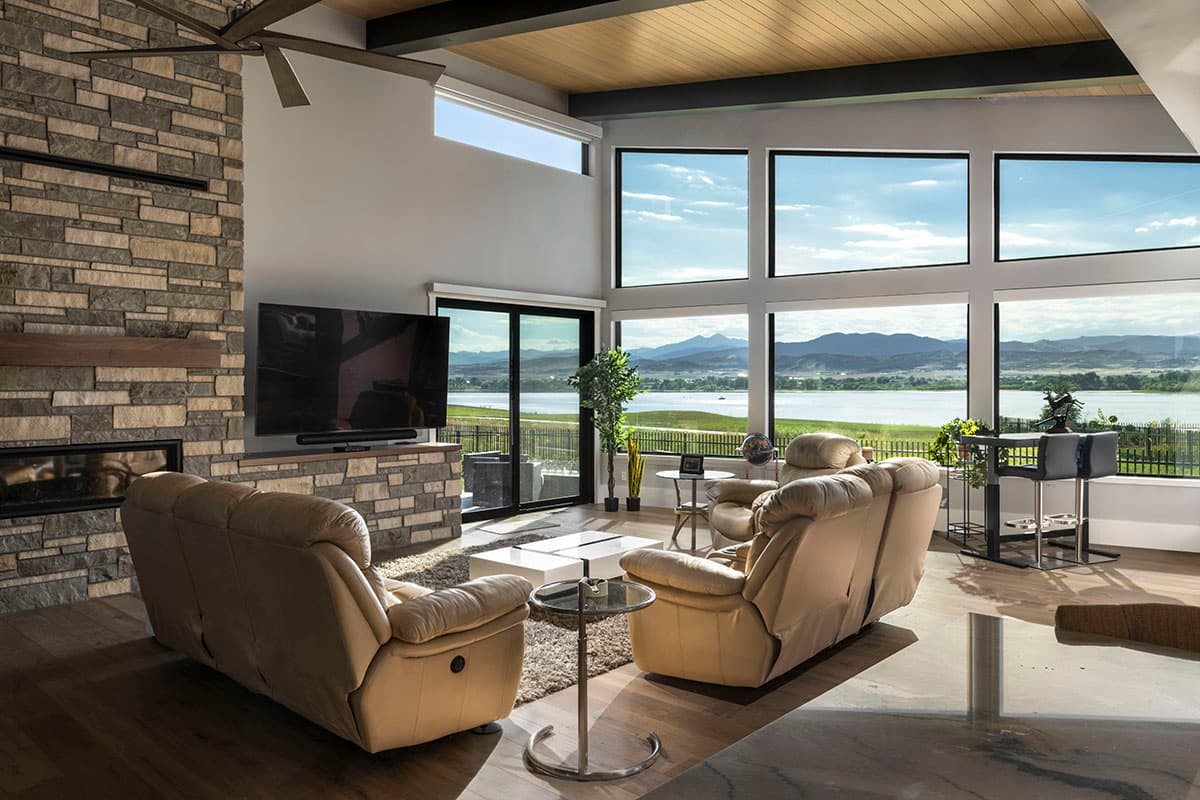

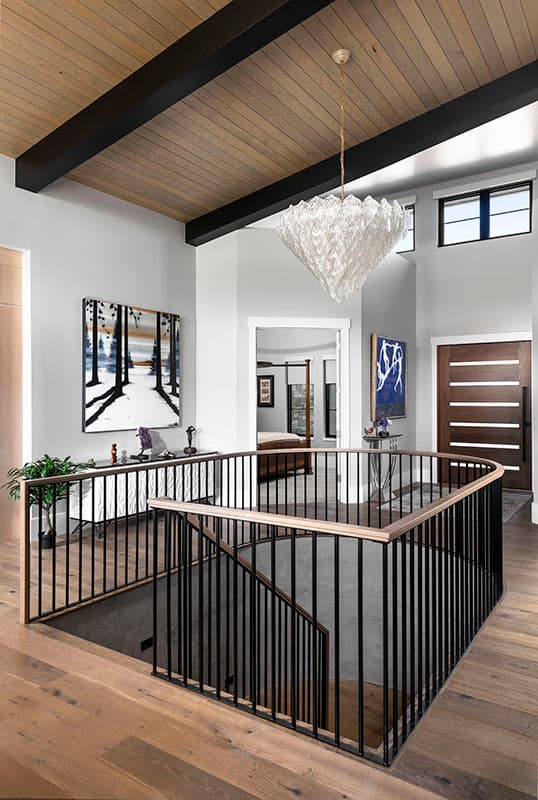

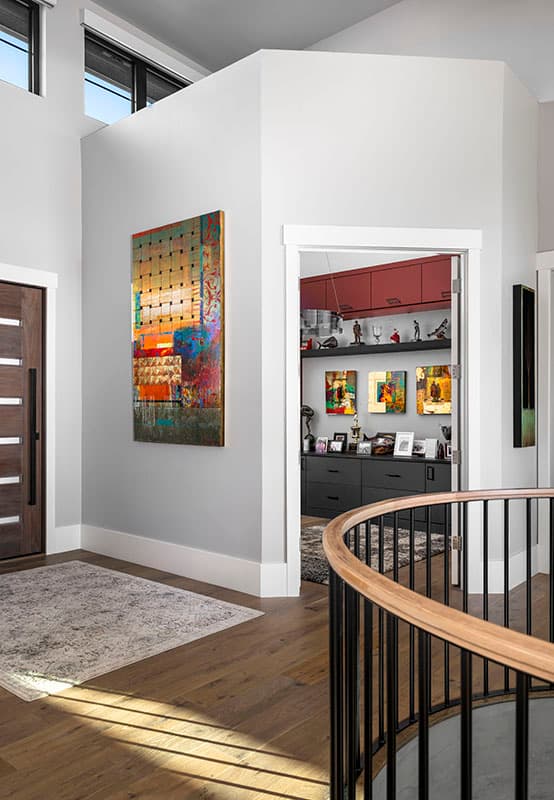

  • A 17' ceiling greets visitors in the foyer as does a view past the stairs and to the vaulted family room beyond. A bedroom and home office are to either side of the foyer.

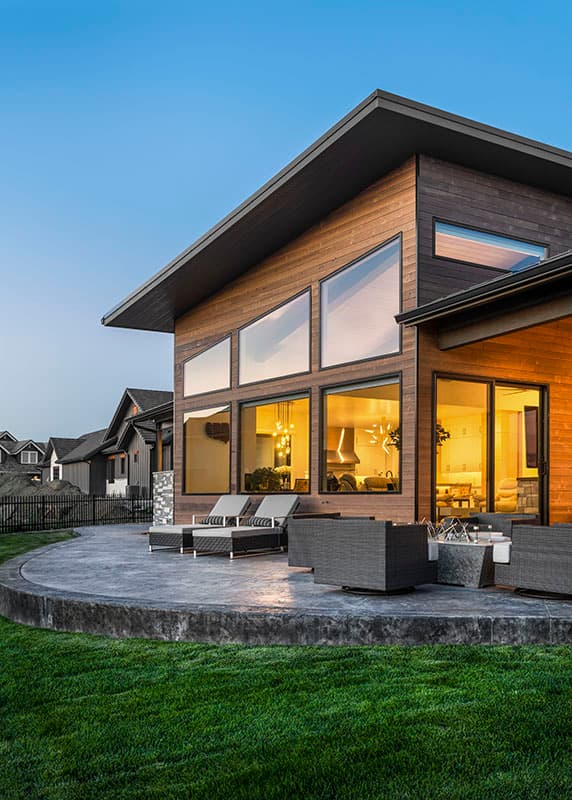

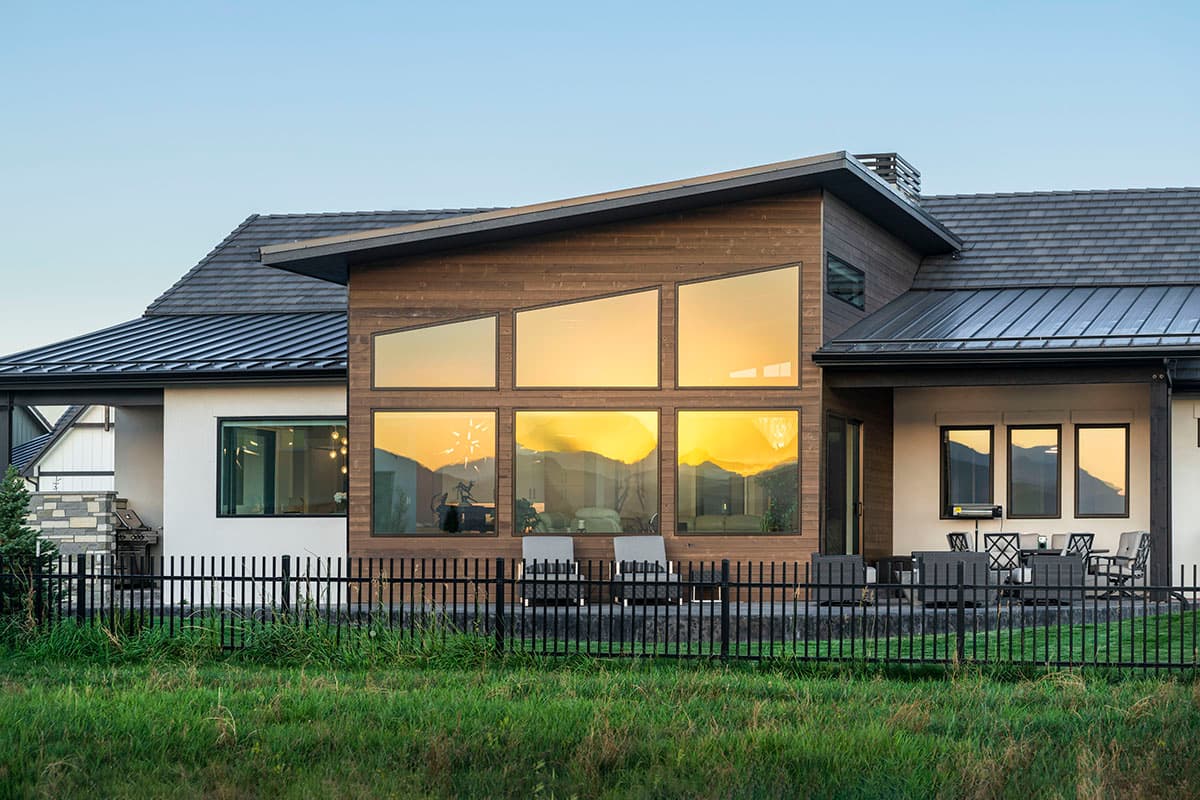

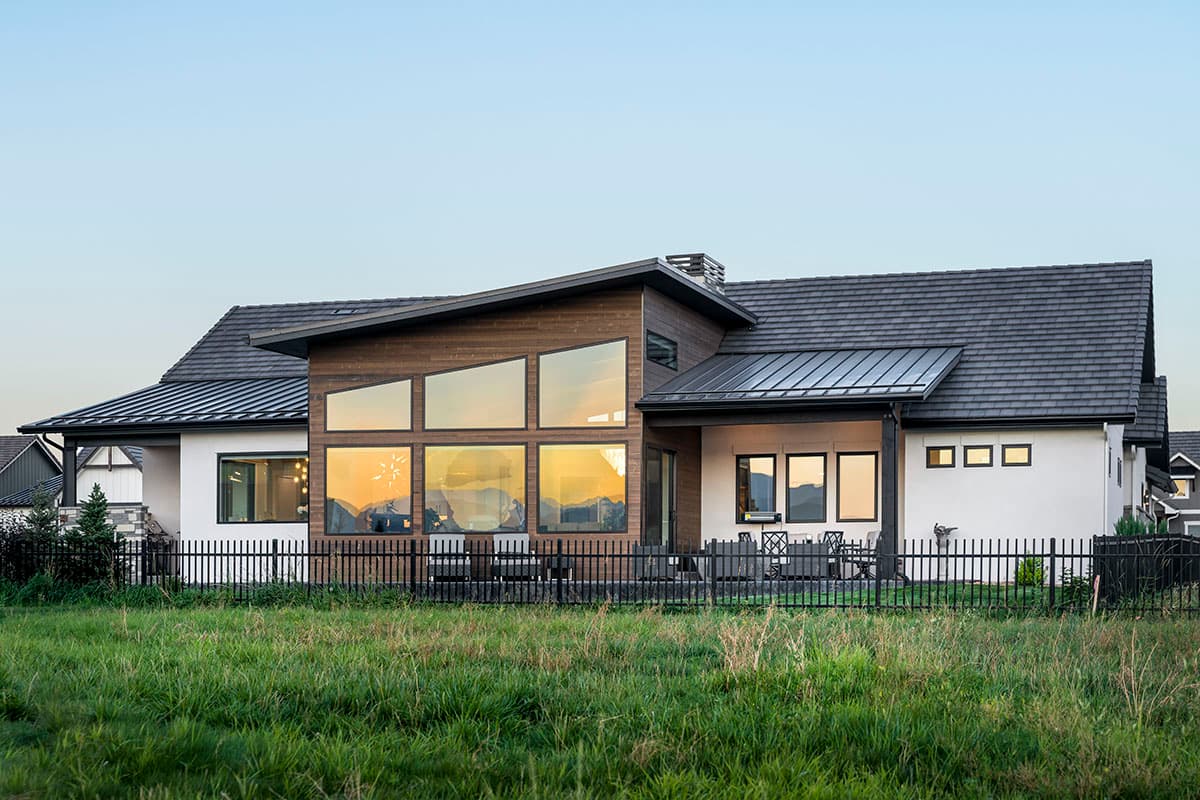

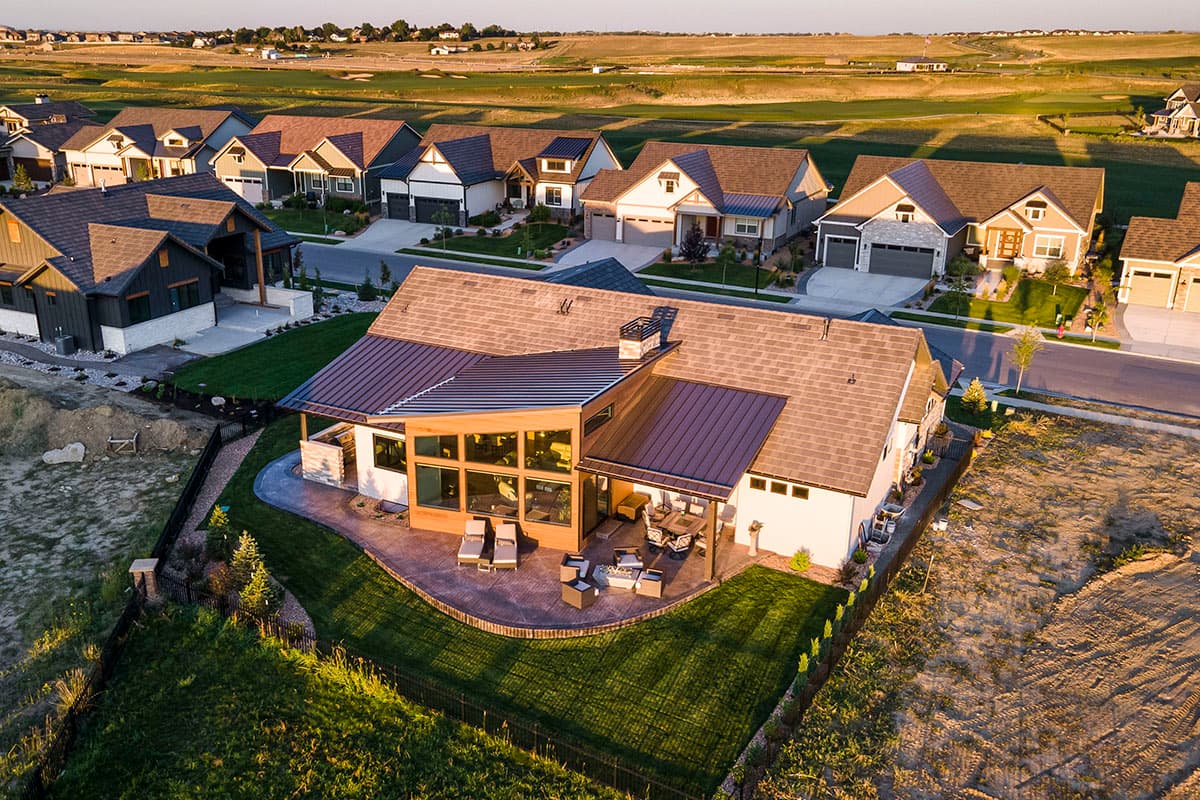

  • Sliding doors in the family room take you to to a large covered patio while a smaller patio is accessible from the dining room.

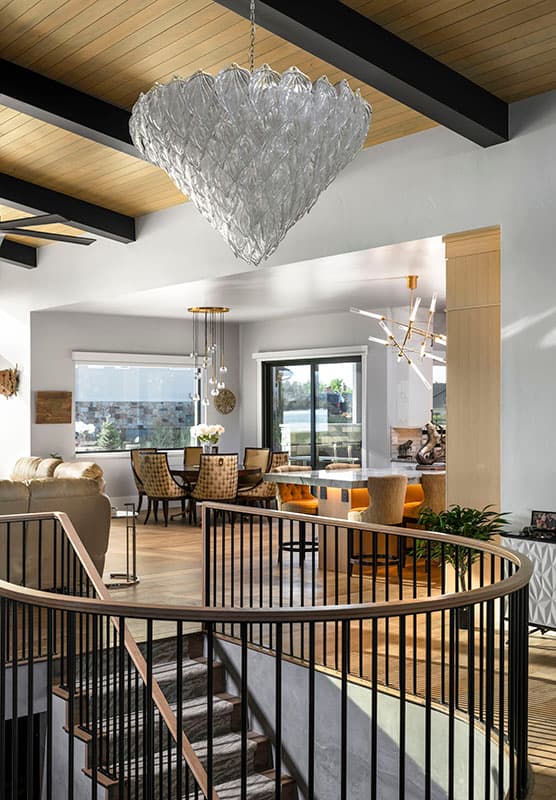

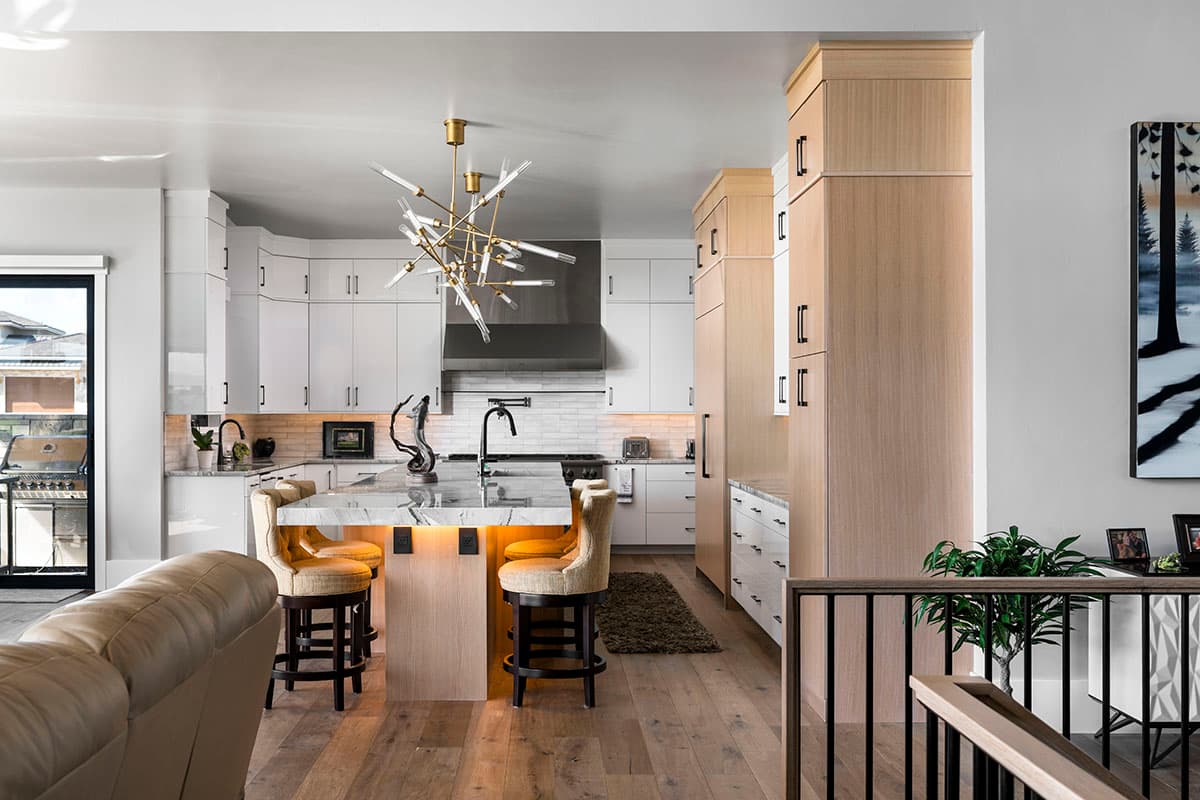

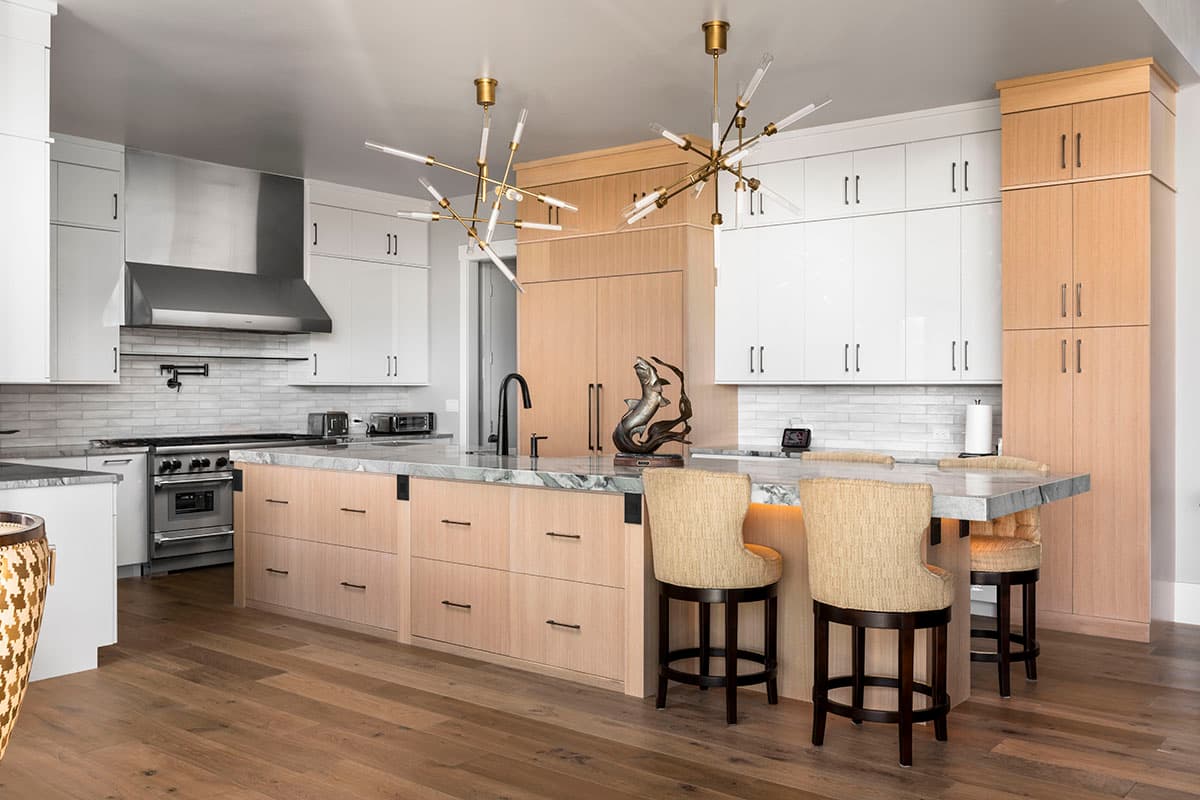

  • The kitchen has a large island with lots of seating, a walk-in pantry and easy access to the garage making unloading groceries a breeze.

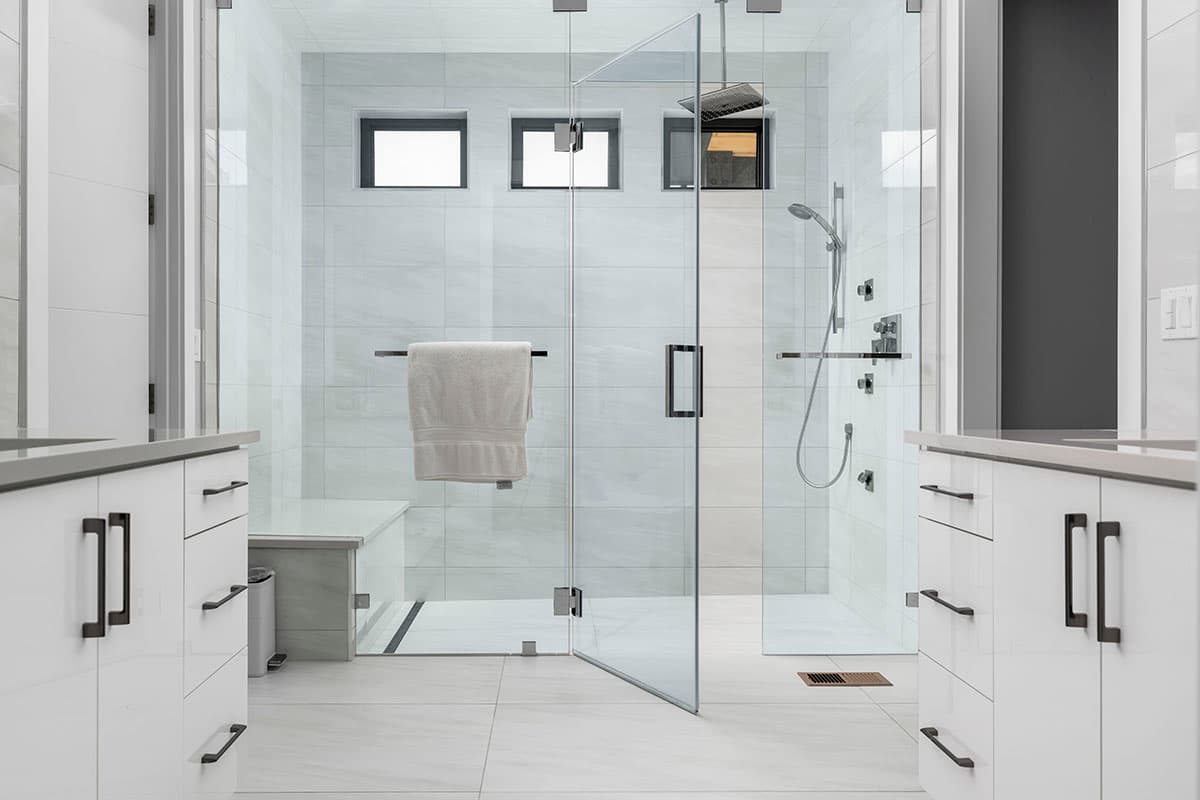

  • The master suite occupies the entire left side of the home. The 4-fixture bath is open to the walk-in closet with safe room.
  • Finish the lower level and get an additional 1,920 square feet of heated living space which includes two bedrooms, two baths and a bunch of rec space to enjoy with friends and family.

The following details are included with this house plan:
  • Cover Page

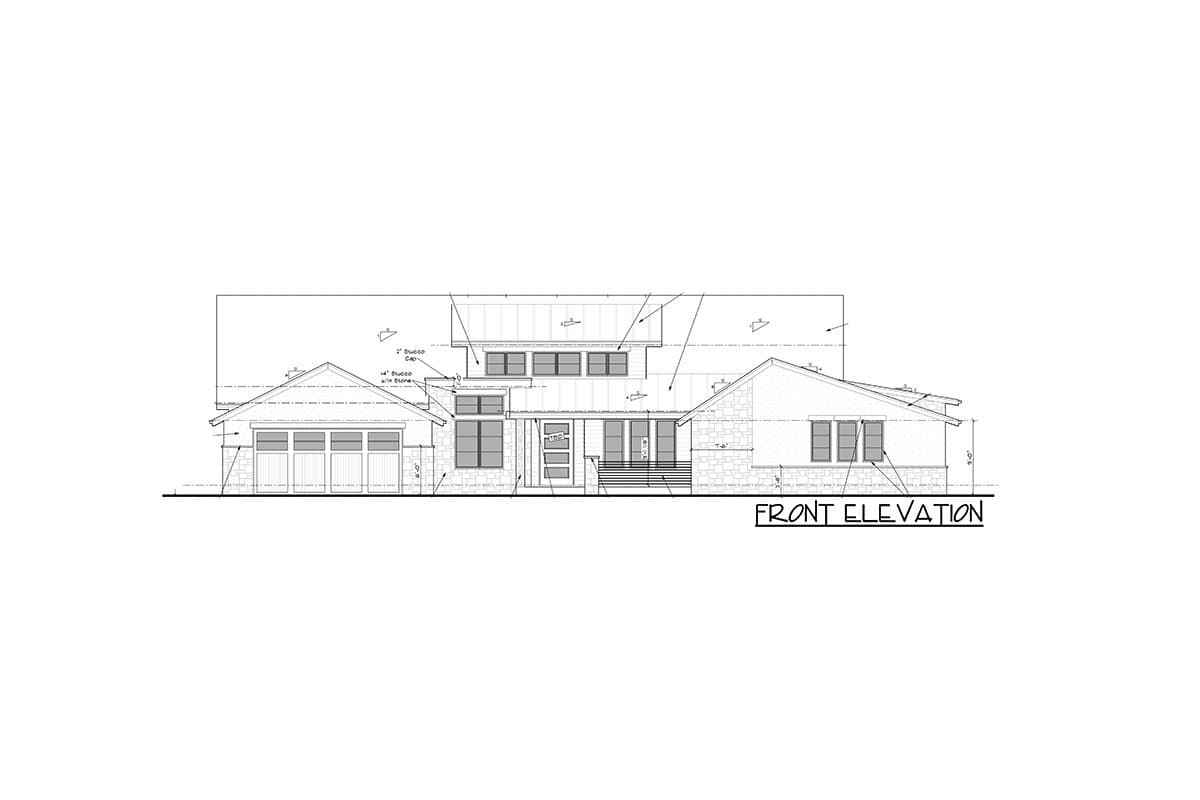

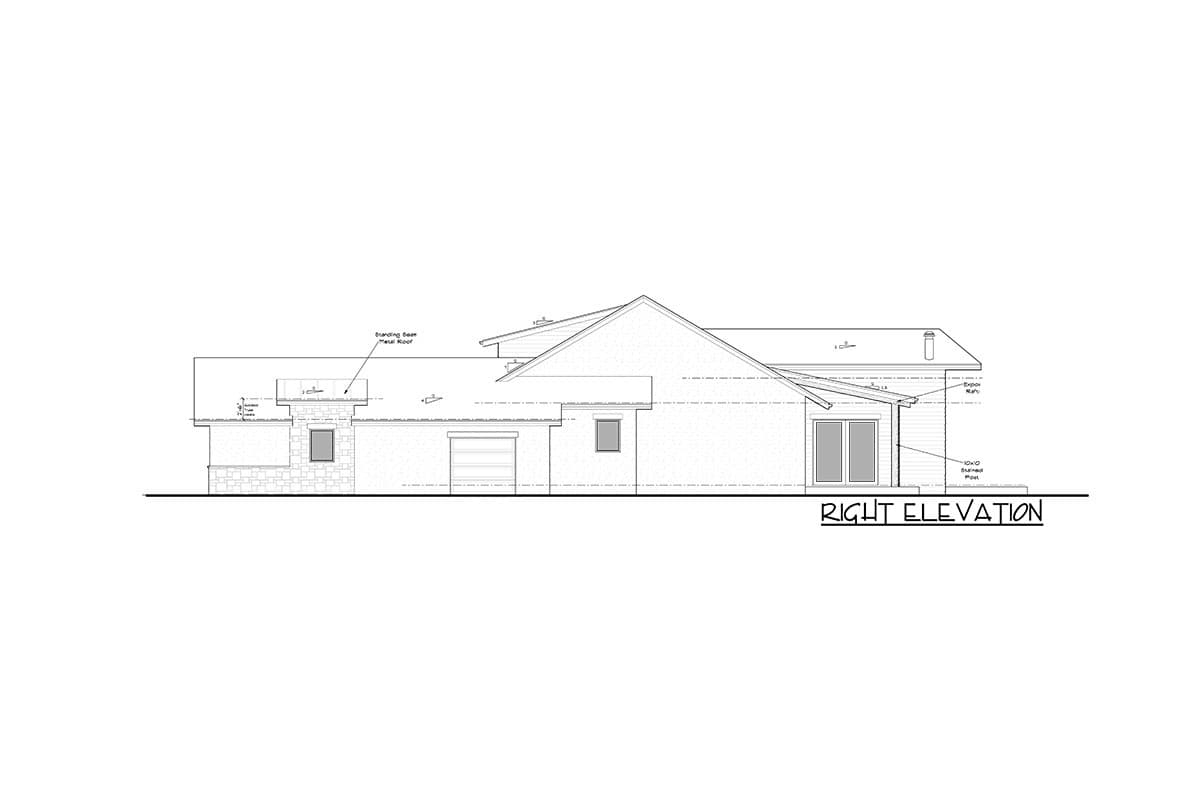

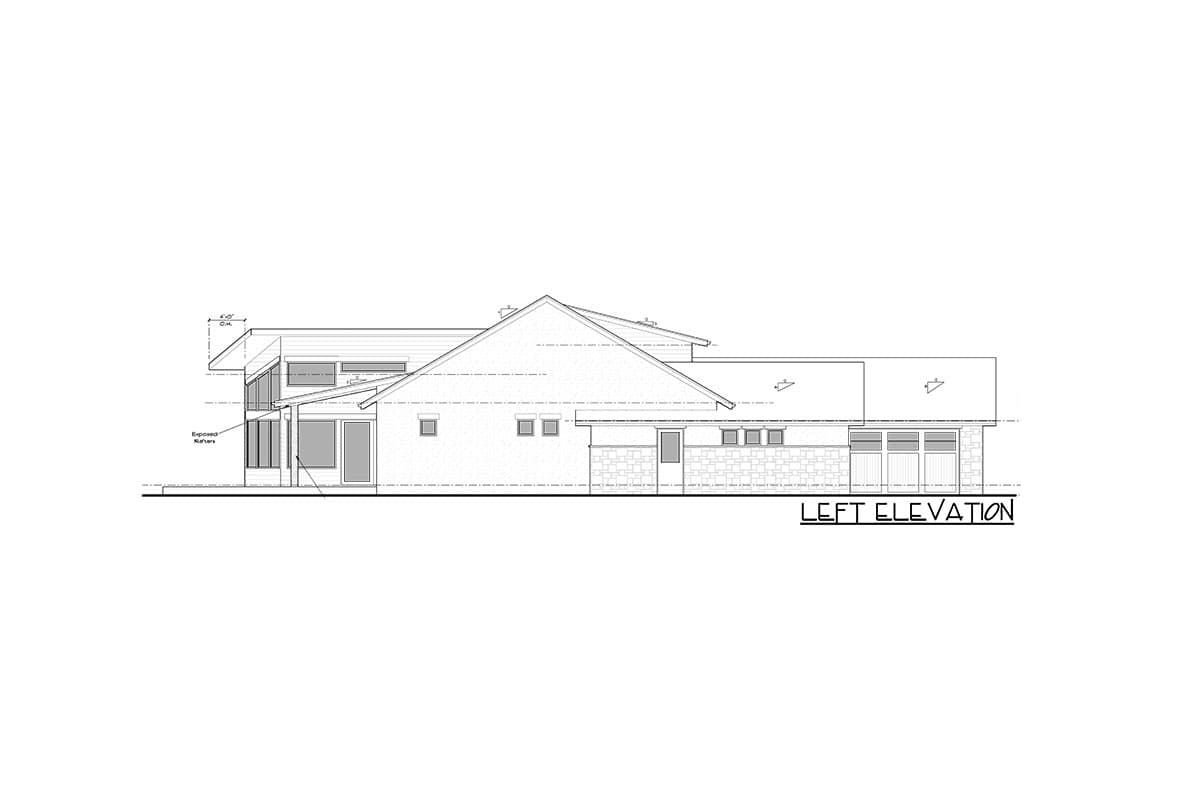

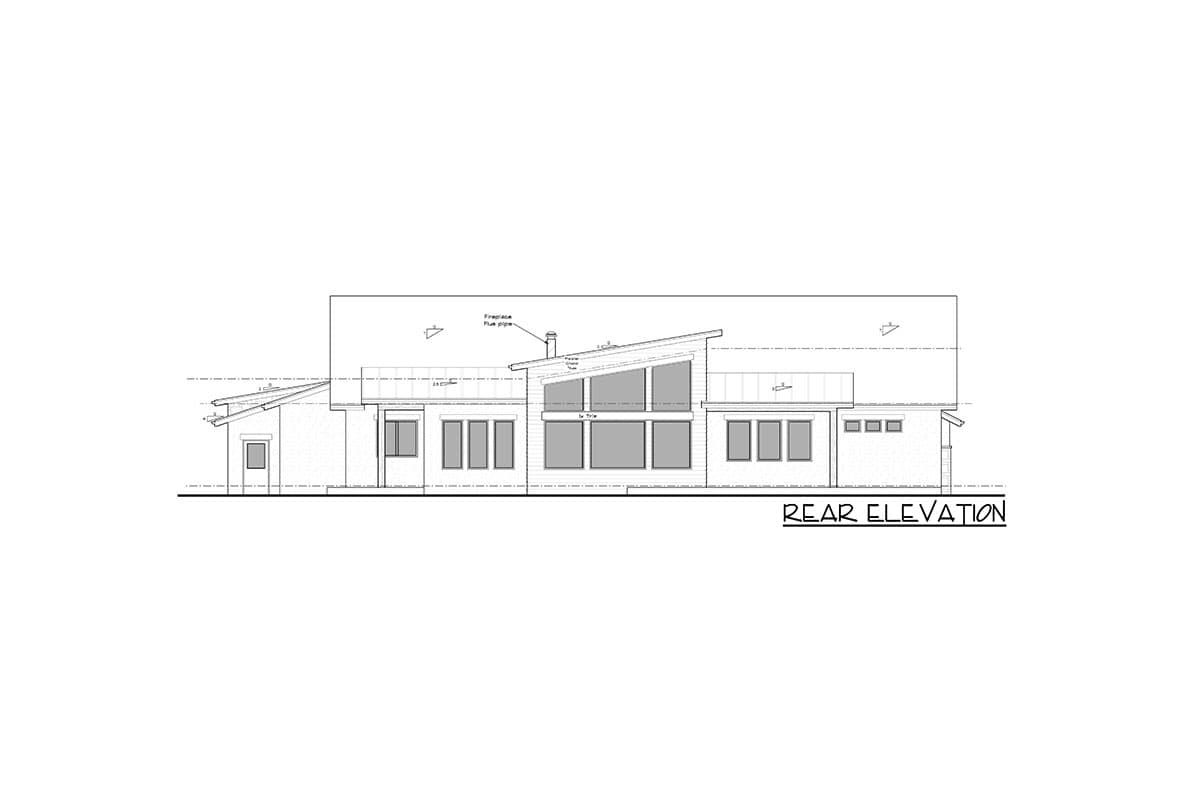

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

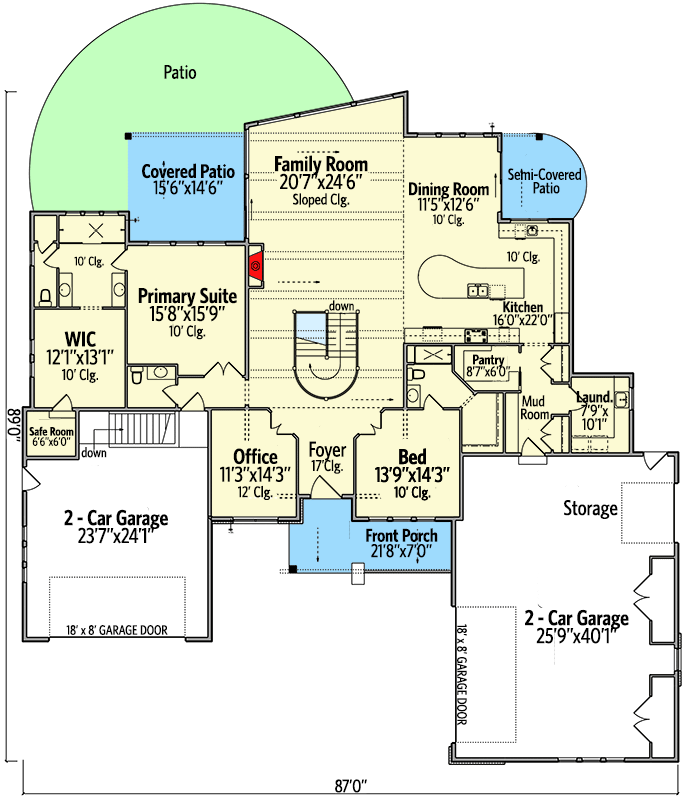

Contemporary Mountain Craftsman Home Plan Under 3000 Square Feet with 4-Car Garage - 95184RW floor plan - Main Level

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

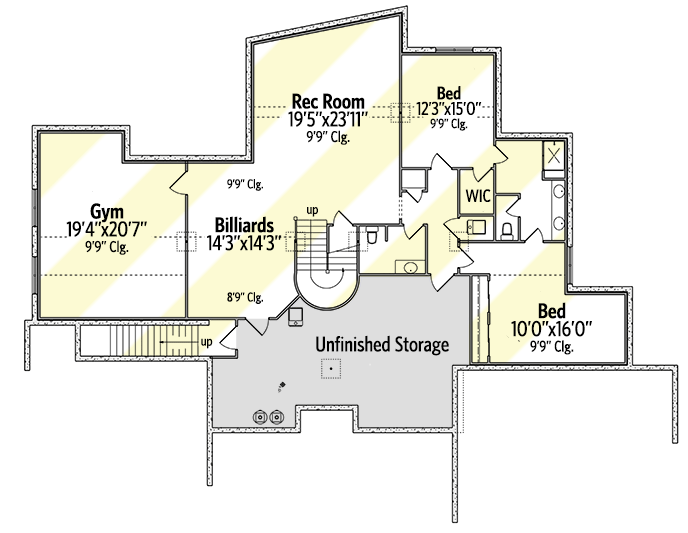

Contemporary Mountain Craftsman Home Plan Under 3000 Square Feet with 4-Car Garage - 95184RW floor plan - Optional Lower Level

Contemporary Mountain Craftsman Home Plan Under 3000 Square Feet with 4-Car Garage

  • 2,956

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,956 sq. ft.
  • 1st Floor: 2,956 sq. ft.

Dimensions

  • Width: 87' 0"
  • Depth: 89' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1920 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
