Plan 68970VR Contemporary Mountain Home Plan with Rec Room, Gym and Ladder-accessible Loft

2,184 2 2 2-3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Mountain Home Plan with Rec Room, Gym and Ladder-accessible Loft

Plan 68970VR

  • 2,184

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2-3

    Stories

  • Deep overhangs extend from the sloped roof on this Contemporary Mountain home plan.
  • The ground level gives you a rec room with outdoor access and a gym, plus a bedroom, huge pantry/laundry room and the formal entry on the side.
  • The heart of the home is located on the second level with a vaulted ceiling offering grand views for the combined family room and kitchen.
  • U-shaped cabinets form the kitchen and an eating bar provides a comfortable and casual space for meals.
  • The primary bedroom resides also on the second level and has a massive walk-in closet.
  • A step ladder in the family room leads to a charming art loft above the bedroom.
  • Related Plan: Rearrange the space with house plan 68802VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

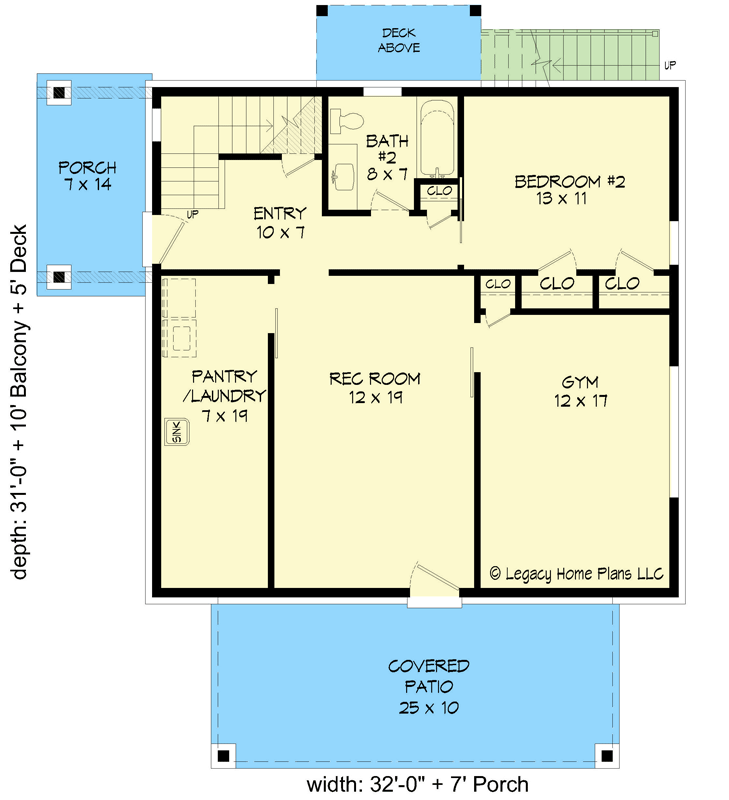

Contemporary Mountain Home Plan with Rec Room, Gym and Ladder-accessible Loft - 68970VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Mountain Home Plan with Rec Room, Gym and Ladder-accessible Loft - 68970VR floor plan - 2nd Floor

Loft

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

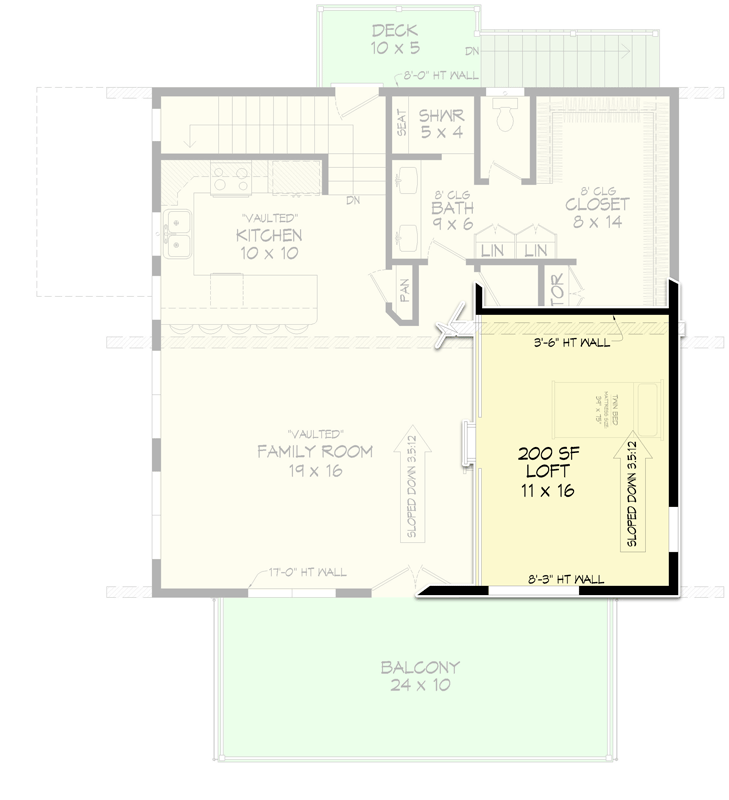

Contemporary Mountain Home Plan with Rec Room, Gym and Ladder-accessible Loft - 68970VR floor plan - Loft

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,184 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Covered Patio: 250 sq. ft.
  • Balcony / Veranda: 240 sq. ft.
  • Deck: 145 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 46' 0"
  • Max ridge height: 30' 6"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0"
Room Details Ceiling Type Width Depth Height
Family Room Slope 8' 0" to 17' 0"
Kitchen Slope 8' 0" to 17' 0"
Bedroom 1 Slope 8' 0" to 17' 0"
Loft Slope 5' 6" to 8' 3"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Contemporary Mountain Home Plan with Rec Room, Gym and Ladder-accessible Loft

  • 2,184

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2-3

    Floors

Buy This Plan
  • PDF - Single-Build $1,275
  • 5 Sets $1,360
  • 5 Sets + PDF $1,494
  • CAD + PDF - Single-Build $1,825
  • View all purchase option online

About This Plan

  • Deep overhangs extend from the sloped roof on this Contemporary Mountain home plan.
  • The ground level gives you a rec room with outdoor access and a gym, plus a bedroom, huge pantry/laundry room and the formal entry on the side.
  • The heart of the home is located on the second level with a vaulted ceiling offering grand views for the combined family room and kitchen.
  • U-shaped cabinets form the kitchen and an eating bar provides a comfortable and casual space for meals.
  • The primary bedroom resides also on the second level and has a massive walk-in closet.
  • A step ladder in the family room leads to a charming art loft above the bedroom.
  • Related Plan: Rearrange the space with house plan 68802VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Loft

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,184 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Covered Patio: 250 sq. ft.
  • Balcony / Veranda: 240 sq. ft.
  • Deck: 145 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 46' 0"
  • Max ridge height: 30' 6"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
