Contemporary Mountain Home Plan with Walk-out Lower Level
Heated S.F.
4,774
Beds
4
Baths
5.5
Stories
1
Cars
3
What's Included
Plan Details
  • The walk-out lower level of this Contemporary Mountain home plan makes it perfect for waterfront properties, while the spacious interior is rich with lavish features.
  • The gourmet kitchen provides a T-shaped island, serving as both workspace and casual dining space, and the nearby walk-in pantry offers plenty of room for canned goods and large appliances.
  • The owner's bedroom consumes the right side of the main level and boasts a private deck, fireplace, 5-fixture ensuite, and a walk-in closet that connects with the laundry room.
  • A second bedroom on the main level is ideal for guests, while the remaining 2 bedrooms can be found downstairs, along with a flex room and generous family room that leads to a lower patio.
  • Enter from the 3-car garage garage to find a mudroom with a nearby powder bath.
What's Included
  • Cover Sheet

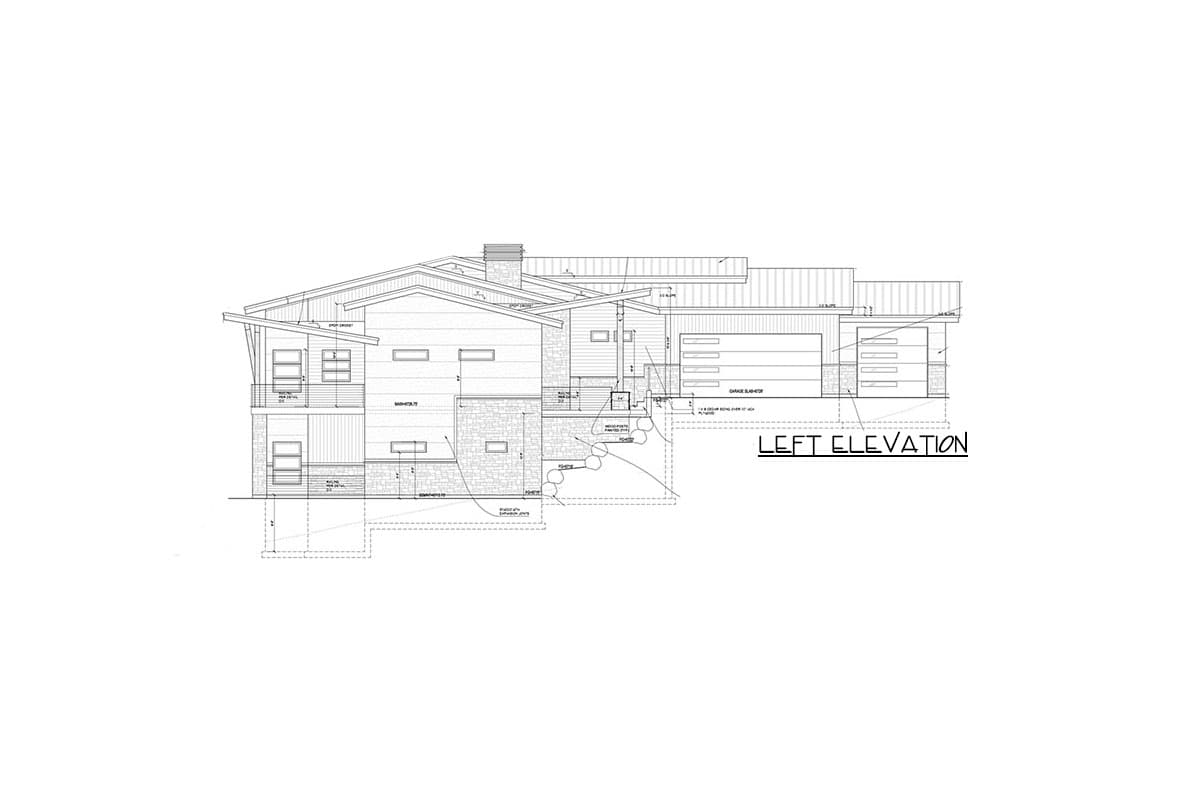

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Mountain Home Plan with Walk-out Lower Level

  • 4,774

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

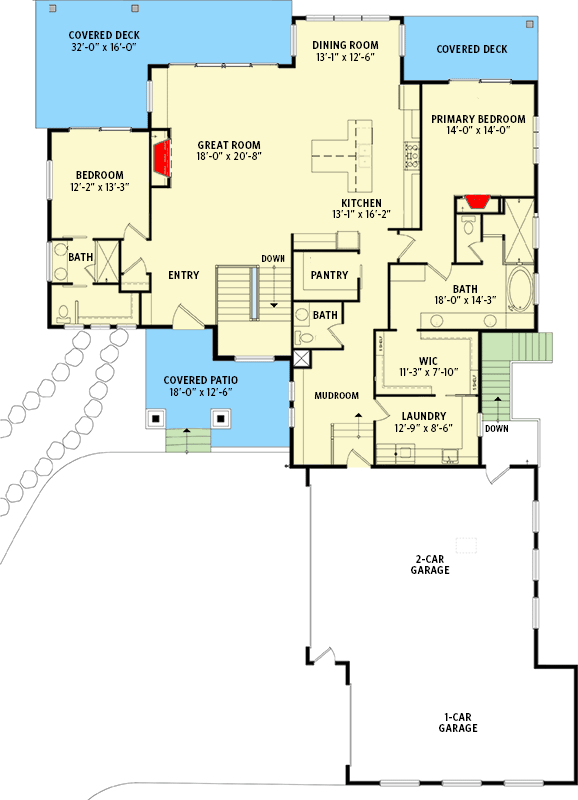

  • Main Level

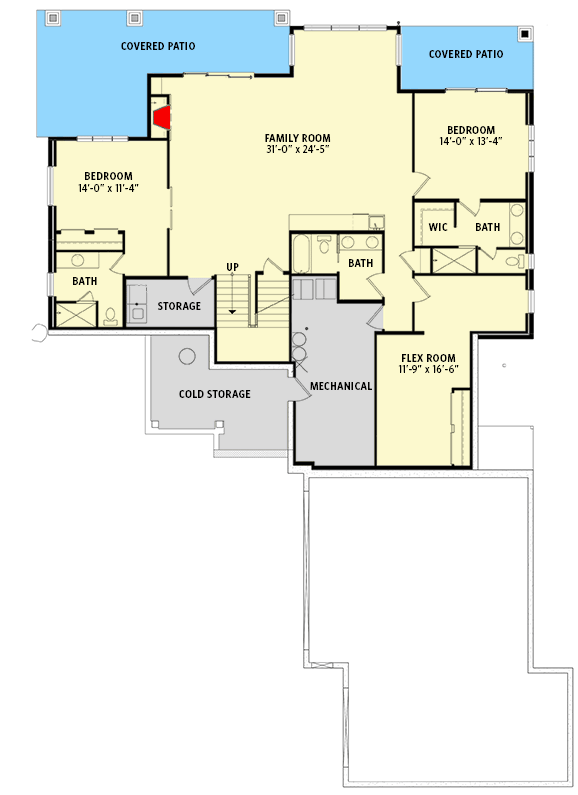

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,774 sq. ft.
  • Lower Level: 2,341 sq. ft.
  • 1st Floor: 2,433 sq. ft.

Dimensions

  • Width: 67' 9"
  • Depth: 98' 0"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1150 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
