Plan 400009FTY

Exclusive

Contemporary Mountain House Plan with Vaulted Great Room and Loft - 2212 Sq Ft

Heated S.F.
2,212
Beds
3
Baths
3
Stories
2

Floor Plan

Plan 400009FTY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 400009FTY

M-F 9am-5pm EST |

1-203-761-8500

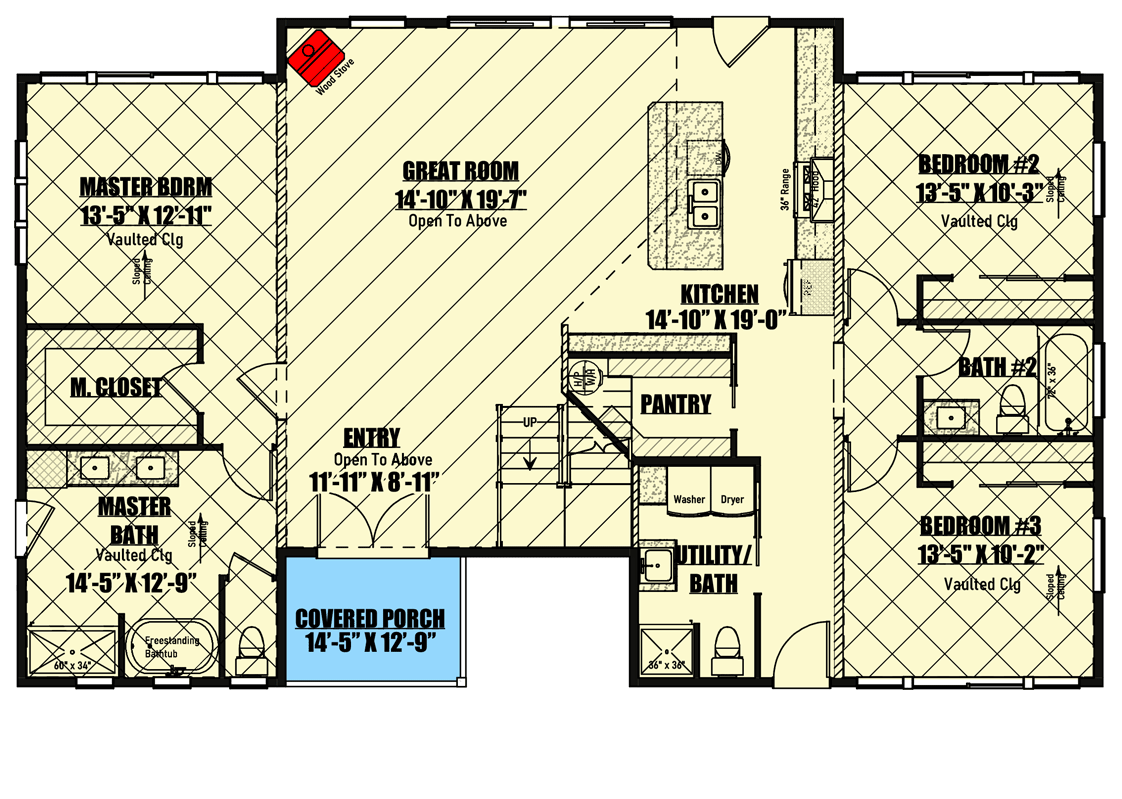

Main Level

Plan 400009FTY: Contemporary Mountain House Plan with Vaulted Great Room and Loft - 2212 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Mountain

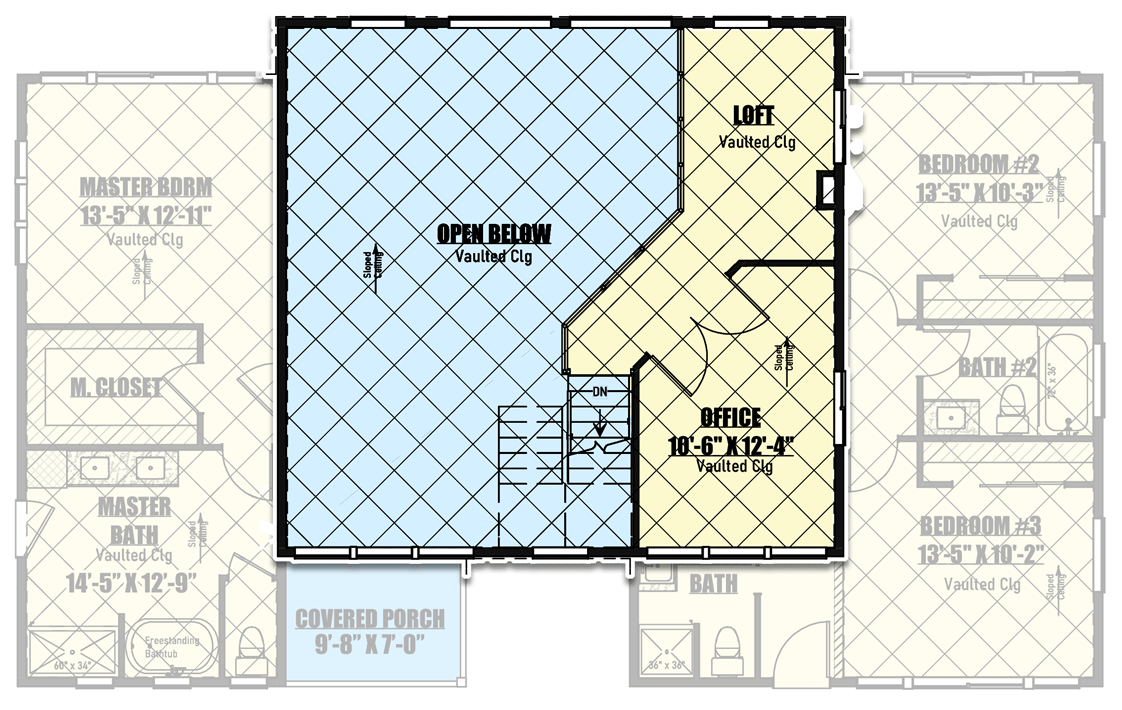

2nd Floor

Plan 400009FTY: Contemporary Mountain House Plan with Vaulted Great Room and Loft - 2212 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Mountain

Plan Details

  • This Contemporary house plan is exclusive to Architectural Designs and presents a single-sloped, allowing natural light to fill the interior through oversized windows.
  • Tall ceilings above the great room expand the space vertically while a corner wood stove adds to the ambiance.
  • The island kitchen provides an eating bar for snacks and a nearby pantry rests behind a pocket door.
  • The master bedroom occupies the left side of the design, while bedrooms 2 and 3 are mirror images of one another along the right side. Each of the main-level bedrooms provide access to the outdoors.
  • A loft offers a flex space upstairs and neighbors a home office that could easily convert into a bedroom.

What's Included

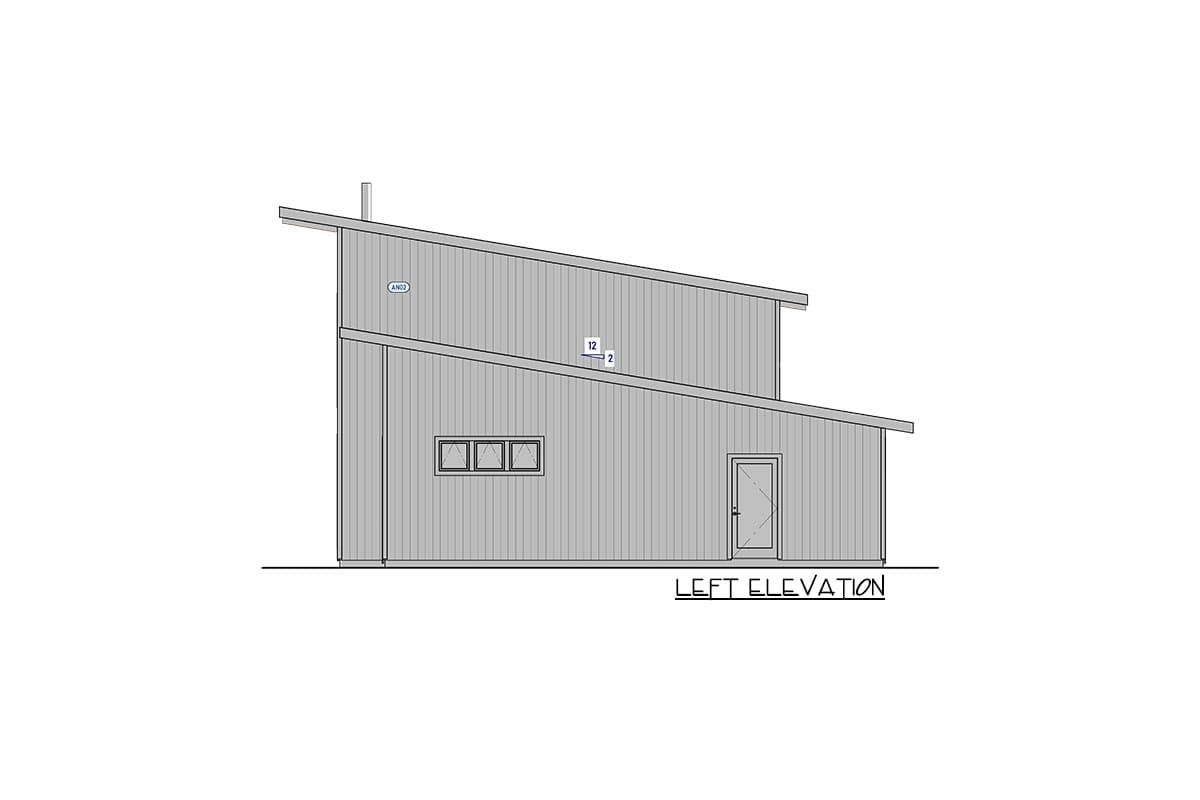

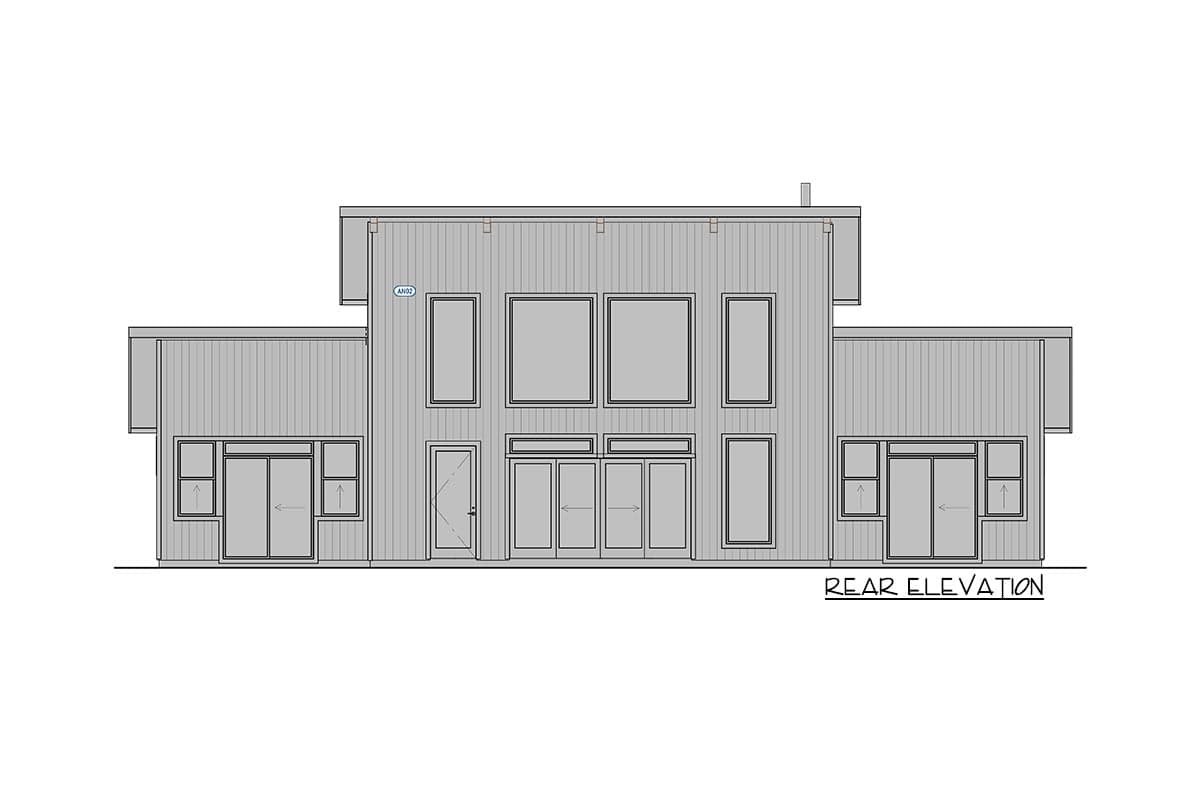

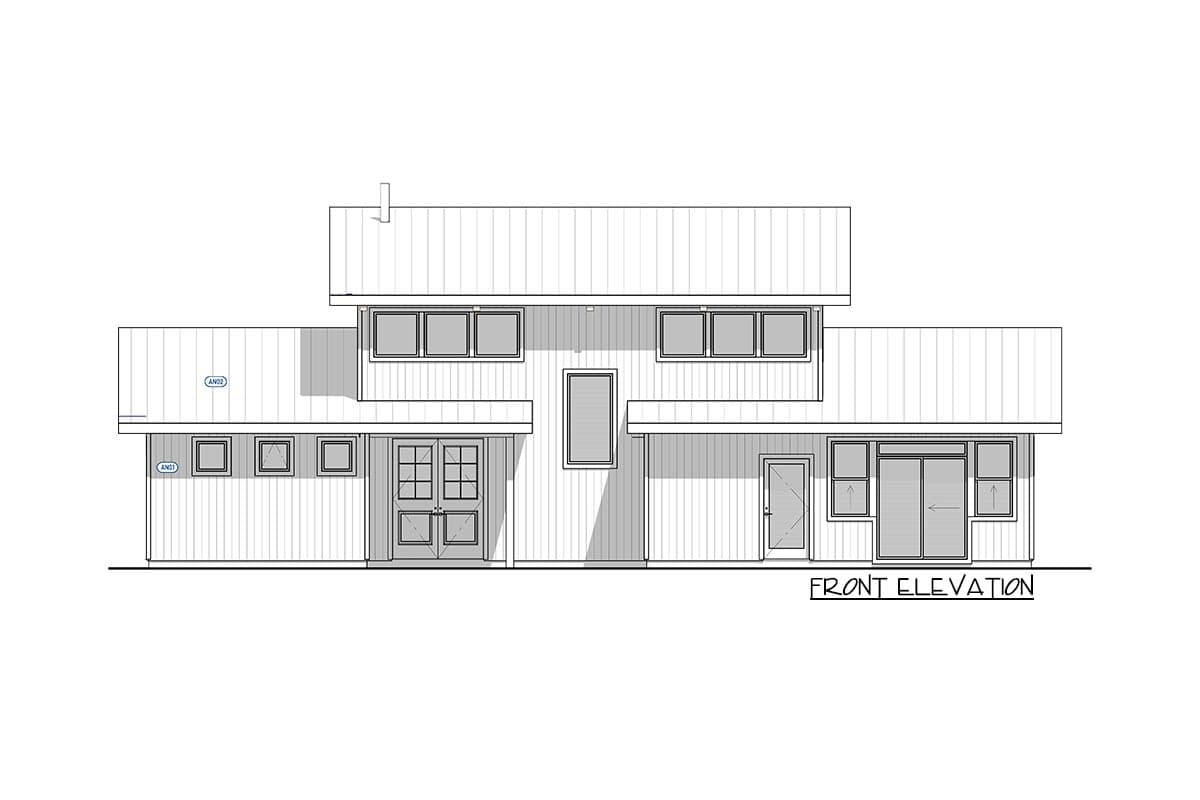

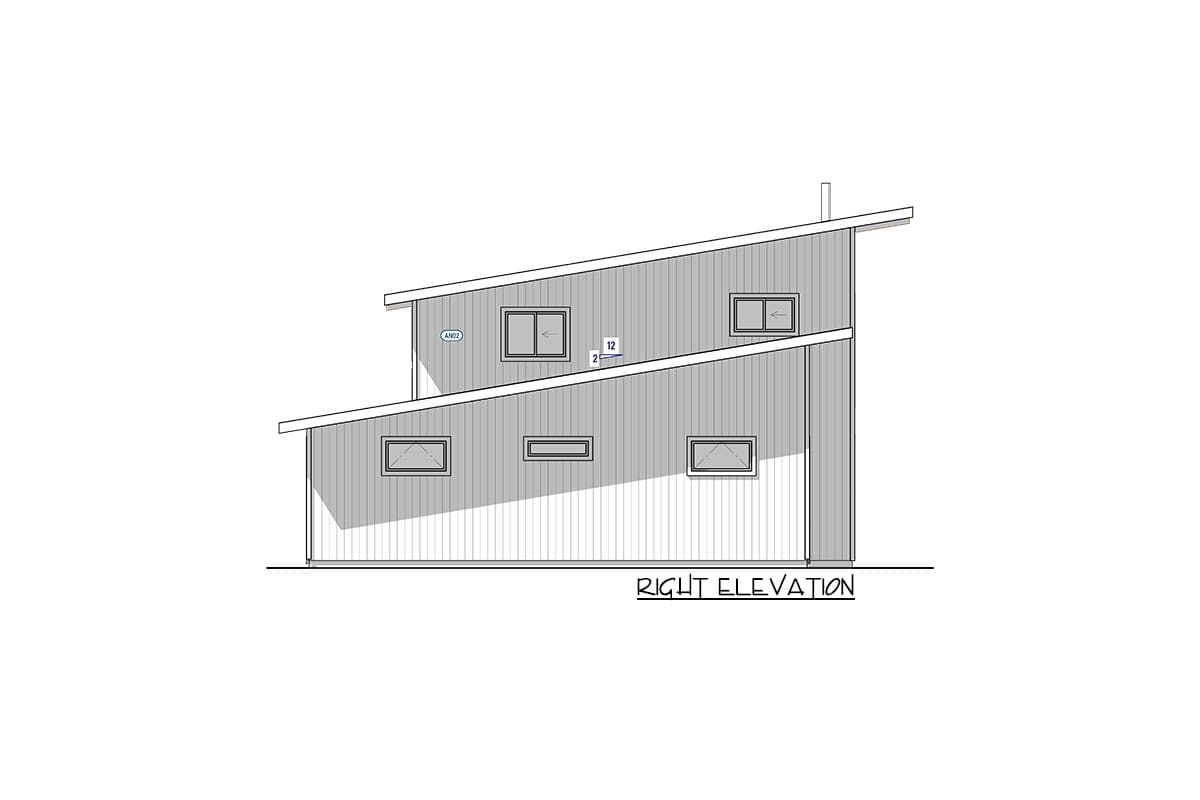

  • Building elevations
  • Detailed Floor Plan
  • Window and Door schedules
  • Roof Plan
  • Electrical Plan - Suggested lighting, ceiling fan, switches and smoke/CO detector placement.
  • Standard and typical details
  • General notes and specifications
  • Foundation Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

1,892 sq. ft.

2nd Floor

320 sq. ft.

Porch, Front

68 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 6"

Depth

39' 0"

Max Ridge Height

23' 4"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Mountain

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Loft

Two Story Great Room

Walk-in Pantry

Plan Collections

Exclusive
