Contemporary Multi-Family Home Plan

Plan 90227PD

  • 2,244

    Heated s.f.

  • 2

    Units

  • 56' 0"

    Width

  • 51' 0"

    Depth

  • A Contemporary exterior highlights this multi-family home with stone accents. Each unit deliver 1,122 square feet of living space.
  • Inside an open floor plan makes the most of the space.
  • Two bedrooms share the large bathroom with both a tub and shower.
  • Sliding glass doors in the living room open to the rear deck.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

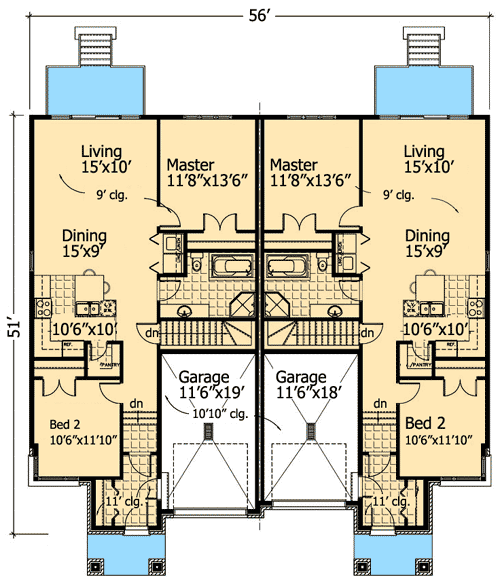

Contemporary Multi-Family Home Plan - 90227PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,244 sq. ft.
  • 1st Floor: 2,244 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 51' 0"

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Multi-Family Home Plan

  • 2,244

    Heated s.f.

  • 2

    Units

  • 56' 0"

    Width

  • 51' 0"

    Depth

Buy This Plan
  • 5 Sets $1,389
  • 8 Sets $1,436
  • PDF - Single-Build $1,805
  • CAD - Single-Build $2,825
  • View all purchase option online

About This Plan

  • A Contemporary exterior highlights this multi-family home with stone accents. Each unit deliver 1,122 square feet of living space.
  • Inside an open floor plan makes the most of the space.
  • Two bedrooms share the large bathroom with both a tub and shower.
  • Sliding glass doors in the living room open to the rear deck.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,244 sq. ft.
  • 1st Floor: 2,244 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 51' 0"

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
Plan 90227PD
View this and more for this plan by visiting www.architechtecturaldesigns.com/90227PD
|
Need Help? 800-854-7852
|
