Contemporary Multi-Plex House Plan with 4 Units - 3273 Sq Ft

Heated S.F.
3,273
Units
4
Width
Depth

Floor Plan

Plan 100340GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100340GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

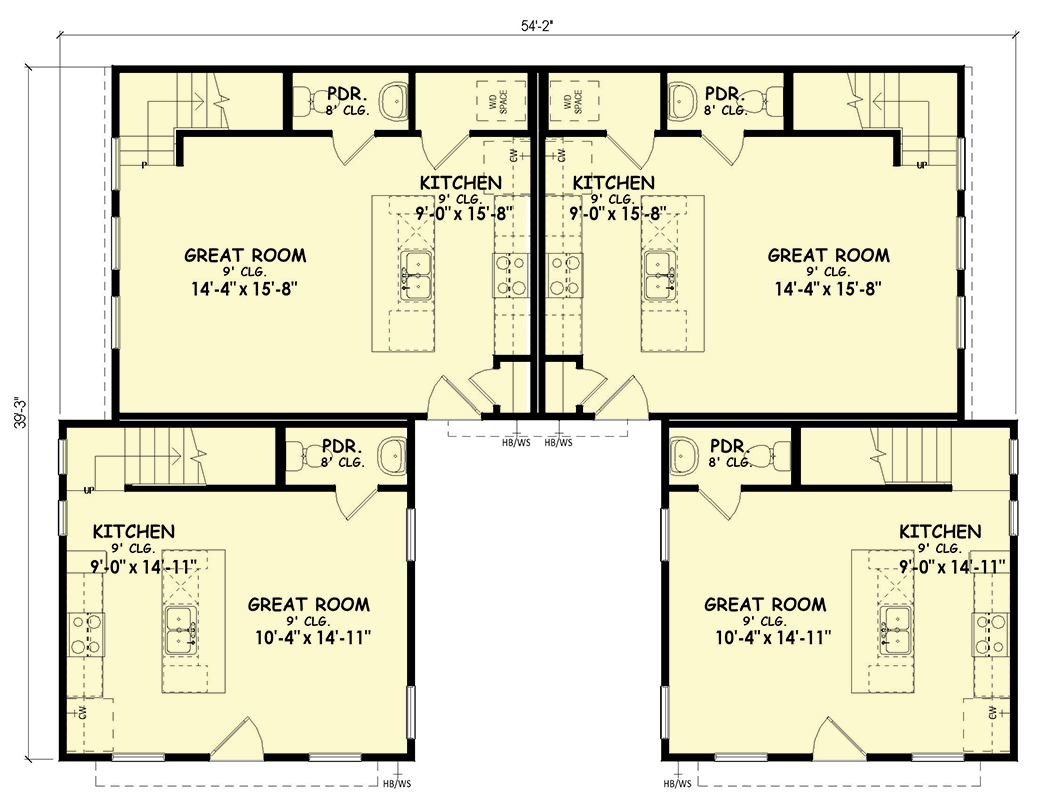

Plan 100340GHR: Contemporary Multi-Plex House Plan with 4 Units - 3273 Sq Ft - Floor Plan - Main Level - Contemporary

2nd Floor

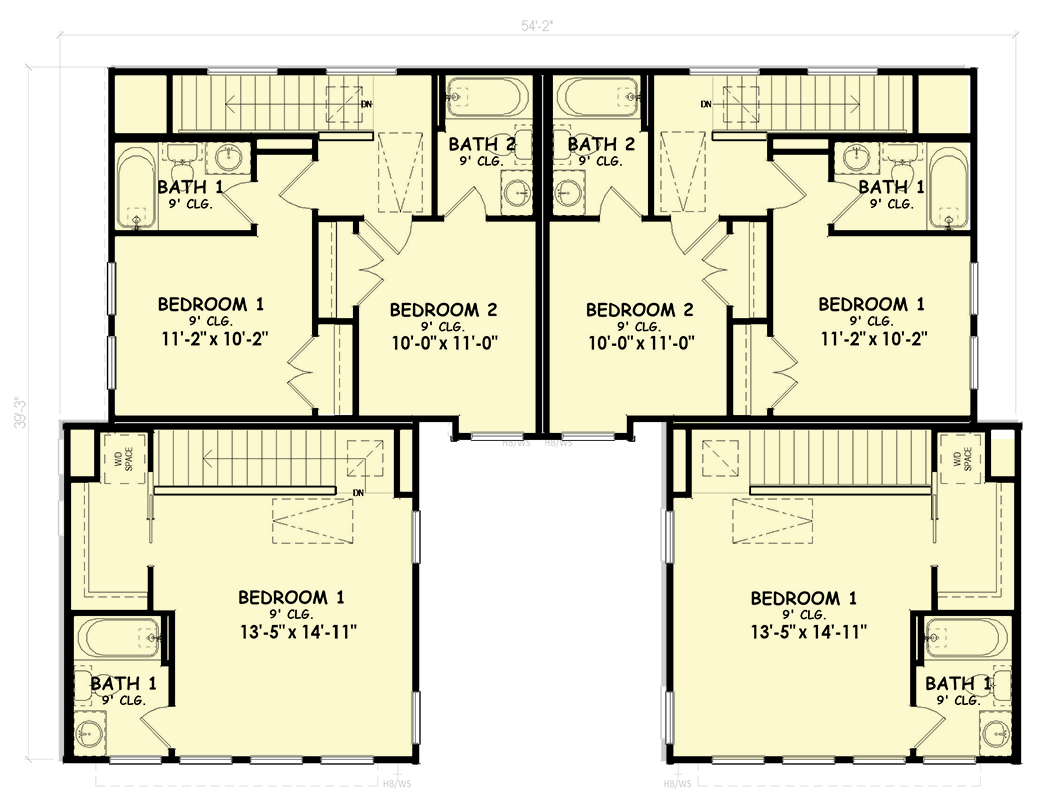

Plan 100340GHR: Contemporary Multi-Plex House Plan with 4 Units - 3273 Sq Ft - Floor Plan - 2nd Floor - Contemporary

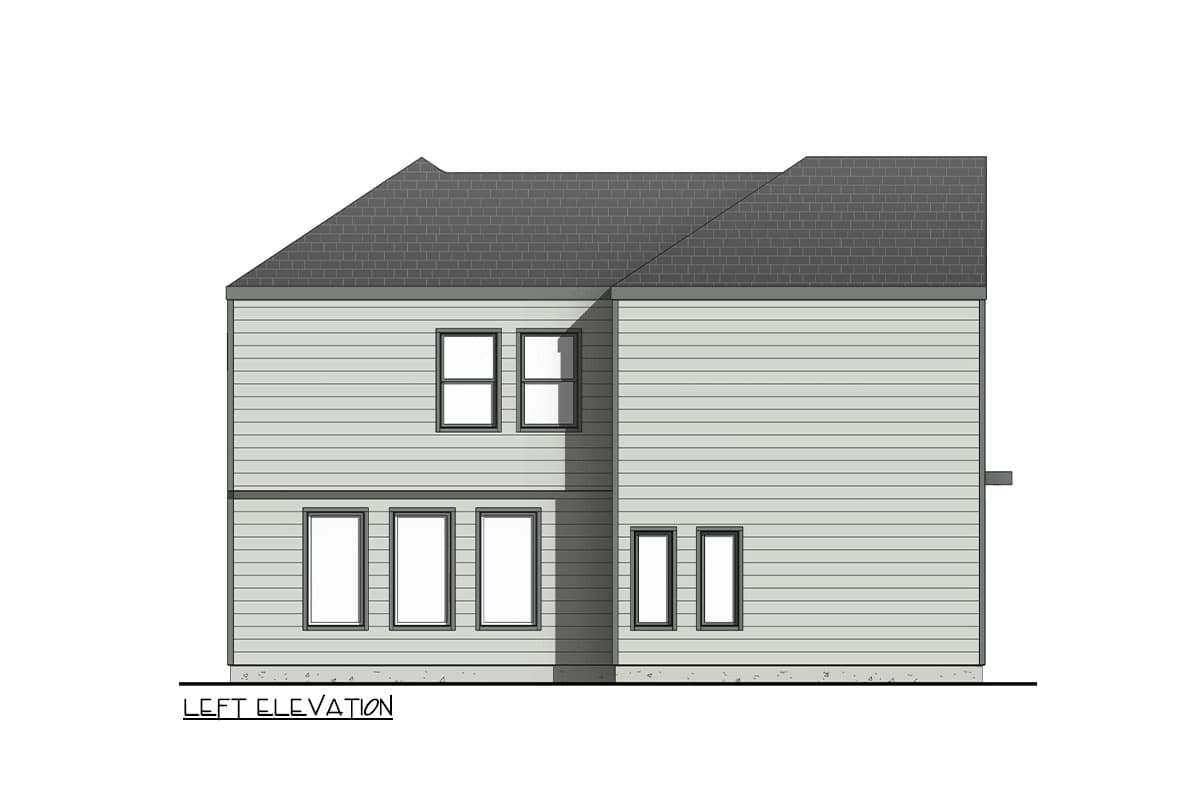

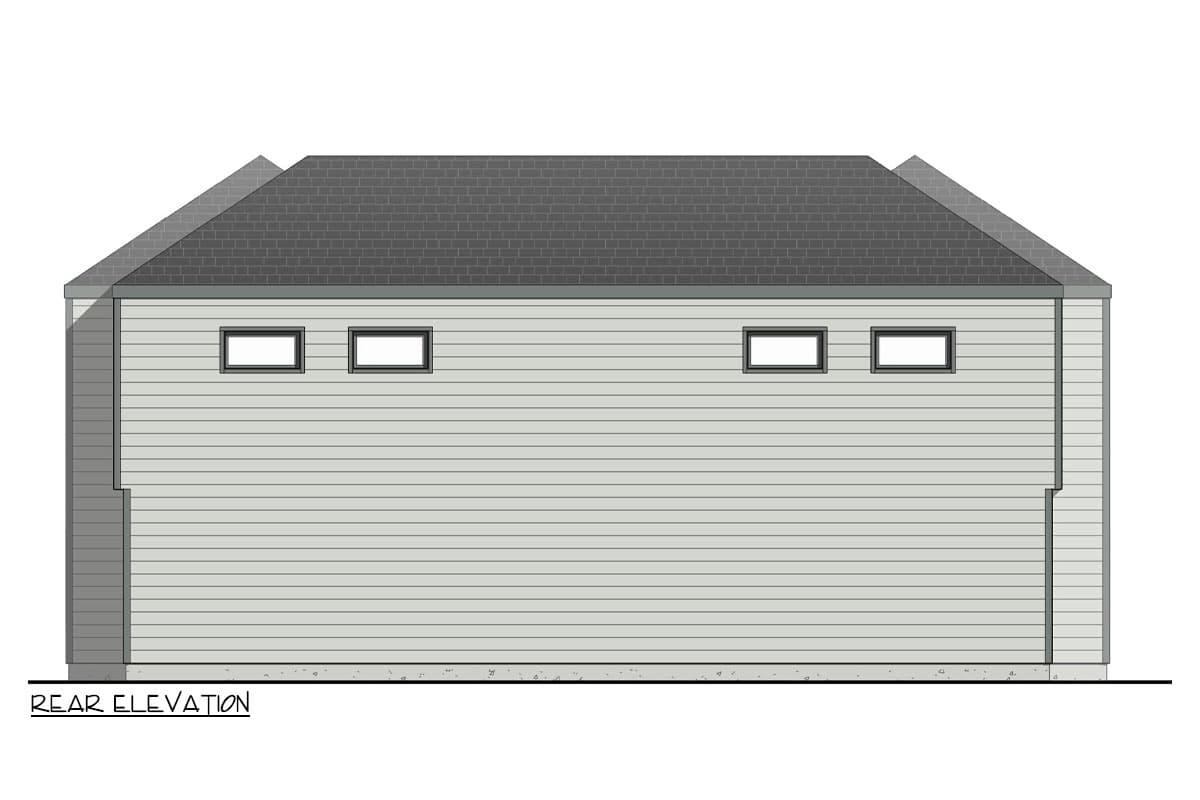

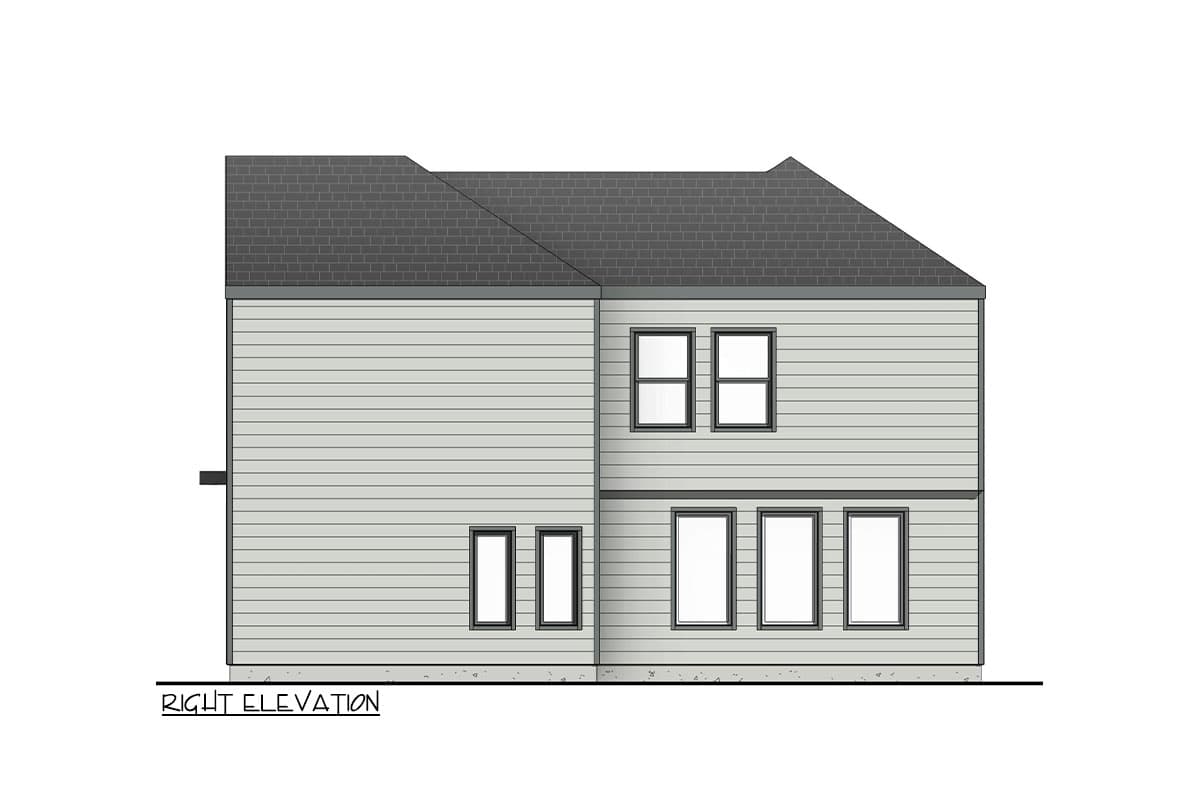

Plan Details

  • This four-unit multi-plex house plan offers a mix of one- and two-bedroom layouts. Units A and B provide 720 square feet of living space, each featuring a one-bedroom, 1.5-bath design with 383 square feet on the first floor and 337 square feet on the second. Units C and D are slightly larger at 917 square feet, offering two bedrooms and 1.5 baths, with 478 square feet on the first floor and 439 square feet on the second.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
720Sq. Ft.
383 Sq. Ft. 1st
337 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
19'depth
27'height
Unit B
Heated Area
720Sq. Ft.
383 Sq. Ft. 1st
337 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
19'depth
27'height
Unit C
Heated Area
917Sq. Ft.
478 Sq. Ft. 1st
439 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
24'width
20'depth
27'height
Unit D
Heated Area
917Sq. Ft.
478 Sq. Ft. 1st
439 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
24'width
20'depth
27'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,273 sq. ft.

1st Floor

1,722 sq. ft.

2nd Floor

1,552 sq. ft.

Courtyard

270 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 2"

Depth

39' 3"

Max Ridge Height

27' 7"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,273 sq. ft.

1st Floor

1,722 sq. ft.

2nd Floor

1,552 sq. ft.

Courtyard

270 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 2"

Depth

39' 3"

Max Ridge Height

27' 7"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive
