Plan 42713DB
Contemporary New American Home Plan with Rooftop Terrace
Heated S.F.
2,240
Beds
3
Baths
2.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details
  • Classic gables blend with flat rooflines for a contemporary appeal on this New American home plan.
  • Lining the left side of the main level, you will find a family room, dining area, and kitchen. A boxed-bay window defines the dining room, and a pocket office nearby is partitioned by barn doors.
  • The double garage opens into a sizable mud / laundry room combo, complete with a drop zone and pet shower for the furry family members.
  • Upstairs, discover 3 bedrooms, including the primary suite that features a spacious bathroom with a zero-threshold shower. A rooftop terrace serves as the cherry on top.
What's Included
  • General Notes

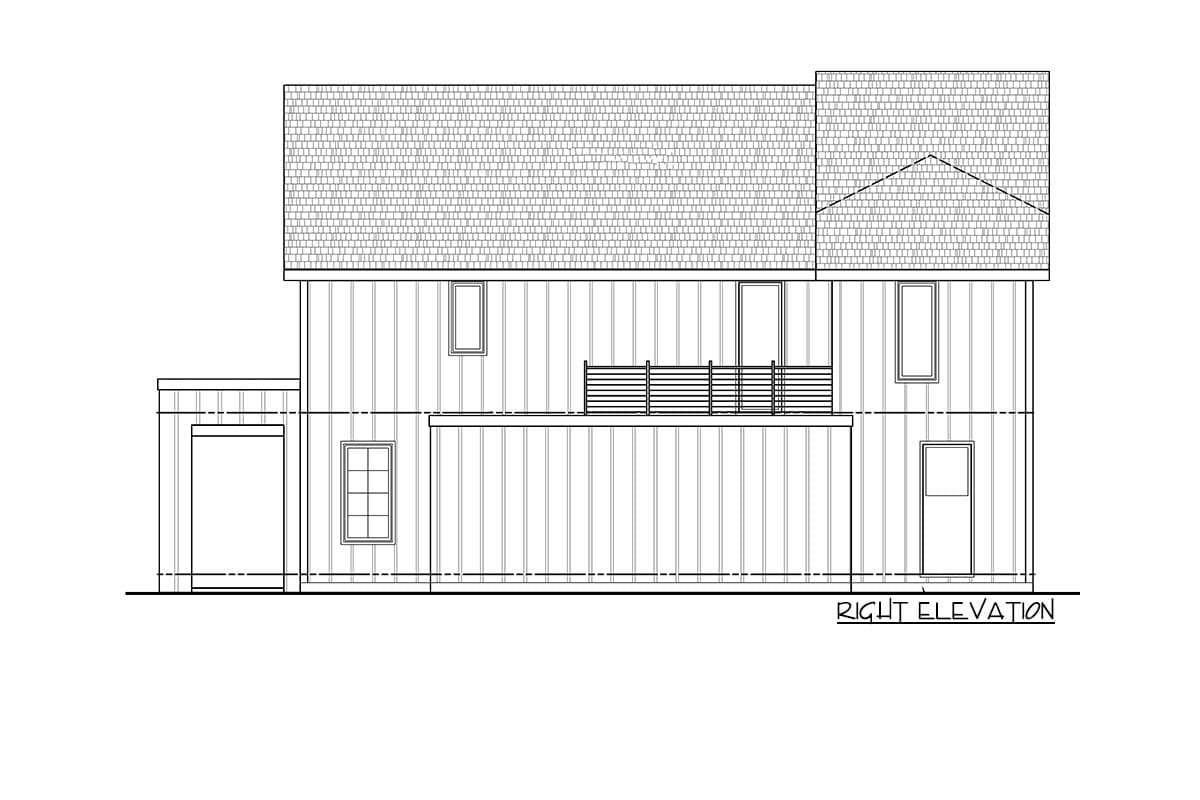

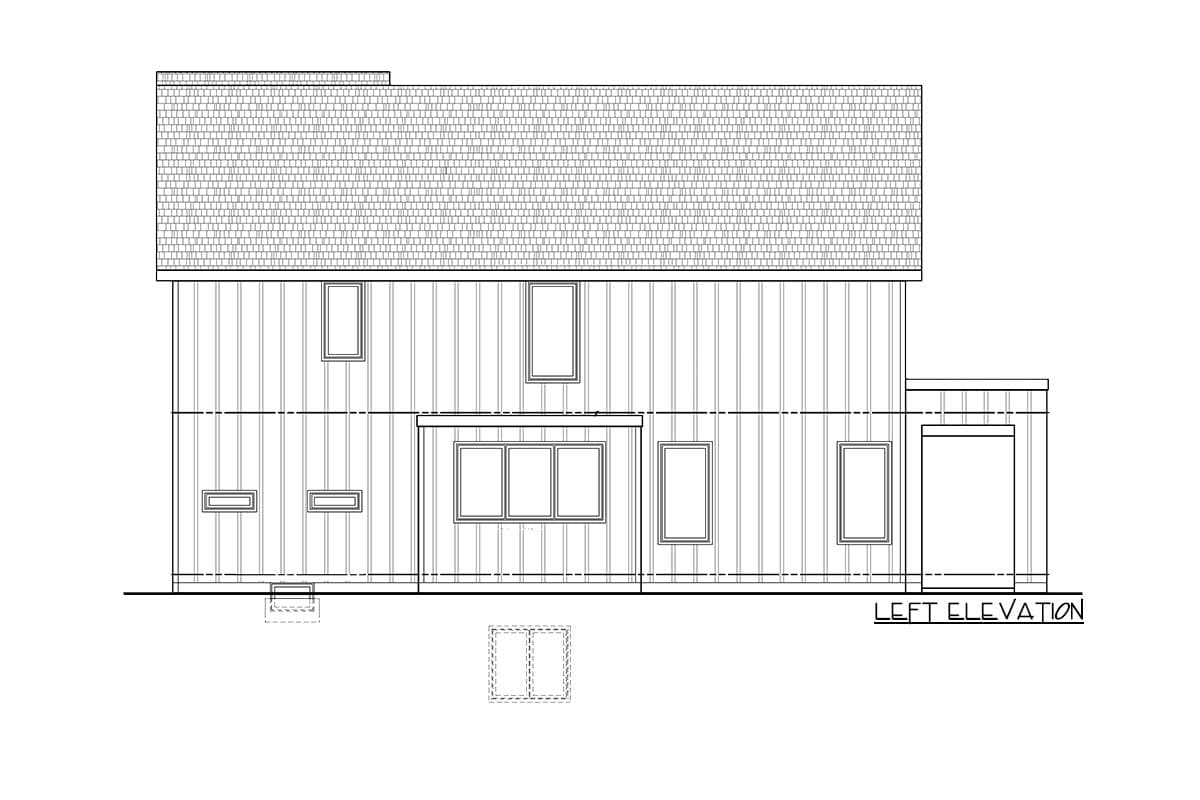

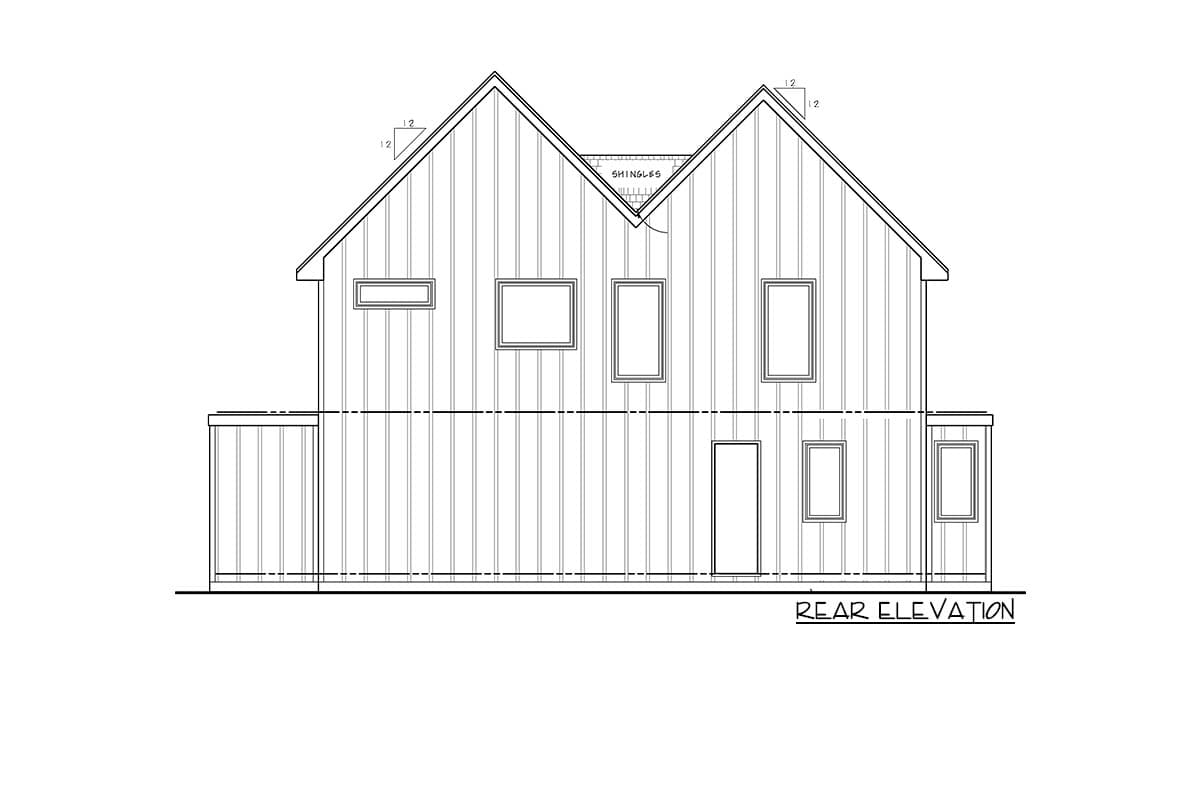

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary New American Home Plan with Rooftop Terrace

  • 2,240

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

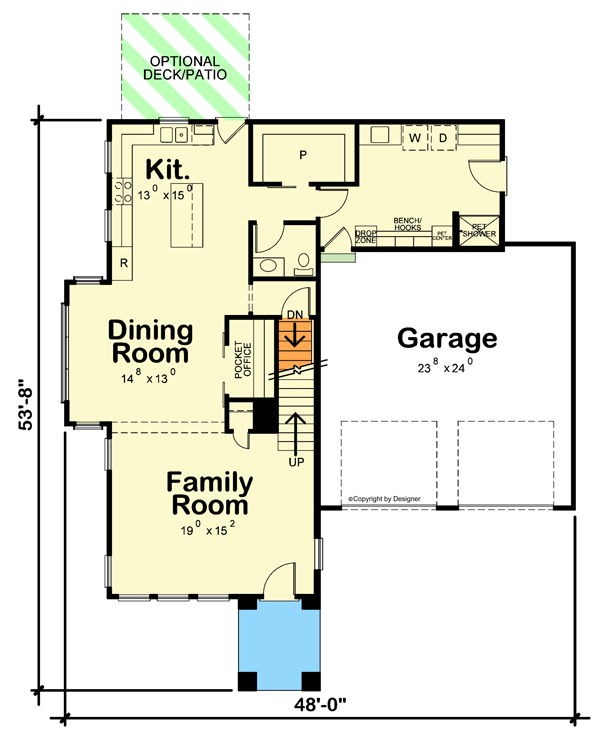

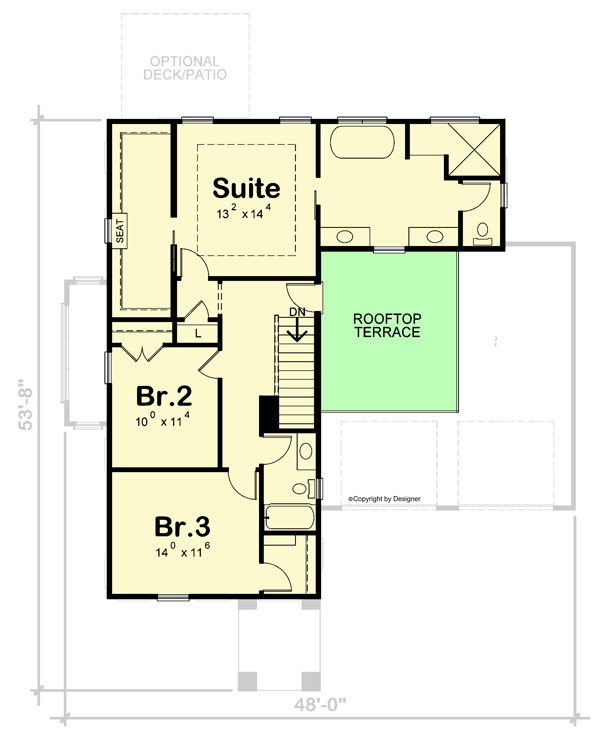

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,240 sq. ft.
  • 1st Floor: 1,168 sq. ft.
  • 2nd Floor: 1,072 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 53' 8"
  • Max ridge height: 30' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Area: 590 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
