Plan 666318RAF

Contemporary New American House Plan with Seven Bedrooms and Two Car Garage

Heated S.F.
3,403
Beds
4 - 7
Baths
4.5 - 5.5
Stories
2
Cars
2

Floor Plan

Plan 666318RAF

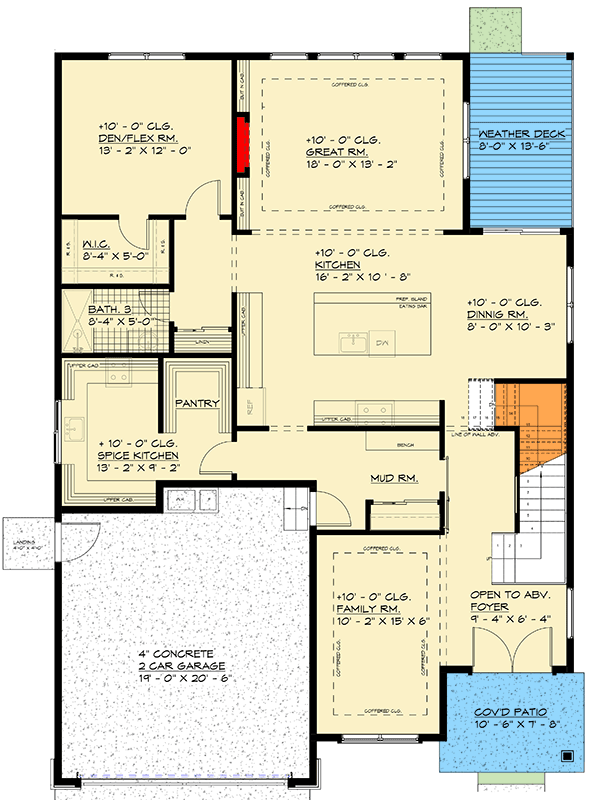

Floor Plan 1

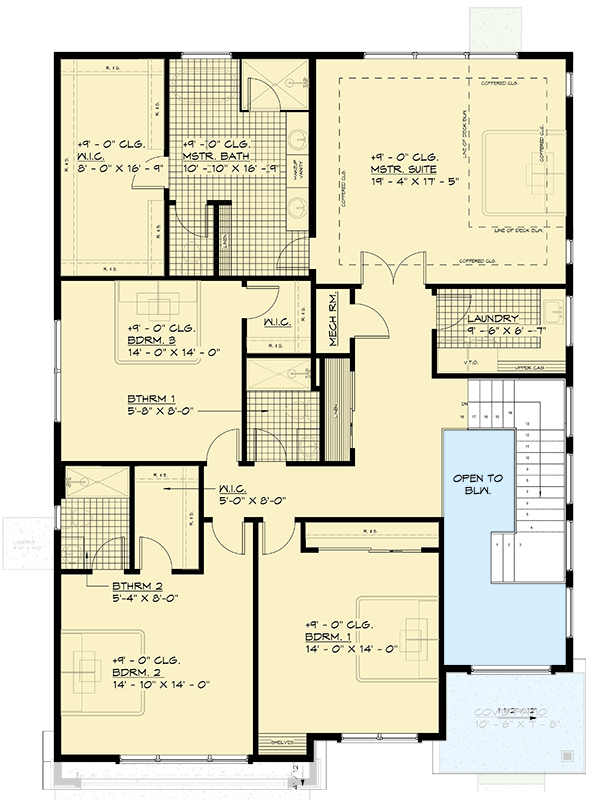

Floor Plan 2
Lower Level
Lower Level

Plan 666318RAF

M-F 9am-5pm EST |

1-203-761-8500

Plan 666318RAF: Contemporary New American House Plan with Seven Bedrooms and Two Car Garage - Floor Plan - - Contemporary, Craftsman, Modern, New American, Northwest

Plan 666318RAF: Contemporary New American House Plan with Seven Bedrooms and Two Car Garage - Floor Plan - - Contemporary, Craftsman, Modern, New American, Northwest

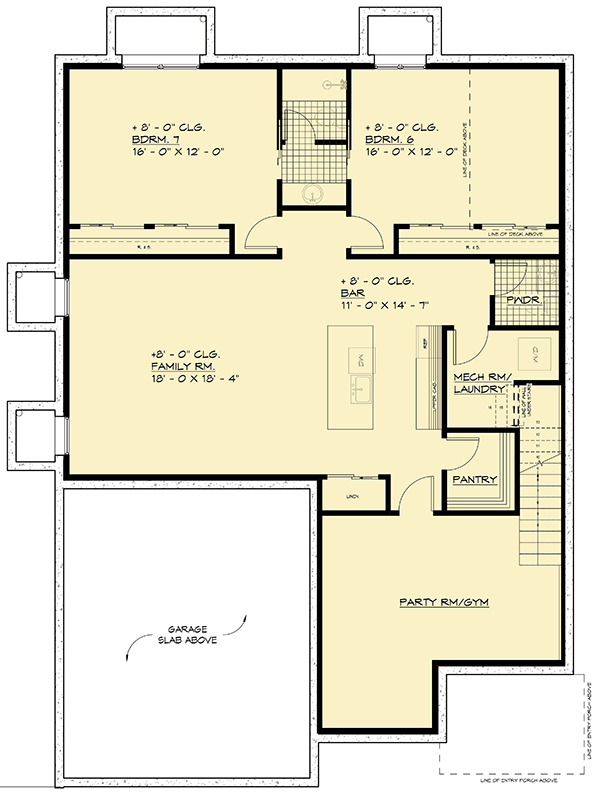

Lower Level

Plan 666318RAF: Contemporary New American House Plan with Seven Bedrooms and Two Car Garage - Floor Plan - Lower Level - Contemporary, Craftsman, Modern, New American, Northwest

Plan Details

  • This expansive 3,403 square foot home features a sophisticated blend of contemporary and craftsman elements with a two car 427 square foot garage.
  • The welcoming front entry leads into an open floor plan where a dedicated library and formal dining room flank the main foyer.
  • The heart of the home centers around a bright kitchen with a walk-in pantry that transitions seamlessly into a breakfast nook and spacious living area.
  • Upstairs the primary suite provides a private retreat while the remaining bedrooms are thoughtfully clustered to include Jack and Jill bath arrangements.
  • A versatile flex room and a built-in wet bar offer additional space for entertainment or quiet relaxation throughout the home.

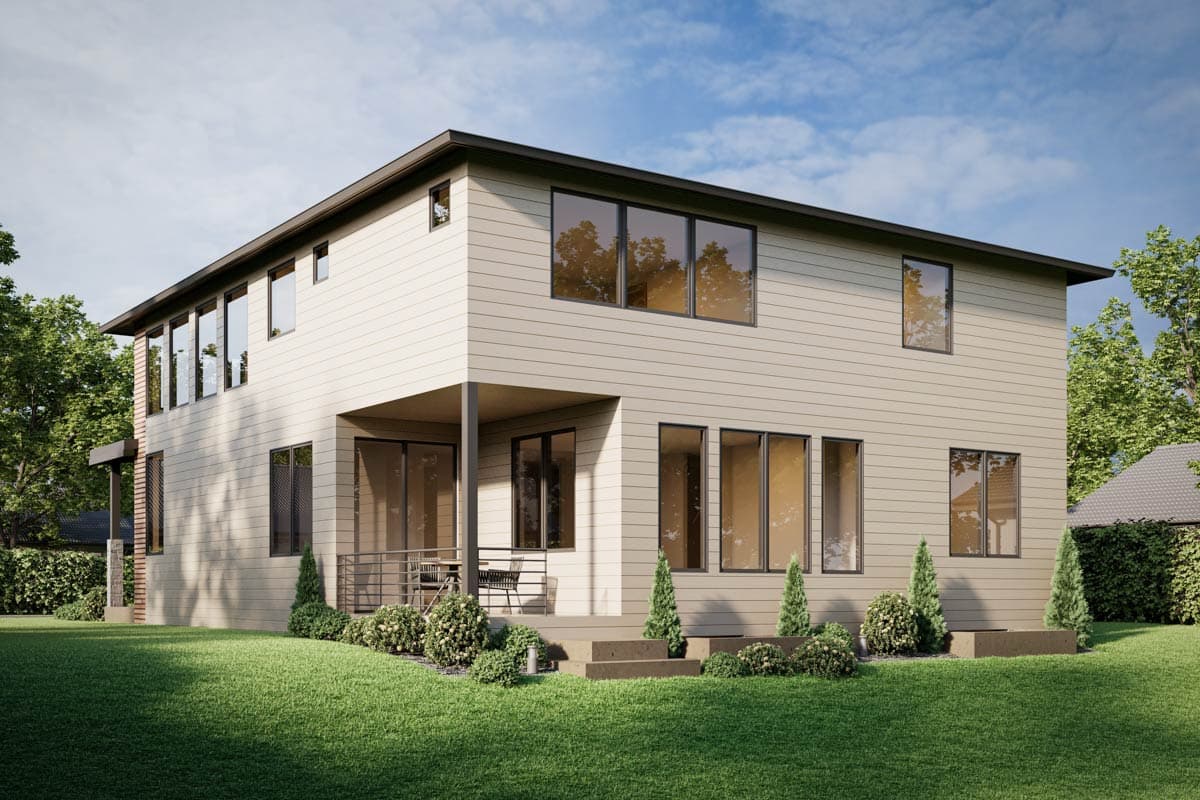

  • The rear of the house features a covered porch perfect for enjoying morning coffee or quiet evenings overlooking the backyard.
  • An optional 1,206 square foot lower level allows for future expansion to accommodate additional bedrooms or recreational space based on your lifestyle needs.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

3,403 sq. ft.

1st Floor

1,519 sq. ft.

2nd Floor

1,884 sq. ft.

Optional Lower Level

1,206 sq. ft.

Porch, Rear

122 sq. ft.

Entry

82 sq. ft.

Beds/Baths

Bedrooms

4, 5, 6, or 7

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

56' 6"

Max Ridge Height

36' 0"

Garage

Type

Standard, Attached

Area

427 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Craftsman

Modern

New American

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

3,403 sq. ft.

1st Floor

1,519 sq. ft.

2nd Floor

1,884 sq. ft.

Optional Lower Level

1,206 sq. ft.

Porch, Rear

122 sq. ft.

Entry

82 sq. ft.

Beds/Baths

Bedrooms

4, 5, 6, or 7

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

56' 6"

Max Ridge Height

36' 0"

Garage

Type

Standard, Attached

Area

427 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Craftsman

Modern

New American

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Wet Bar
