Plan 80972PM
Contemporary Northwest Home Plan with 2 Bedrooms
Heated S.F.
1,155
Beds
2
Baths
1
Stories
1
Cars
1
What's Included
Plan Details
  • A myriad of modern siding materials beautifully combine to form this contemporary, Northwest home plan. The sharp-angled, skillion roof completes the design.
  • Double doors welcome you inside, where a coat closet in the foyer willingly organizes your outdoor gear. The heart of the home is centered in the design, highlighting a rear wall of glass to allow nature to serve as the art.
  • The kitchen's multi-use island includes seating for five, while a nearby pocket door reveals a walk-in pantry.
  • The bedrooms occupy the right side of the home, separated by a 5-fixture bath, which they share.
  • A few steps down from the foyer, discover a single garage bay with a rear-facing man door that leads to the backyard.
What's Included
Please note this plan is designed to the National Building Code of Canada.

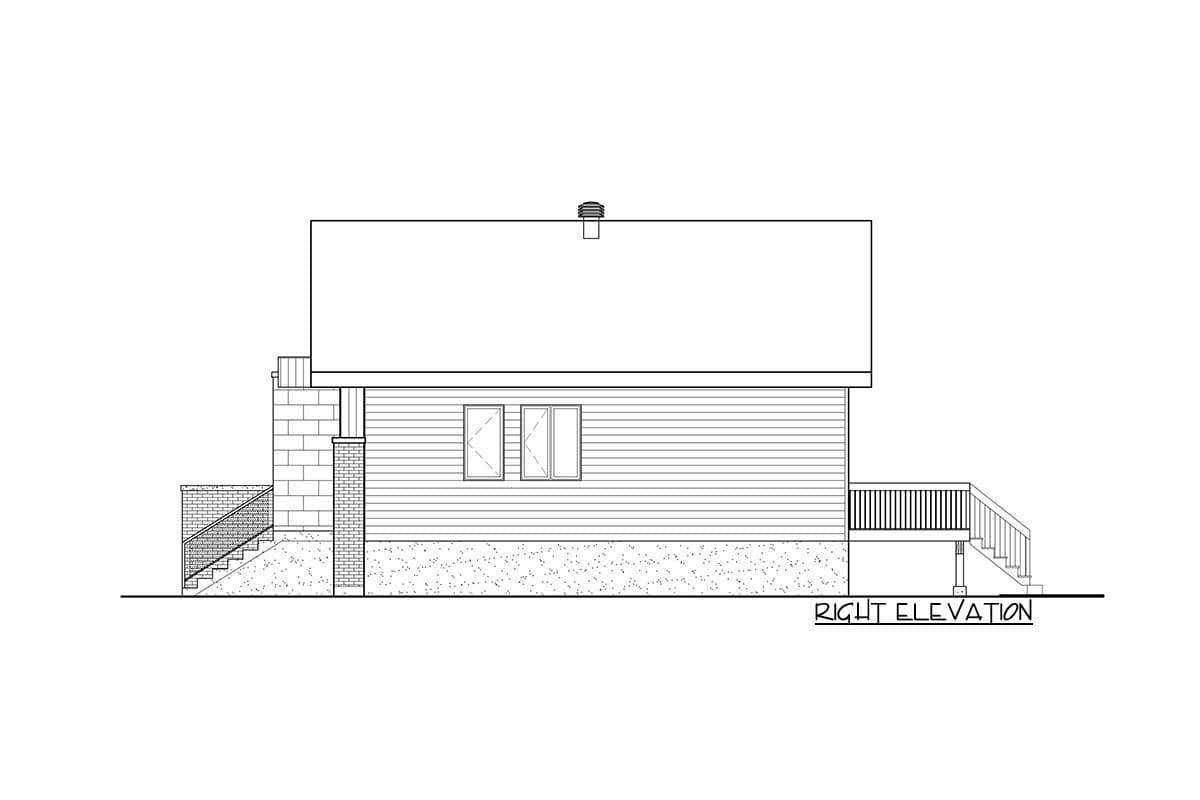

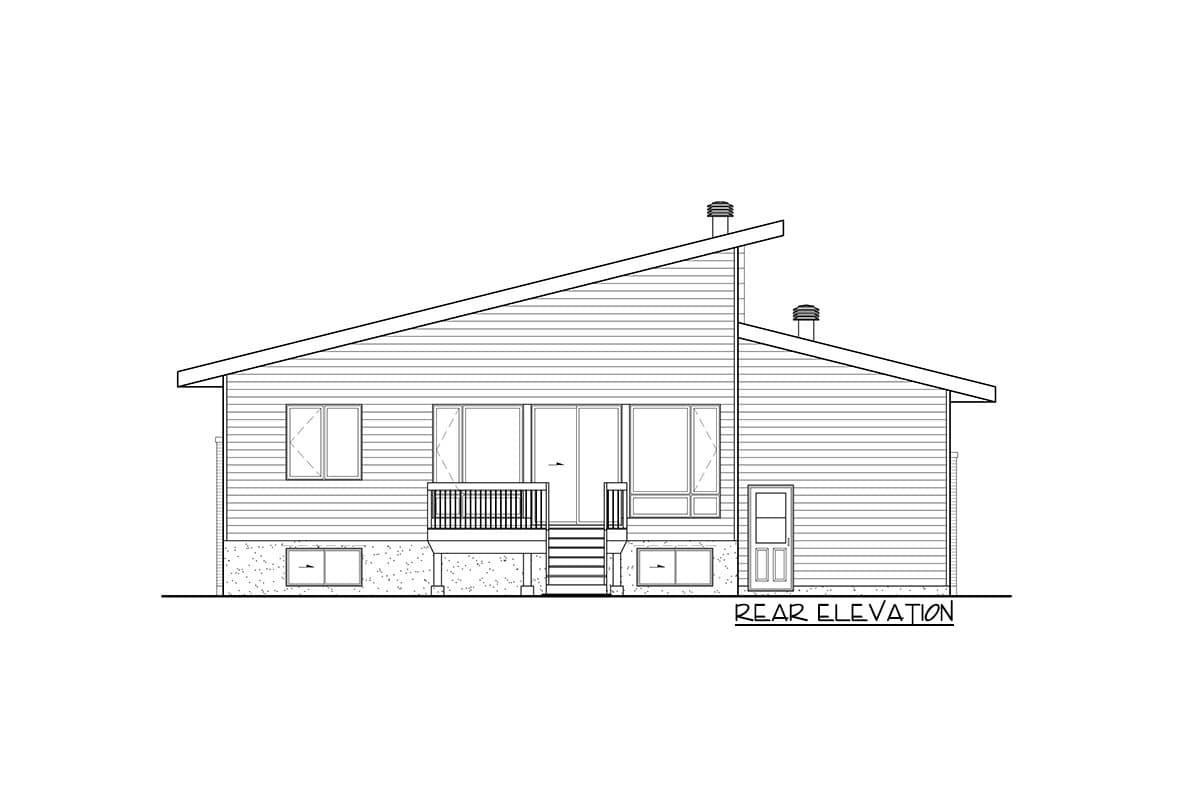

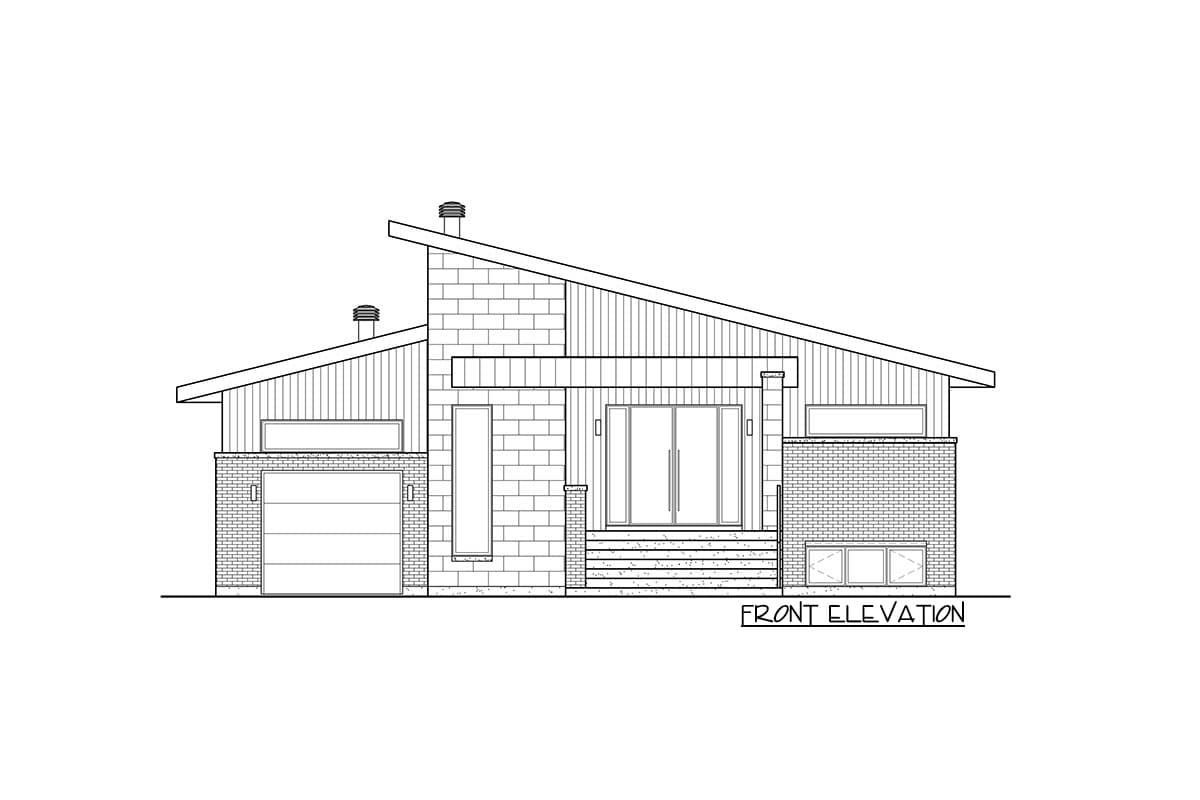

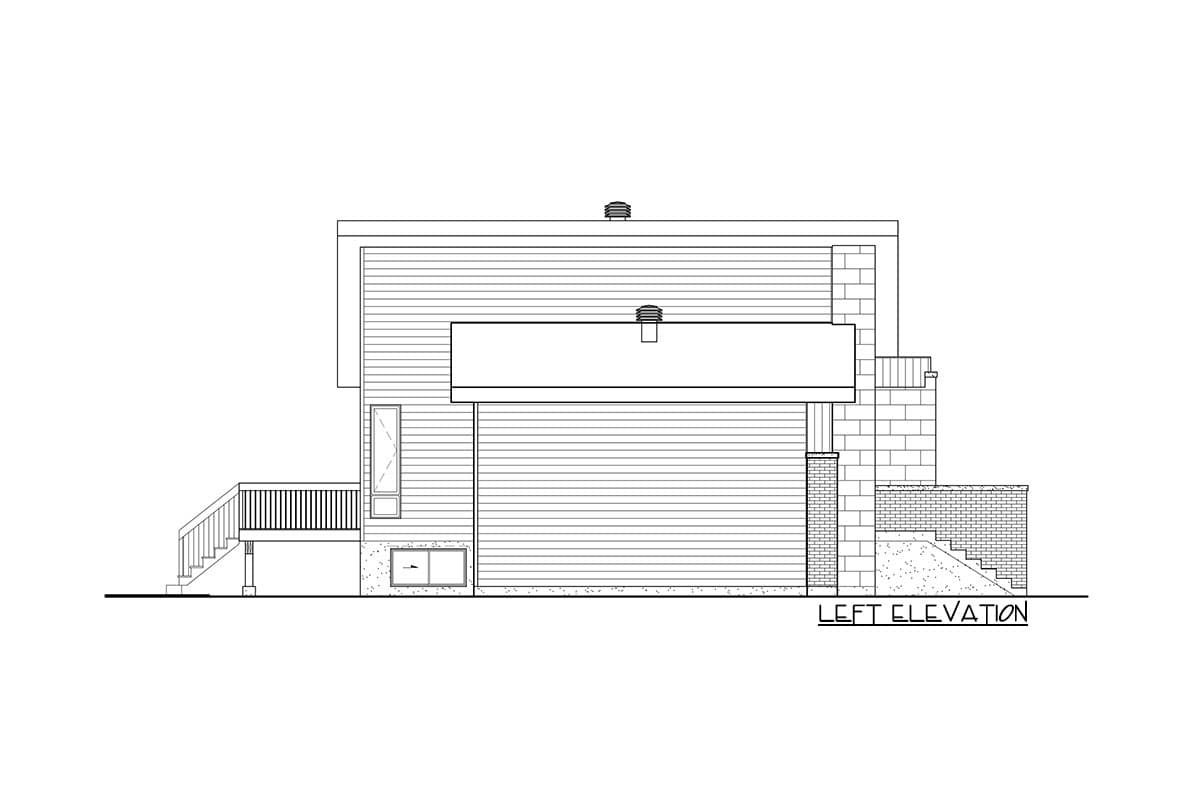

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

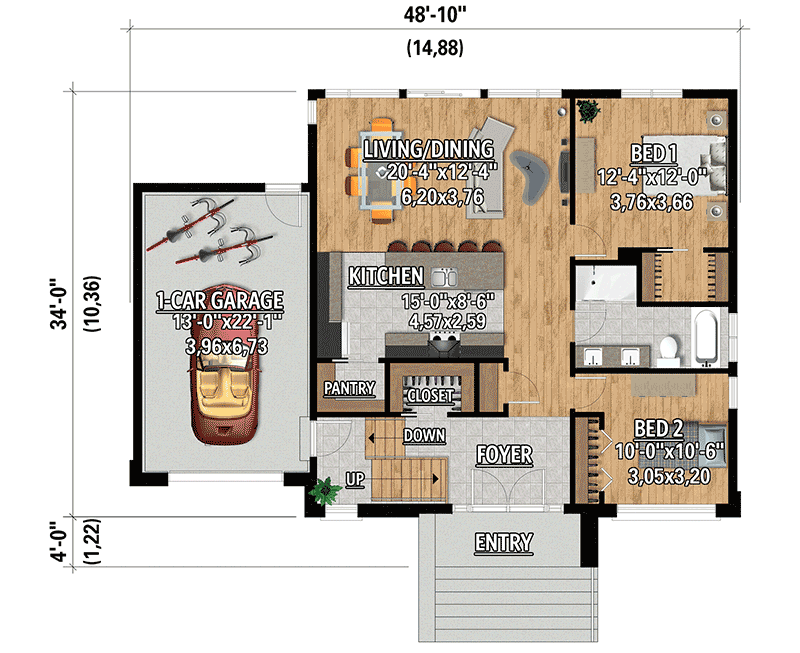

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Northwest Home Plan with 2 Bedrooms

  • 1,155

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,155 sq. ft.
  • 1st Floor: 1,155 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 34' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 336 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
