Plan 666205RAF
Contemporary Northwest Home Plan with Lower Level ADU
Heated S.F.
4,588
Beds
4 - 5
Baths
3.5+
Stories
1
Cars
2
Floor Plan

Plan 666205RAF

Main Level
slide image 0
Lower Level
slide image 1

Plan 666205RAF

1-800-854-7852

1-262-521-4596

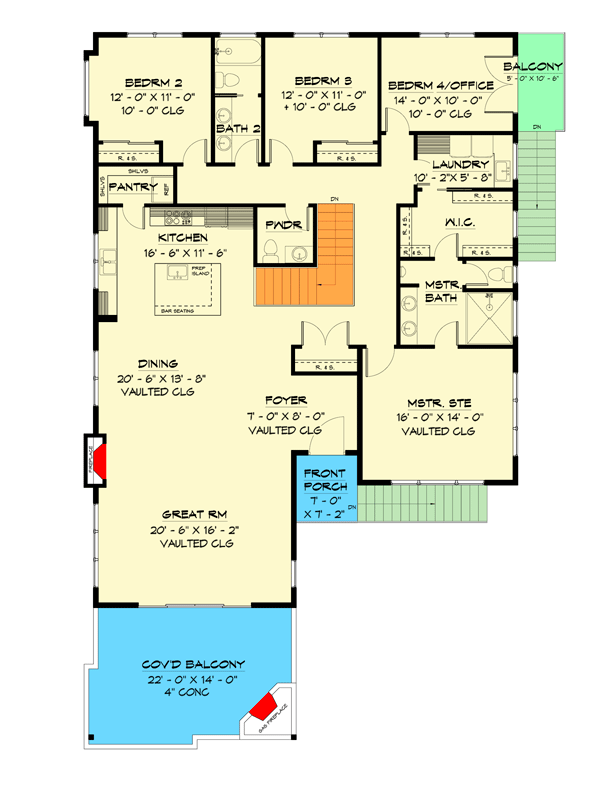

Main Level
floor plan image Main Level

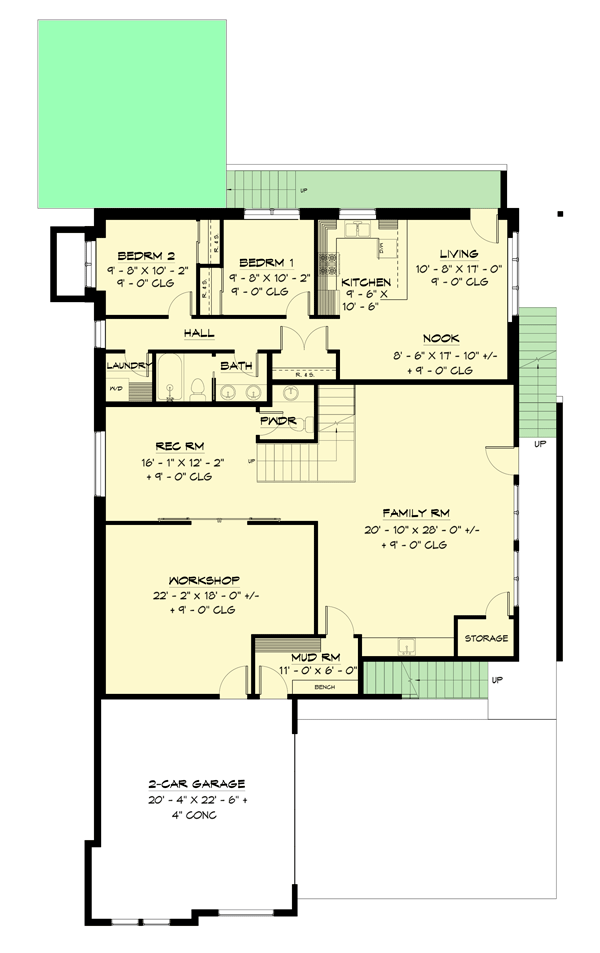

Lower Level
floor plan image Lower Level
Plan Details
  • A butterfly roof tops this Contemporary Northwest home plan that gives you 4,588 square feet of living space, including the 2-bedroom Accessory Dwelling Unit (ADU; an apartment) on the lower level for family or an income property.
  • The expansive, communal living space features a vaulted ceiling and expands onto a covered balcony with fireplace. An eating bar wraps around the kitchen's island, and a nearby pantry provides you with more storage space.
  • Four bedrooms can be found on the main level, including the master suite with its own 4-fixture bathroom and walk-in closet that connects to the laundry room.
  • Discover a sizable workshop just off the double garage, along with a mudroom with built-in cubbies. The family / rec room downstairs provides a powder bath and exterior access.
  • The well-appointed apartment includes private access, 2 bedrooms, laundry, and a full kitchen.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,588 sq. ft.

Lower Level

2,161 sq. ft.

1st Floor

2,427 sq. ft.

Porch, Front

47 sq. ft.

Deck

321 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

76' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

508 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

In-Law Suite

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Wet Bar

Workshop

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

4,588 sq. ft.

Lower Level

2,161 sq. ft.

1st Floor

2,427 sq. ft.

Porch, Front

47 sq. ft.

Deck

321 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

76' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

508 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

In-Law Suite

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Wet Bar

Workshop

Plan Collections

Attached Apartments
