Plan 666106RAF
Contemporary Northwest Home Plan with Main-floor Guest Suite
Heated S.F.
3,796
Beds
5
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details
  • The exterior of this contemporary Northwest home plan consists of oversized windows and a blend of siding materials for a sleek, modern vibe.

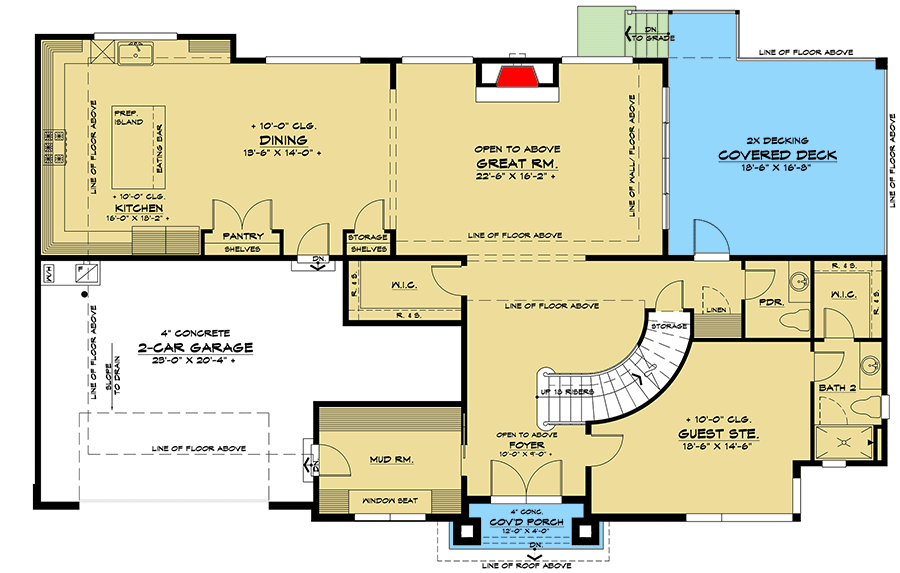

  • The main level consists of the shared living spaces, which are completely open to one another and extend onto a large covered deck.
  • A guest suite just off the foyer completes the first floor and includes a full bath.

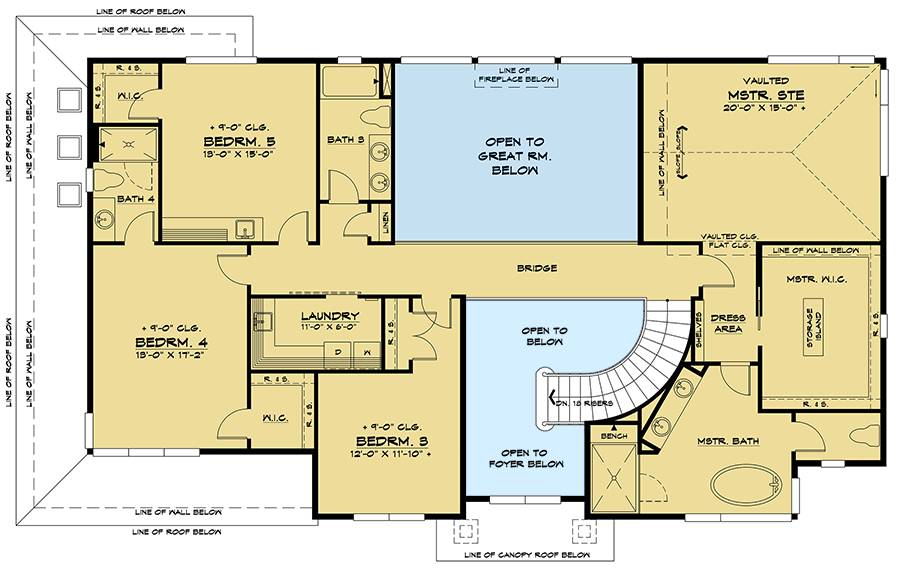

  • The elegant, curved staircase guides you upstairs to find four bedrooms and the laundry room connected by a bridge-style hallway. The deluxe master suite is paired with a spa-like ensuite and large wardrobe.
  • Enjoy 10'8" ceilings in the double garage, and two entry points offer flexibility when entering from the garage.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

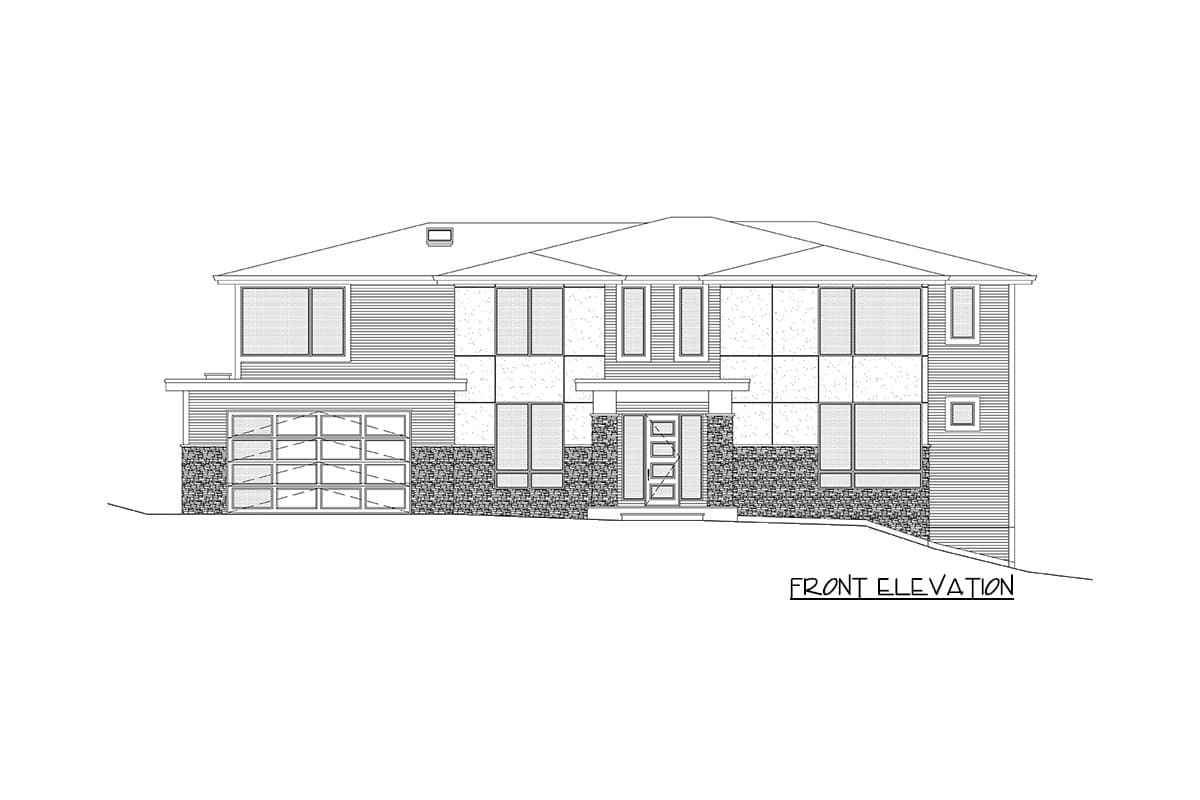

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Northwest Home Plan with Main-floor Guest Suite

  • 3,796

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,796 sq. ft.
  • 1st Floor: 1,879 sq. ft.
  • 2nd Floor: 1,917 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 41' 0"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: .25 on 12
  • Framing Type: Truss
