Plan 666321RAF

Contemporary Northwest House Plan with 5 Bedrooms and 3-Car Garage

Heated S.F.
4,173
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 666321RAF

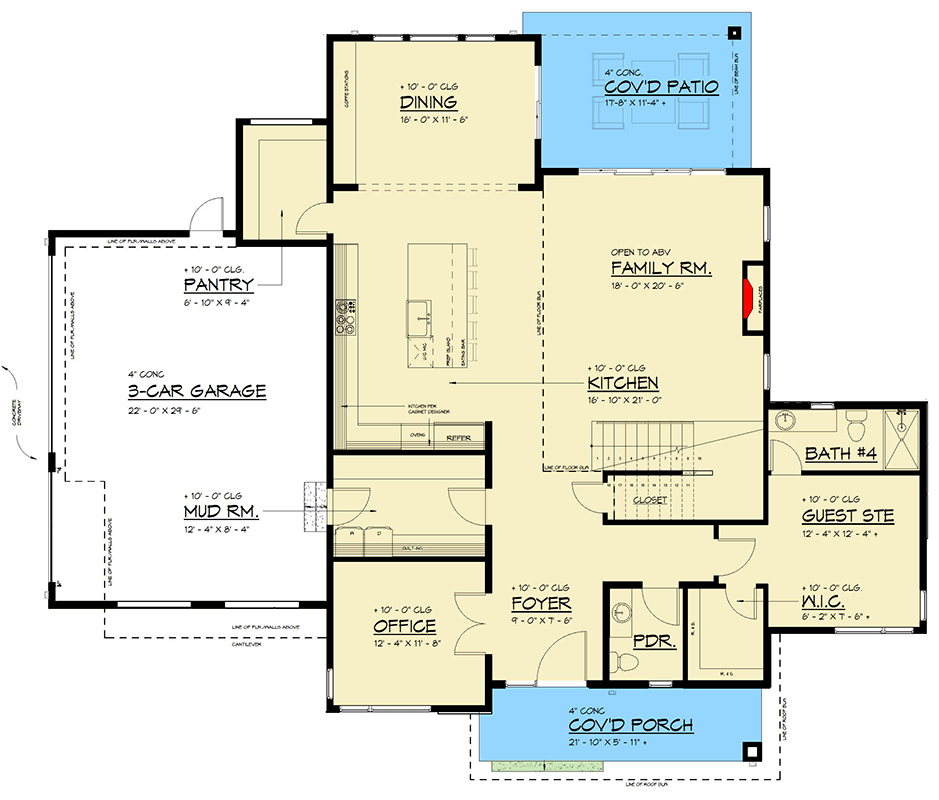

Floor Plan 1

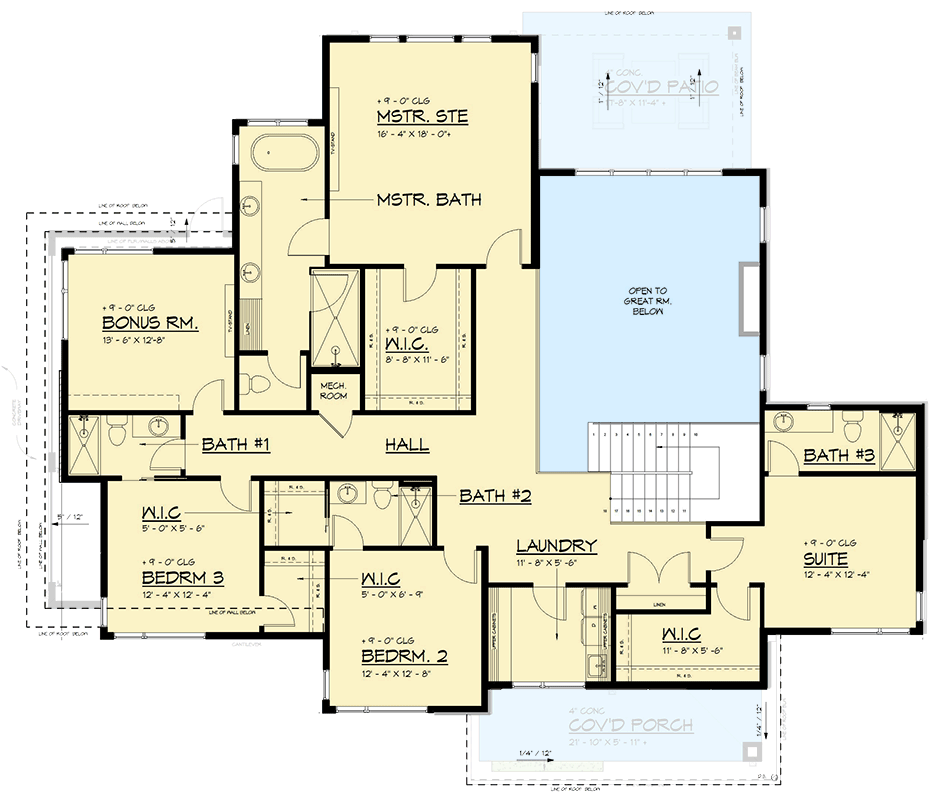

Floor Plan 2

Plan 666321RAF

M-F 9am-5pm EST |

1-203-761-8500

Plan 666321RAF: Contemporary Northwest House Plan with 5 Bedrooms and 3-Car Garage - Floor Plan - - Contemporary, Modern, Northwest

Plan 666321RAF: Contemporary Northwest House Plan with 5 Bedrooms and 3-Car Garage - Floor Plan - - Contemporary, Modern, Northwest

Plan Details

  • Spanning 4,173 finished square feet, this striking contemporary Northwest house plan offers 5 bedrooms, 5.5 baths, and a spacious 676-square-foot 3-car garage.
  • The architectural design makes a bold statement with clean lines, mixed material siding, and a sophisticated low-pitch roofline that perfectly complements a modern aesthetic.
  • Step through the inviting entry into a bright, open-concept floor plan defined by 10-foot ceilings on the main level and a dramatic two-story great room that anchors the home.
  • The main floor features a dedicated home office for quiet productivity and a formal dining room, while the kitchen serves as a culinary hub complete with a large walk-in pantry.
  • The primary suite is thoughtfully positioned on the second floor to offer a private retreat, while four additional bedrooms provide ample space and comfort for family or guests.
  • Functionality is prioritized with dual laundry areas located on both the first and second floors, alongside a convenient mudroom transition from the side-entry garage.
  • The design includes an optionally finished bonus room that provides flexible square footage for a media suite, hobby room, or secondary living area to suit your lifestyle needs.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,173 sq. ft.

1st Floor

2,030 sq. ft.

2nd Floor

2,143 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

54' 9"

Max Ridge Height

29' 9"

Garage

Type

Standard

Area

676 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry
