Plan 666299RAF

Contemporary Northwest House Plan with 7 Bedrooms and Lower Level Apartment

Heated S.F.
5,113
Beds
7
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 666299RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 666299RAF

M-F 9am-5pm EST |

1-203-761-8500

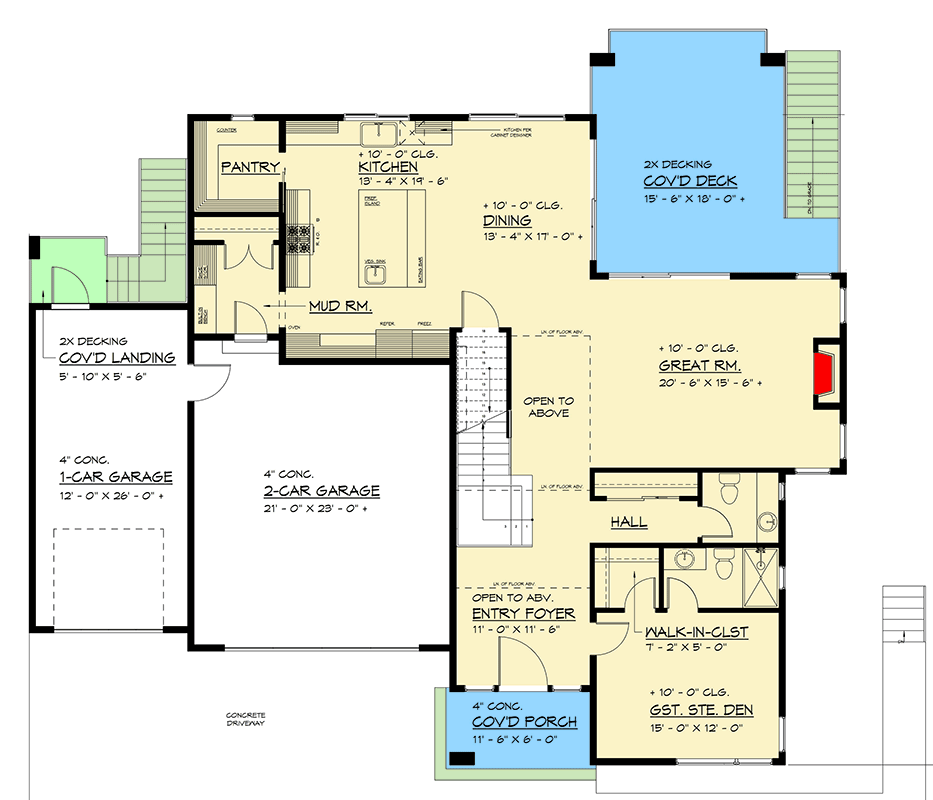

Main Level

Plan 666299RAF: Contemporary Northwest House Plan with 7 Bedrooms and Lower Level Apartment - Floor Plan - Main Level - Contemporary, Modern, Northwest

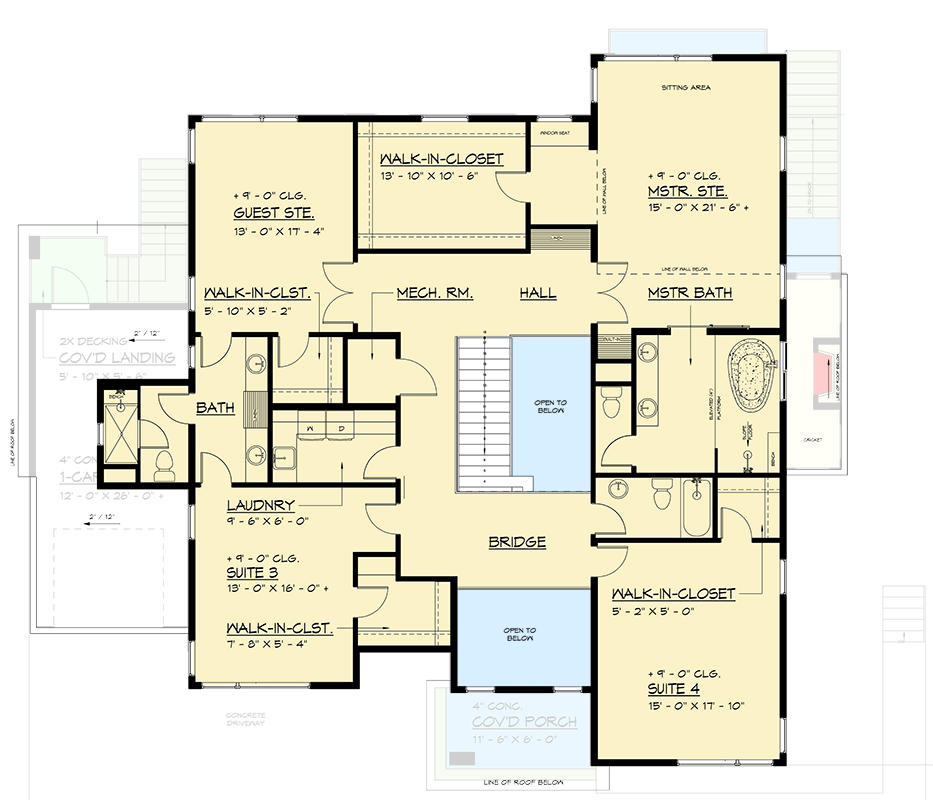

2nd Floor

Plan 666299RAF: Contemporary Northwest House Plan with 7 Bedrooms and Lower Level Apartment - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

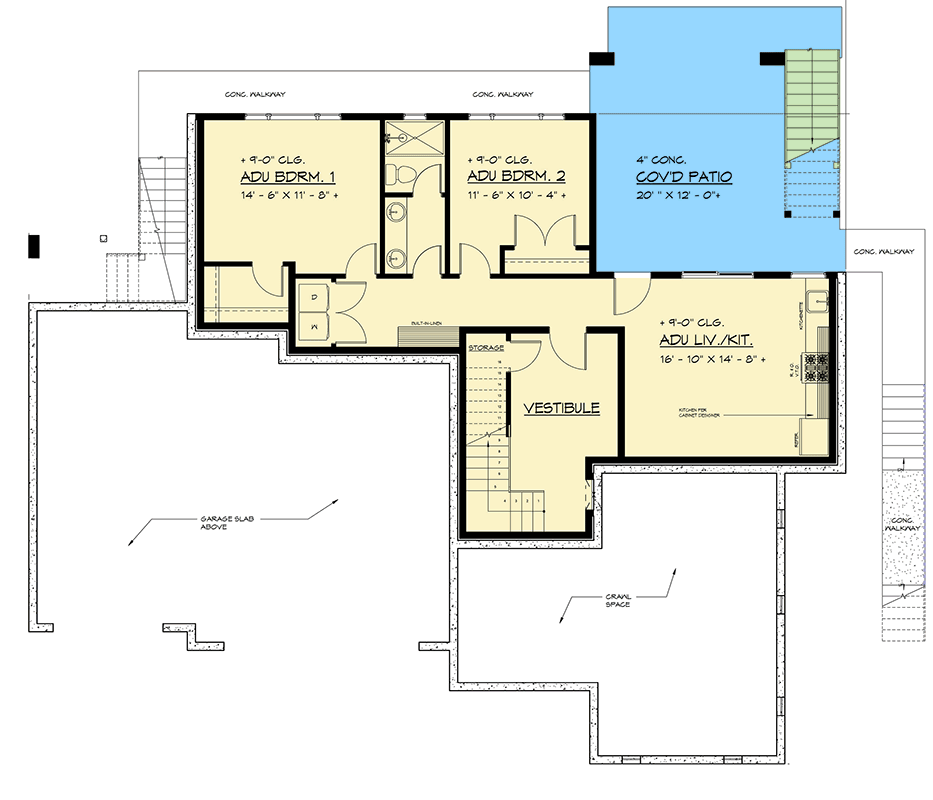

Lower Level

Plan 666299RAF: Contemporary Northwest House Plan with 7 Bedrooms and Lower Level Apartment - Floor Plan - Lower Level - Contemporary, Modern, Northwest

Plan Details

  • This contemporary Northwest home features 5,113 sq. ft. of heated space with 7 bedrooms, 5.5 bathrooms, and a 3-car attached garage measuring 871 sq. ft.
  • Upon entering, you're greeted by an open foyer leading to an expansive great room with soaring ceilings and a covered deck beyond.
  • The main level boasts an open-concept living area connecting a gourmet kitchen with a butler walk-in pantry, dining space, and mudroom.
  • The upstairs master suite offers a luxurious retreat with dual walk-in closets, a sitting area, and an elegant master bath, conveniently located near clustered bedrooms.
  • The plan includes additional features such as a Jack & Jill bath, dual laundry areas on different levels, and a versatile den that can double as a guest suite.
  • Outdoor living is enhanced with a covered deck and patio, providing ideal settings for entertainment and relaxation.
  • Unique spaces include a downstairs accessory dwelling unit (ADU) perfect for guests or in-laws, featuring its own living area, kitchenette, and covered patio.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,113 sq. ft.

Lower Level

1,103 sq. ft.

1st Floor

1,704 sq. ft.

2nd Floor

2,306 sq. ft.

Deck

327 sq. ft.

Deck & Porch

75 sq. ft.

Covered Patio

327 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

50' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

871 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

10' 8"

Roof Details

Primary Pitch

12 on 5

Secondary Pitch

5 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Den

Jack & Jill Bath

Laundry - Lower Level

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Attached Apartments

Sloping Lot
