Contemporary Northwest House Plan with Lower-Level Apartment - 2874 Sq Ft

Name: Plan 69722AM: Contemporary Northwest House Plan with Lower-Level Apartment - 2874 Sq Ft
Brand: Architectural Designs
SKU: 69722AM
Price: 2040.0 USD
Availability: InStock

Heated S.F.

2,874

Beds

3 - 4

Baths

2.5 - 3.5

Stories

Cars

Floor Plan

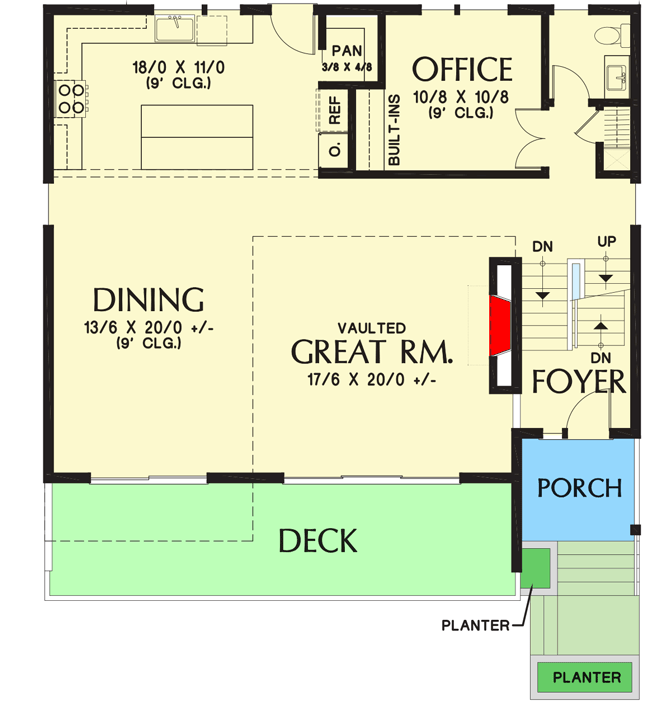

Main Level

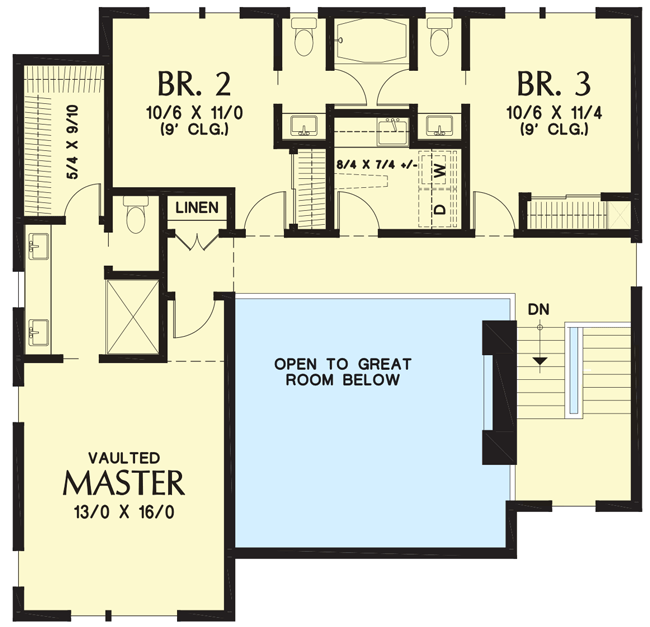

Second Level

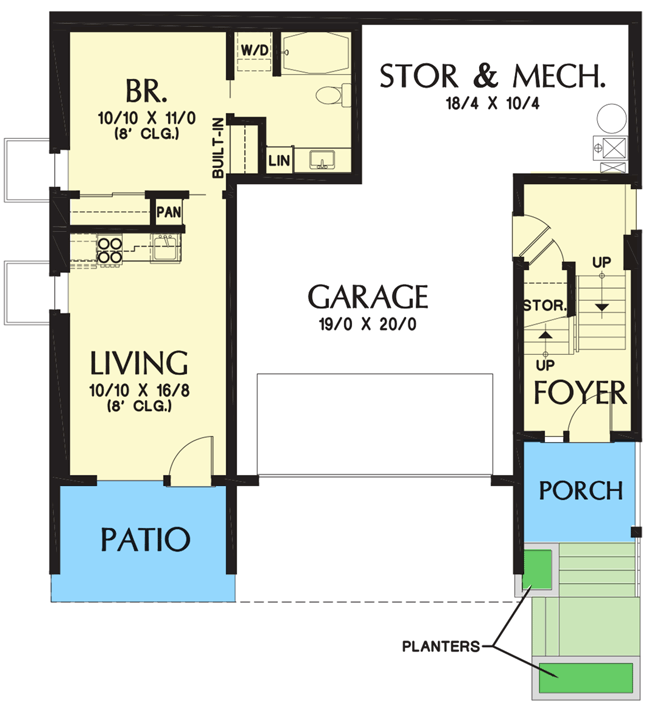

Lower Level

Plan Details

Large exterior paneling and multiple angled roof lines make this 3-bedroom, contemporary house plan stand out among the others. Oversized windows throughout the home allow for plenty of natural light.
Built-in planters near the covered porch add character as guests are greeted by a foyer. A few steps up and an open layout presents itself, consisting of the great room, dining room, and kitchen.
A grand fireplace serves as a focal point in the two-story great room, and the L-shaped counters and kitchen island provide ample workspace for the modern chef. Sliding doors lead to a deck to enjoy frontward views.
Also on the main level is an office with built-ins, which sits next to a powder bath.
The sleeping accommodations can be found on the second level, including the master suite which boasts a tall sloped ceiling, and a master bathroom with two sinks, a large shower enclosure, and a walk-in closet.
A lofted hallway leads to two additional bedrooms that share a Jack-and-Jill bathroom. The laundry room is centrally located on the second level for ease of use.
The lower level is where you'll discover a 2-car garage, along with an apartment with a private entrance.
Related Plans: Eliminate the lower level apartment with house plan 69716AM and get alternate drive-under versions with house plans 6924AM and 69035AM.

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
