Plan 22580DR Contemporary Northwest House Plan with Open-Concept Living Spaces

Contemporary Northwest House Plan with Open-Concept Living Spaces

Plan 22580DR

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • This contemporary, Northwest house plan displays a blend of exterior materials with a classic gable roof overhead.
  • Through the front door, you will find an open floor plan creating a seamless flow between the shared living spaces.
  • The kitchen features a prep island in the center that includes three seats. A corner pantry in the heart of the kitchen provides easy access, and a rear patio provides enough space for a grill.
  • The master bedroom offers forward-facing views and a walk-in closet.
  • Bedrooms 2 and 3 are located across the hall from each other, separated by a 4-fixture bath with a separate tub and shower that leads to the laundry room.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

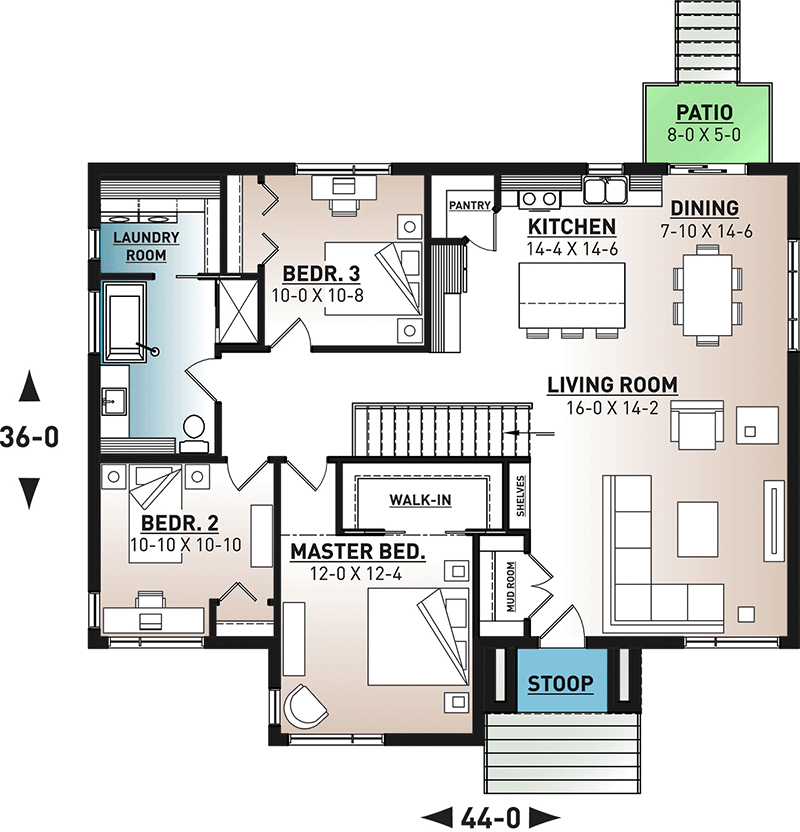

Contemporary Northwest House Plan with Open-Concept Living Spaces - 22580DR floor plan - Main Level

Basement Unfinished

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

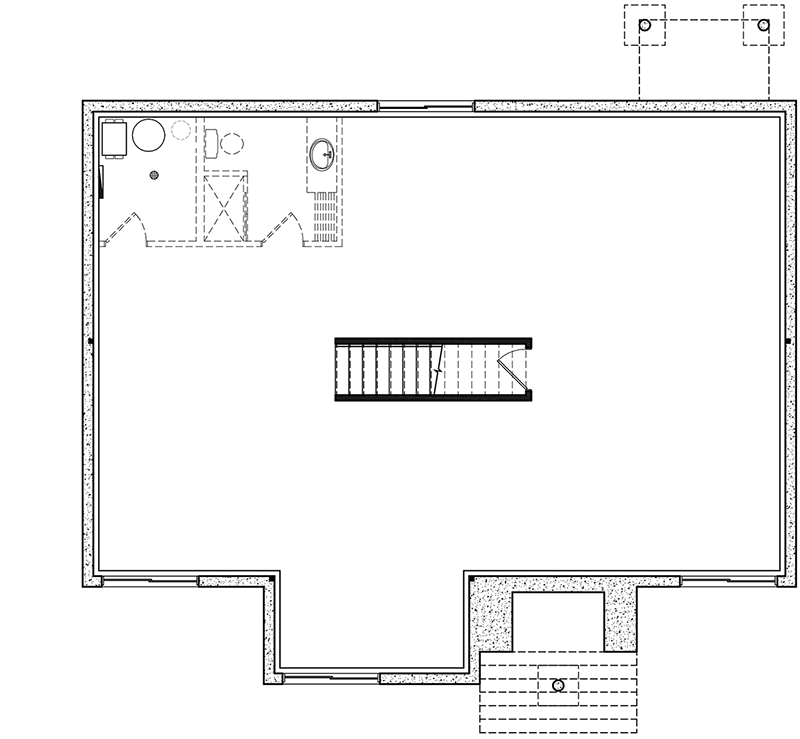

Contemporary Northwest House Plan with Open-Concept Living Spaces - 22580DR floor plan - Basement Unfinished

Plan details

Contemporary Northwest House Plan with Open-Concept Living Spaces

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • This contemporary, Northwest house plan displays a blend of exterior materials with a classic gable roof overhead.
  • Through the front door, you will find an open floor plan creating a seamless flow between the shared living spaces.
  • The kitchen features a prep island in the center that includes three seats. A corner pantry in the heart of the kitchen provides easy access, and a rear patio provides enough space for a grill.
  • The master bedroom offers forward-facing views and a walk-in closet.
  • Bedrooms 2 and 3 are located across the hall from each other, separated by a 4-fixture bath with a separate tub and shower that leads to the laundry room.

Floor Plans

  • Main Level

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,400 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • Basement Unfinished: 1,400 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Monolithic Slab, Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 36' 0"
  • Max ridge height: 24' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
