Plan 23476JD

Contemporary Northwest Styling

2,590 4 3 2 2
Pageloader

Contemporary Northwest Styling

Plan 23476JD

  • 2,590

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Despite a narrow footprint, this Craftsman home plan has lots of space for the large family.

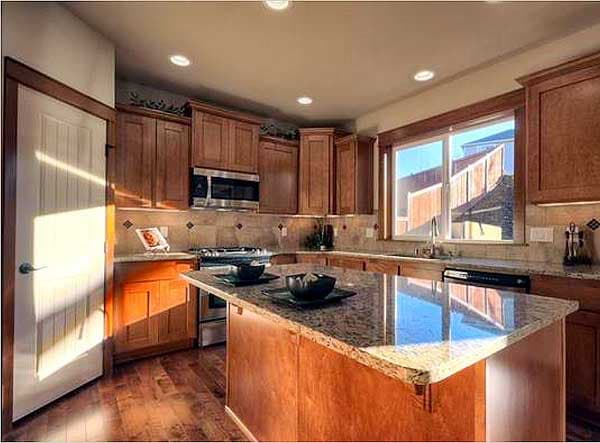

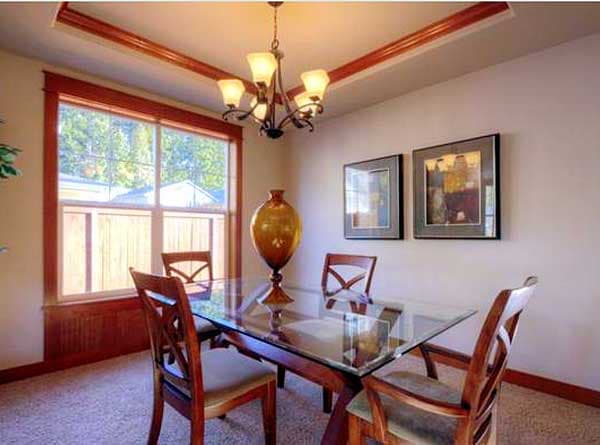

  • The formal living ( with a front bumpout adding to the room's appeal) and dining rooms are separated by columns while the informal area lies in the rear of the home. Both an island and a walk-in pantry can be found in the large kitchen.

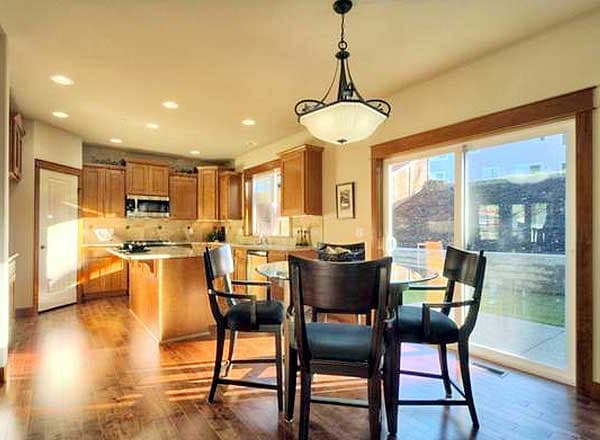

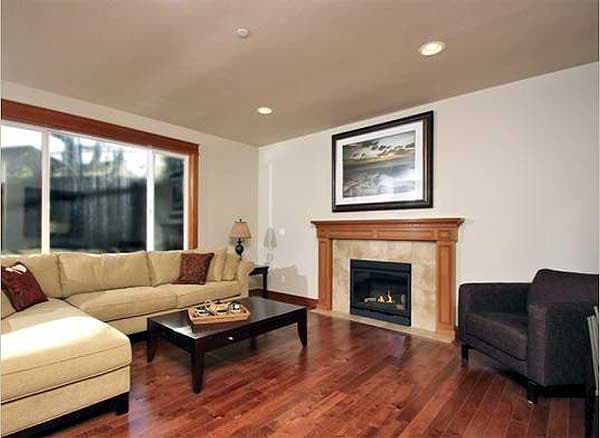

  • The family room features an attractive fireplace and is open to the kitchen and nook.

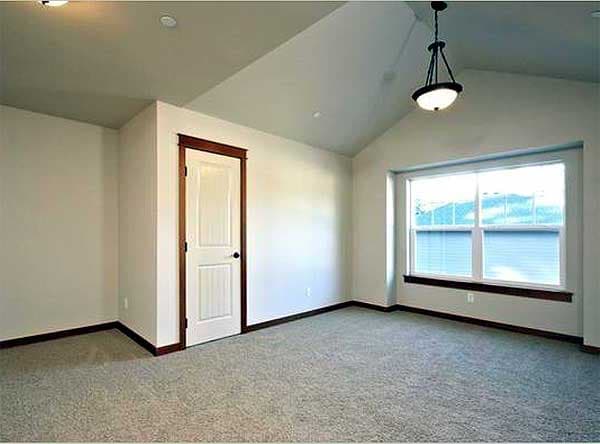

  • On the upper level, three family bedrooms and a hall bath share space with a large bonus room and deluxe master suite with its own private bath.
  • Related Plans: This house plan is also available in alternate exteriors including the following house plans: 23041JD, 23042JD and 23081JD (includes a fifth bedroom, a bath and rec room).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details

Architectural Style

Plan Collections



Contemporary Northwest Styling

  • 2,590

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,400
  • 5 Sets PLUS $1,500
  • CAD - multi-use $2,400
  • View all purchase option online

About This Plan

  • Despite a narrow footprint, this Craftsman home plan has lots of space for the large family.
  • The formal living ( with a front bumpout adding to the room's appeal) and dining rooms are separated by columns while the informal area lies in the rear of the home. Both an island and a walk-in pantry can be found in the large kitchen.
  • The family room features an attractive fireplace and is open to the kitchen and nook.

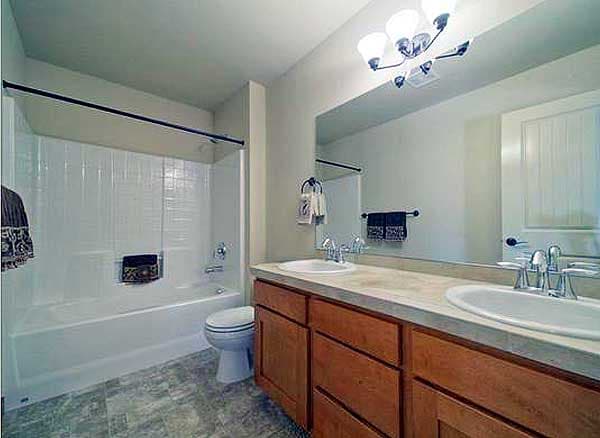

  • On the upper level, three family bedrooms and a hall bath share space with a large bonus room and deluxe master suite with its own private bath.
  • Related Plans: This house plan is also available in alternate exteriors including the following house plans: 23041JD, 23042JD and 23081JD (includes a fifth bedroom, a bath and rec room).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information

Floor Plans

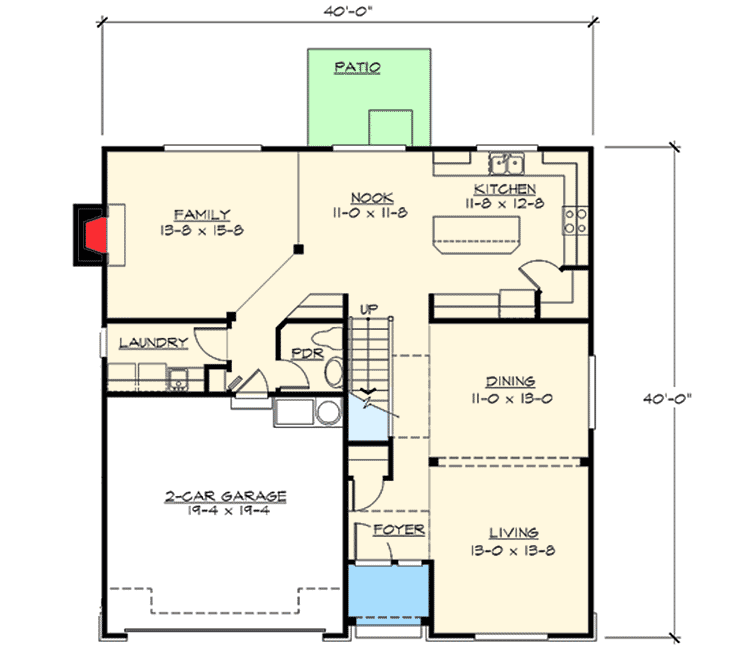

  • Main Level

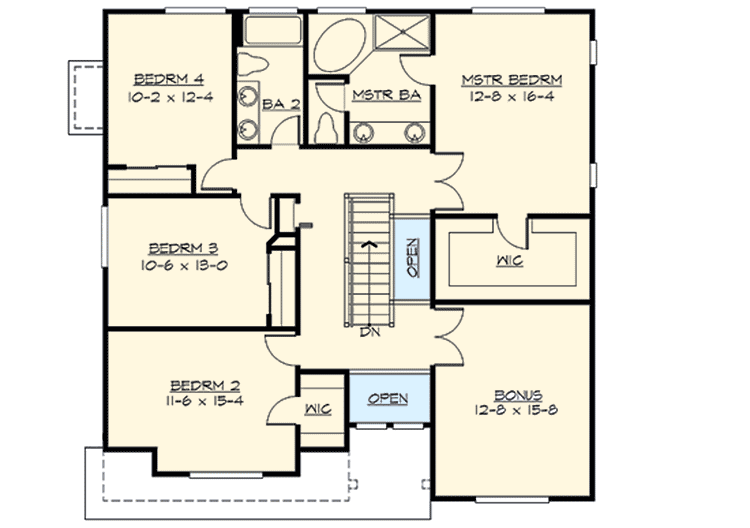

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,590 sq. ft.
  • 1st Floor: 1,171 sq. ft.
  • 2nd Floor: 1,419 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

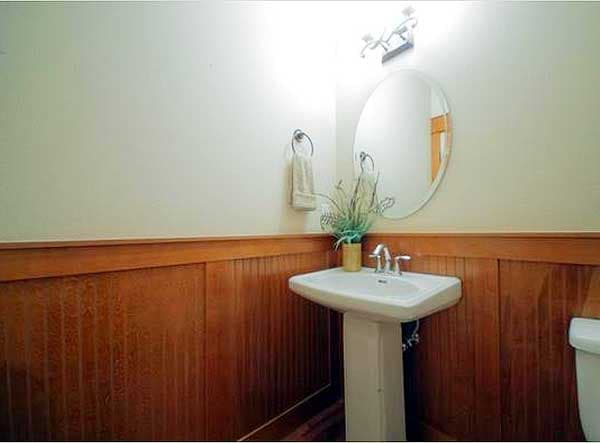

  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 387 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Northwest

Special features

  • 2nd Floor Master Suite
  • Bonus Room
  • CAD Available
  • PDF
