Plan 80773PM

Contemporary Plan with Second Floor Deck

Heated S.F.
1,296
Beds
3
Baths
1
Stories
2

Floor Plan

Plan 80773PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80773PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

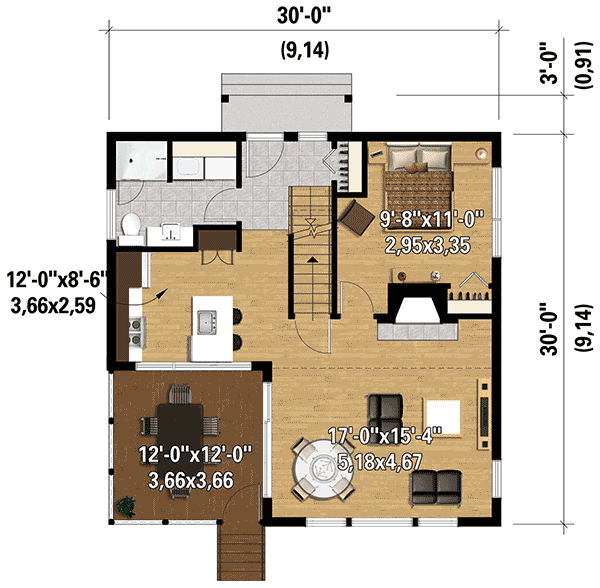

Plan 80773PM: Contemporary Plan with Second Floor Deck - Floor Plan - Main Level - Contemporary, Vacation

2nd Floor

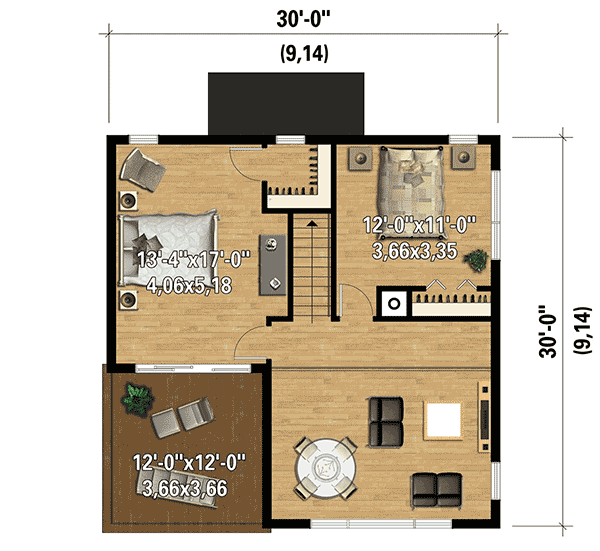

Plan 80773PM: Contemporary Plan with Second Floor Deck - Floor Plan - 2nd Floor - Contemporary, Vacation

Plan Details

  • A big window wall and shed roof are distinguishing features of this 3 bed Contemporary house plan.
  • The screened porch is big enough for table and chairs so you can dine outdoors comfortably.
  • A compact floor plan is all open concept so you can see from the kitchen to the living room.
  • With the master suite by itself on the first floor, homeowners gain privacy.
  • An open rail on the second floor overlooks the living room below.
  • The larger bedroom on the upper floor has sliding glass doors to an open deck.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
