Contemporary Pool House Plan with Covered Porch

Plan 64519SC

  • 328

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

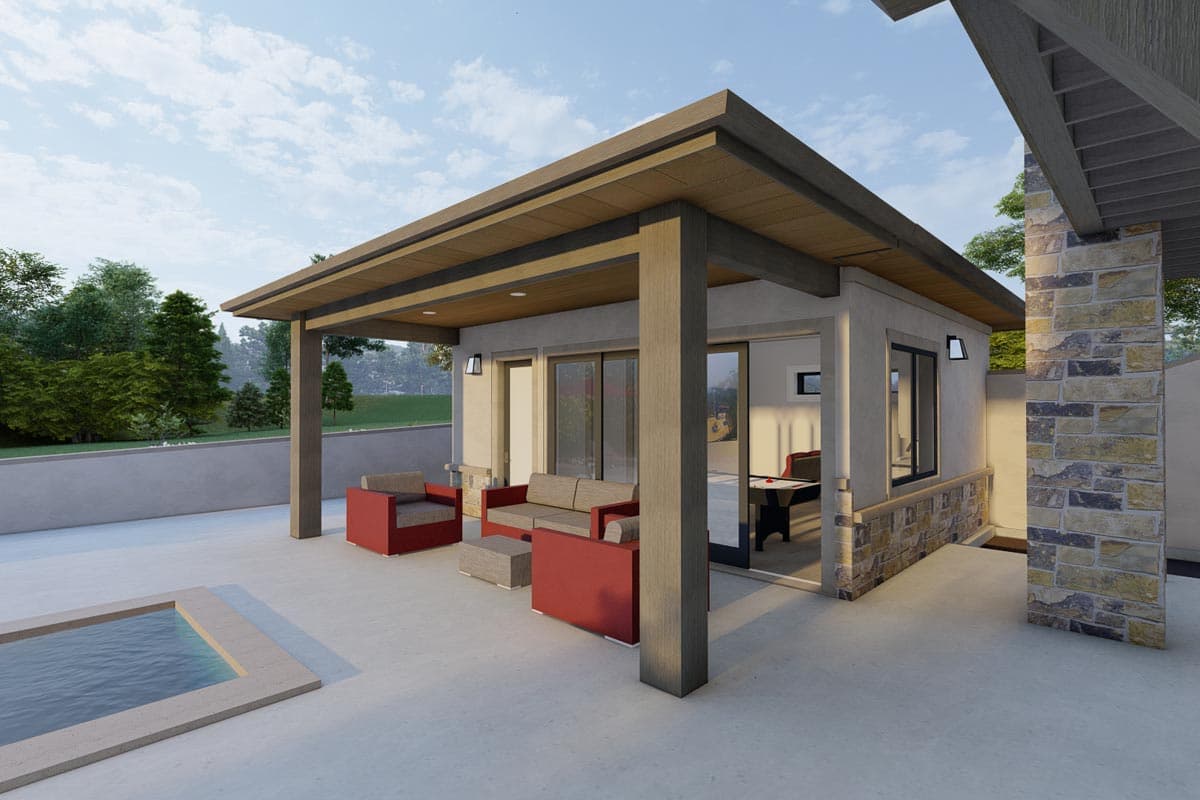

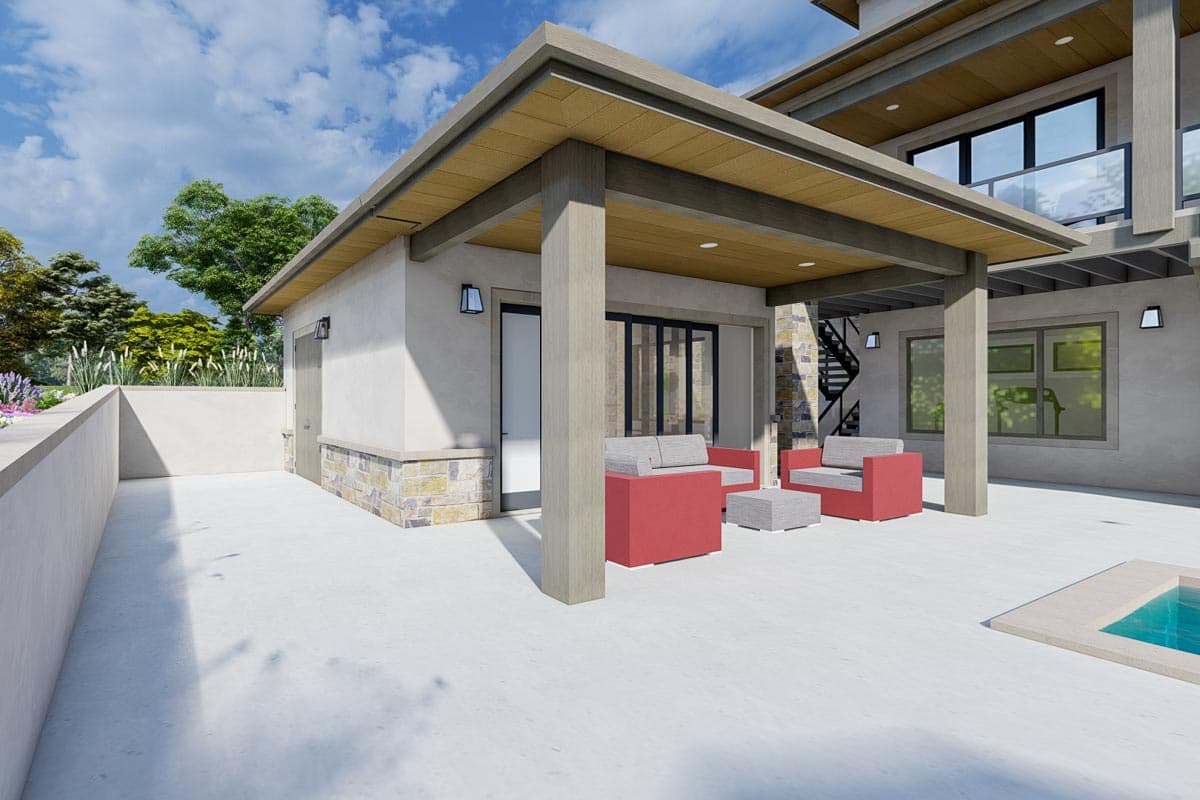

  • Relax on hot summer days in this Contemporary Pool House, complete with a covered porch.
  • Move easily between the interior space and porch through a multi-panel glass door, or watch the game while others play pool or air hockey.
  • A wet bar inside ensures all of your guests will find a refreshing beverage of their choice.
  • The full bath is accessible from the main room or porch and includes a shower.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.

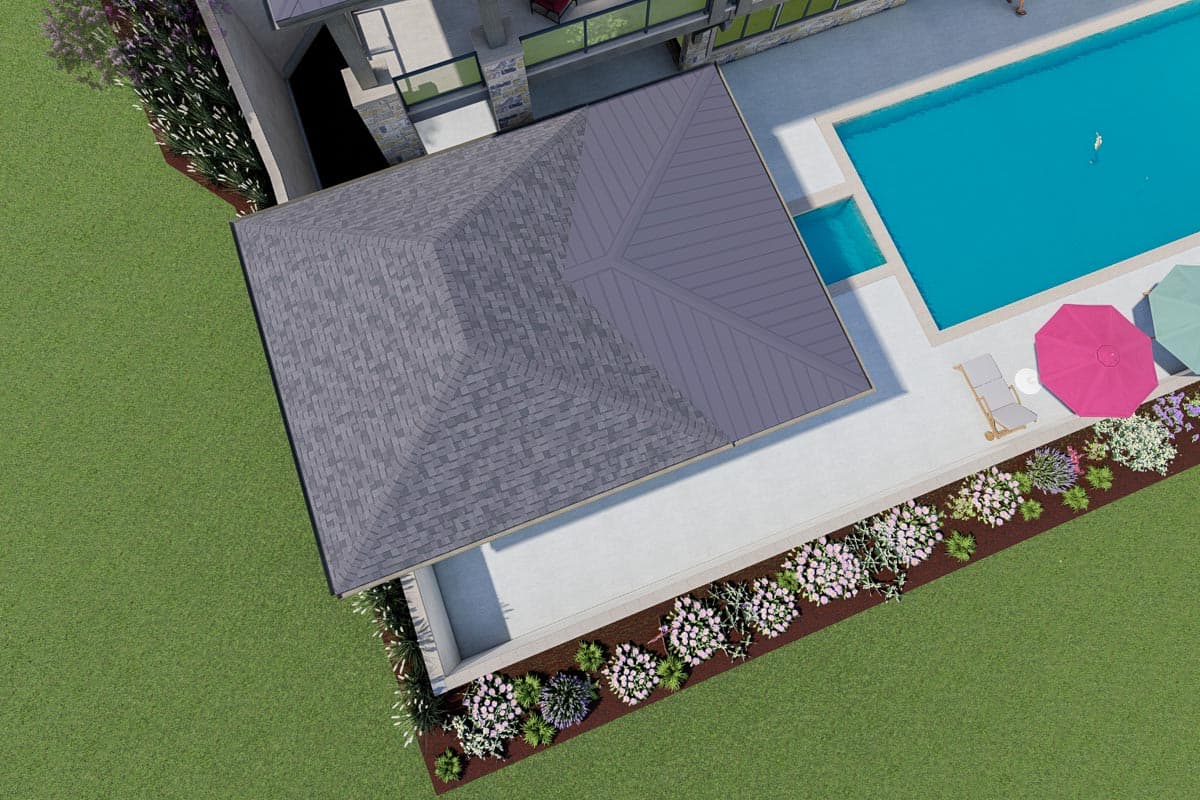

  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

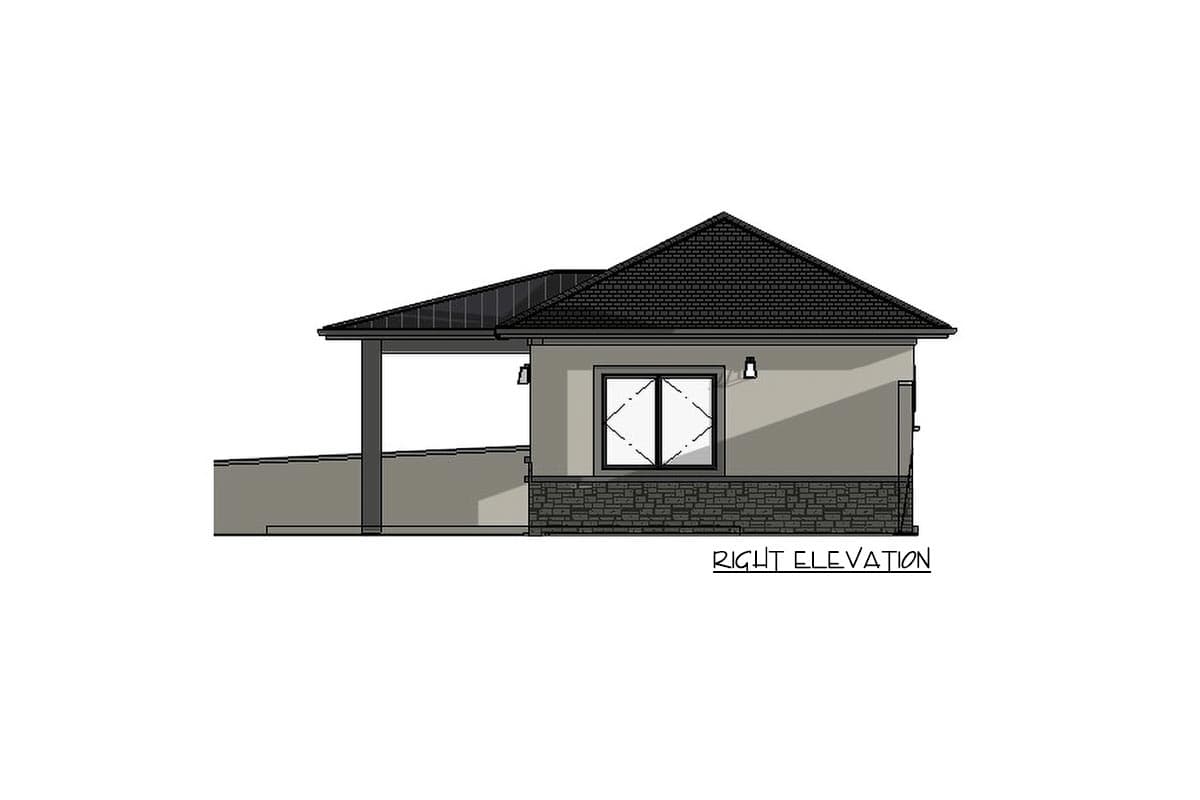

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

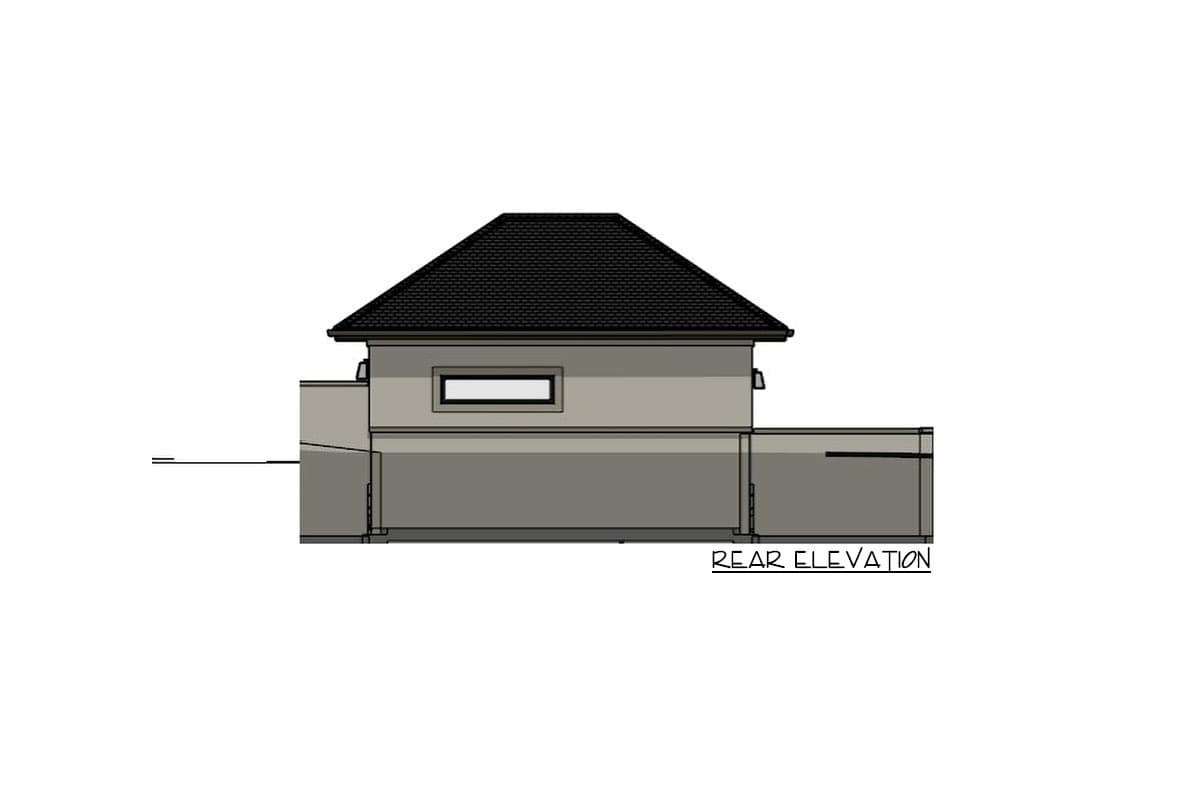

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

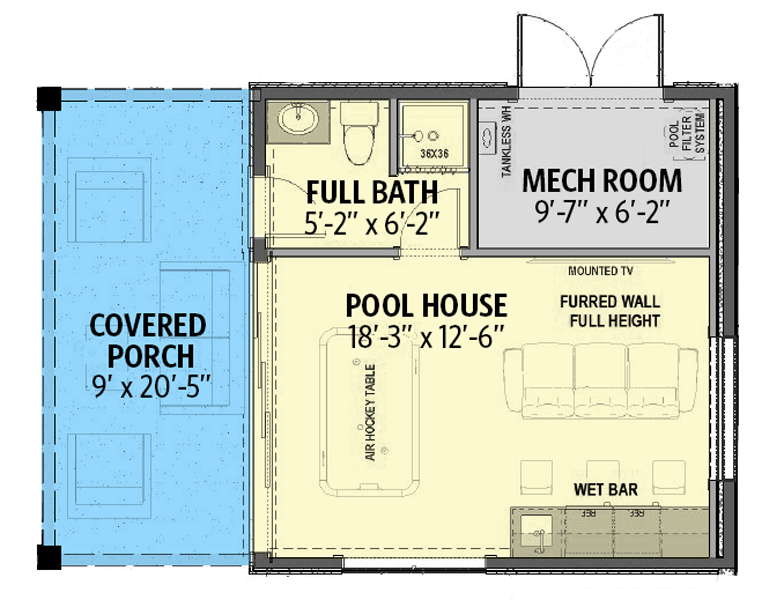

Contemporary Pool House Plan with Covered Porch - 64519SC floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 328 sq. ft.
  • 1st Floor: 328 sq. ft.
  • Covered Patio: 180 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 29' 0"
  • Max ridge height: 16' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Contemporary Pool House Plan with Covered Porch

  • 328

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $695
  • PDF - Unlimited Build $995
  • CAD + PDF - Single-Build $995
  • CAD + PDF - Unlimited Build $1,495
  • View all purchase option online

About This Plan

  • Relax on hot summer days in this Contemporary Pool House, complete with a covered porch.
  • Move easily between the interior space and porch through a multi-panel glass door, or watch the game while others play pool or air hockey.
  • A wet bar inside ensures all of your guests will find a refreshing beverage of their choice.
  • The full bath is accessible from the main room or porch and includes a shower.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 328 sq. ft.
  • 1st Floor: 328 sq. ft.
  • Covered Patio: 180 sq. ft.
