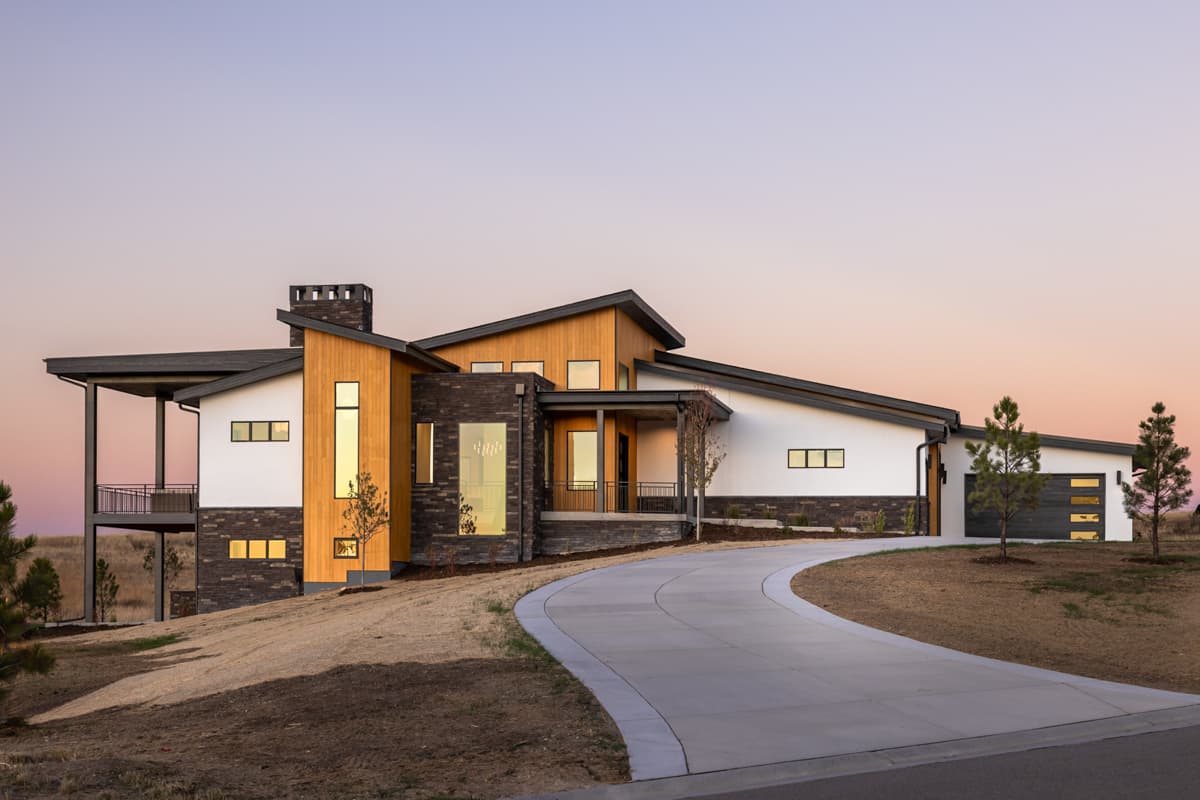

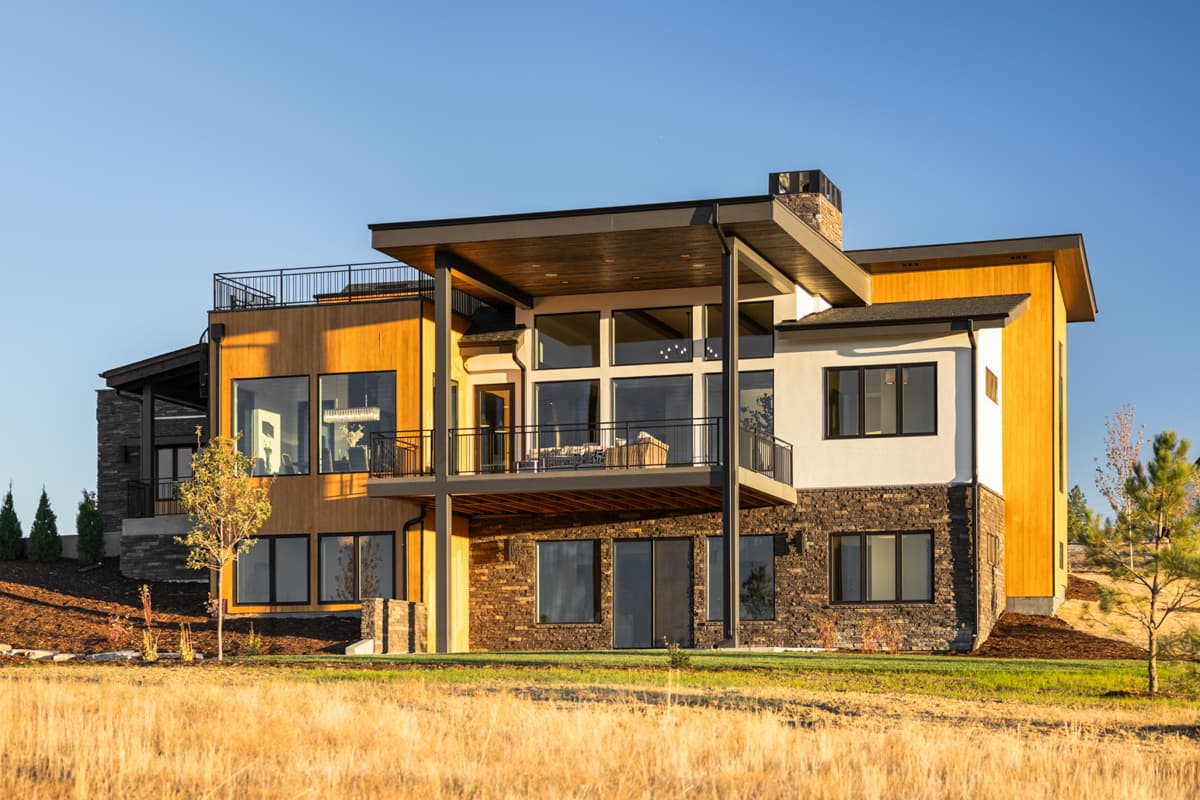

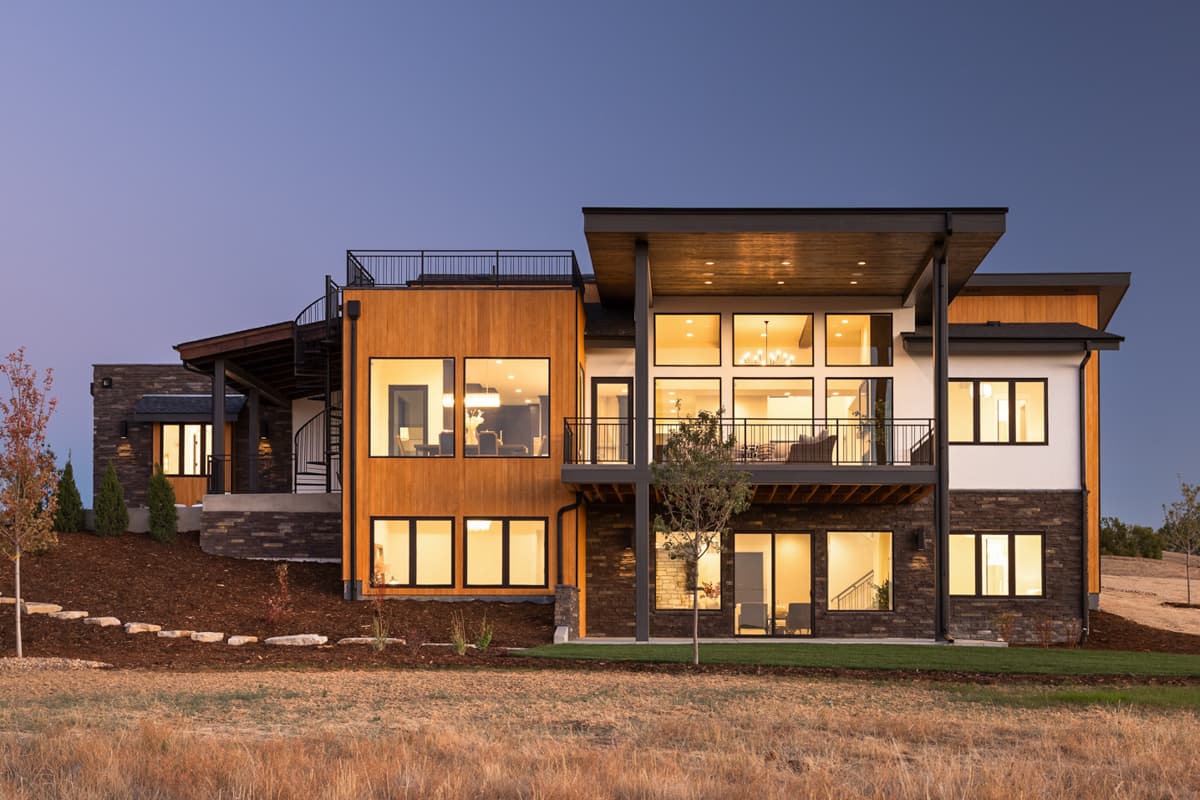

Contemporary Ranch for Side-sloping Lot

Plan 95171RW

  • 4,254

    Heated s.f.

  • 3-4

    Beds

  • 4.5 - 5.5

    Baths

  • 1

    Stories

  • 4

    Cars

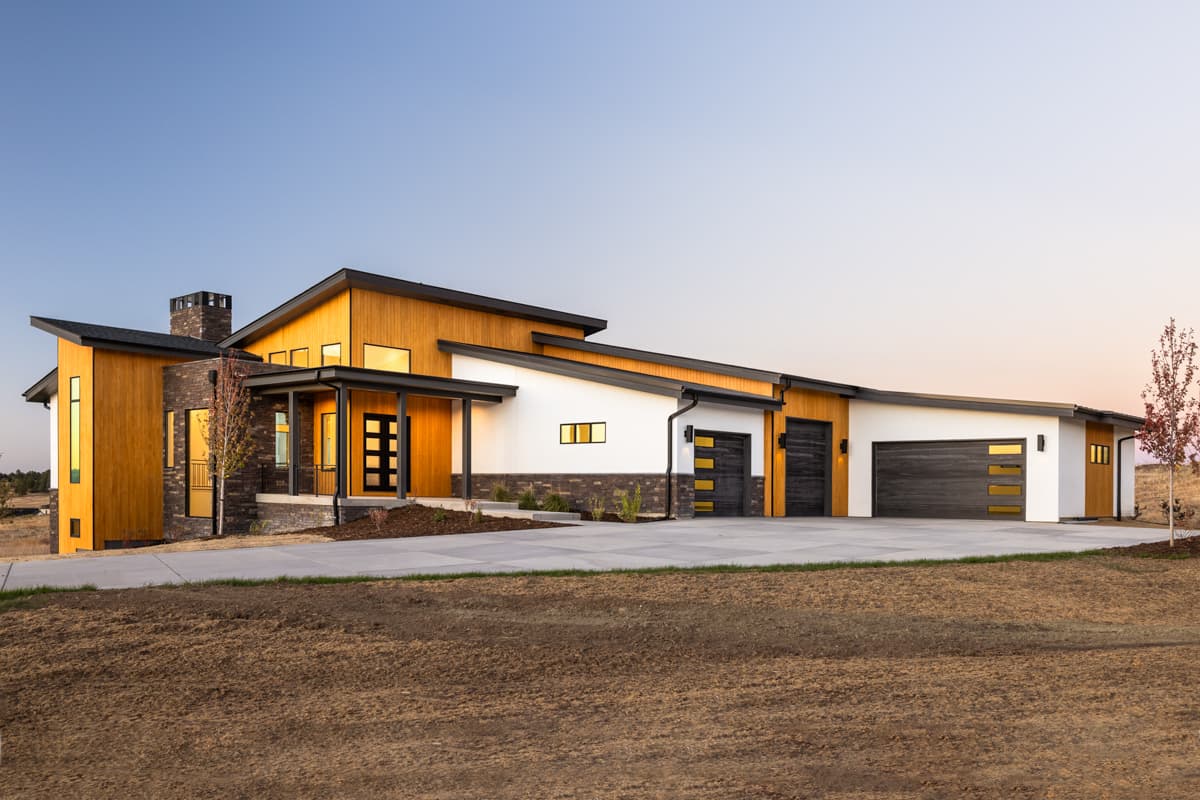

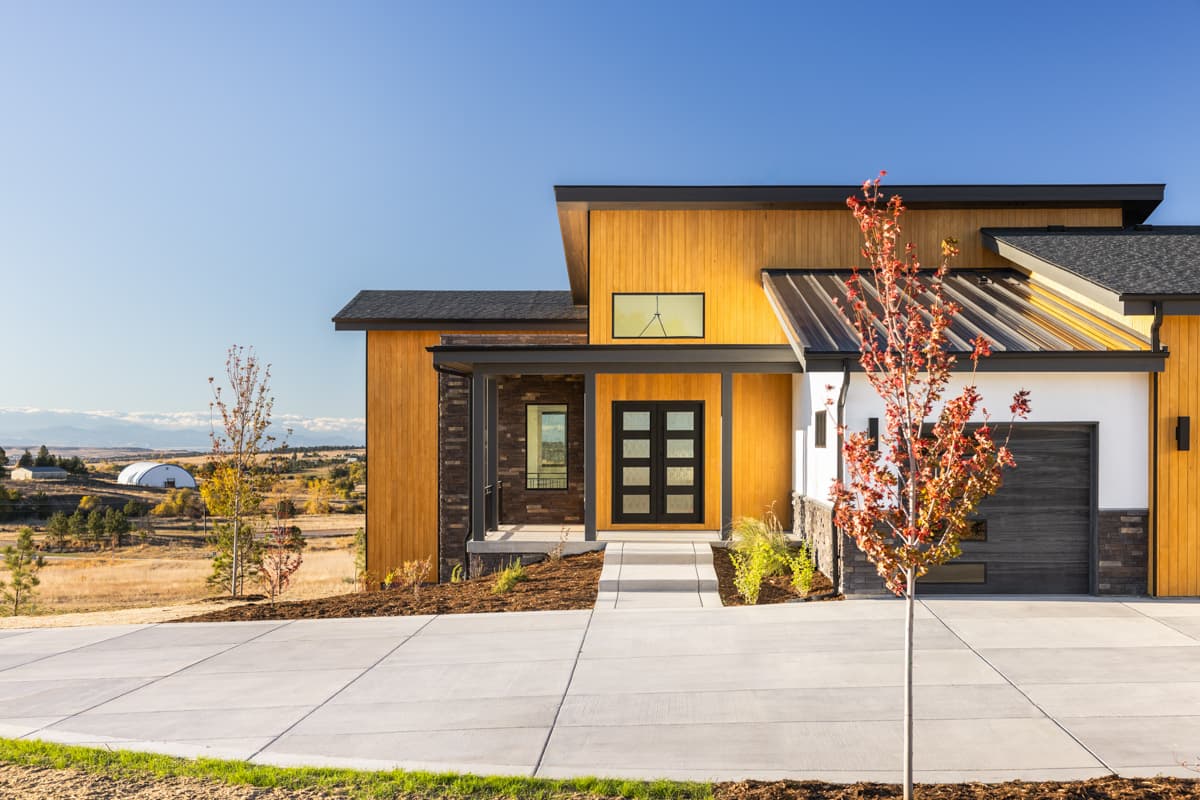

  • Stone, stucco, and vertical siding adorn the facade of this Contemporary Ranch home plan, which features a walkout basement and oversized garage with plenty of storage. Enter the foyer with 16' ceilings and enjoy the views.
  • A spacious, open living space consumes the majority of the main level with the great room having 10' ceilings and the rest of the floor having 10' ceilings, accompanied by large service areas to accommodate active families. The kitchen has a roomy pantry and a large 10' by 5' island.
  • Multiple covered patios encourage outdoor living and a spiral staircase connects the two patio levels.
  • The master bedroom is spoiled by its ensuite with a freestanding tub and roomy walk-in closet. A second bedroom suite completes the main level.
  • Downstairs, a large rec room is surrounded by a home office, exercise room, and a third bedroom suite.
  • The 2-car front-facing garage has a 16' by 8' garage door and the side-entry garages - going front to back - have 9' by 8' and 9' by 10' garage doors respectively.

  • Cover Page

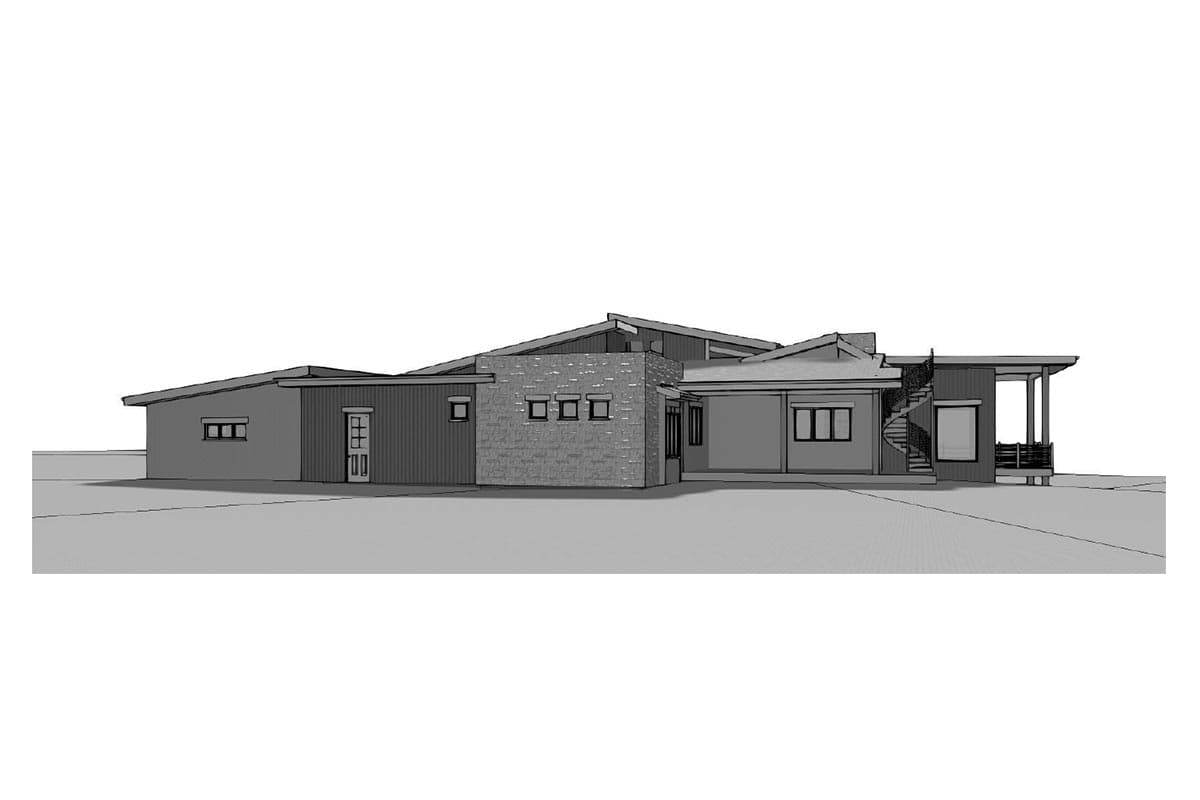

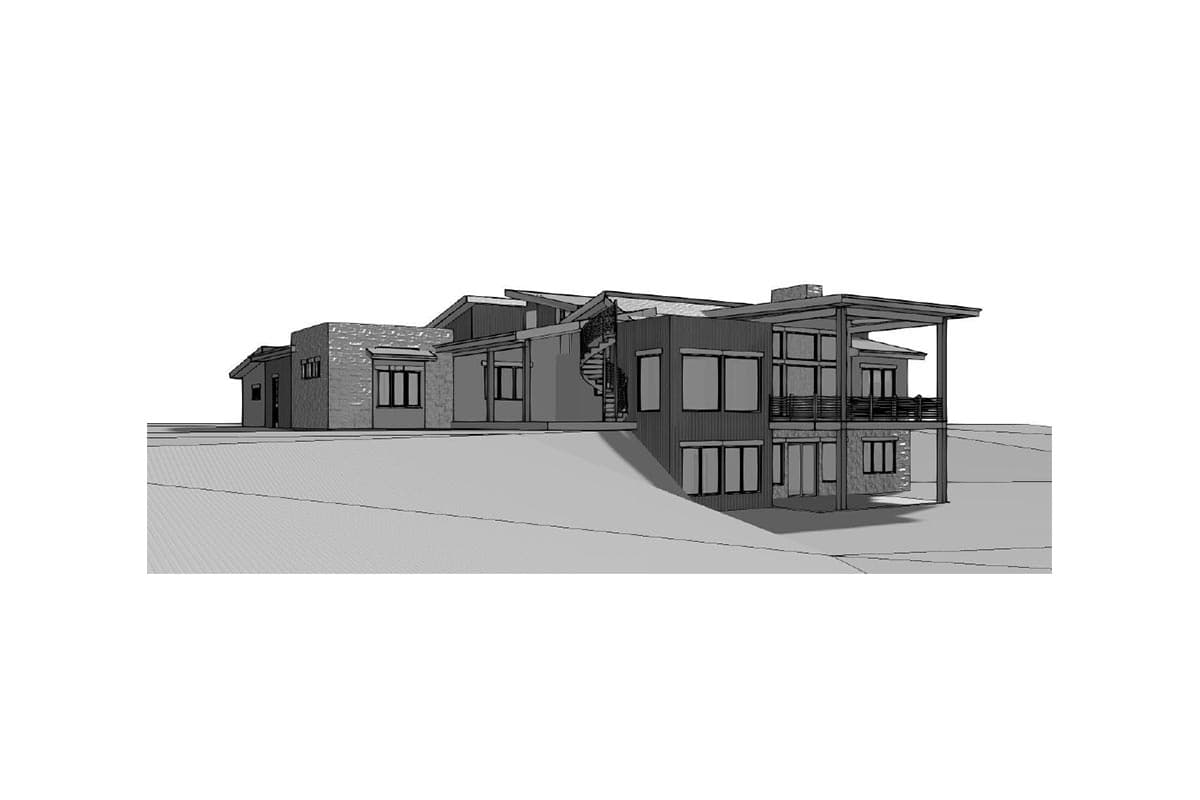

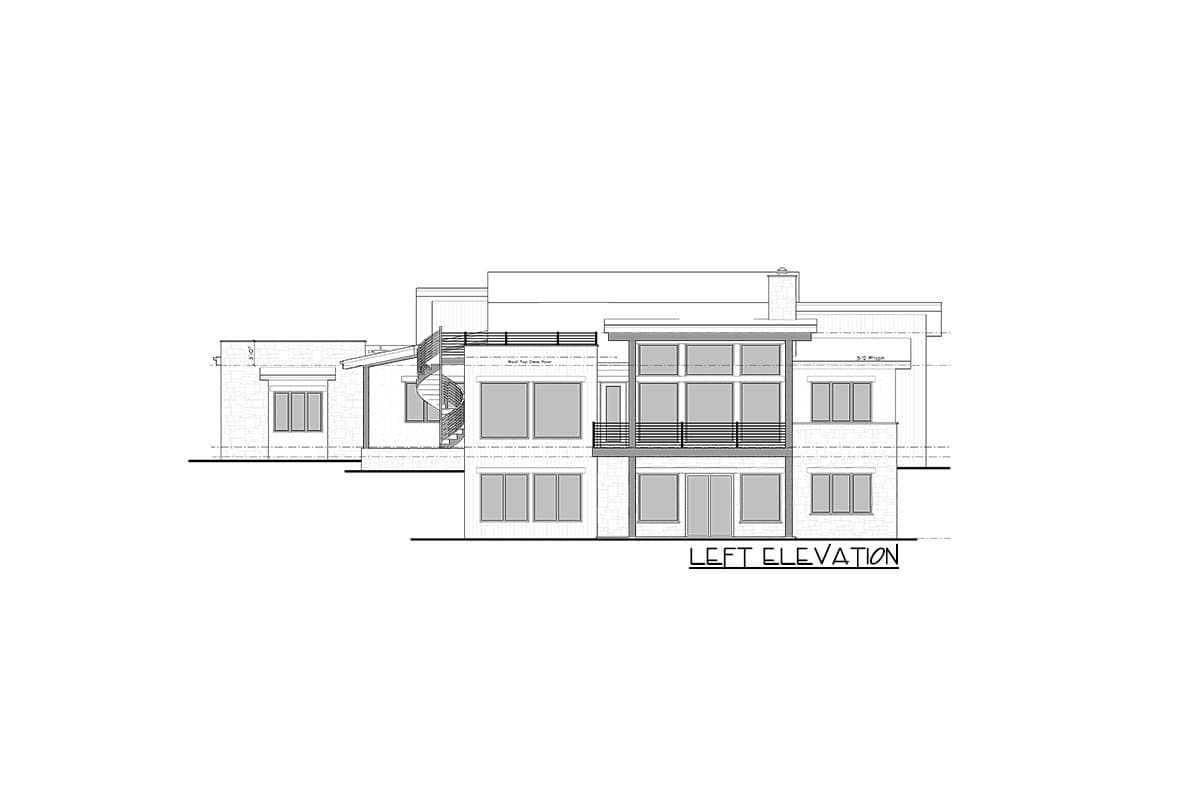

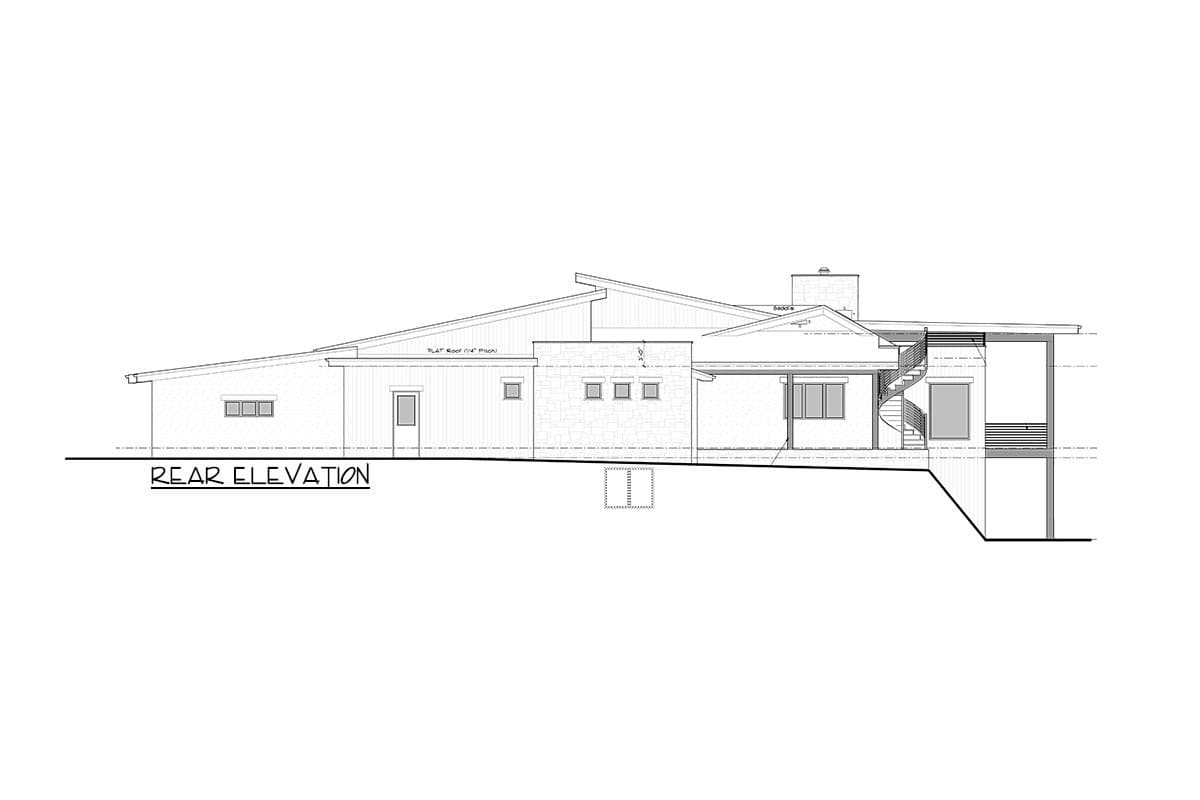

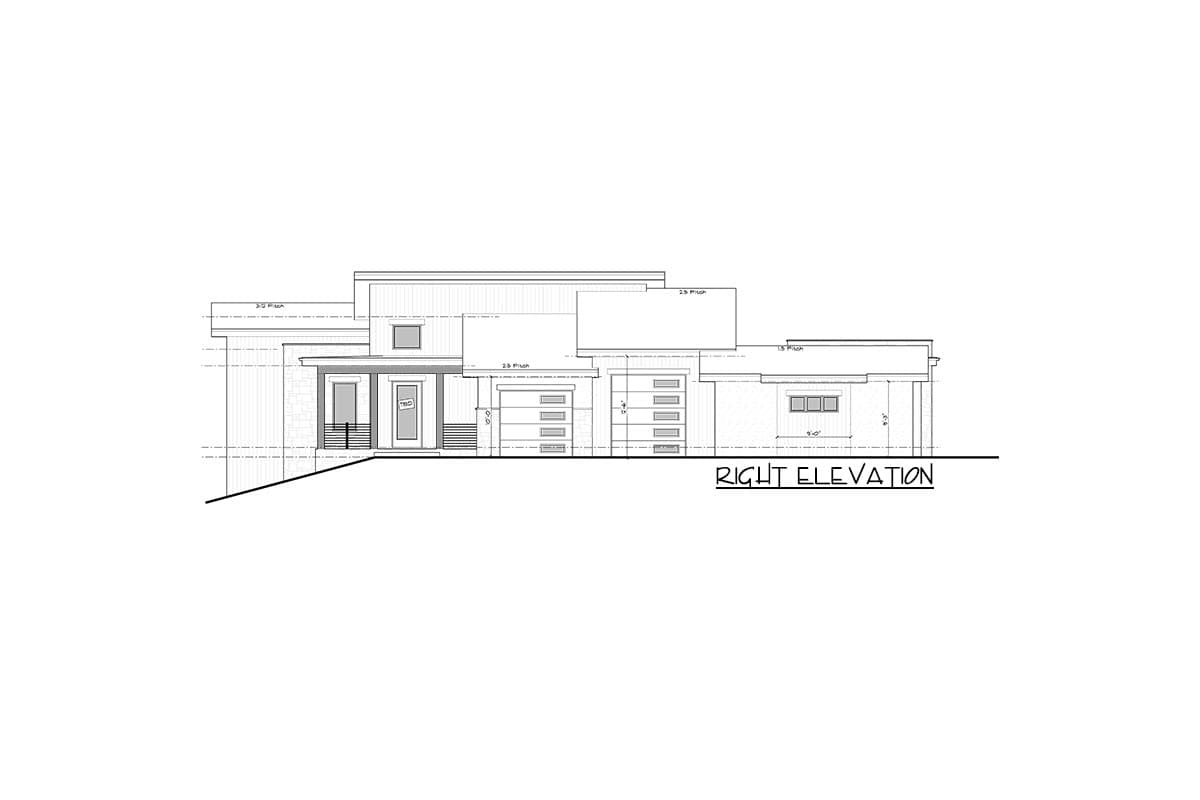

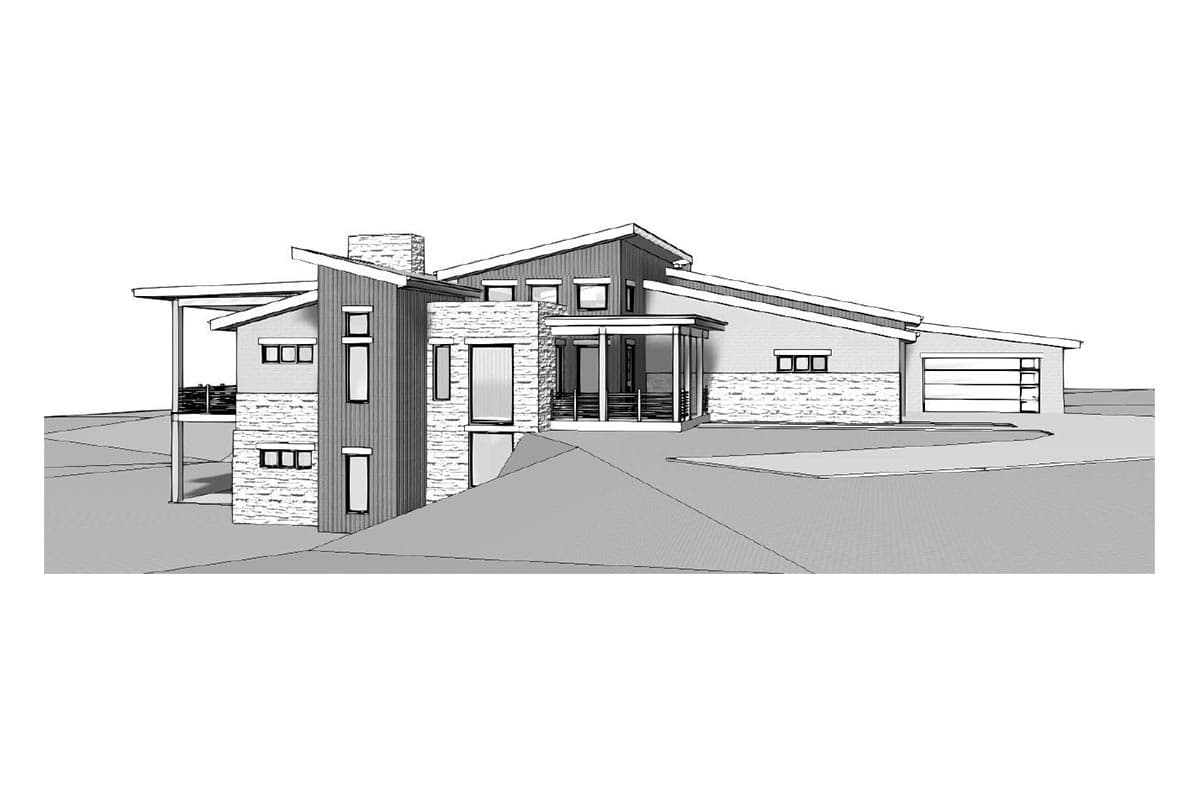

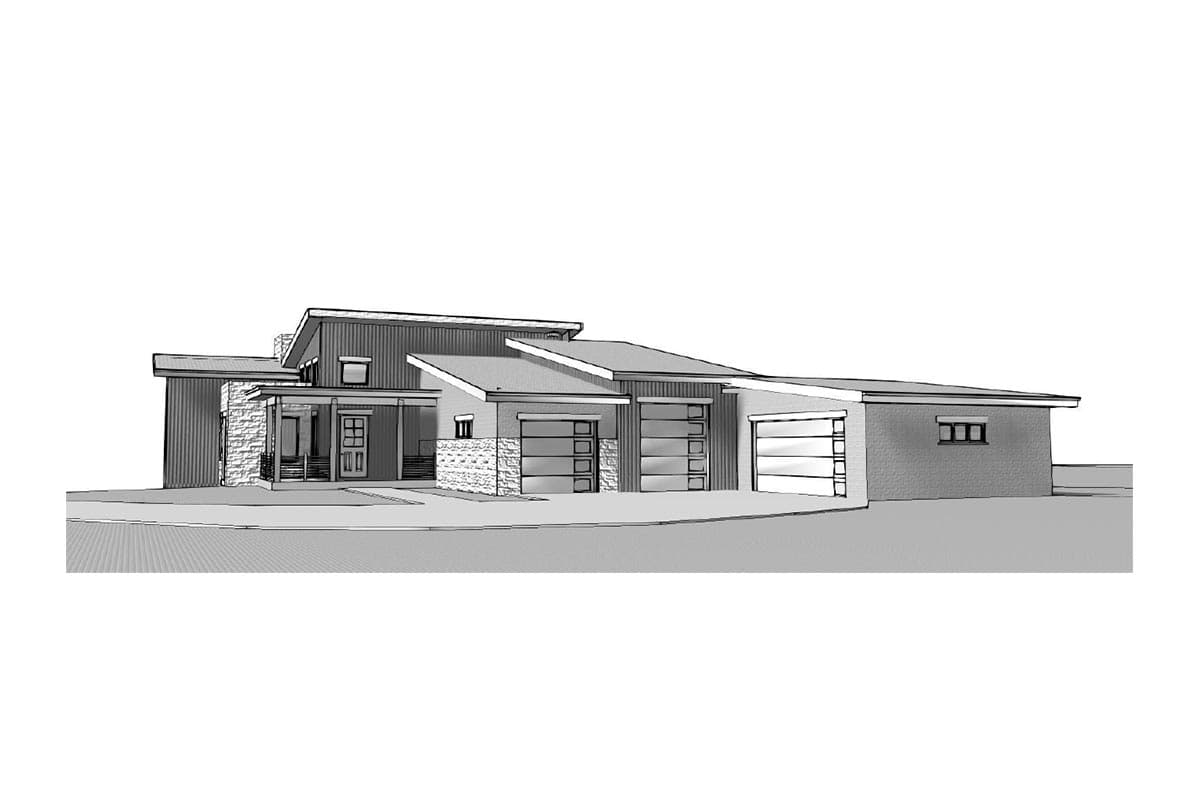

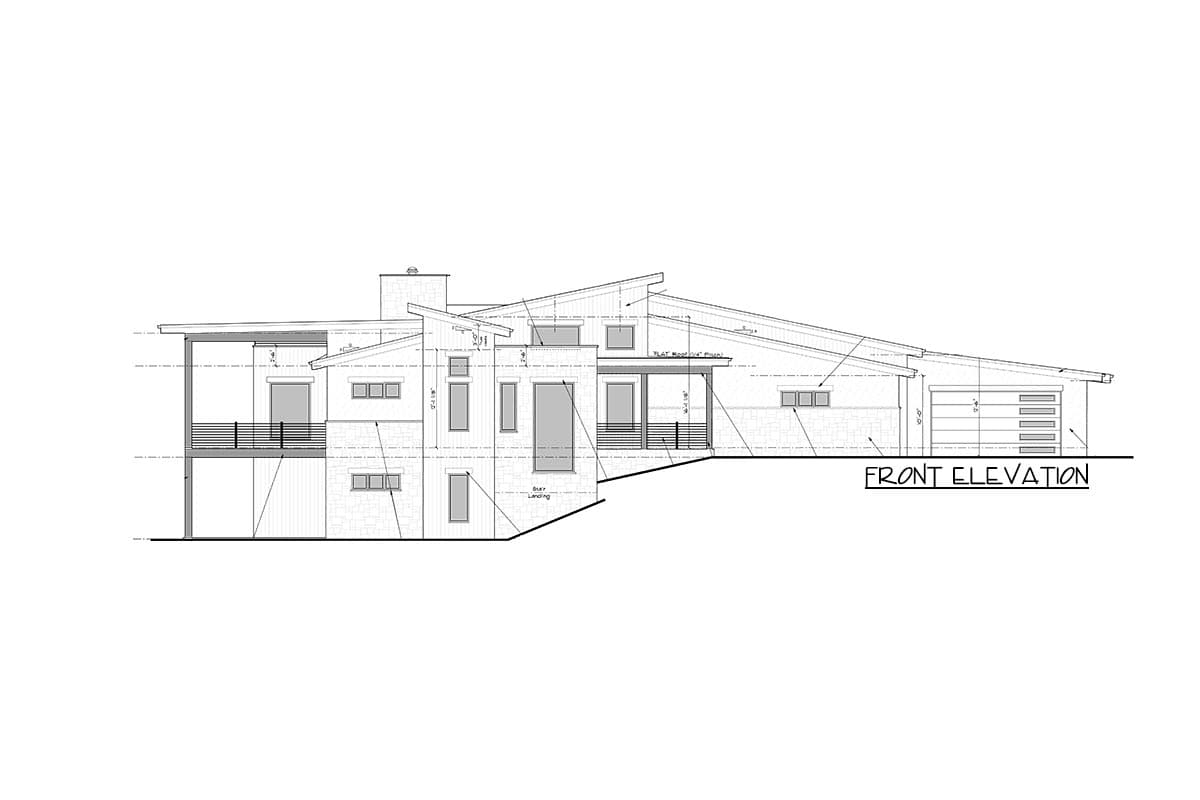

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

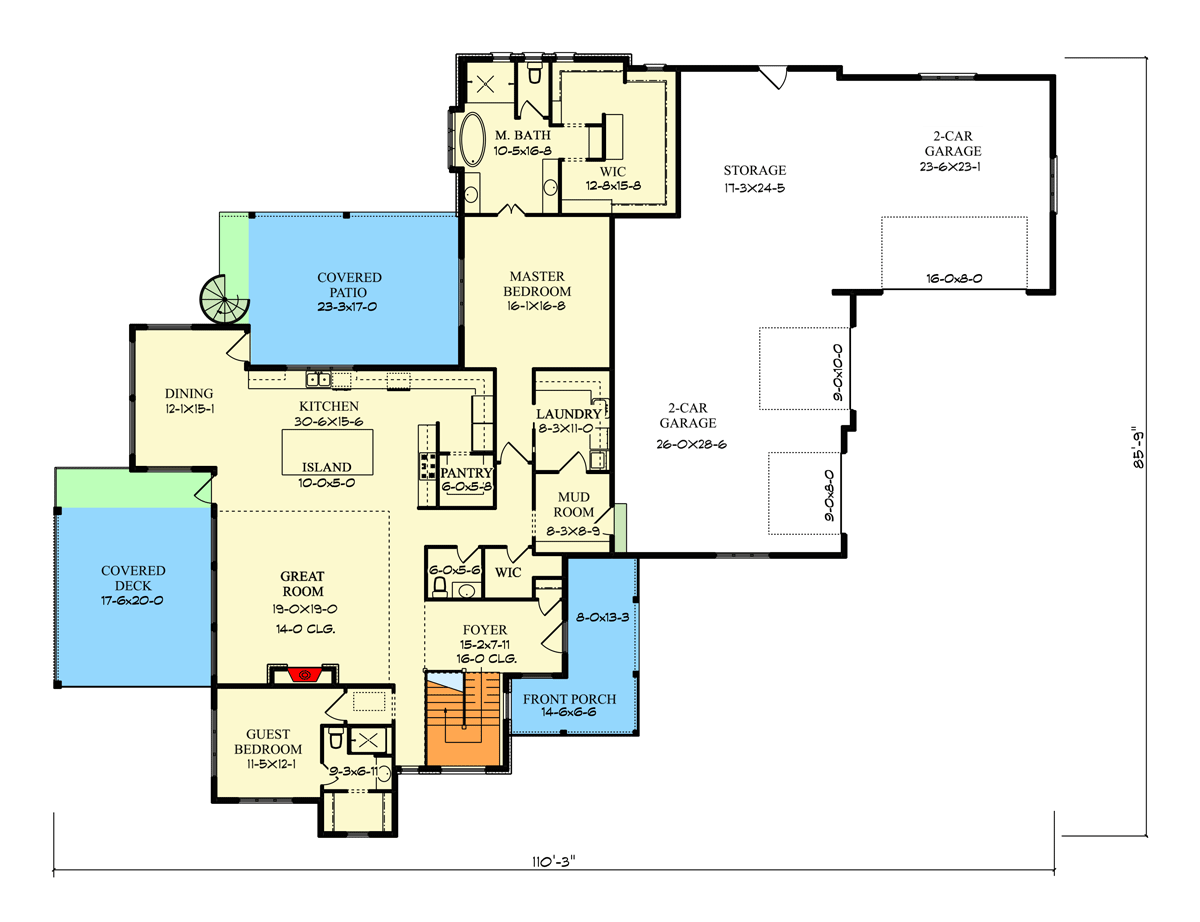

Contemporary Ranch for Side-sloping Lot - 95171RW floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

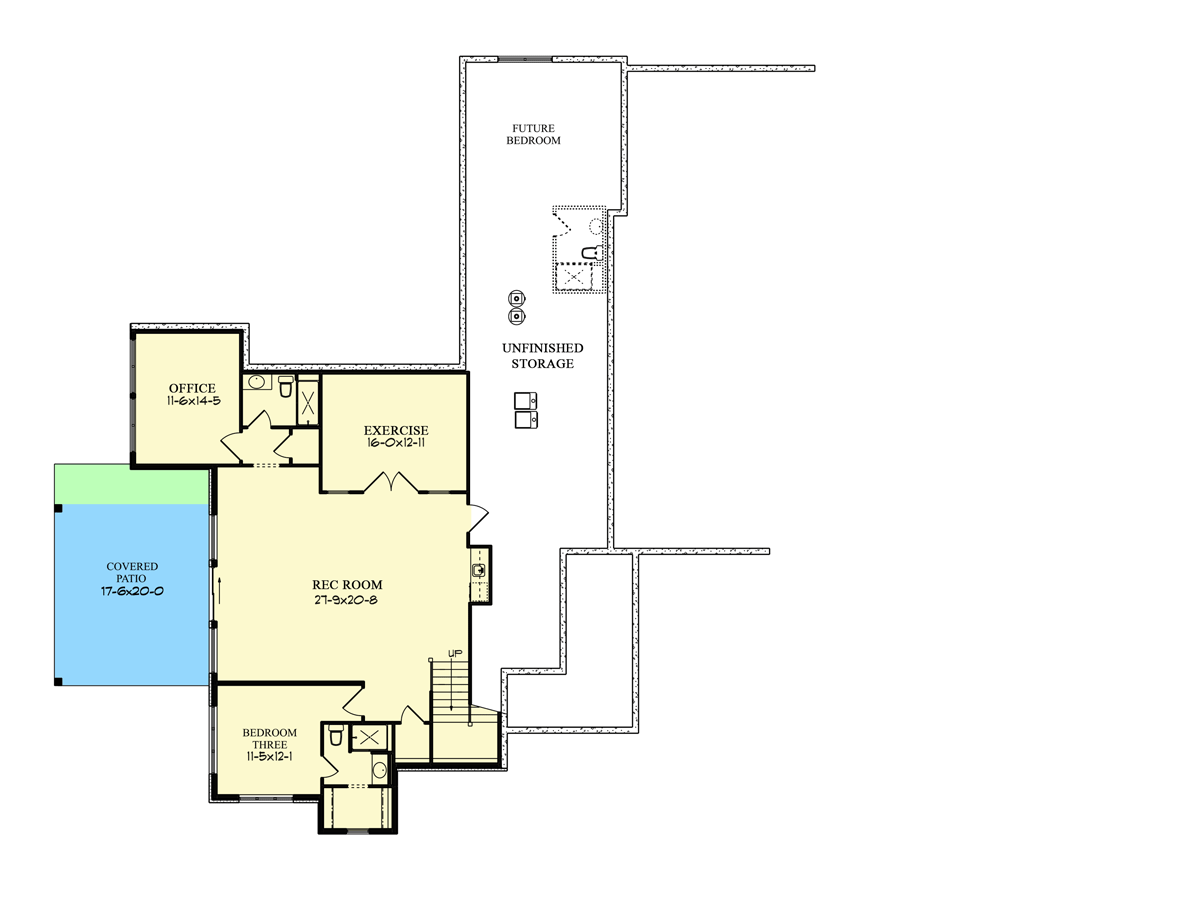

Contemporary Ranch for Side-sloping Lot - 95171RW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,254 sq. ft.
  • Lower Level: 1,511 sq. ft.
  • 1st Floor: 2,743 sq. ft.
  • Porch, Combined: 1,517 sq. ft.
  • Basement Unfinished: 1,232 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 110' 3"
  • Depth: 85' 9"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 1822 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary Ranch for Side-sloping Lot

  • 4,254

    Heated s.f.

  • 3-4

    Beds

  • 4.5 - 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,850
  • CAD - Single-Build $3,350
  • View all purchase option online

About This Plan

  • Stone, stucco, and vertical siding adorn the facade of this Contemporary Ranch home plan, which features a walkout basement and oversized garage with plenty of storage. Enter the foyer with 16' ceilings and enjoy the views.
  • A spacious, open living space consumes the majority of the main level with the great room having 10' ceilings and the rest of the floor having 10' ceilings, accompanied by large service areas to accommodate active families. The kitchen has a roomy pantry and a large 10' by 5' island.
  • Multiple covered patios encourage outdoor living and a spiral staircase connects the two patio levels.
  • The master bedroom is spoiled by its ensuite with a freestanding tub and roomy walk-in closet. A second bedroom suite completes the main level.
  • Downstairs, a large rec room is surrounded by a home office, exercise room, and a third bedroom suite.
  • The 2-car front-facing garage has a 16' by 8' garage door and the side-entry garages - going front to back - have 9' by 8' and 9' by 10' garage doors respectively.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,254 sq. ft.
  • Lower Level: 1,511 sq. ft.
  • 1st Floor: 2,743 sq. ft.
  • Porch, Combined: 1,517 sq. ft.
  • Basement Unfinished: 1,232 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 110' 3"
  • Depth: 85' 9"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 1822 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss
Plan 95171RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95171RW
|
Need Help? 800-854-7852
|
Plan 95171RW
