Plan 660002JMD Contemporary Ranch Home Plan with Master Sitting Room with Covered Lanai Access

3,322 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Ranch Home Plan with Master Sitting Room with Covered Lanai Access

Plan 660002JMD

  • 3,322

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-story contemporary ranch home plan has a well-balanced facade with clapboard siding, a split garage and decorative trusses in the gable peaks. Inside, dramatic vaulted ceilings are found throughout the home.
  • Inside, the foyer has a coffered ceiling (13' to 15') and leads you to the vaulted study and then over to the great room with coffered ceiling (14' to 16') with disappearing sliders facing the back.
  • The kitchen is open to the great and dining rooms and has a coffered ceiling (12' to 13'). A walk in pantry is conveniently located around the corner. The dining room has a coffered ceiling (12' to 13') and has large windows that face the back of the home.
  • The master suite has a vaulted ceiling and is generously sized. It has its own sitting room facing the back with French door access to the covered lanai. There are two walk-in closets and a five-fixture bath. Across the home, a junior master suite and a third bedroom completes the sleeping arrangements.
  • Enjoy outdoor entertaining on the back lanai which has an outdoor kitchen.
  • NOTE: This house plan cannot be built in Lee or Collier County, Florida.

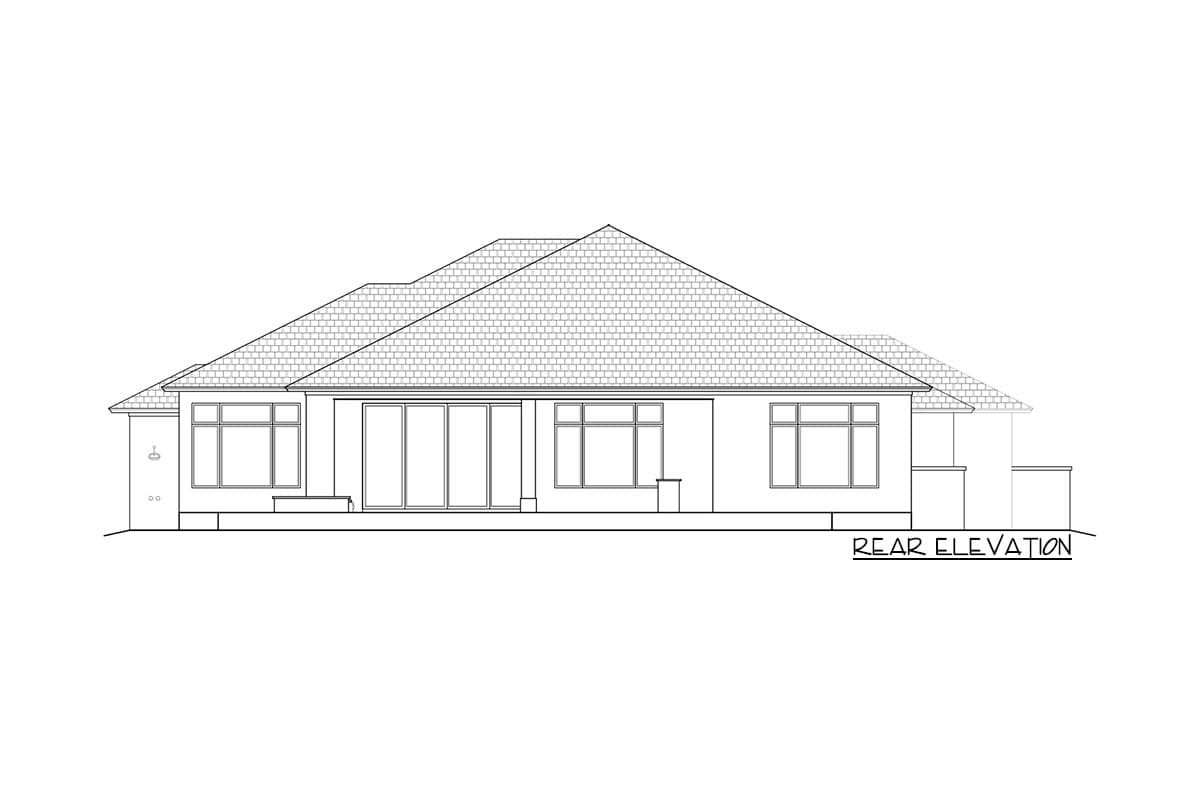

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

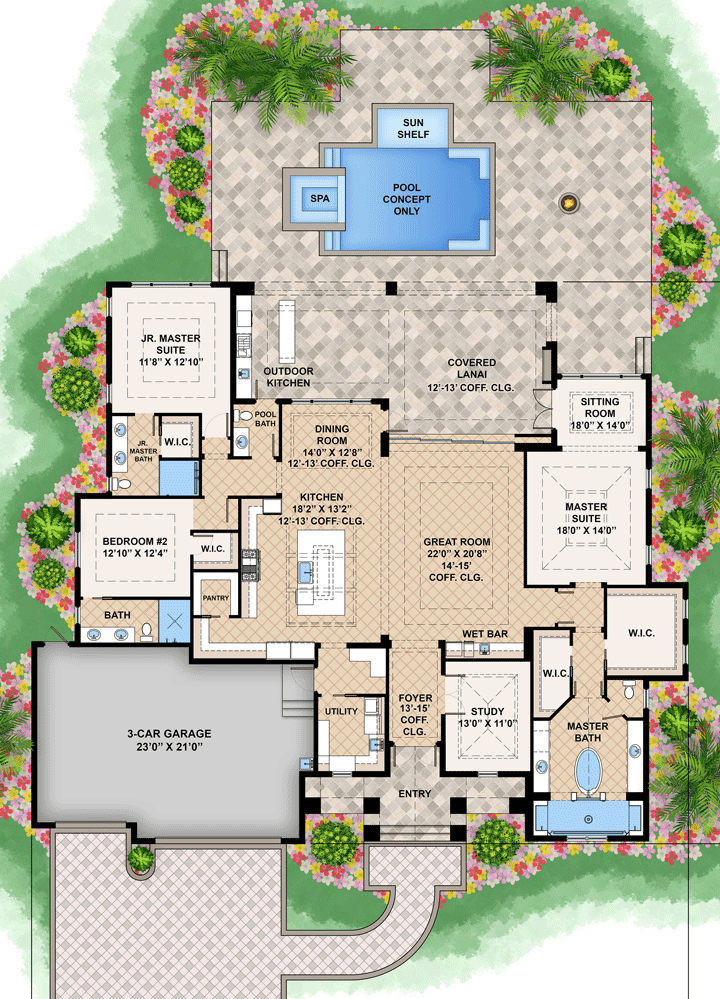

Contemporary Ranch Home Plan with Master Sitting Room with Covered Lanai Access - 660002JMD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,322 sq. ft.
  • 1st Floor: 3,322 sq. ft.
  • Lanai: 719 sq. ft.
  • Entry: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 4"
  • Depth: 71' 4"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 832 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Entry Vaulted
Foyer Coffered 13' 0" to 15' 0"
Great Room Coffered 14' 0" to 16' 0"
Kitchen Coffered 12' 0" to 13' 0"
Dining Room Coffered 12' 0" to 13' 0"
Study Vaulted
Master Bedroom Vaulted
Master Bath Vaulted
Lanai Coffered 12' 0" to 13' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary Ranch Home Plan with Master Sitting Room with Covered Lanai Access

  • 3,322

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD - Single-Build $2,800
  • PDF - Single-Build $2,800
  • View all purchase option online

About This Plan

  • This one-story contemporary ranch home plan has a well-balanced facade with clapboard siding, a split garage and decorative trusses in the gable peaks. Inside, dramatic vaulted ceilings are found throughout the home.
  • Inside, the foyer has a coffered ceiling (13' to 15') and leads you to the vaulted study and then over to the great room with coffered ceiling (14' to 16') with disappearing sliders facing the back.
  • The kitchen is open to the great and dining rooms and has a coffered ceiling (12' to 13'). A walk in pantry is conveniently located around the corner. The dining room has a coffered ceiling (12' to 13') and has large windows that face the back of the home.
  • The master suite has a vaulted ceiling and is generously sized. It has its own sitting room facing the back with French door access to the covered lanai. There are two walk-in closets and a five-fixture bath. Across the home, a junior master suite and a third bedroom completes the sleeping arrangements.
  • Enjoy outdoor entertaining on the back lanai which has an outdoor kitchen.
  • NOTE: This house plan cannot be built in Lee or Collier County, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,322 sq. ft.
  • 1st Floor: 3,322 sq. ft.
  • Lanai: 719 sq. ft.
  • Entry: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 4"
  • Depth: 71' 4"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 832 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 660002JMD
View this and more for this plan by visiting www.architechtecturaldesigns.com/660002JMD
|
