Contemporary Ranch Home With In-Law Apartment

Heated S.F.
3,754
Beds
4
Baths
4.5
Stories
1
Cars
3

Floor Plan

Plan 430028LY

Main Level
Main Level

Plan 430028LY

M-F 9am-5pm EST |

1-203-761-8500

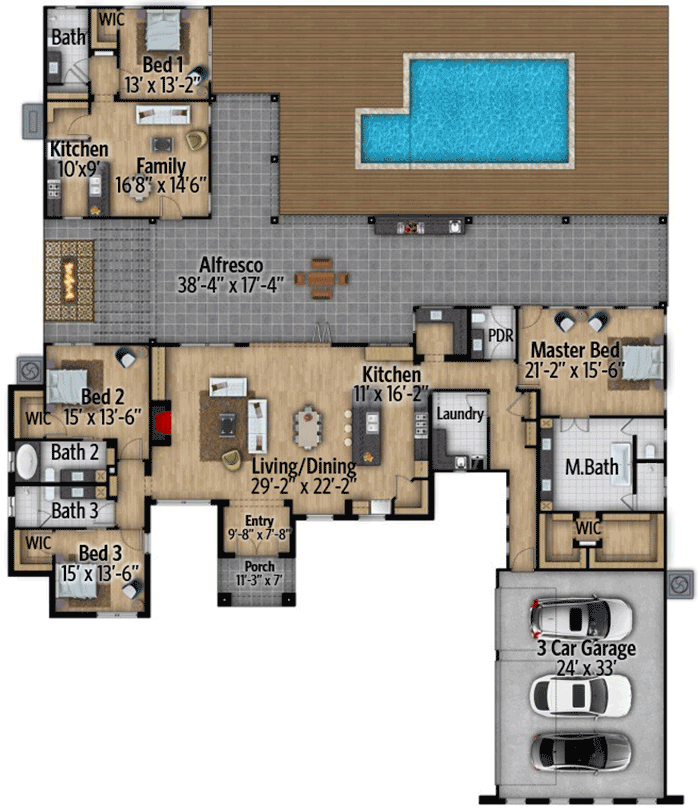

Main Level

Plan 430028LY: Contemporary Ranch Home With In-Law Apartment - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Ranch

Plan Details

  • Beautiful slanted roof lines give this Ranch house plan (exclusive to Architectural Designs!) a contemporary edge.
  • Transom windows, some with specialty shapes enhance the effect.
  • From the entry, you step right into a huge, open great room area with walls of glass that overlook the covered veranda out back.
  • Relax outdoors in front of the fire-pit or grill up a storm on the outdoor kitchen with sink.
  • Two self-contained bedroom suites lie on the left side of the home while the master suite sits by itself on the right side.
  • This home comes with a separate in-law apartment complete with kitchen and private entrance.
  • Use it for family or for rental income.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,754 sq. ft.

1st Floor

3,754 sq. ft.

Porch, Front

85 sq. ft.

Deck

276 sq. ft.

Covered Patio

1,368 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

97' 0"

Depth

115' 2"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Slope

19' 7''

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,754 sq. ft.

1st Floor

3,754 sq. ft.

Porch, Front

85 sq. ft.

Deck

276 sq. ft.

Covered Patio

1,368 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

97' 0"

Depth

115' 2"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Slope

19' 7''

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Walk-in Pantry
