Plan 290066IY
Contemporary Ranch House Plan
Heated S.F.
5,442
Beds
4
Baths
4.5
Stories
1
Cars
3
What's Included
Plan Details
  • Lots of outdoor space and an attached casita enhance this contemporary Ranch house plan.
  • Well over 5,000 square feet gives you four bedrooms, a den and a big open floor plan where the views sweep from room to room.
  • The huge kitchen island faces the great room so you can enjoy the fireplace while cooking.
  • A folding door system retracts to take you out to rear covered patio where you are shaded from the sun.
  • The master suite takes up the whole right wing of the home and includes his and her bathrooms and a safe room.
  • Each bedroom on the opposite side of the home has a private bathroom and the casita has a separate entrance making it ideal as an in-law suite.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Ranch House Plan

  • 5,442

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

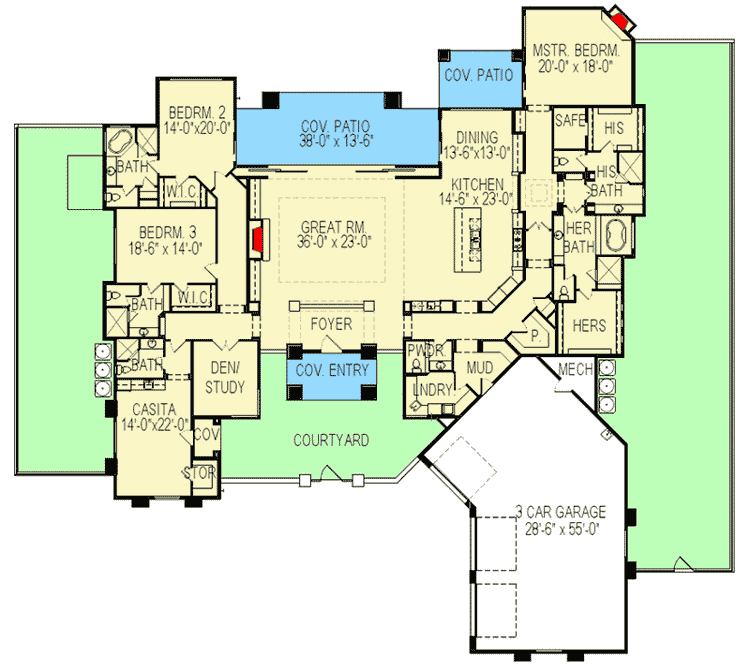

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 5,442 sq. ft.
  • 1st Floor: 5,442 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 123' 2"
  • Max ridge height: 19' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1548 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"
