Contemporary Ranch with a Walkout Basement

Plan 42707DB

  • 2,904

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The walkout basement makes this Contemporary Ranch home plan perfect for rear sloping lots. Inside, an open layout consumes the main level and extends onto a covered patio for outdoor living.
  • The kitchen hosts a flush eating bar at the island and a small appliance center next to the walk-in pantry.
  • Stay organized with the pocket office that resides next to the family room.
  • One-level living is made easy with the first floor master suite that includes access to the laundry room through the master closet.
  • Downstairs, bedrooms 2 and 3 flank the recreation room, where you'll find a wet bar ready to entertain. A flex room provides space for future expansion possibilities.
  • Related Plan: Get an alternate version with house plan 42674DB.

This house plan set has the following details:

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

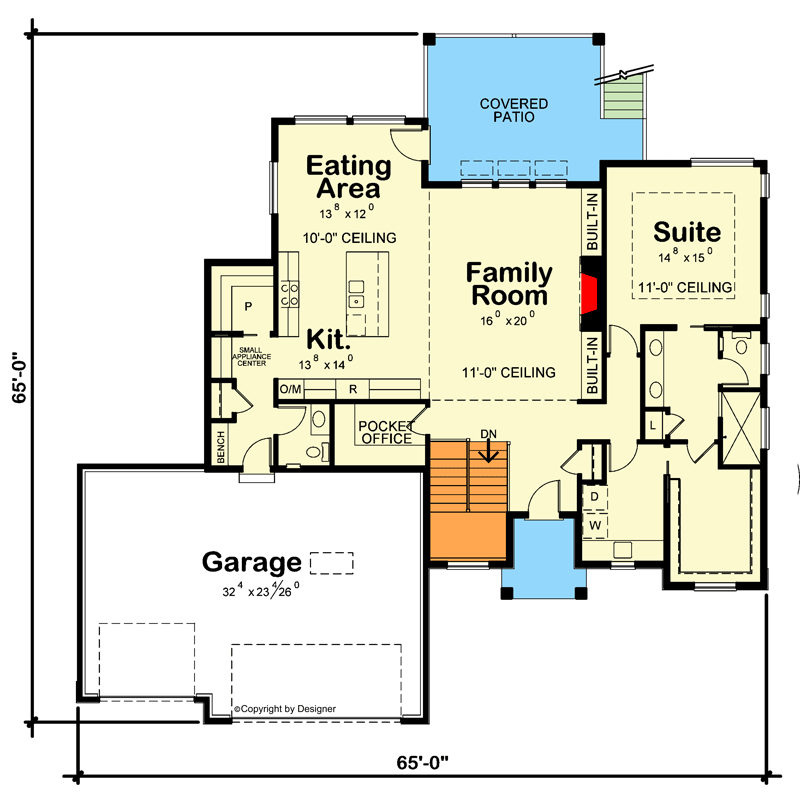

Contemporary Ranch with a Walkout Basement - 42707DB floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

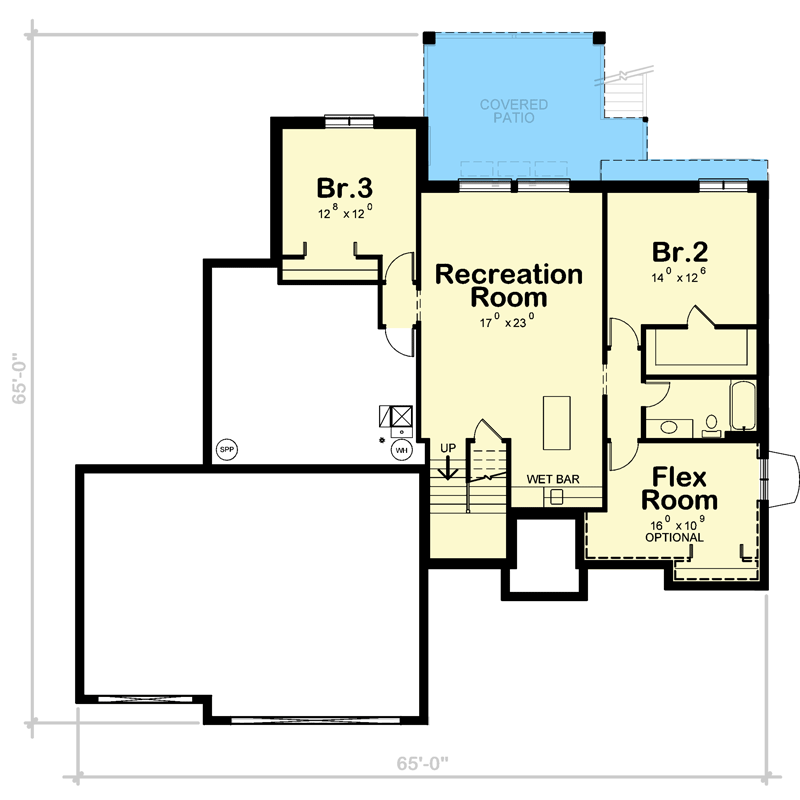

Contemporary Ranch with a Walkout Basement - 42707DB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,904 sq. ft.
  • Lower Level: 1,100 sq. ft.
  • 1st Floor: 1,804 sq. ft.
  • Porch, Rear: 251 sq. ft.
  • Porch, Front: 52 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 65' 0"
  • Max ridge height: 19' 2"

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12

Architectural Style

Special features

Plan Collections

Contemporary Ranch with a Walkout Basement

  • 2,904

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $715
  • PDF - Single-Build $1,155
  • PDF - Unlimited Build $1,655
  • CAD + PDF - Single-Build $1,920
  • CAD - Unlimited Build $2,420
  • View all purchase option online

About This Plan

  • The walkout basement makes this Contemporary Ranch home plan perfect for rear sloping lots. Inside, an open layout consumes the main level and extends onto a covered patio for outdoor living.
  • The kitchen hosts a flush eating bar at the island and a small appliance center next to the walk-in pantry.
  • Stay organized with the pocket office that resides next to the family room.
  • One-level living is made easy with the first floor master suite that includes access to the laundry room through the master closet.
  • Downstairs, bedrooms 2 and 3 flank the recreation room, where you'll find a wet bar ready to entertain. A flex room provides space for future expansion possibilities.
  • Related Plan: Get an alternate version with house plan 42674DB.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,904 sq. ft.
  • Lower Level: 1,100 sq. ft.
  • 1st Floor: 1,804 sq. ft.
  • Porch, Rear: 251 sq. ft.
  • Porch, Front: 52 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 65' 0"
  • Max ridge height: 19' 2"

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 5 on 12
