Plan 90329PD
Contemporary Ranch with Split-bed Layout
Heated S.F.
1,282
Beds
3
Baths
2
Stories
1
Cars
1
What's Included
Plan Details
  • Contrasting exterior colors support the contemporary appeal of this Ranch home plan, while inside, natural lighting fills the gathering spaces for a comfortable living environment.
  • The front door and garage entry meet in the foyer with a coat closet serving as a drop zone upon entering.
  • Minimal walls create the desirable open-concept floor plan, anchored by a kitchen island, with oversized sliding doors leading to the covered deck.
  • Retreat to the private master bedroom and discover a full bathroom and walk-in closet.
  • Two secondary bedrooms line the right side of the home, separated by a full bathroom with a laundry closet.
What's Included
Please note this plan is designed to the National Building Code of Canada.

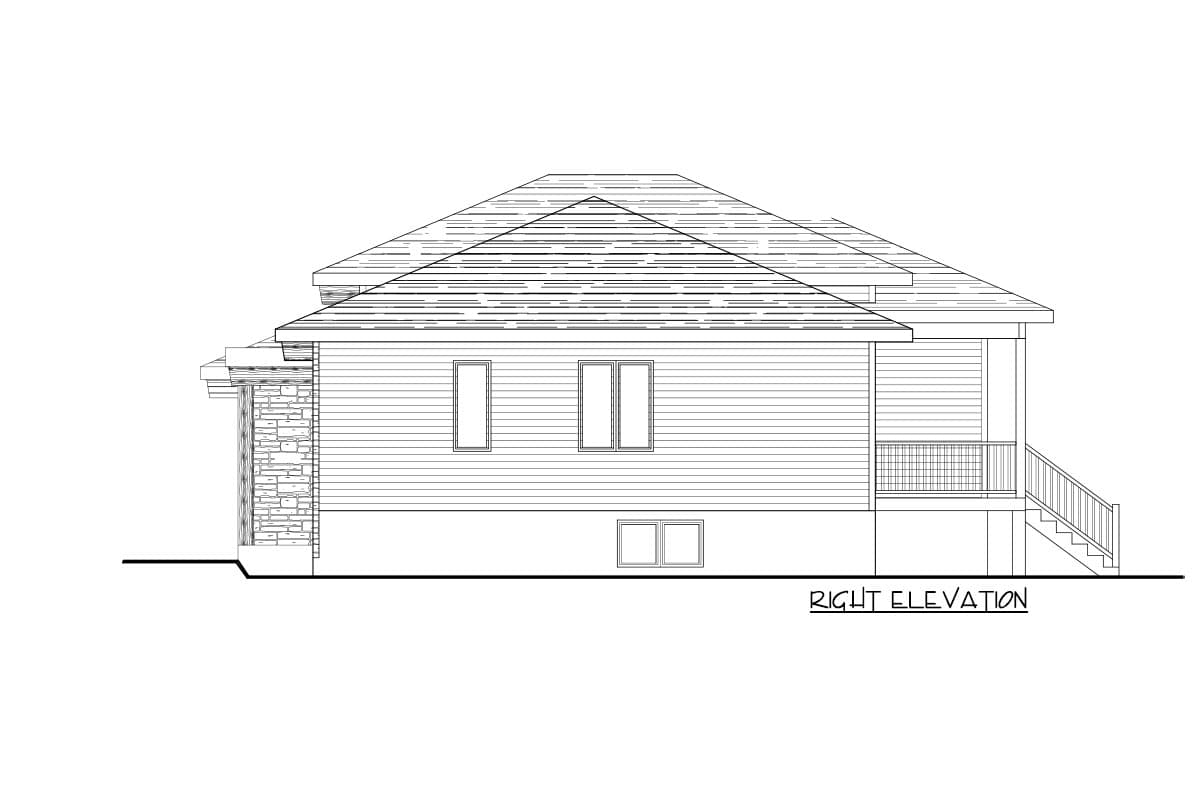

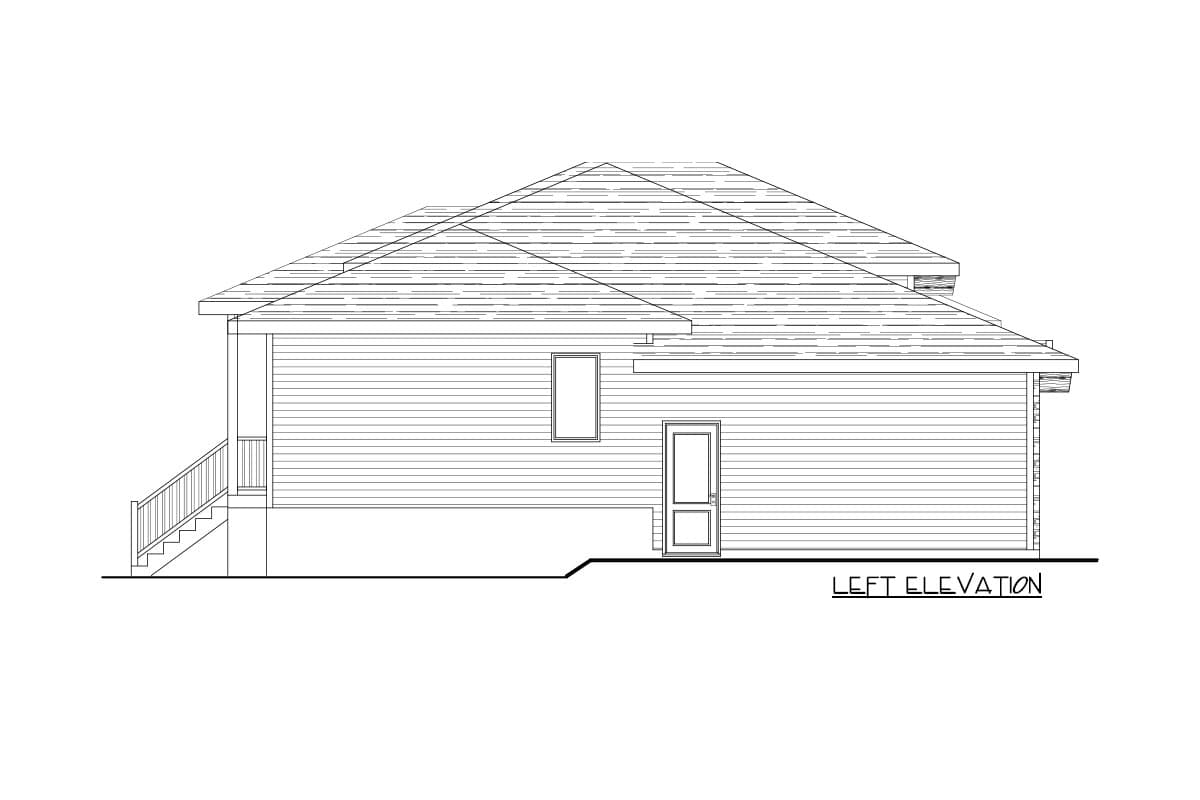

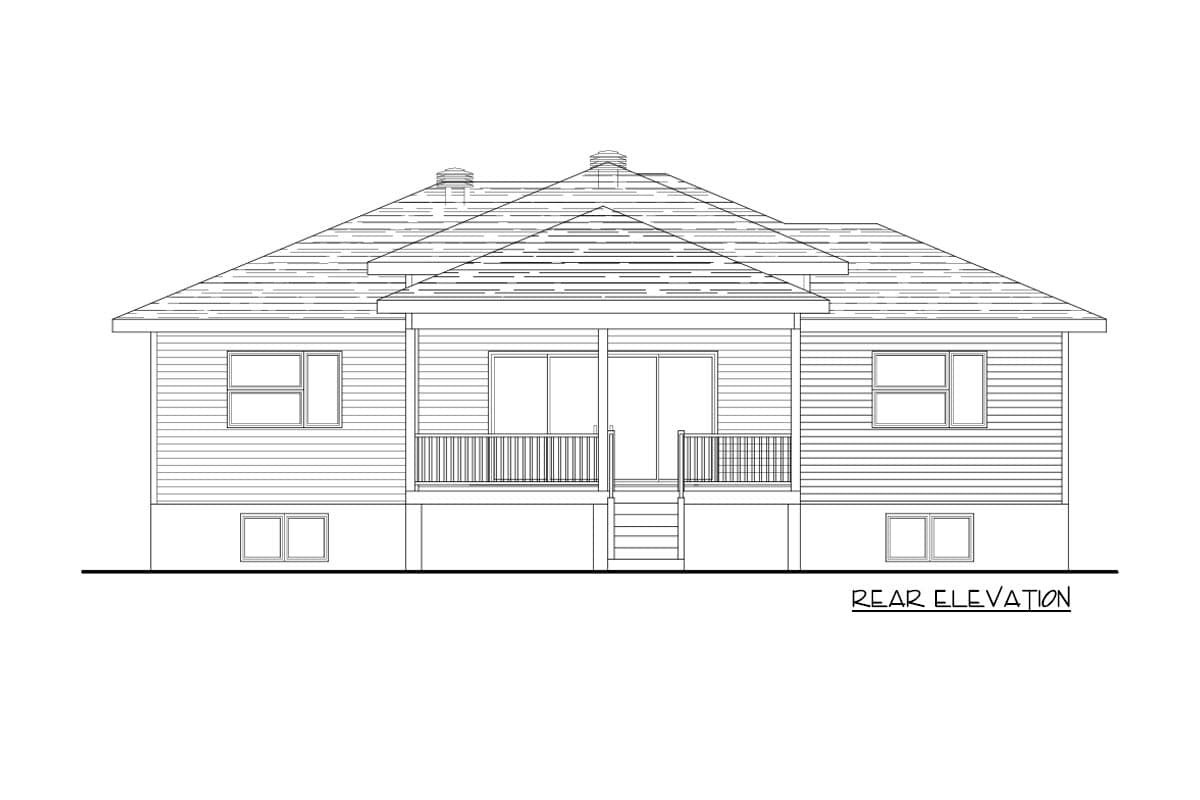

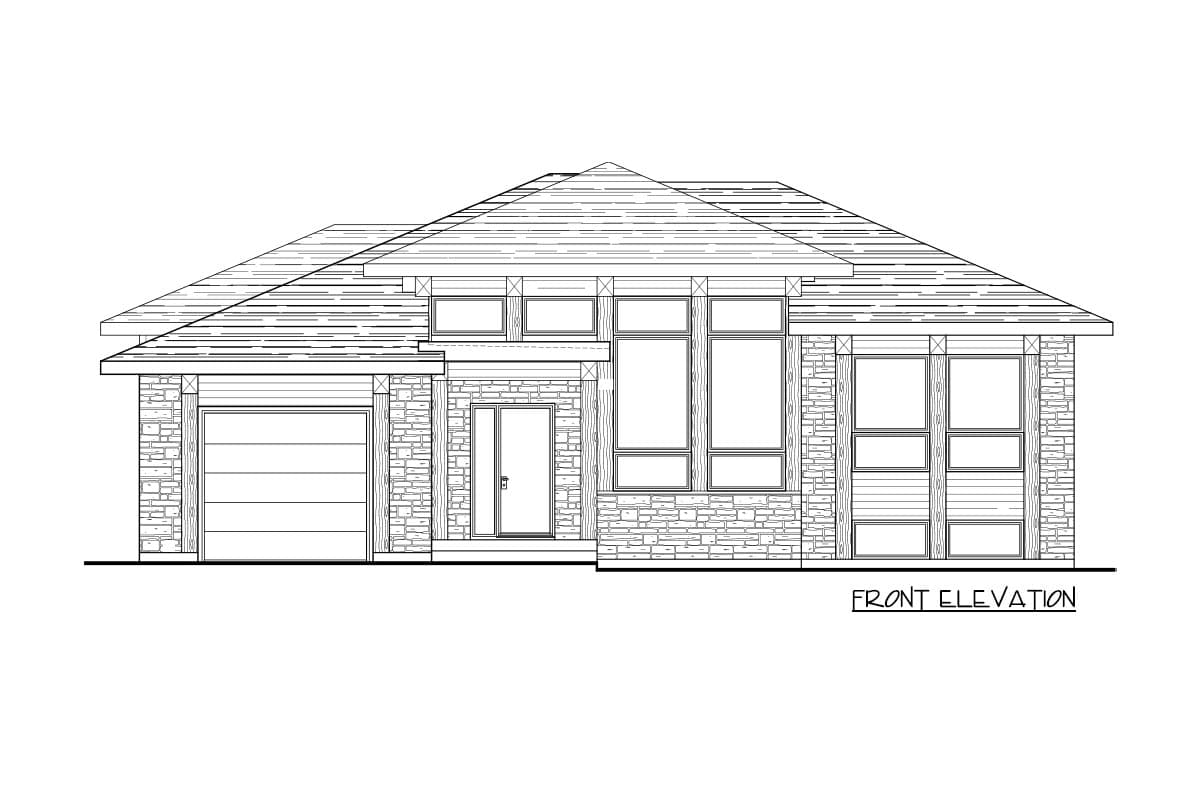

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Ranch with Split-bed Layout

  • 1,282

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

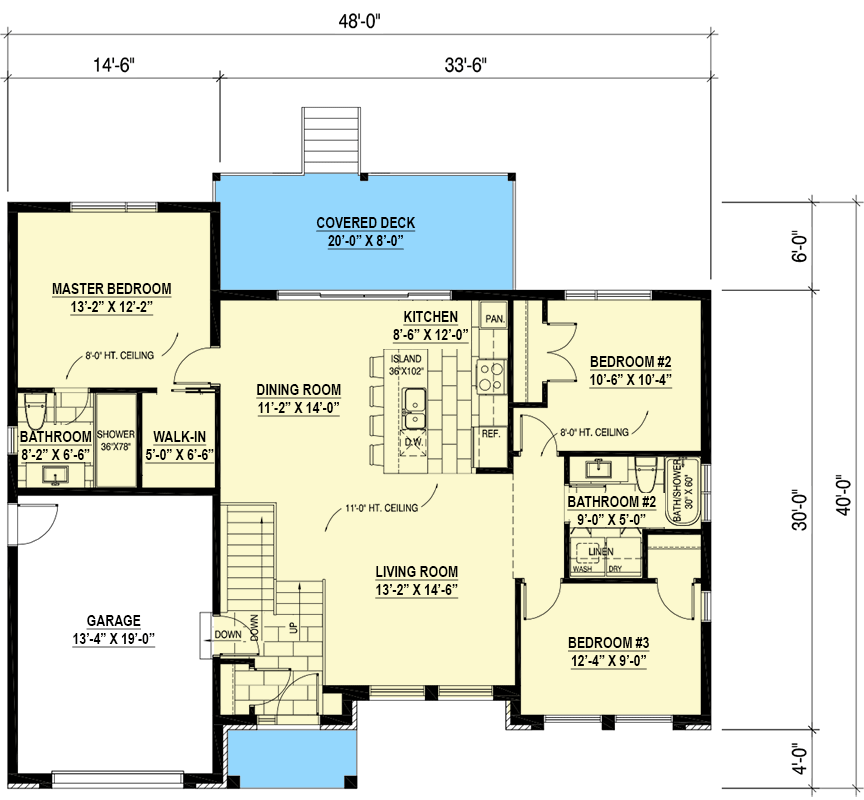

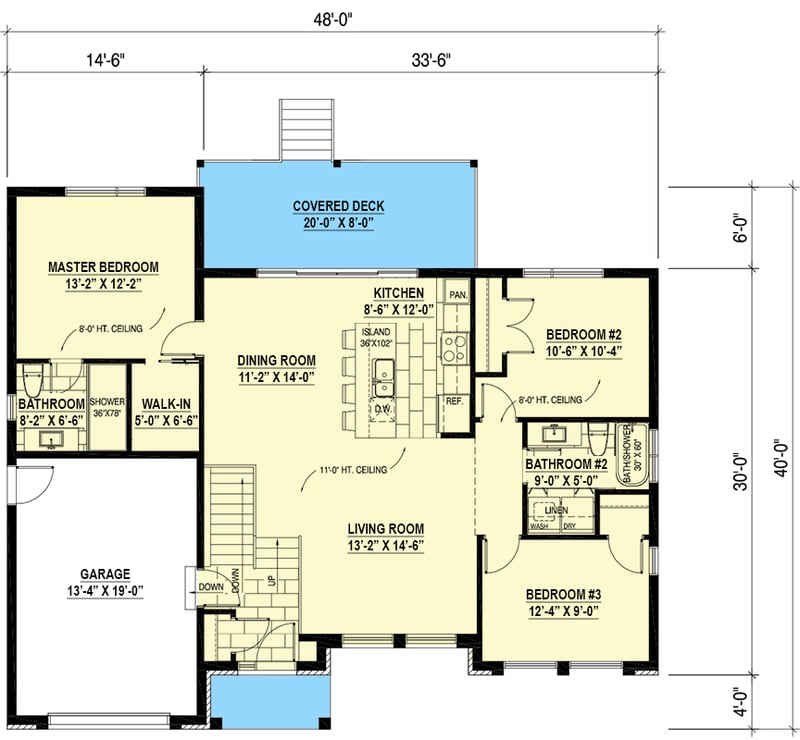

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,282 sq. ft.
  • 1st Floor: 1,282 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 40' 0"
  • Max ridge height: 20' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 284 sq. ft.
  • Count: 1 Cars

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
