Contemporary Retreat

Plan 90271PD

  • 1,092

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Get away to your two bedroom Contemporary retreat that has stylish good looks and soaring glass.
  • Big transom windows let the light come streaming in and add to your outdoor views.
  • The home comes with a screened porch and a huge wrap-around deck that can be seen from all the rooms except the front facing guest suite.
  • A one car carport keeps the sun and rain off your automobile.

Each plan set includes the following:

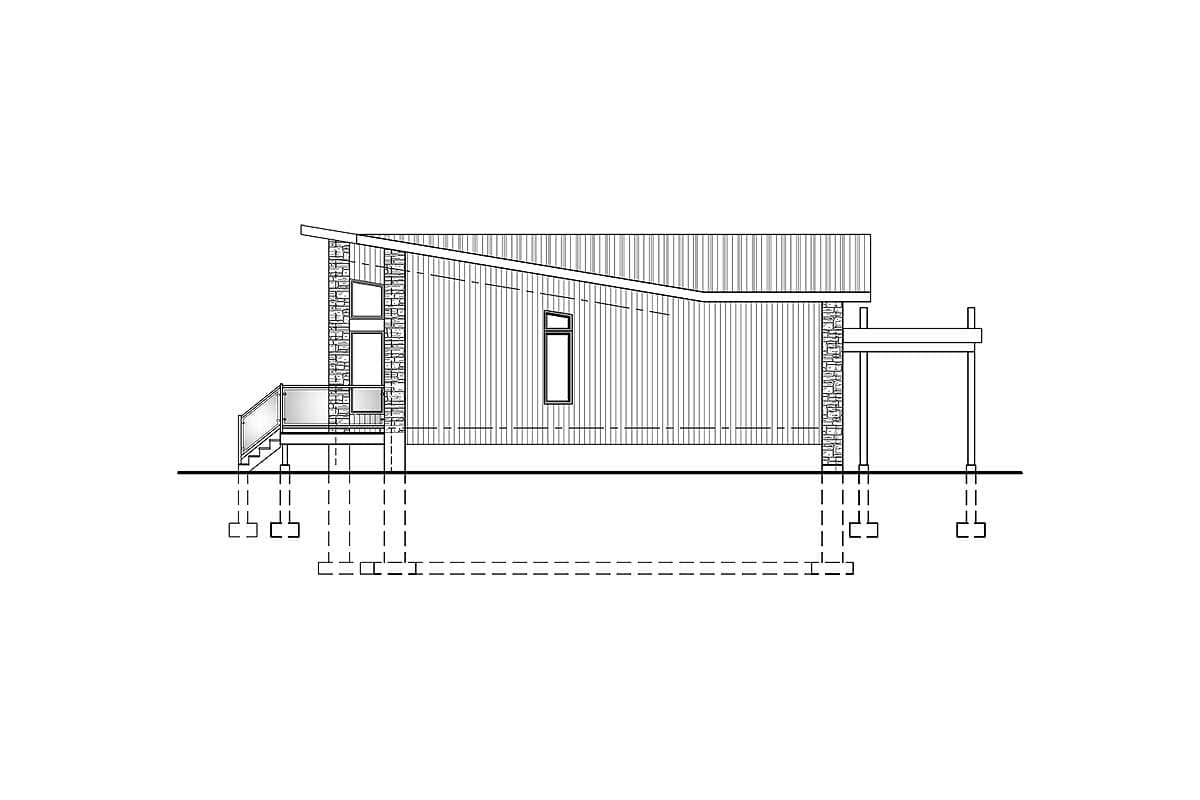

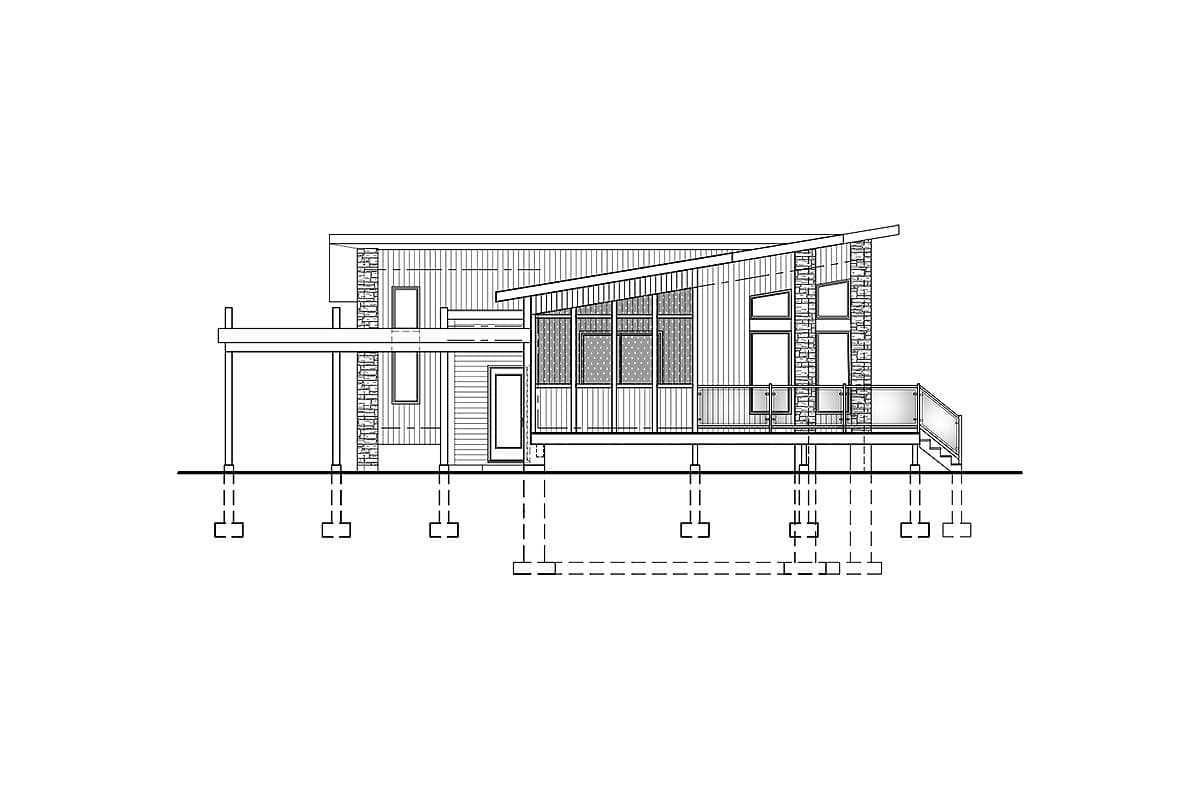

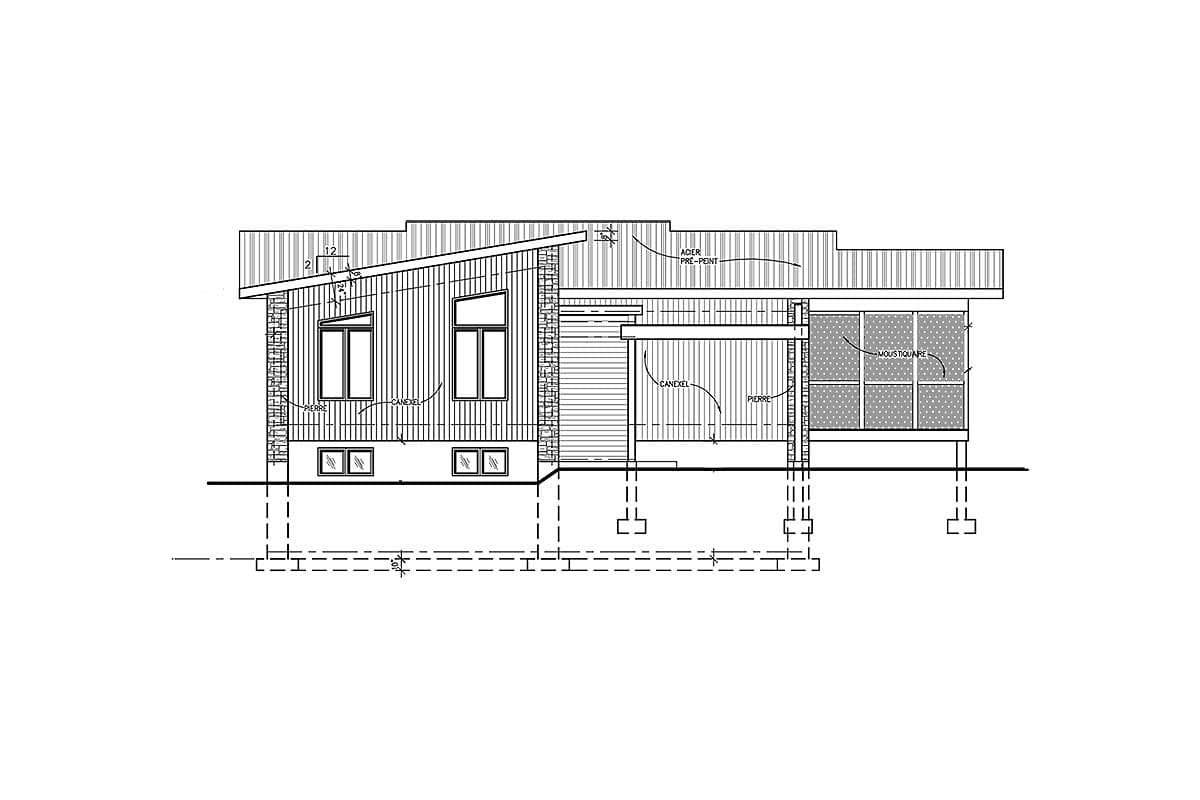

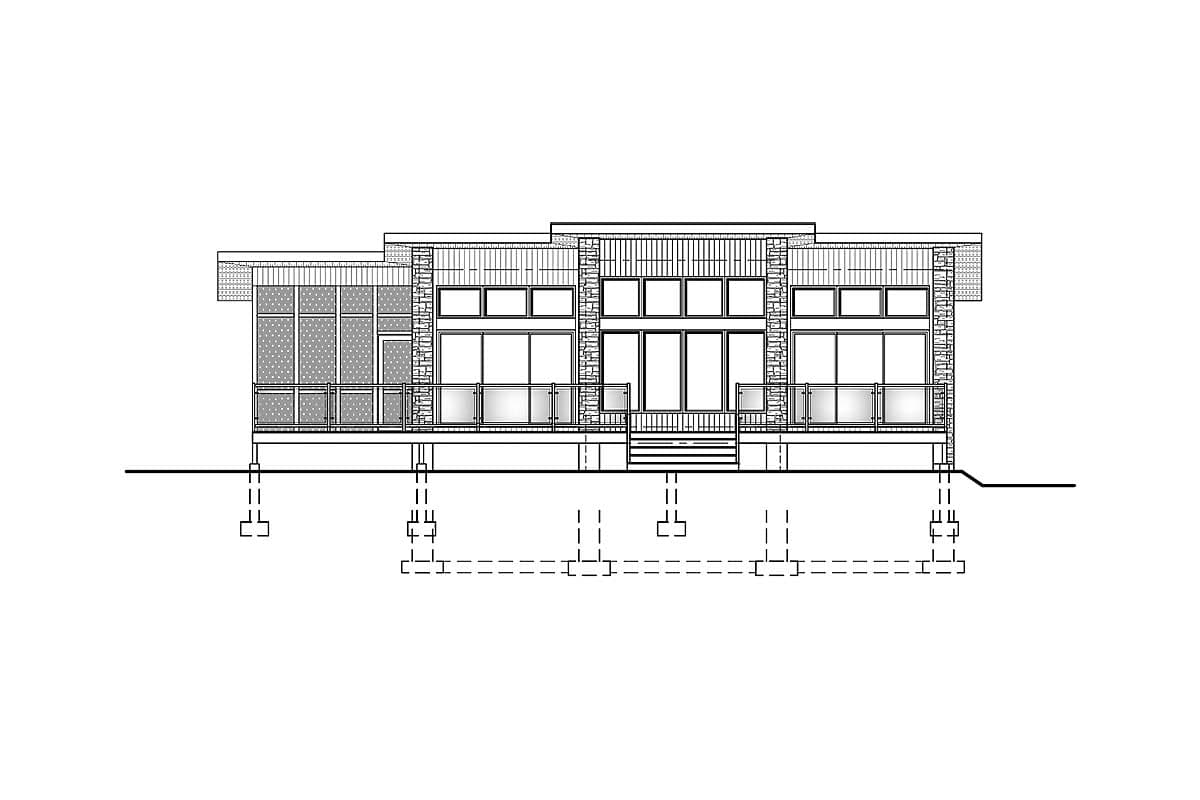

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

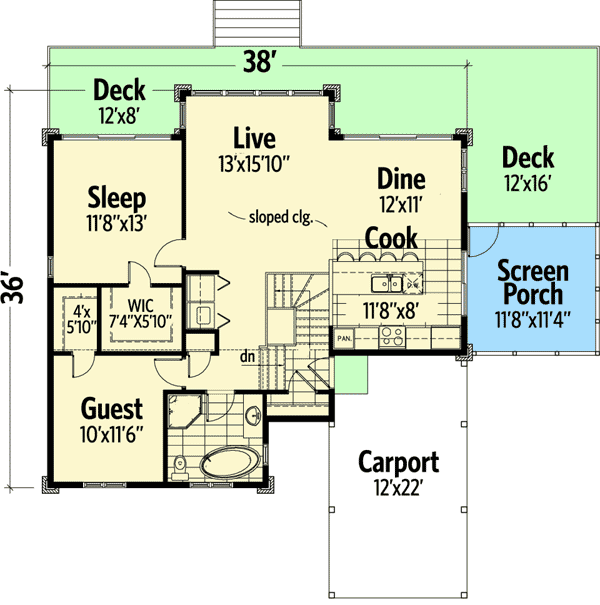

Contemporary Retreat - 90271PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,092 sq. ft.
  • 1st Floor: 1,092 sq. ft.
  • Screened Porch: 132 sq. ft.
  • Basement Unfinished: 1,092 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 36' 0"
  • Max ridge height: 17' 9"

Garage

  • Type: Carport
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Retreat

  • 1,092

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • 4 Sets + PDF $1,423
  • CAD + PDF - Single Build $1,897
  • View all purchase option online

About This Plan

  • Get away to your two bedroom Contemporary retreat that has stylish good looks and soaring glass.
  • Big transom windows let the light come streaming in and add to your outdoor views.
  • The home comes with a screened porch and a huge wrap-around deck that can be seen from all the rooms except the front facing guest suite.
  • A one car carport keeps the sun and rain off your automobile.
