Plan 370031SEN
Contemporary Southwest Home Plan with Open-concept Living Space
Heated S.F.
2,034
Beds
2 - 3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 370031SEN

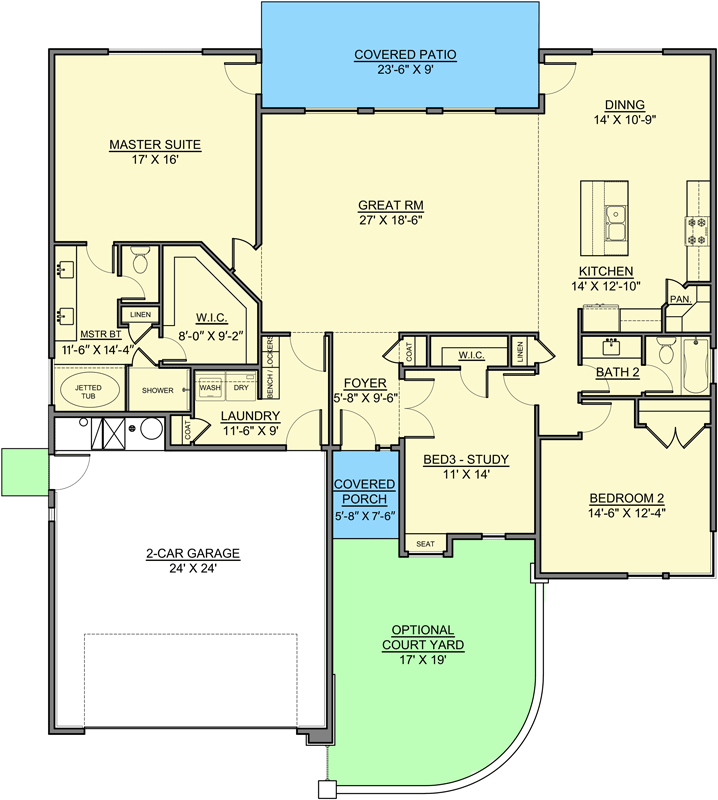

Main Level
slide image 0

Plan 370031SEN

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Stucco and stone provide a texture-rich exterior for this Contemporary Southwest home plan. Inside, the foyer boasts an 11'6" ceiling height, and french doors open to a study (or third bedroom).
  • The great room's ceiling height is equally impressive at 10'1", and three oversized windows line the rear wall to provide views onto the covered patio.
  • Move easily between the great room, kitchen, and dining area, and discover a large island offering plenty of workspace and a corner pantry that increases storage for dried foods.
  • The master suite offers privacy from the secondary bedrooms and is paired with a 5-fixture ensuite and walk-in closet. Bedroom 2 neighbors a full bath just off the kitchen.
  • The double garage opens into a combined mud / laundry room with a built-in bench, lockers, and a coat closet.

What's Included
  • COVER SHEET
  • GENERAL NOTES

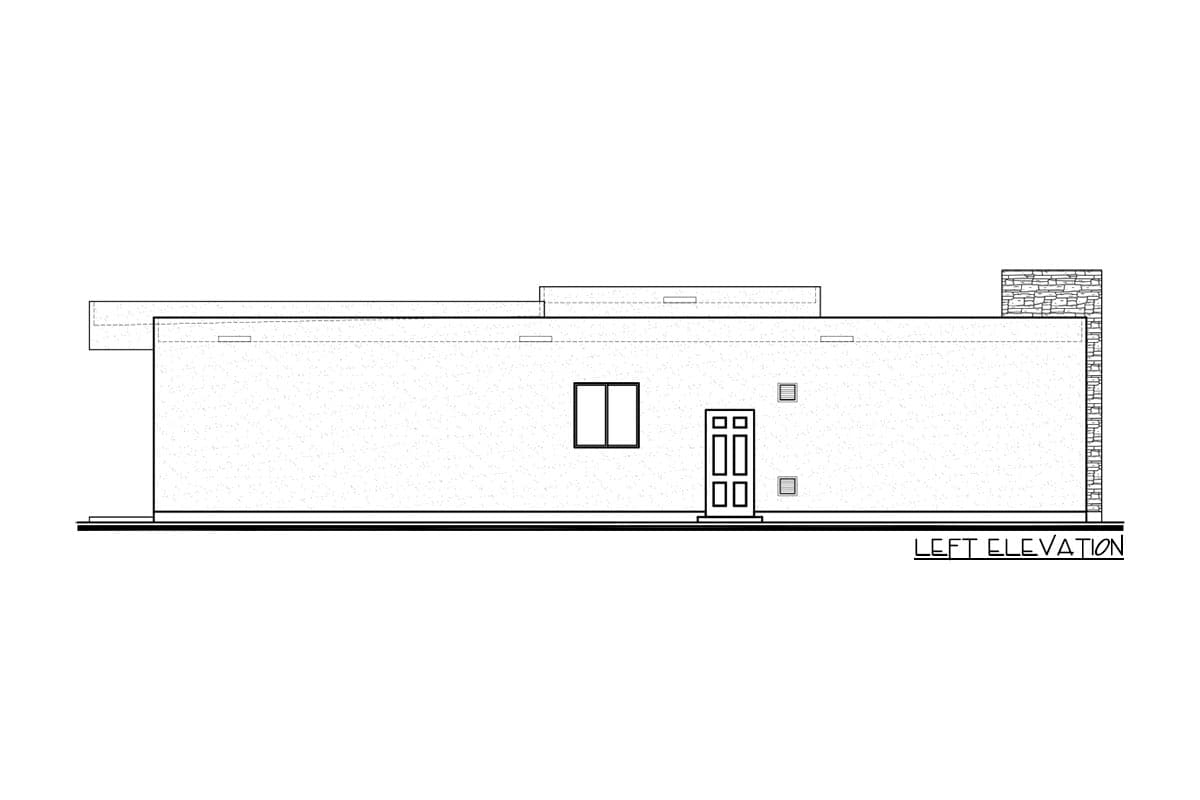

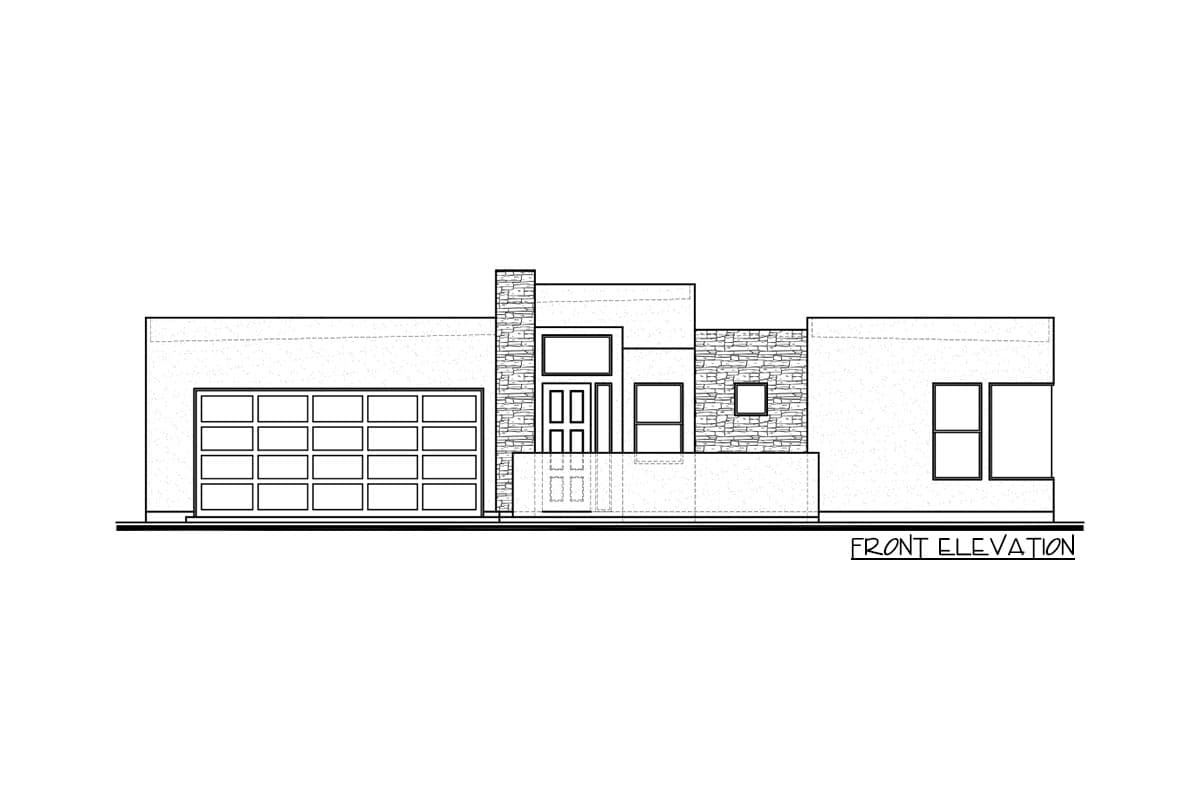

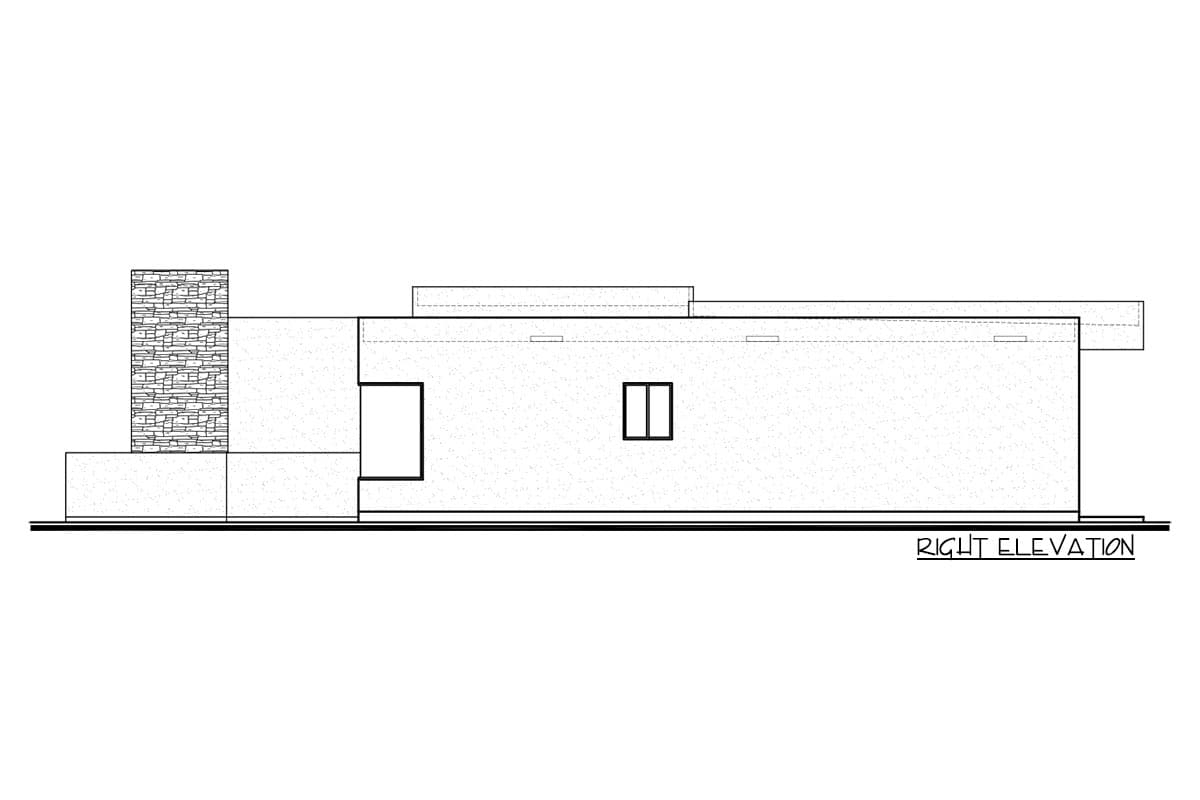

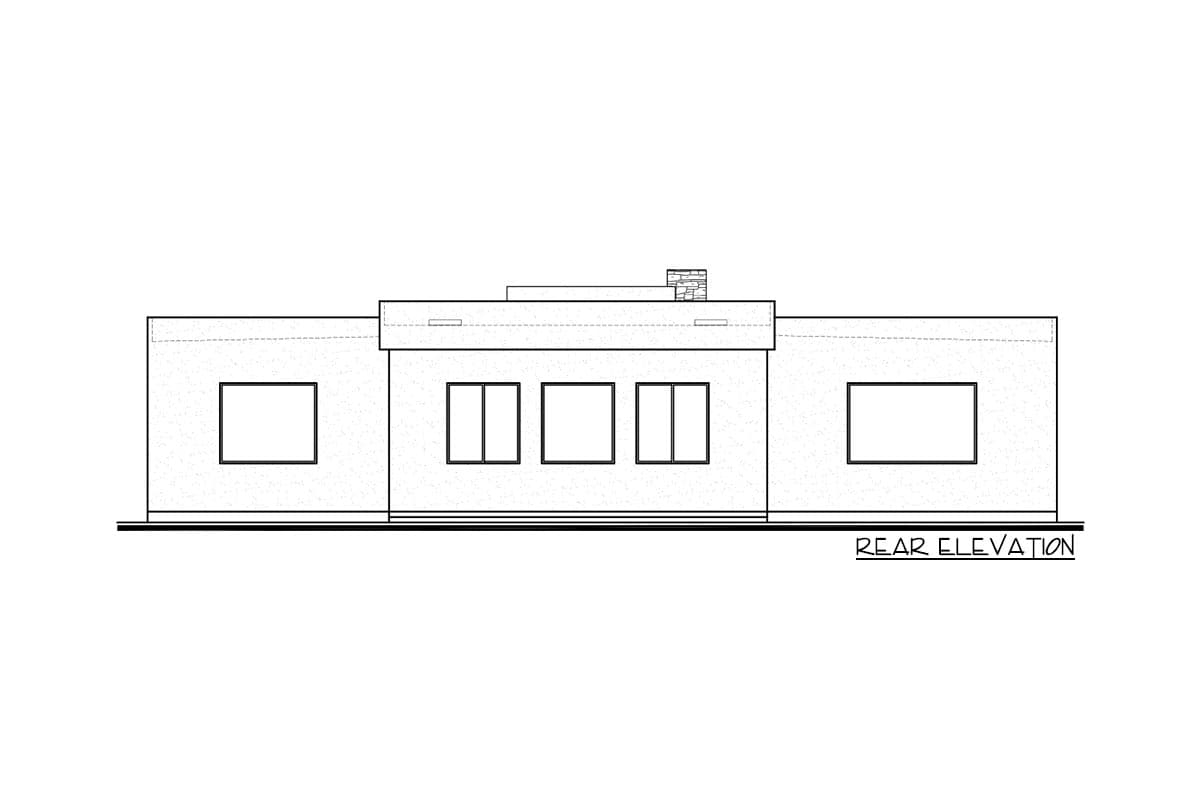

  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,034 sq. ft.

1st Floor

2,034 sq. ft.

Porch, Front

42 sq. ft.

Covered Patio

211 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Optional Type(s)

2x6

Dimensions

Width

56' 6"

Depth

58' 9"

Max Ridge Height

15' 8"

Garage

Type

Attached

Area

6034 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Room

Ceiling Type

Height

Foyer

11' 6''

Great Room

10' 1''

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Southern

Southwest

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
