Plan 22426DR Contemporary Split-Level House Plan

Contemporary Split-Level House Plan

Plan 22426DR

  • 1,107

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • This compact Split-Level house plan has a contemporary facade with big transom windows across the front.
  • The main living area is a mere six steps up and has the open layout that expands the space, making it feel larger.
  • An island in the kitchen gives you extra counter space and storage and comes with an eating bar that seats 3.
  • Both bedrooms share a hall bathroom and the nearby laundry closet.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

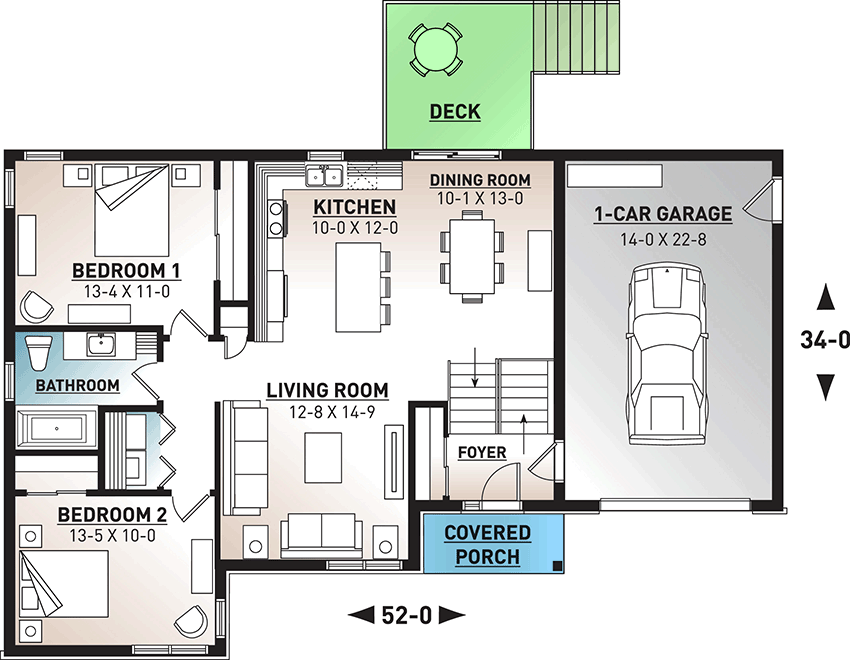

Contemporary Split-Level House Plan - 22426DR floor plan - Main Level

Plan details

Architectural Style

Contemporary Split-Level House Plan

  • 1,107

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $970
  • Reproducible Set $970
  • 5 Sets + PDF $1,095
  • CAD - Single-Build $1,570
  • View all purchase option online

About This Plan

  • This compact Split-Level house plan has a contemporary facade with big transom windows across the front.
  • The main living area is a mere six steps up and has the open layout that expands the space, making it feel larger.
  • An island in the kitchen gives you extra counter space and storage and comes with an eating bar that seats 3.
  • Both bedrooms share a hall bathroom and the nearby laundry closet.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,107 sq. ft.
  • 1st Floor: 1,107 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 34' 0"
  • Max ridge height: 20' 10"

Garage

  • Type: Attached
  • Area: 357 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss
