Plan 267028SPK

Contemporary Tiny Home Plan with Vaulted Living Room

Heated S.F.
800
Beds
1
Baths
1
Stories
1

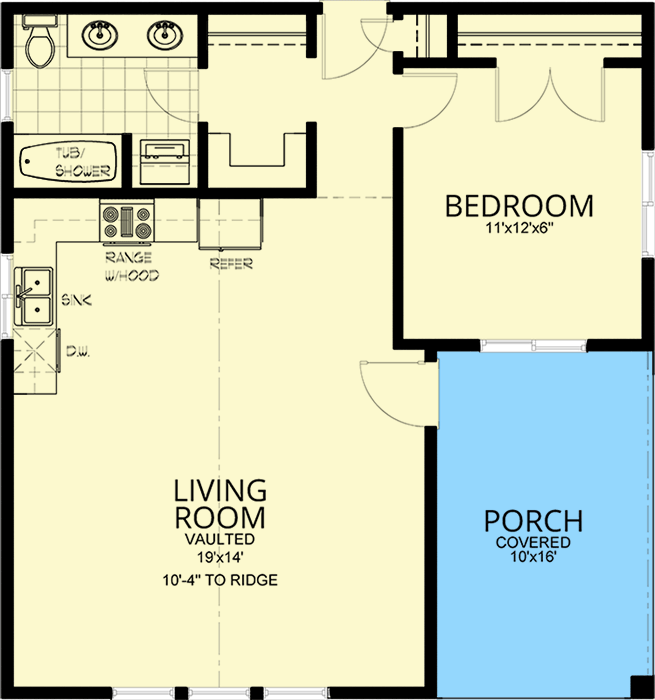

Floor Plan

Plan 267028SPK

Main Level
Main Level

Plan 267028SPK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 267028SPK: Contemporary Tiny Home Plan with Vaulted Living Room - Floor Plan - Main Level - Contemporary, Modern, Northwest

Plan Details

  • The shed-style roof adds a dramatic touch to this Contemporary Tiny home plan that totals 800 square feet of living space.
  • A 10' by 16' covered porch welcomes you inside, while doubling as a comfortable outdoor space.
  • The living room's vaulted ceiling is centered above three side-by-side windows, and the eat-in kitchen features L-shaped cabinetry and a window above the sink.
  • The bedroom sits across the hall from open storage that leads to a bathroom with a stackable washer / dryer unit and two-sink vanity.

What's Included

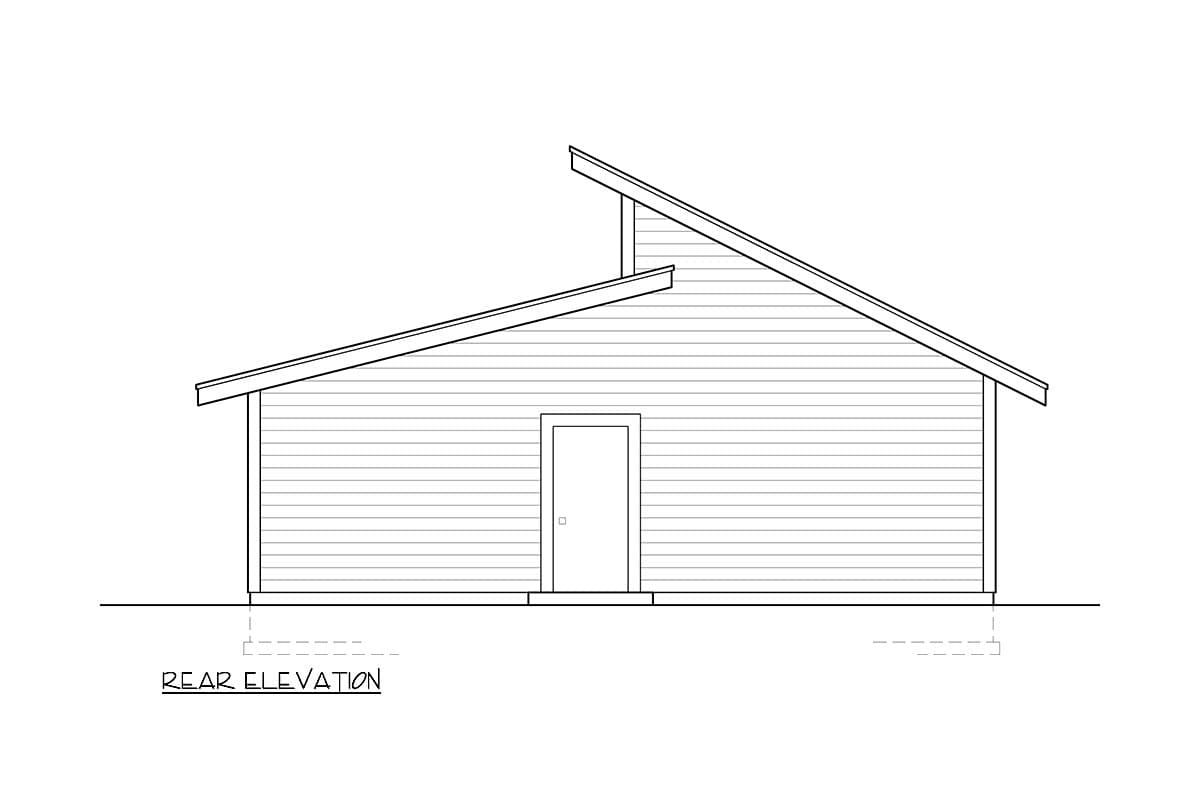

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
View Sample Plan

What's Not Included

  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

32' 0"

Max Ridge Height

18' 5"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

32' 0"

Max Ridge Height

18' 5"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
