Plan 666116RAF

Contemporary Two-story Home Plan with Open Main Level

Heated S.F.
2,037
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 666116RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666116RAF

M-F 9am-5pm EST |

1-203-761-8500

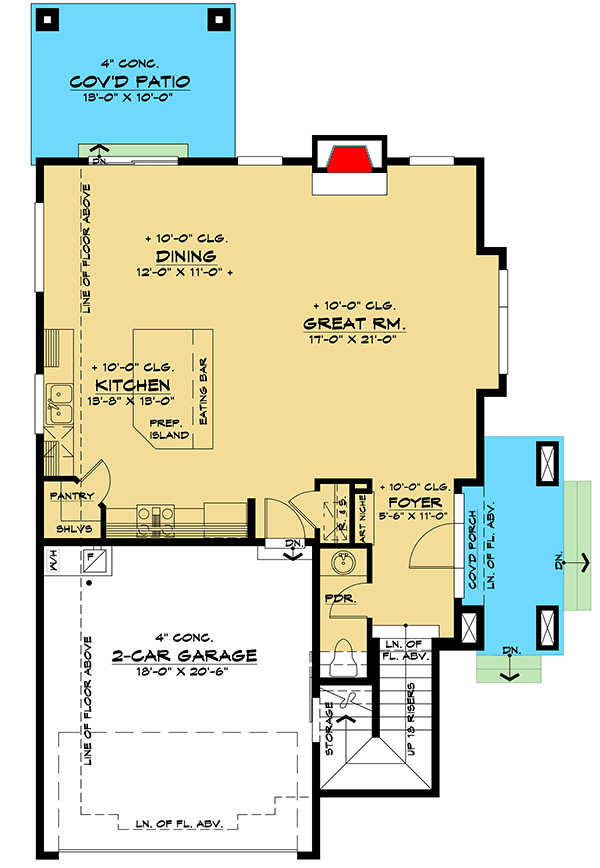

Main Level

Plan 666116RAF: Contemporary Two-story Home Plan with Open Main Level - Floor Plan - Main Level - Contemporary, Modern, Northwest

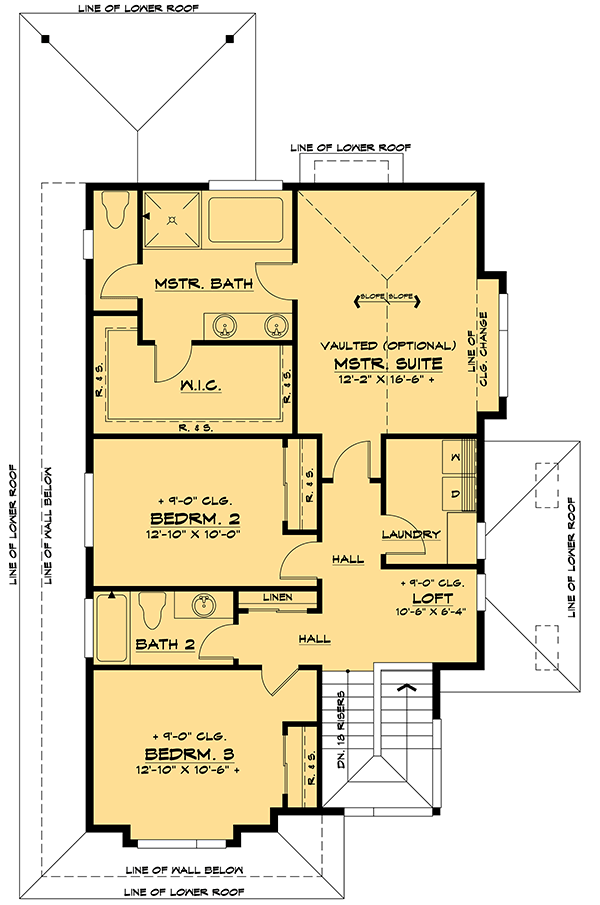

2nd Floor

Plan 666116RAF: Contemporary Two-story Home Plan with Open Main Level - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

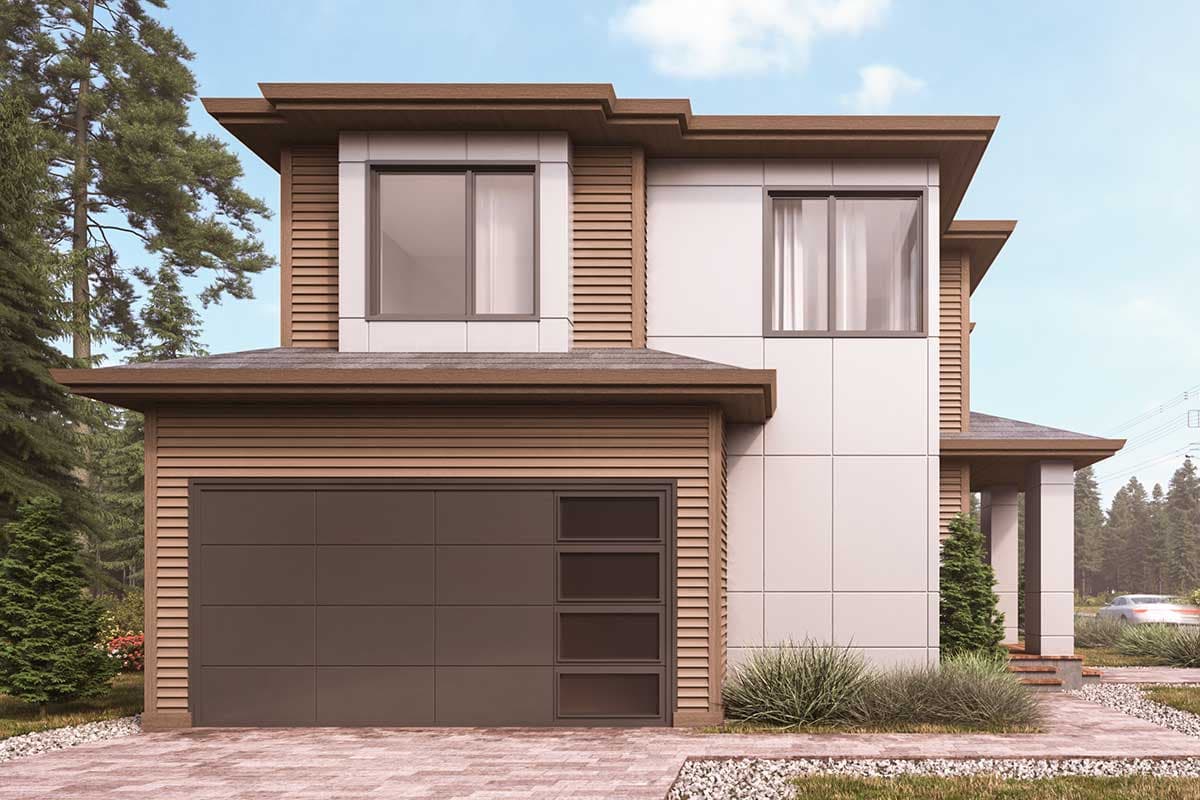

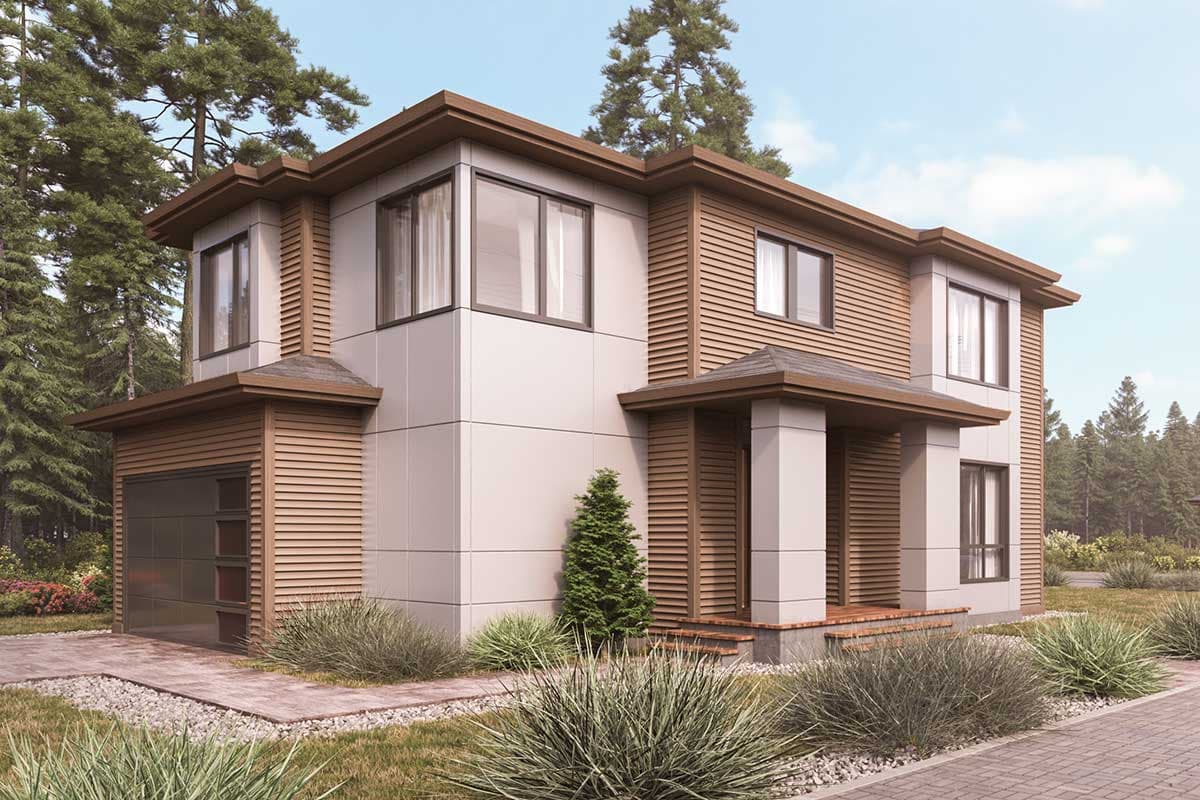

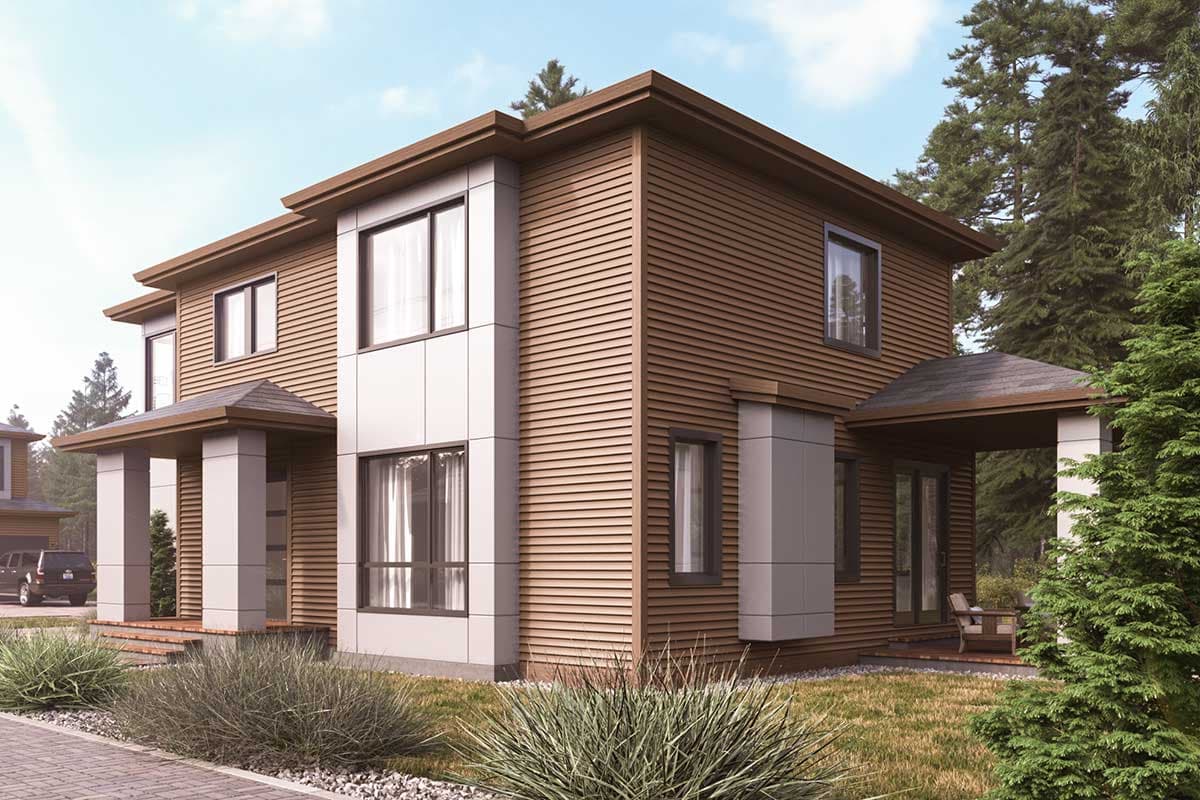

  • Concrete paneling blends with horizontal siding to accomplish the fresh, modern appeal on this two-story home plan.
  • The main level is completely open to provide a great space for entertaining. The kitchen includes a large prep island, corner pantry, and easy access to the 2-car garage.

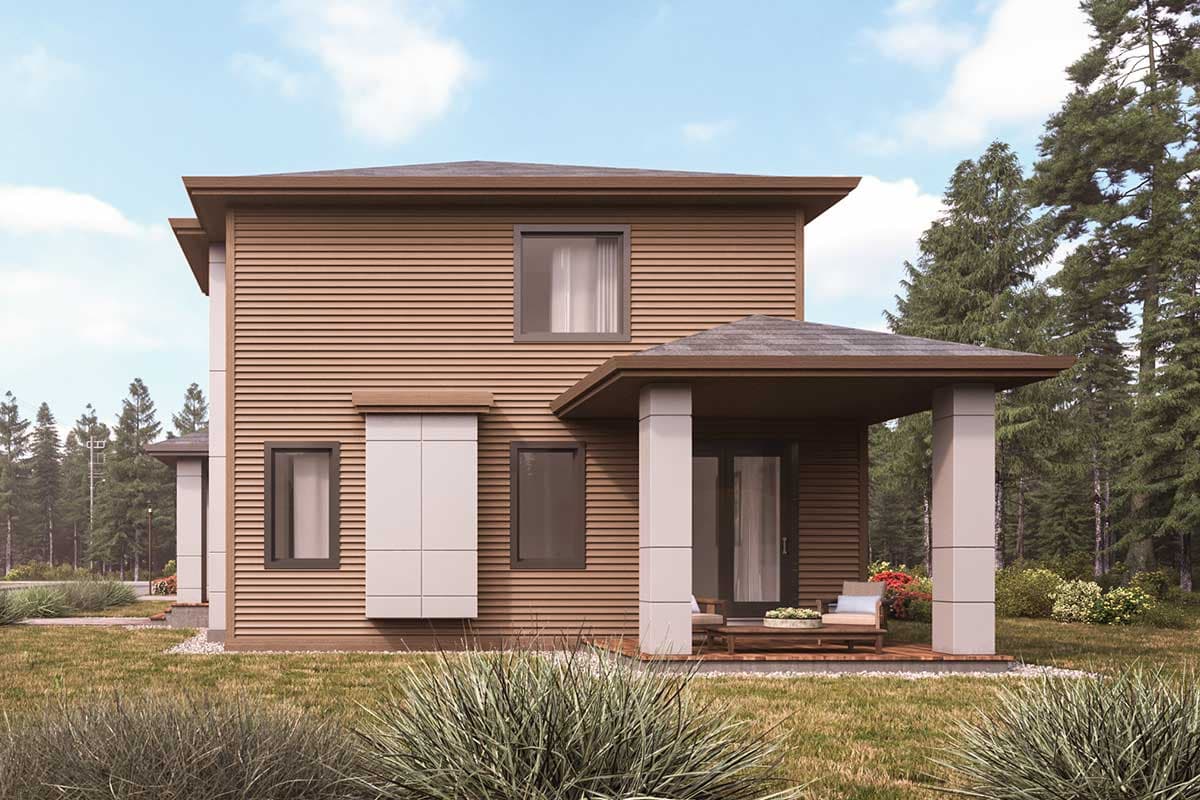

  • A fireplace shares the rear wall with a sliding door that leads to the covered patio, and a powder bath completes the first floor.
  • Upstairs, the master suite neighbors the laundry room, and includes a toilet room in the 5-fixture bathroom.
  • Bedrooms 2 and 3 share a full bath, next to a linen closet.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,037 sq. ft.

1st Floor

950 sq. ft.

2nd Floor

1,087 sq. ft.

Porch, Combined

95 sq. ft.

Deck

141 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

35' 0"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

369 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,037 sq. ft.

1st Floor

950 sq. ft.

2nd Floor

1,087 sq. ft.

Porch, Combined

95 sq. ft.

Deck

141 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

35' 0"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

369 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs
