Contemporary Vacation Getaway

Plan 80774PM

  • 815

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Sleek and contemporary, the shed roof and slanted windows dominate this one bedroom Vacation retreat. Just the right size for a weekend getaway, it is easy to clean and maintain.
  • The open layout makes the home feel larger and a two-way fireplace warms the master bedroom and the great room.
  • All the ceilings are sloped and there are varying wall heights: the bedroom side goes from 8'2" to 12'4" and the living room and kitchen side goes from 9'2" to 15'10"
  • There's a handy laundry closet and a big bathroom plus an island in the kitchen for extra storage.
  • An attractive pergola covers the back porch.

Plan sets include the following:

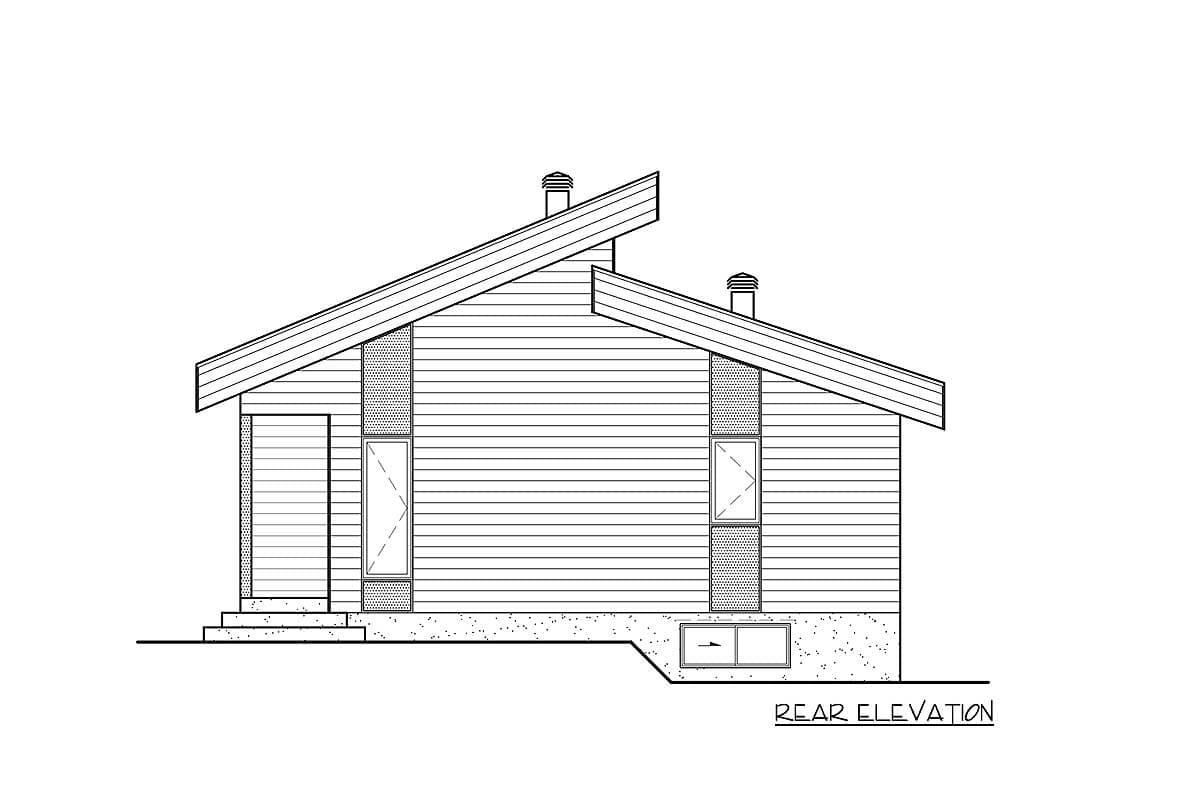

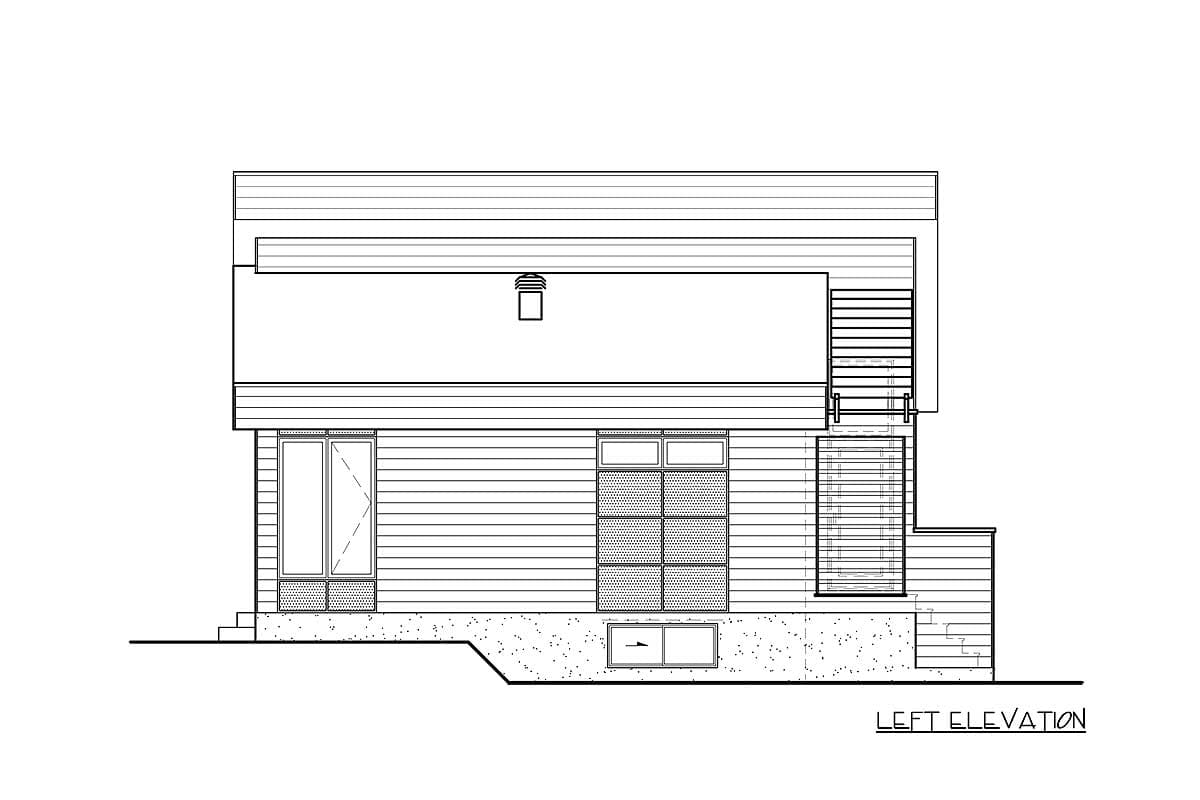

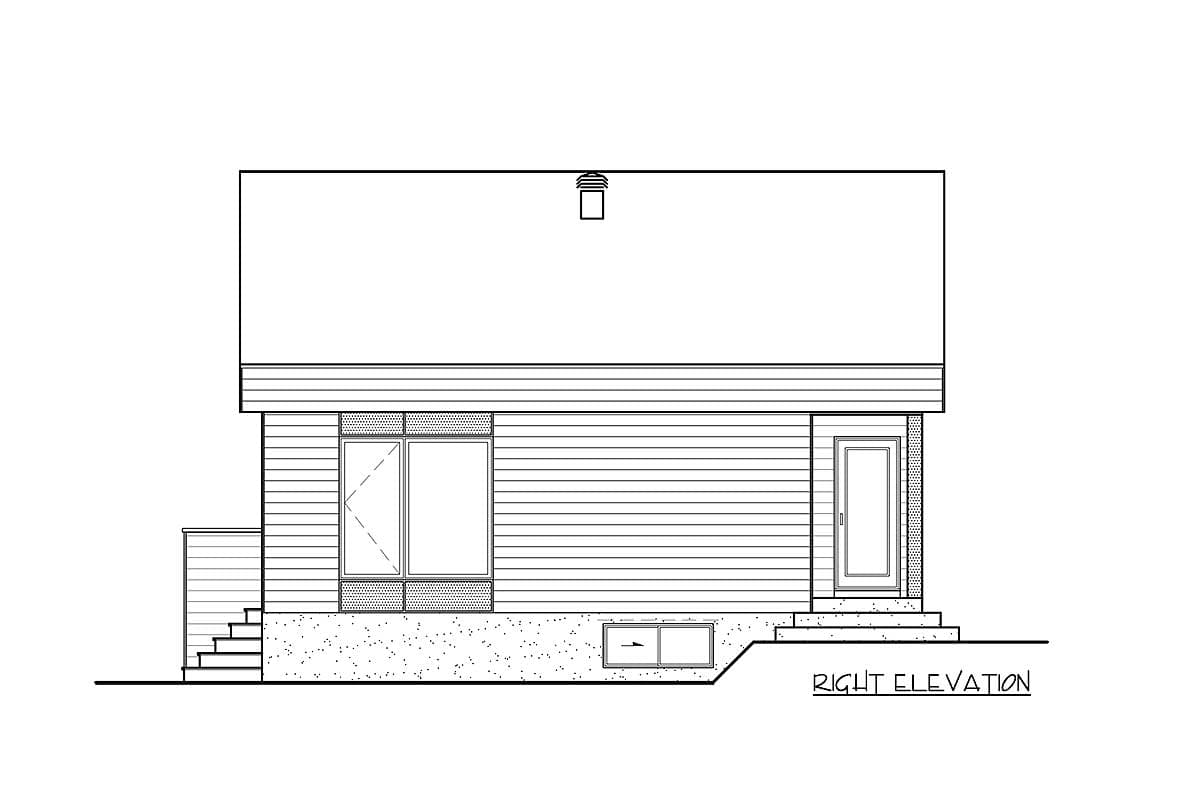

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

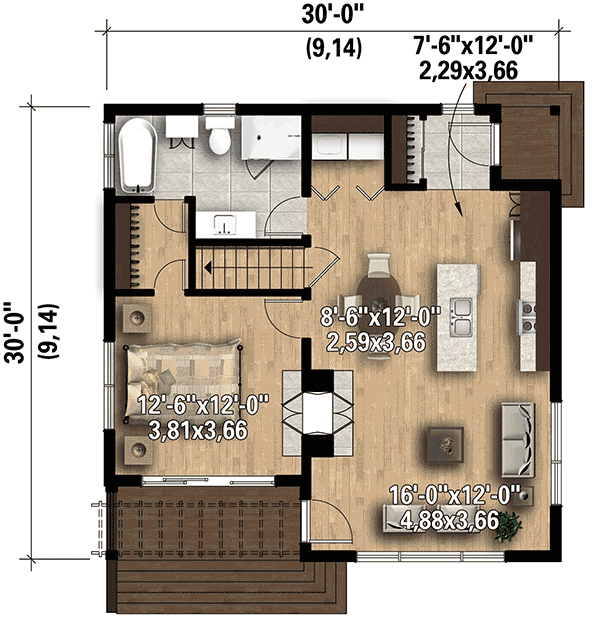

Contemporary Vacation Getaway - 80774PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 815 sq. ft.
  • 1st Floor: 815 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 3"

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Bedroom 1 Vaulted 8' 2" to 12' 4"
Kitchen Vaulted 9' 2" to 15' 10"
Living Room Vaulted 9' 2" to 15' 10"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Vacation Getaway

  • 815

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $730
  • 5 Sets $775
  • 5 Sets + PDF $845
  • CAD - Single-Build $1,750
  • View all purchase option online

About This Plan

  • Sleek and contemporary, the shed roof and slanted windows dominate this one bedroom Vacation retreat. Just the right size for a weekend getaway, it is easy to clean and maintain.
  • The open layout makes the home feel larger and a two-way fireplace warms the master bedroom and the great room.
  • All the ceilings are sloped and there are varying wall heights: the bedroom side goes from 8'2" to 12'4" and the living room and kitchen side goes from 9'2" to 15'10"
  • There's a handy laundry closet and a big bathroom plus an island in the kitchen for extra storage.
  • An attractive pergola covers the back porch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 815 sq. ft.
  • 1st Floor: 815 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 3"

Ceiling Heights

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
