Plan 80778PM Contemporary Vacation Getaway

1,104 2 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Vacation Getaway

Plan 80778PM

  • 1,104

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

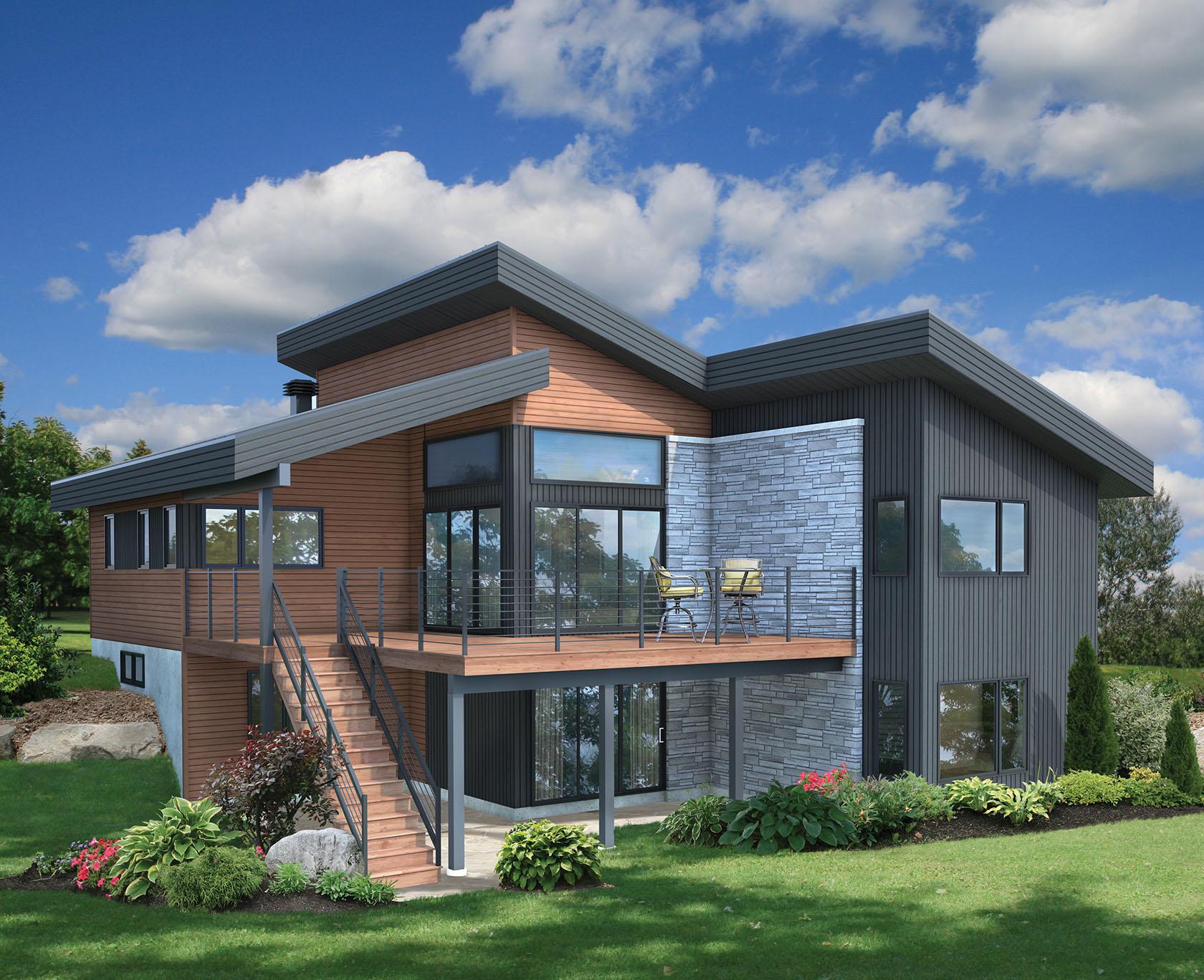

  • Beautiful shed roof lines slant in opposite directions in this Contemporary Vaction house plan.
  • With big deck that's the same size as the L-shaped main living area, outdoor fun is emphasized.
  • The open layout inside makes the space feel even larger.
  • Two sliding glass doors in the living room take you right out onto the deck to enjoy the fresh air and views.
  • There's a third slding glass door to a side deck off the dining room.
  • Both bedrooms share a hall bathroom.
  • With its efficient layout and small footprint, the home is easy to clean and maintain.

Plan sets include the following:

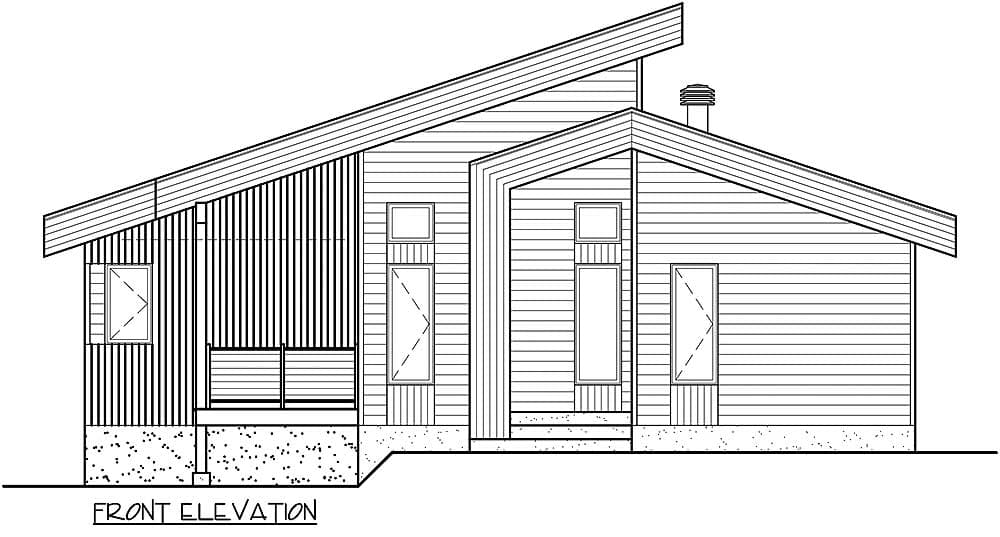

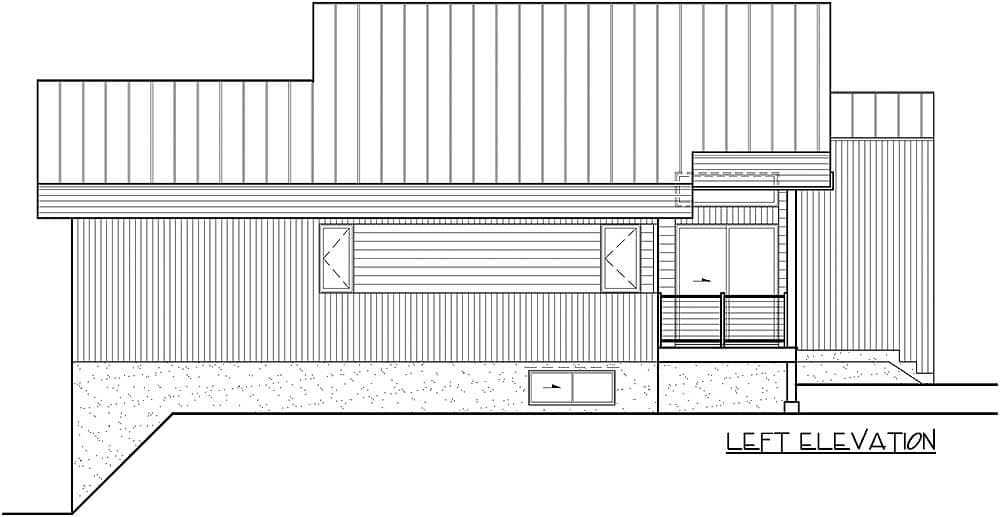

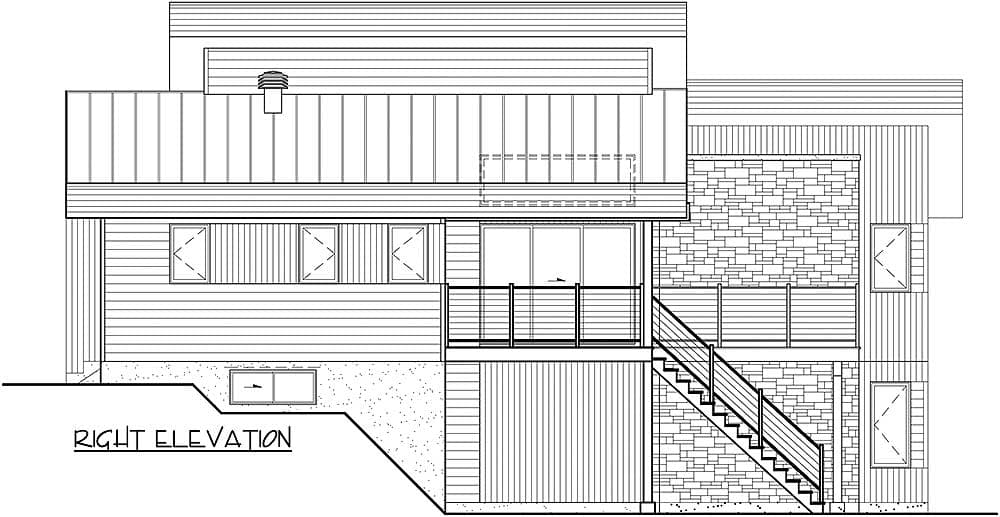

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

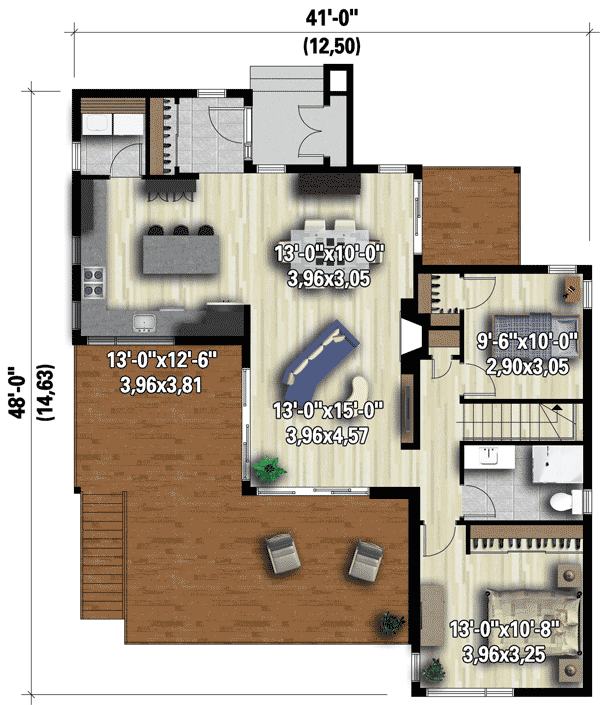

Contemporary Vacation Getaway - 80778PM floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

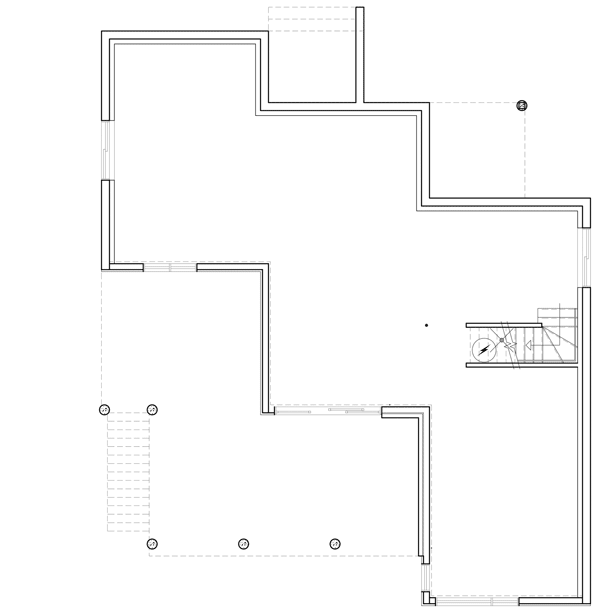

Contemporary Vacation Getaway - 80778PM floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,104 sq. ft.
  • 1st Floor: 1,104 sq. ft.
  • Balcony / Veranda: 290 sq. ft.
  • Porch, Front: 276 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 2"
Room Details Ceiling Type Width Depth Height
Dining Room 12' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Vacation Getaway

  • 1,104

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $769
  • 8 Sets $816
  • PDF - Single-Build $1,007
  • CAD - Single-Build $1,564
  • View all purchase option online

About This Plan

  • Beautiful shed roof lines slant in opposite directions in this Contemporary Vaction house plan.
  • With big deck that's the same size as the L-shaped main living area, outdoor fun is emphasized.
  • The open layout inside makes the space feel even larger.
  • Two sliding glass doors in the living room take you right out onto the deck to enjoy the fresh air and views.
  • There's a third slding glass door to a side deck off the dining room.
  • Both bedrooms share a hall bathroom.
  • With its efficient layout and small footprint, the home is easy to clean and maintain.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,104 sq. ft.
  • 1st Floor: 1,104 sq. ft.
  • Balcony / Veranda: 290 sq. ft.
  • Porch, Front: 276 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 2"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
