Plan 22523DR
Contemporary Vacation House Plan
Heated S.F.
3,170
Beds
4
Baths
3
Stories
1
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

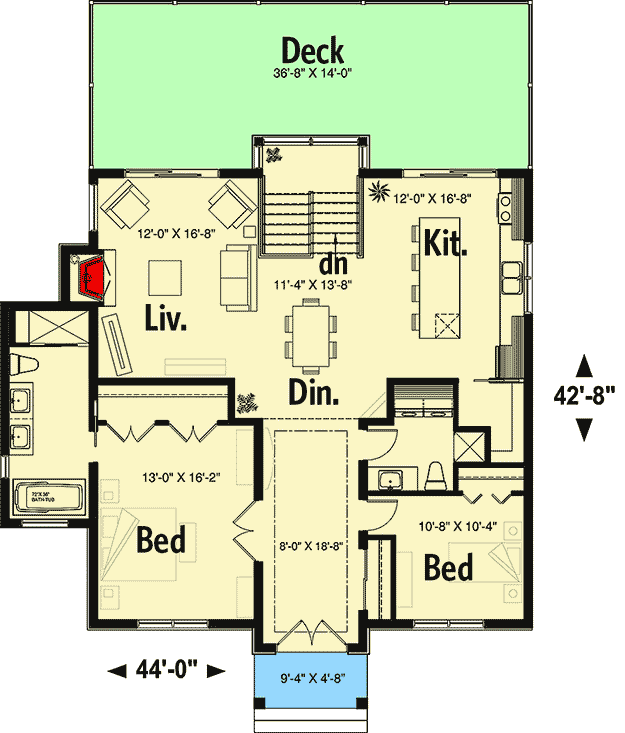

Contemporary Vacation House Plan - 22523DR floor plan - Main Level
Finished Lower Level
Reverse Floor Plan

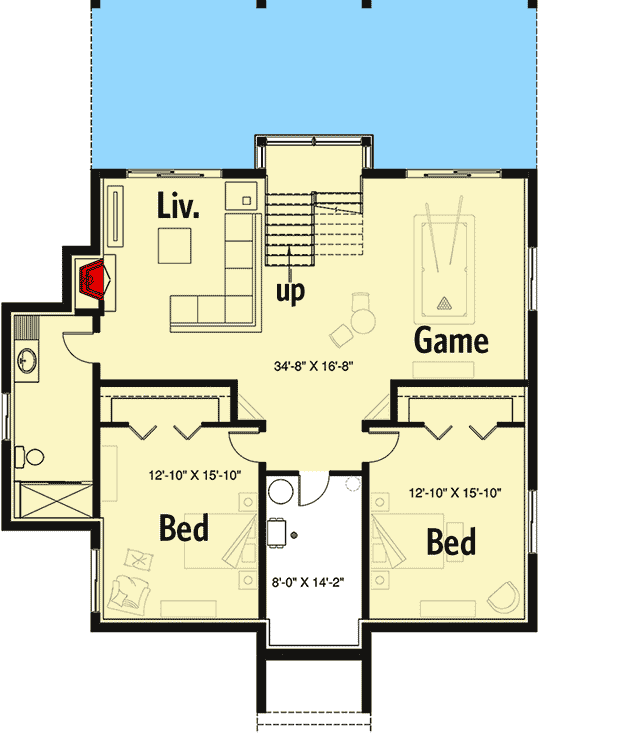

Contemporary Vacation House Plan - 22523DR floor plan - Finished Lower Level
Plan Details
  • A slanted shed roof rises up to create a two-story foyer in this Contemporary Vacation house plan.
  • The 8' wide foyer leads back to the huge, open living area, with two sliding glass doors to take you out to the spacious deck.
  • Seat four people at the large kitchen island that's ideal for informal meals or snacks.
  • The master suite is on the main floor and has a jetted tub and double sinks in the bathroom.
  • A second informal living space can be found on the finished lower level that has both a game room and a lower living room.
What's Included
Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Vacation House Plan

  • 3,170

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,170 sq. ft.
  • Lower Level: 1,585 sq. ft.
  • 1st Floor: 1,585 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 42' 0"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"
