Plan 623240DJ
Contemporary Victorian House Plan Under 3200 Square Feet with 4 Ensuite Bedrooms
Heated S.F.
3,140
Beds
4 - 6
Baths
4.5 - 5.5
Stories
2
Cars
3
Tour
Floor Plan

Plan 623240DJ

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Layout (Involves Additional Costs)
slide image 2

Plan 623240DJ

1-800-854-7852

1-262-521-4596

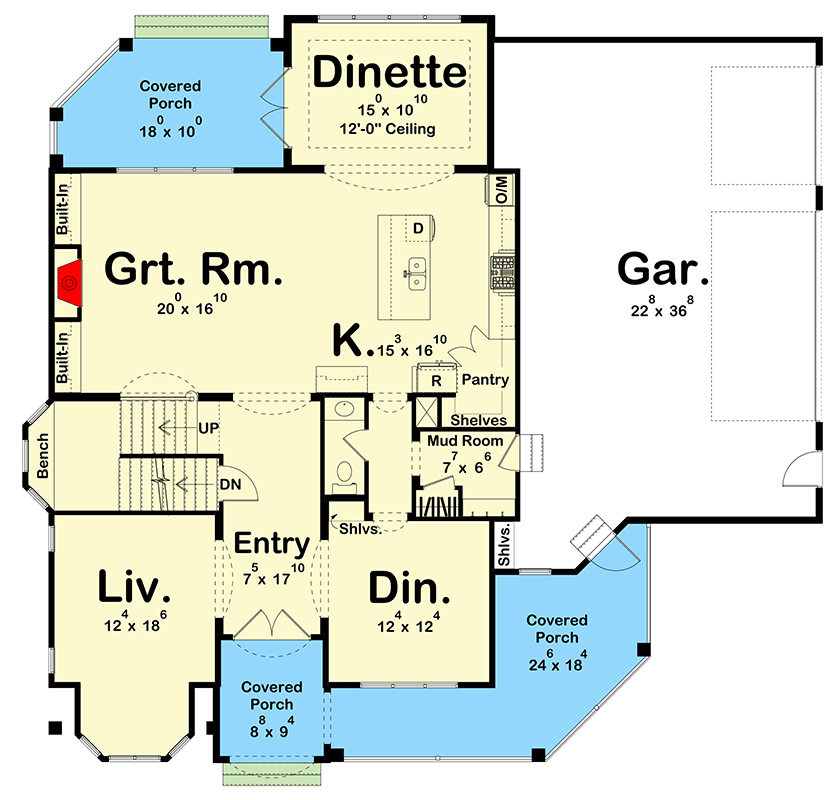

Main Level
floor plan image Main Level

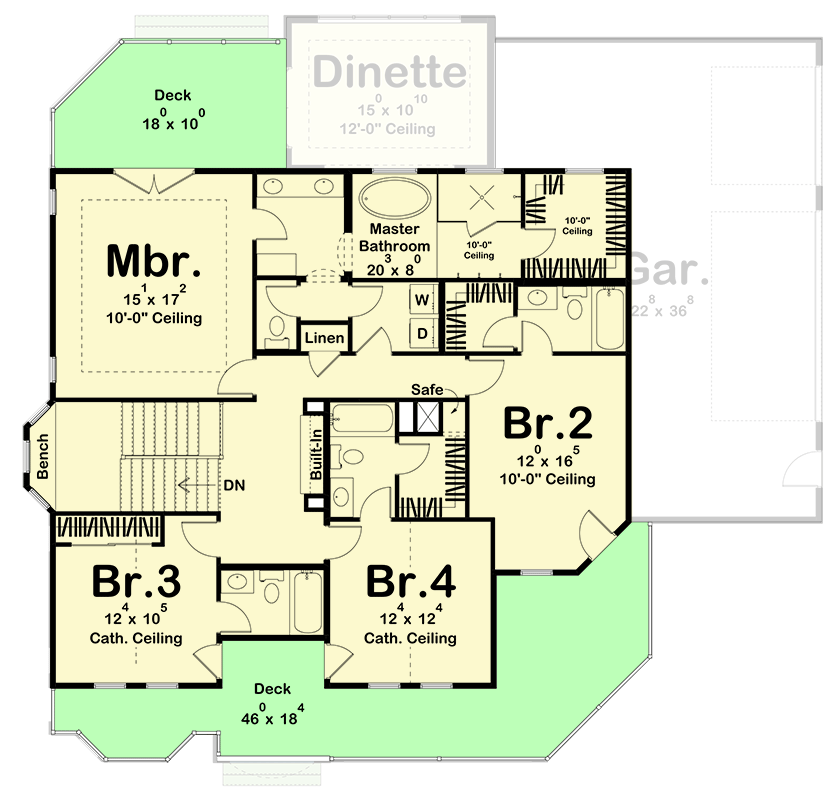

2nd Floor
floor plan image 2nd Floor

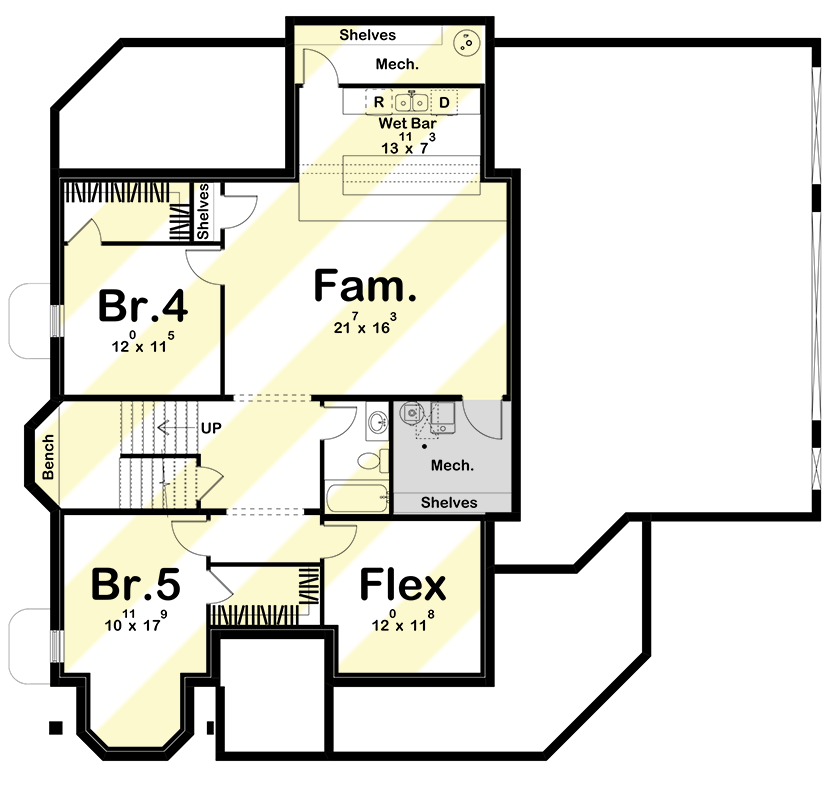

Optional Lower Layout (Involves Additional Costs)
floor plan image Optional Lower Layout (Involves Additional Costs)
Plan Details

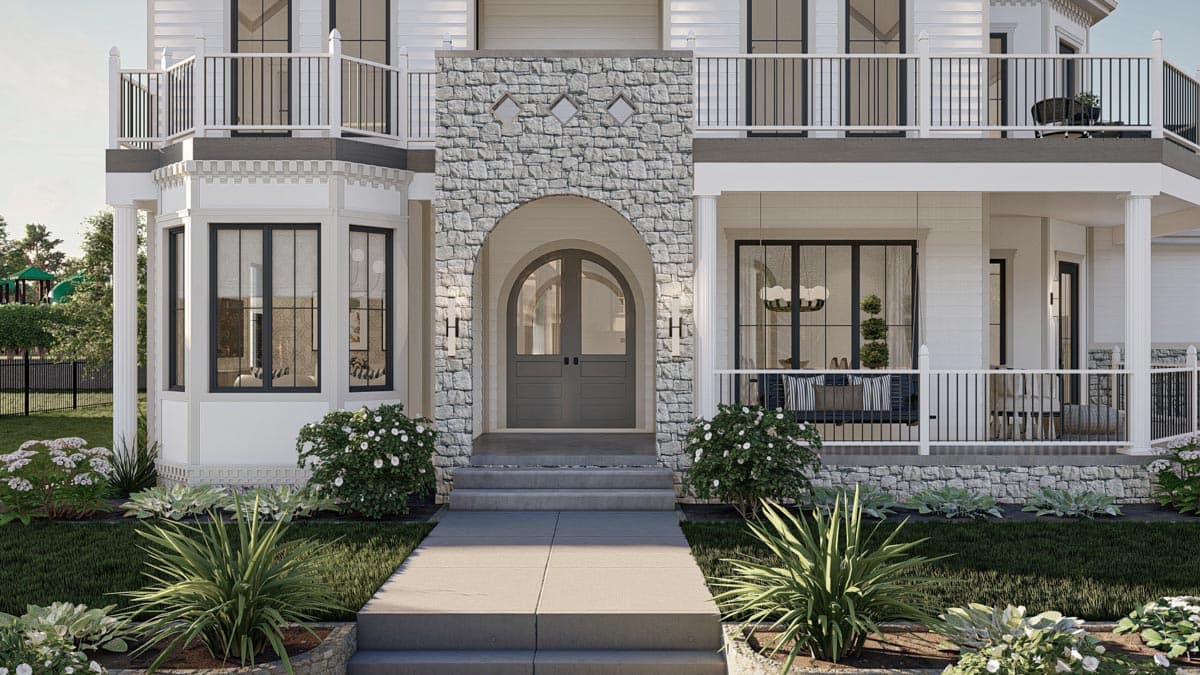

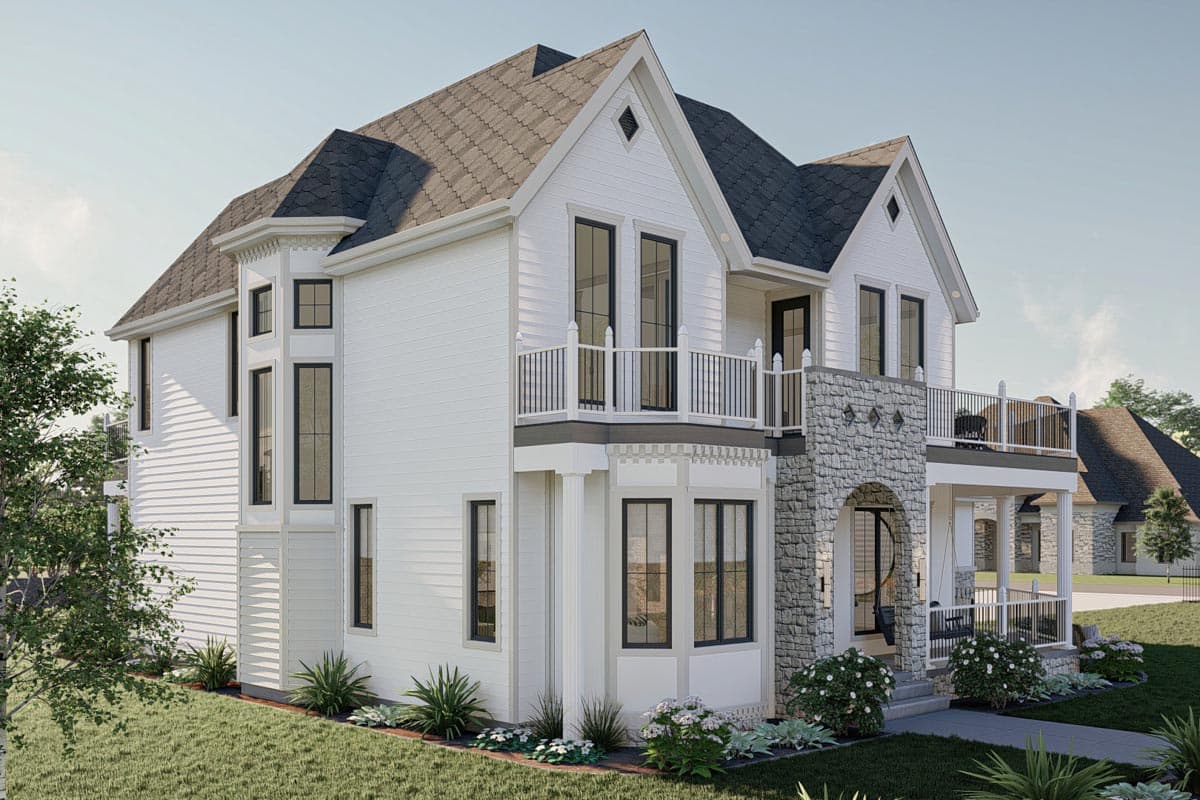

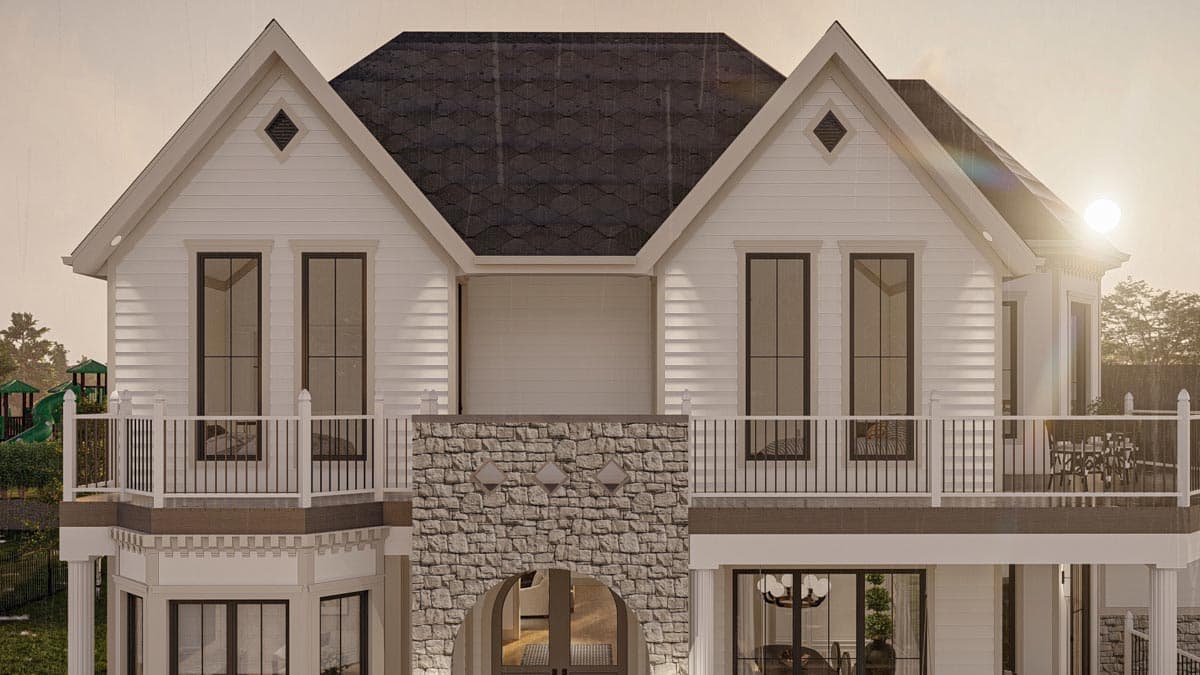

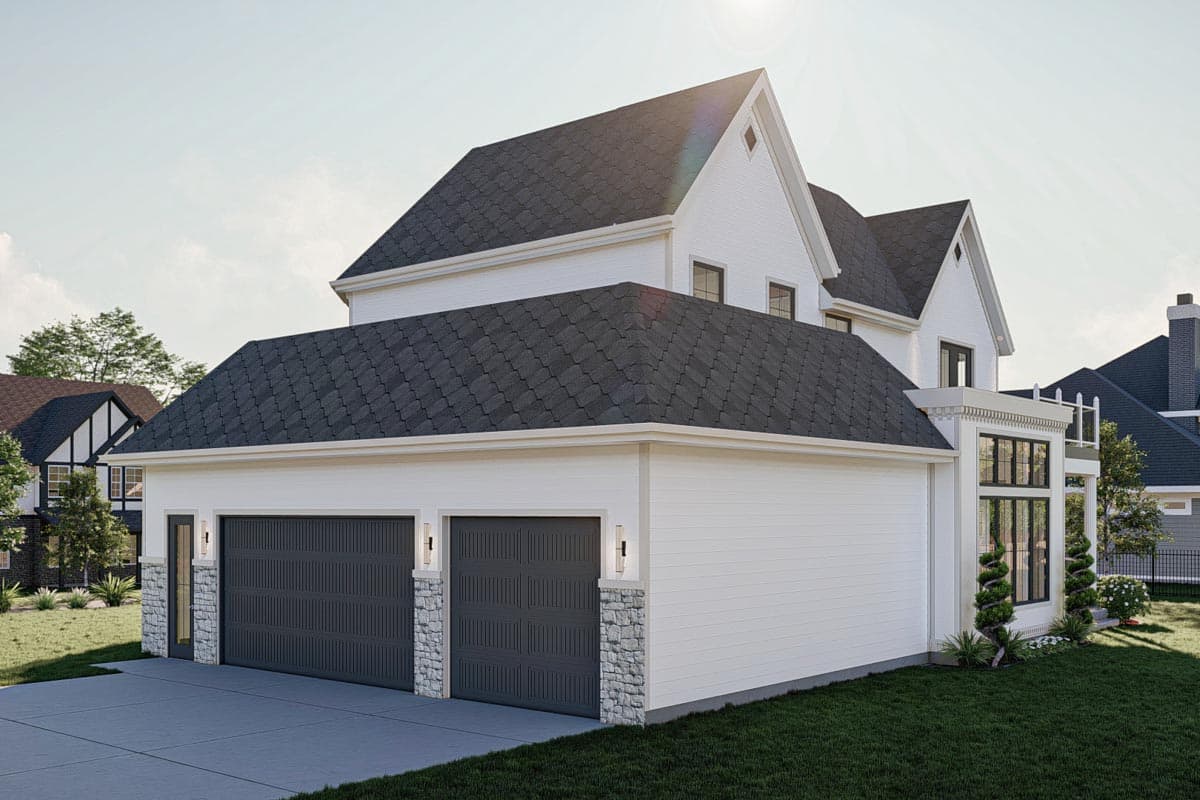

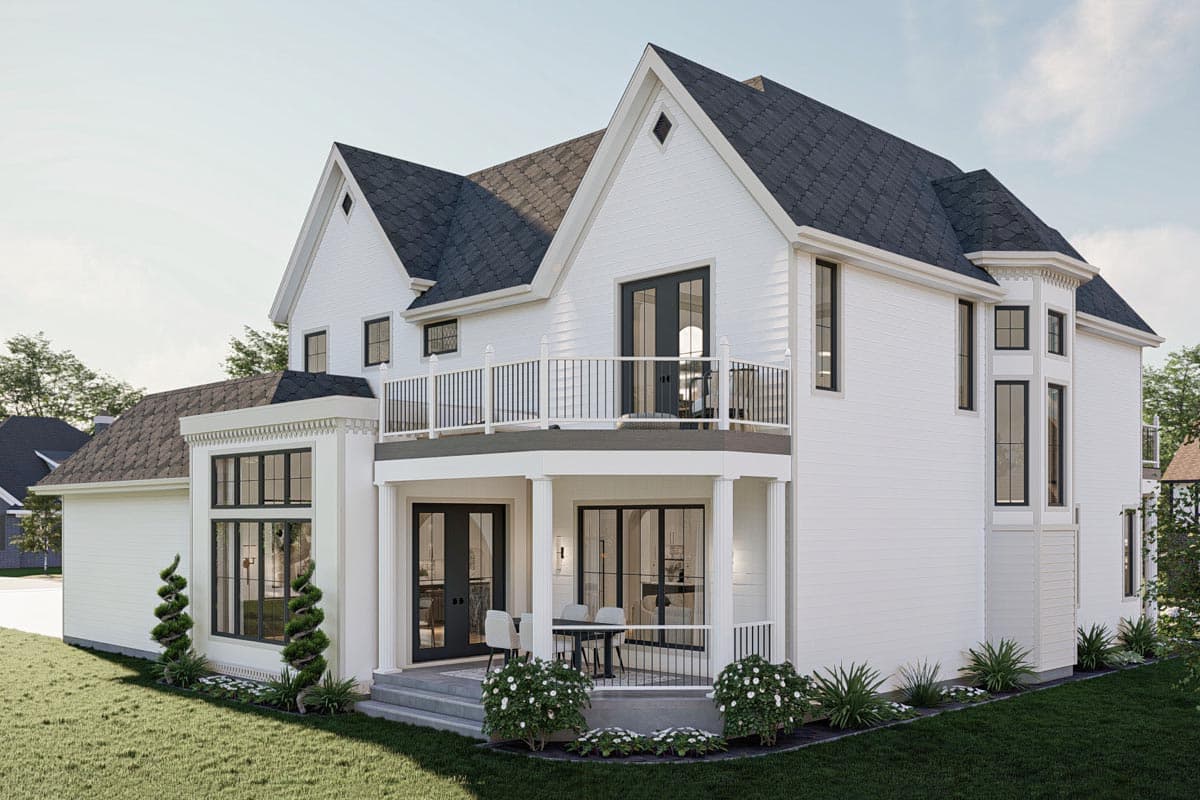

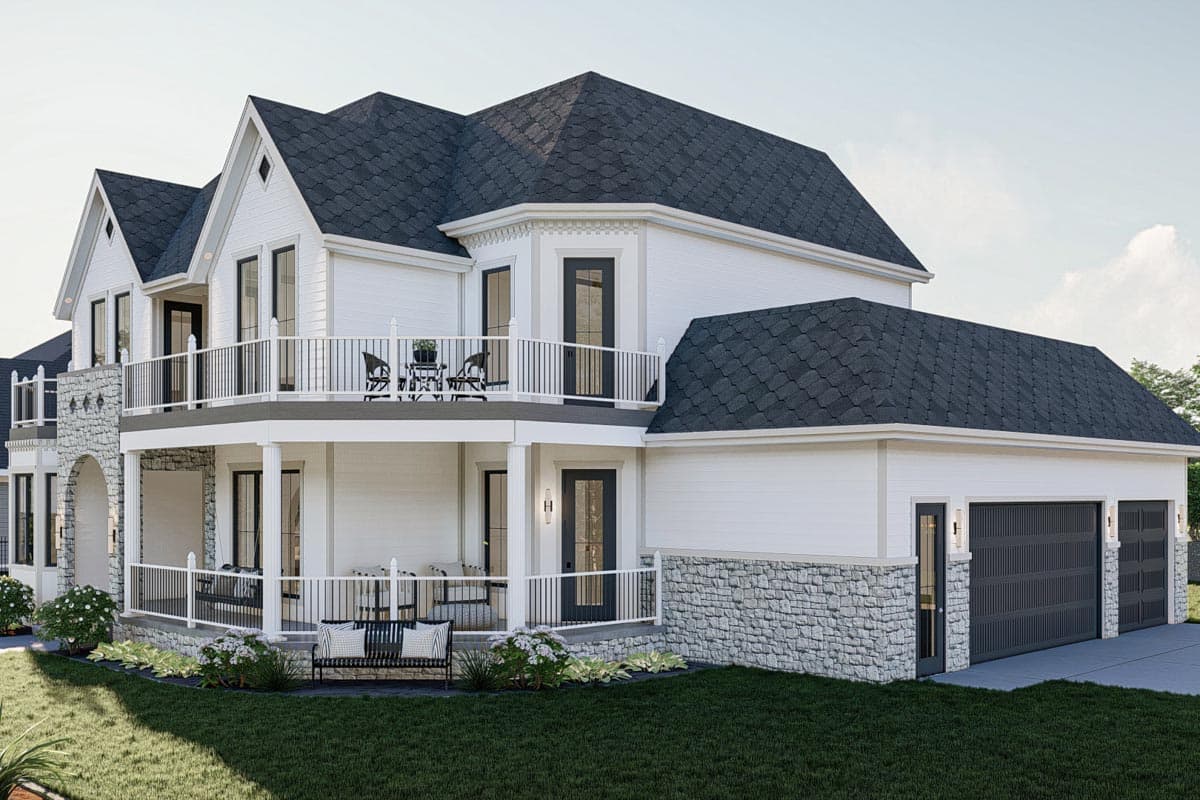

  • This contemporary Victorian-style house plan gives you 4 beds, 4.5 baths and 3,140 square feet of heated living space. An optional finished lower level - available by selecting it from our Options - gives you two more beds plus a flex room and a wet bar. The exterior features ornate trim, decorative gables, and a beautiful façade that pays homage to the Victorian era while incorporating modern materials. A wrap-around porch gives you a great fresh air space to enjoy.

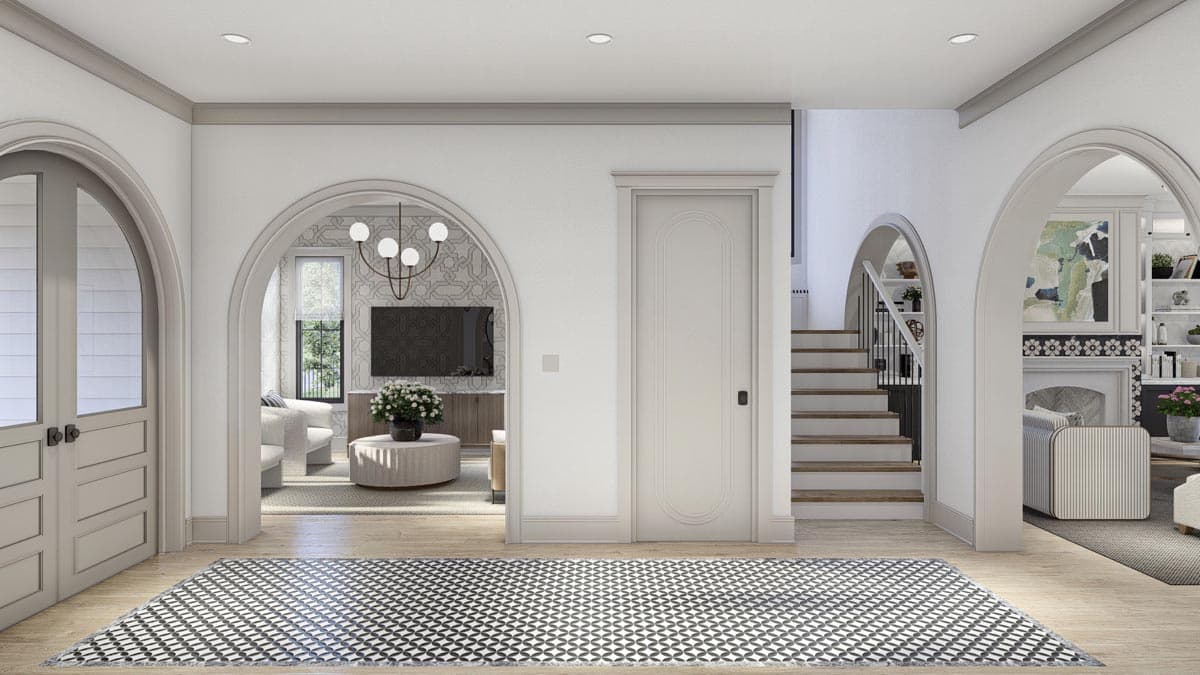

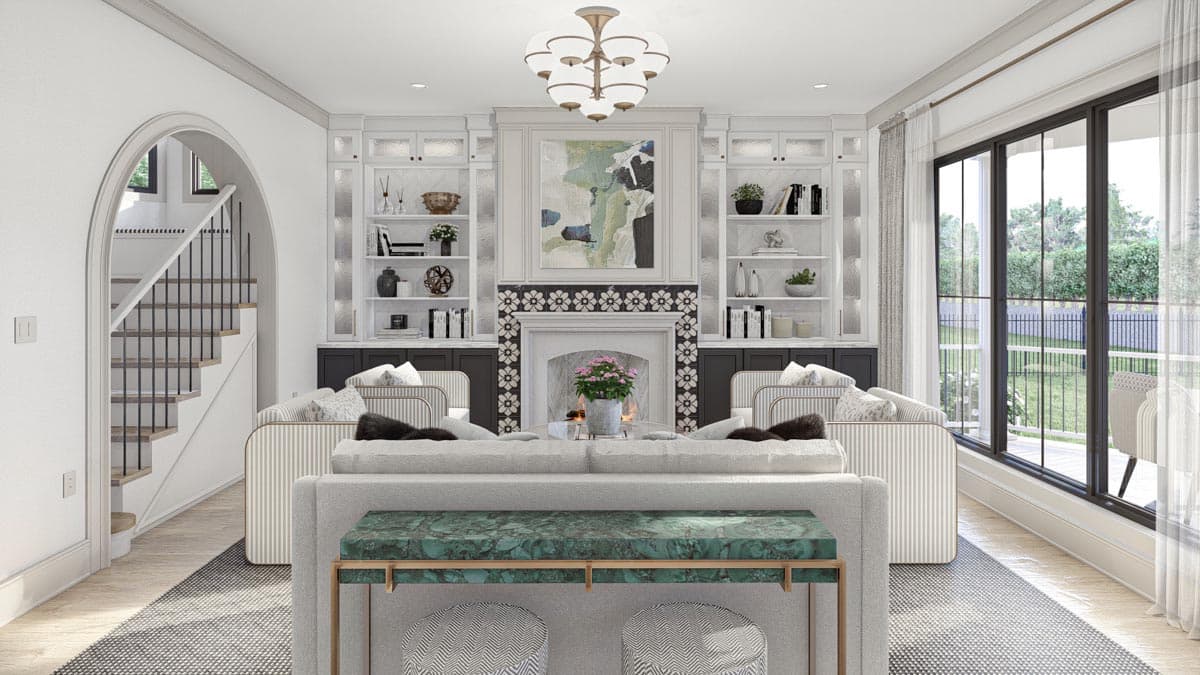

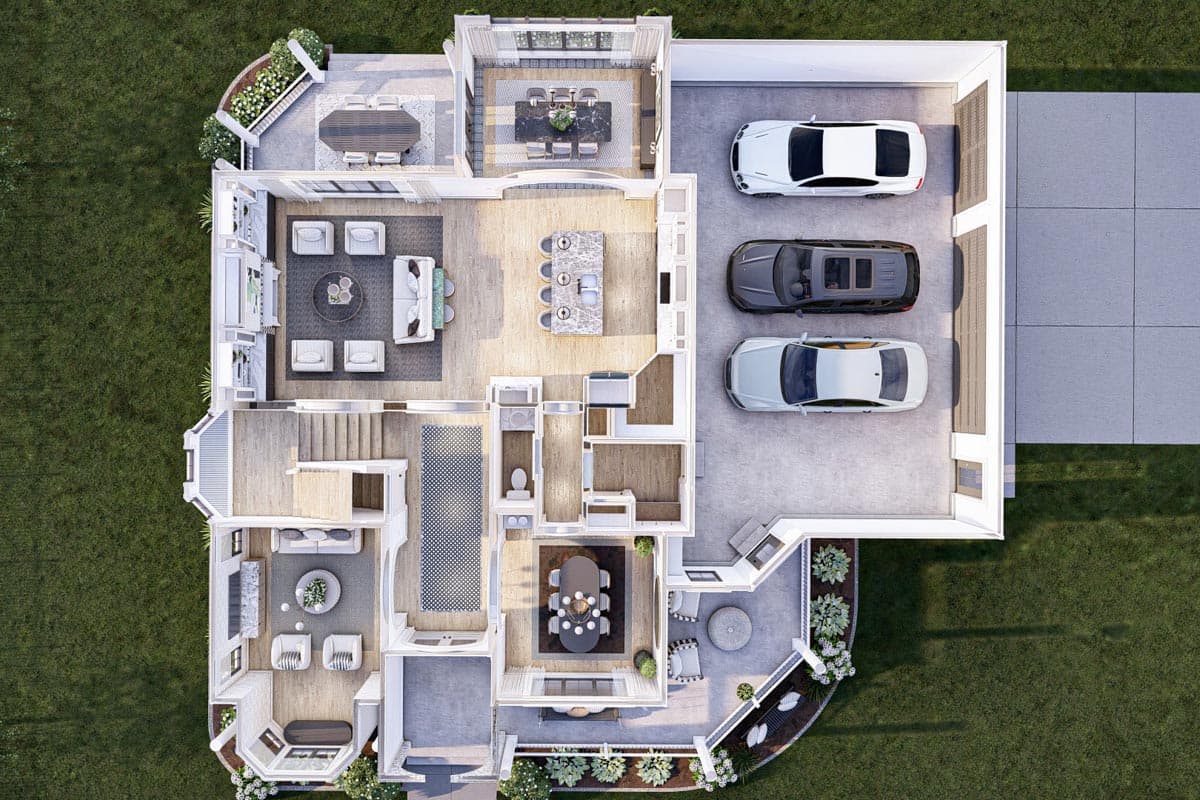

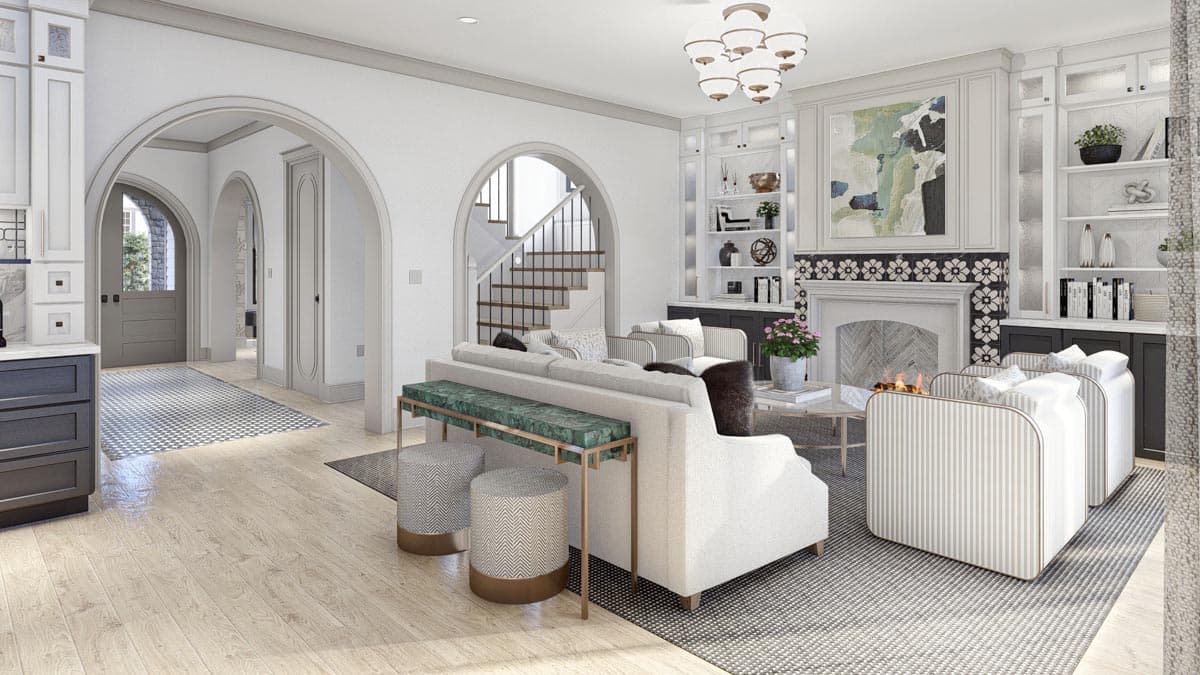

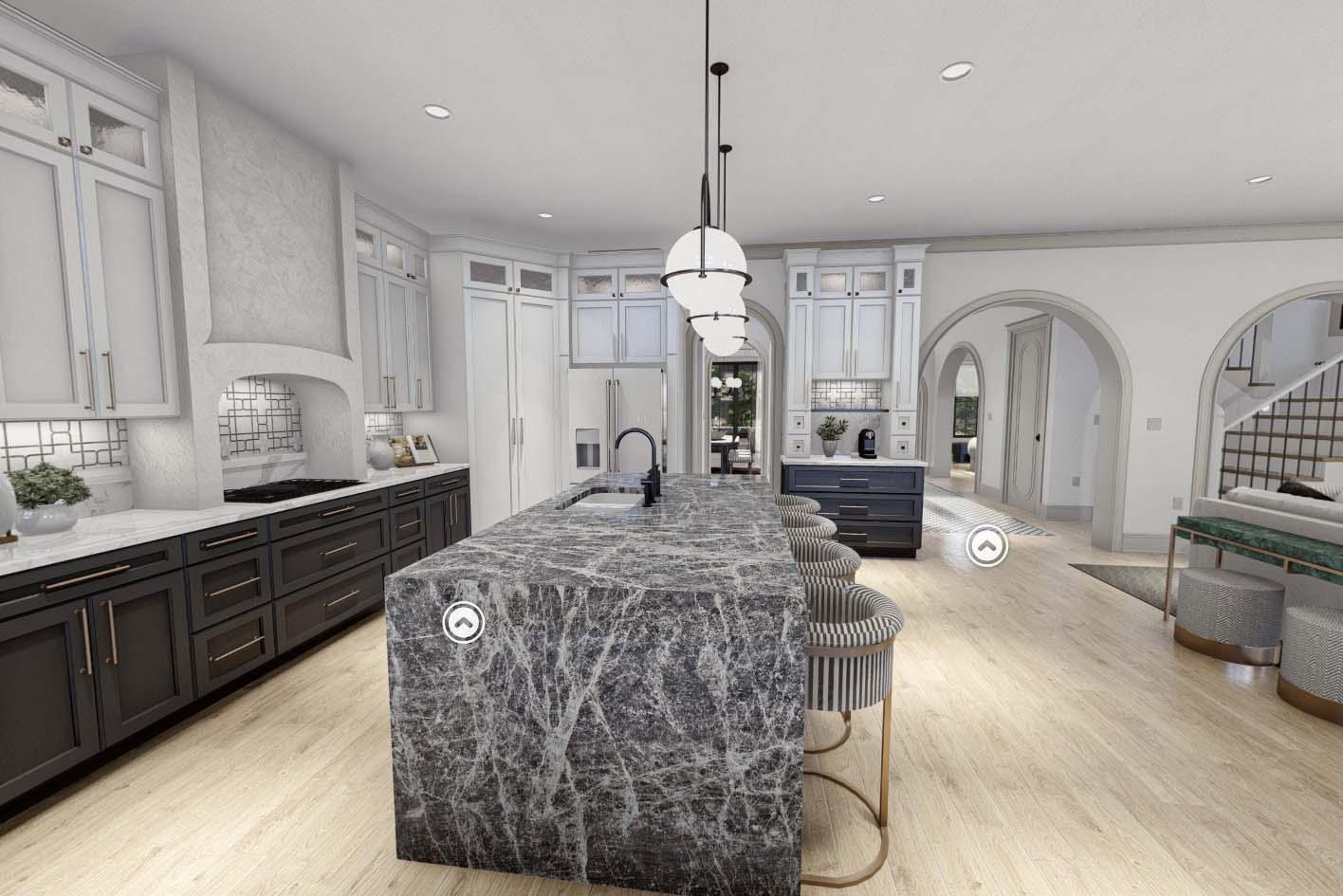

  • The foyer opens up to a spacious great room that is seamlessly integrated with an open kitchen and dinette. Natural light streams through large windows, illuminating the space and highlighting the 10' high ceilings adorned with decorative moldings.

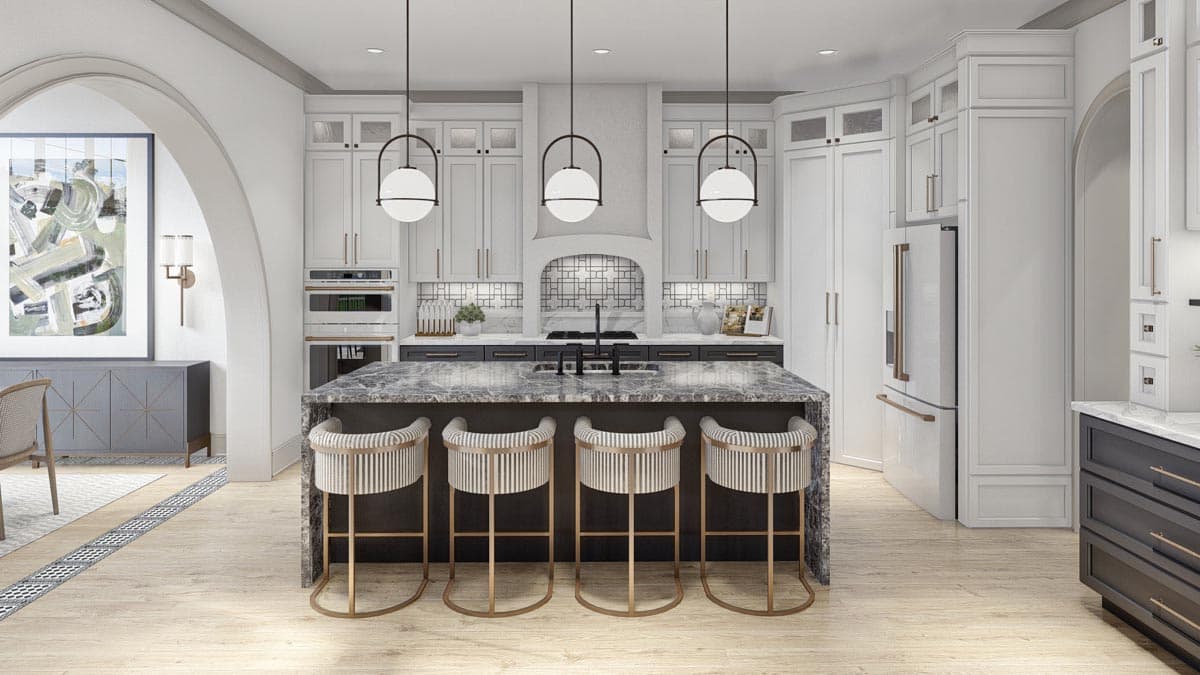

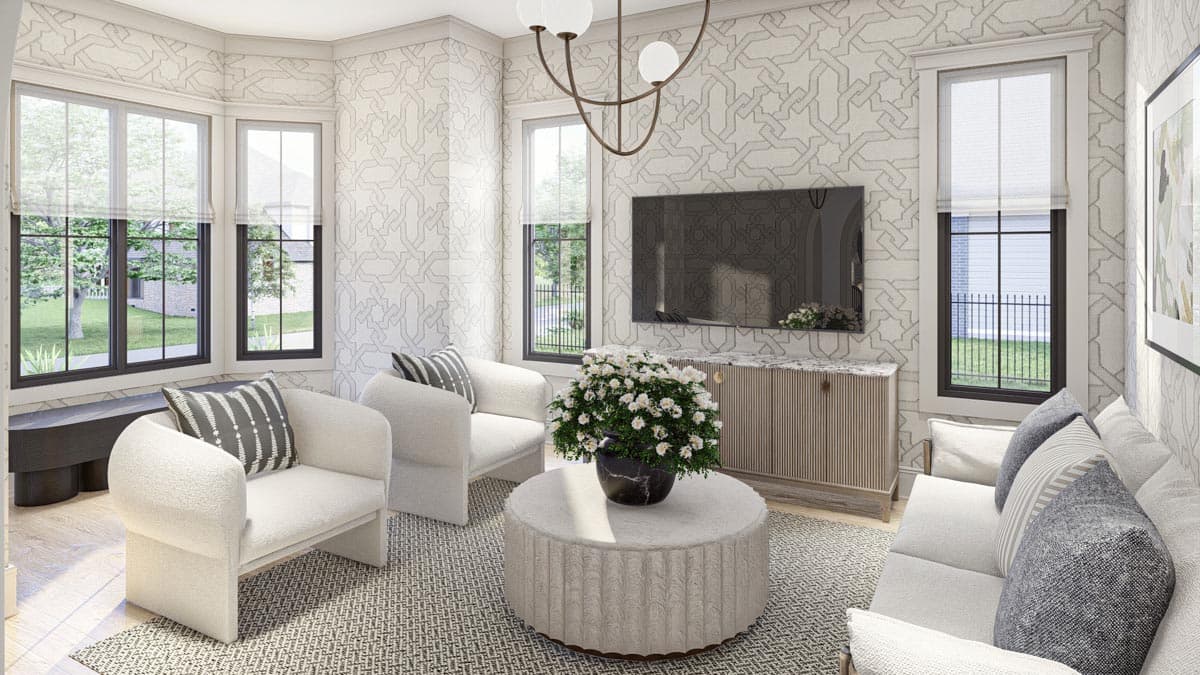

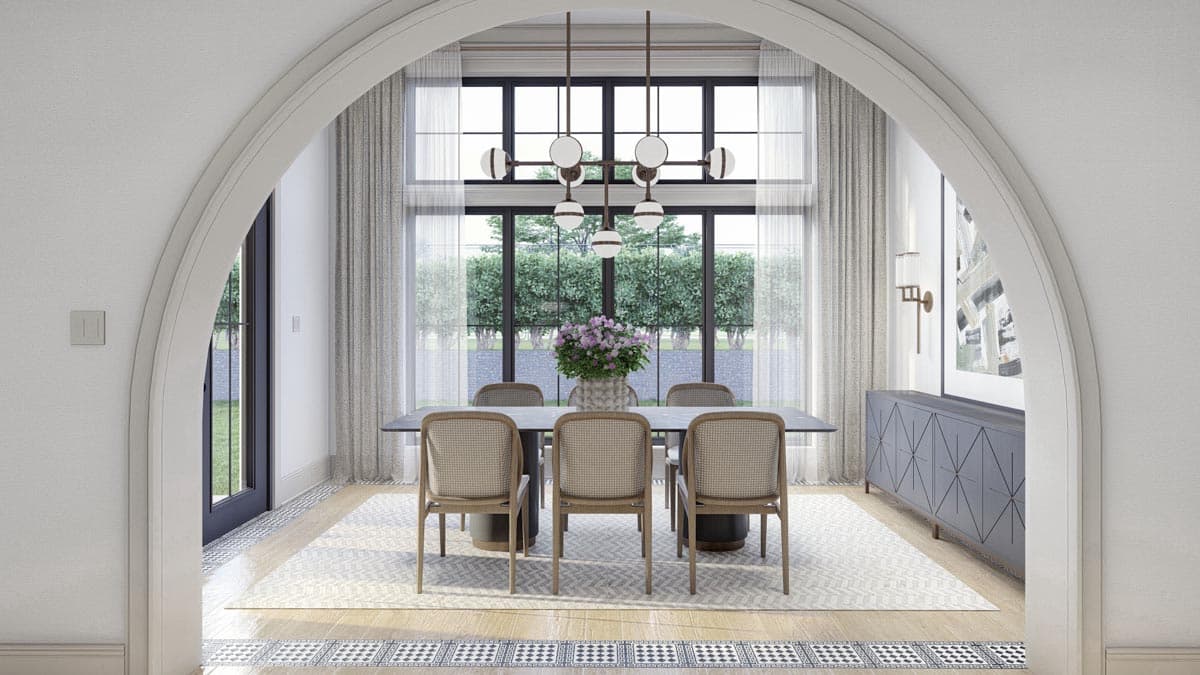

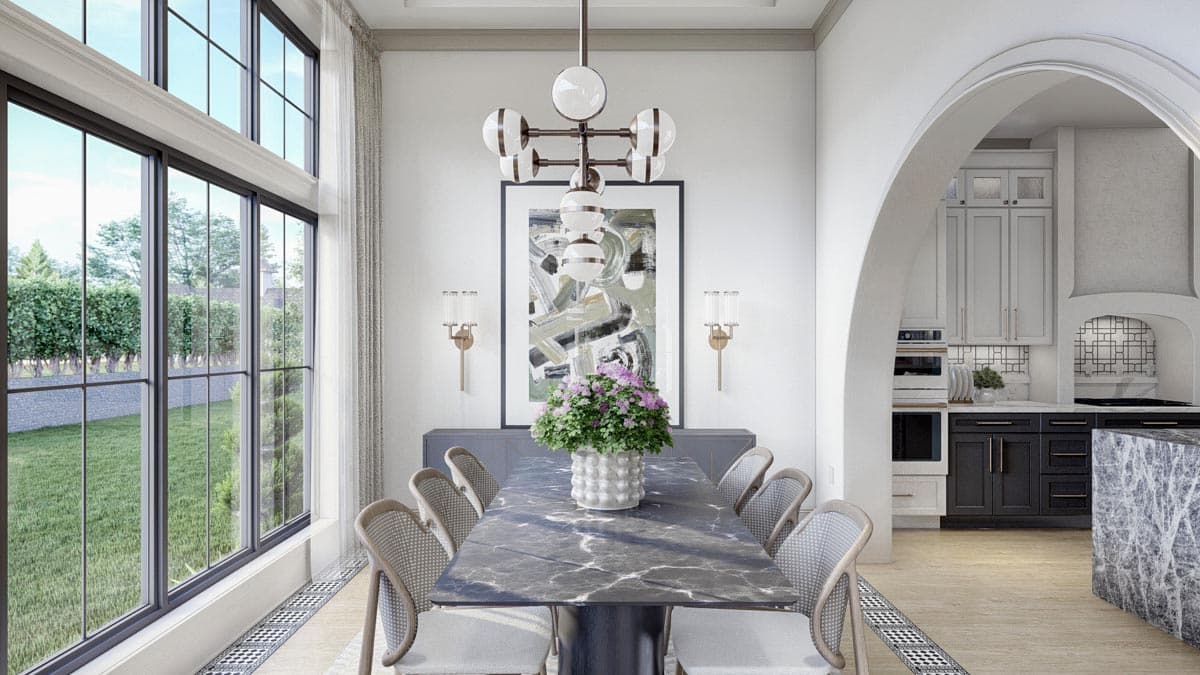

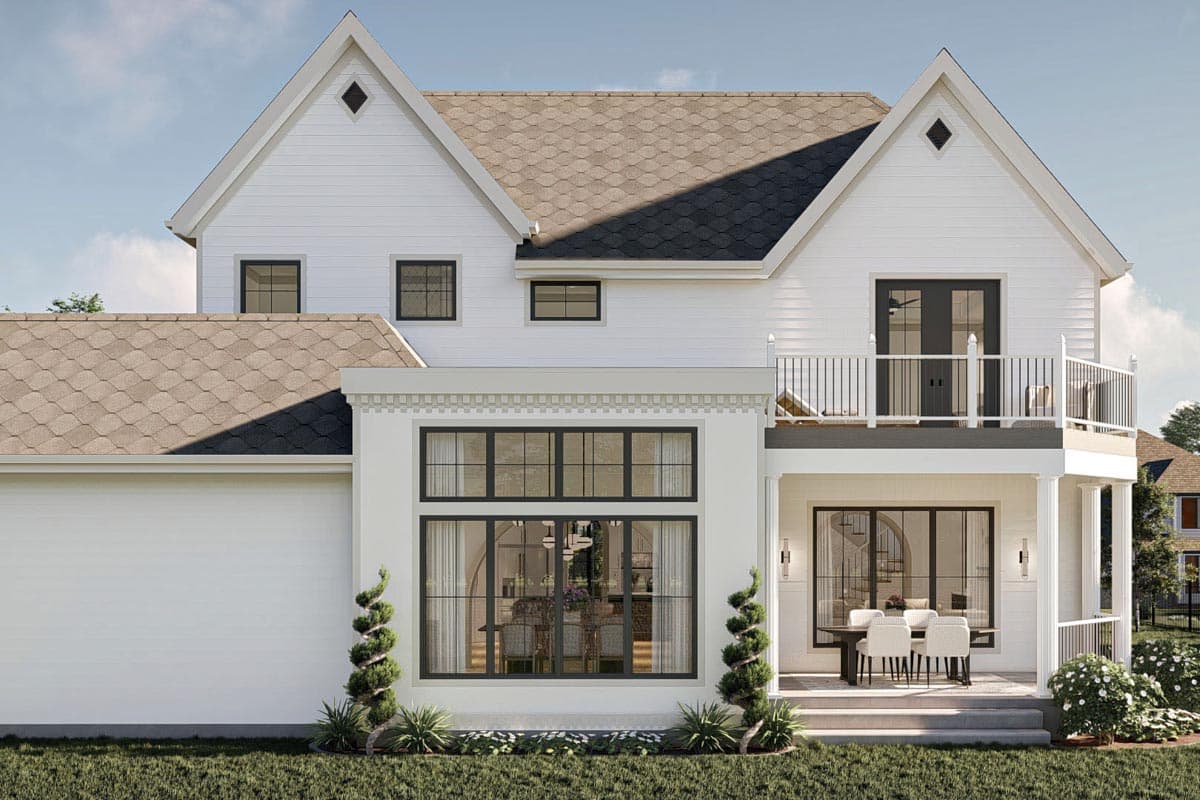

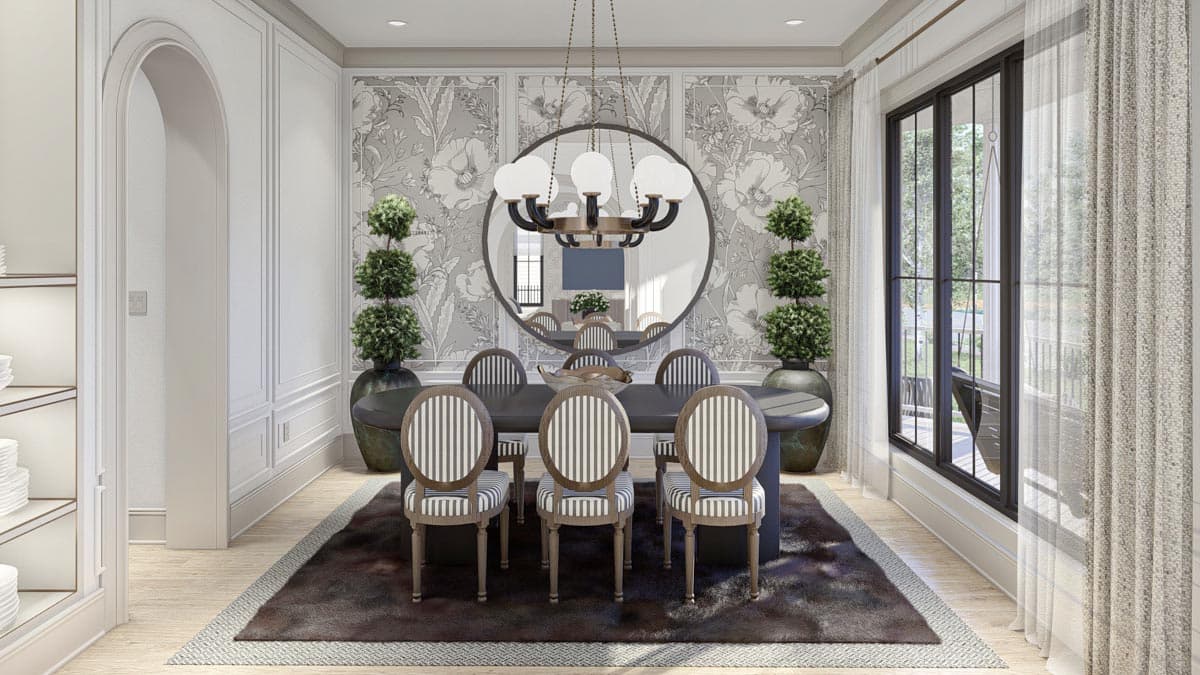

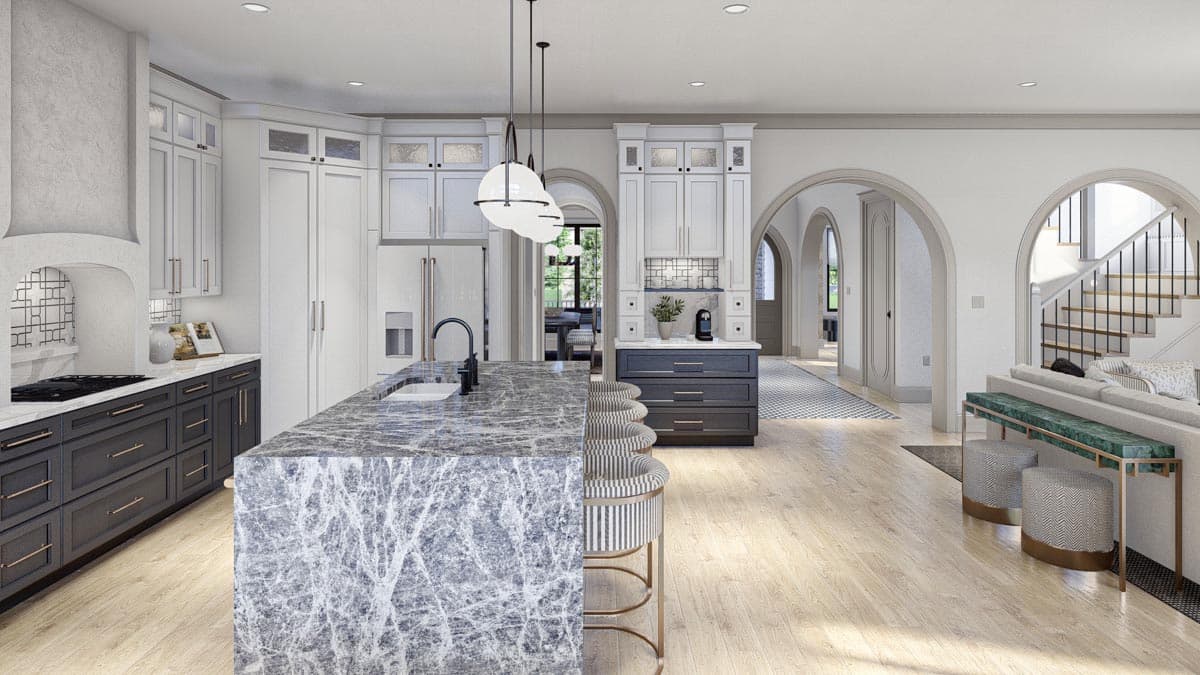

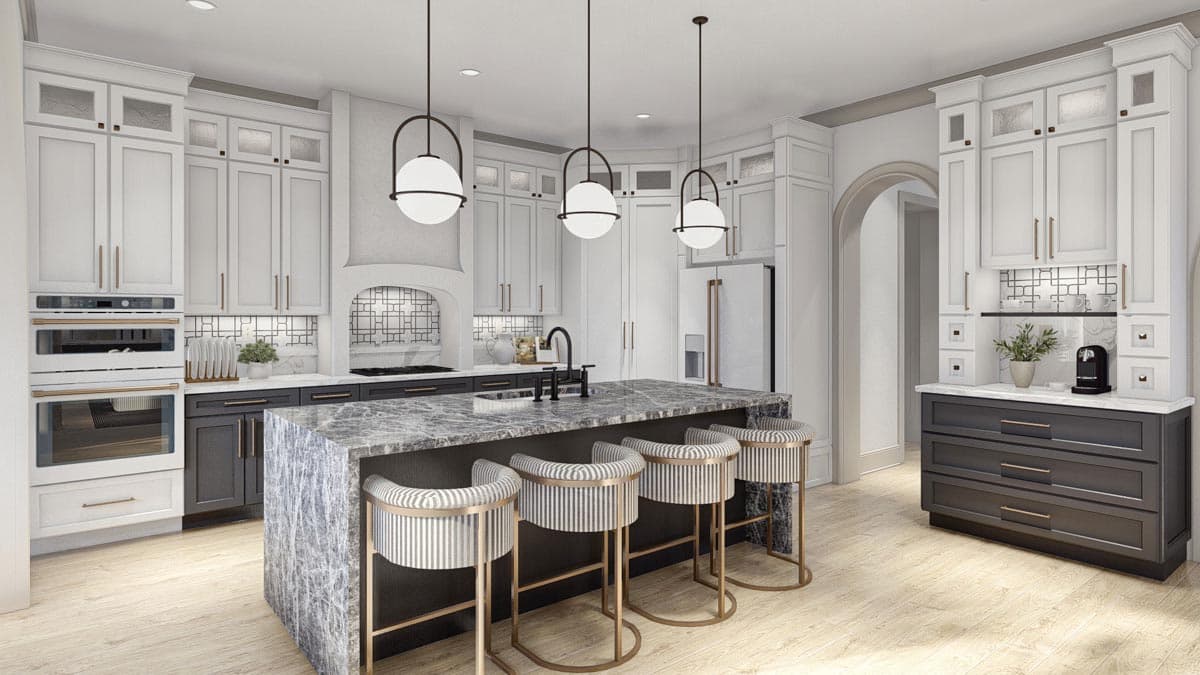

  • The kitchen has a center island that offers both additional workspace and a casual dining area. The adjacent dinette is perfect for casual meals and overlooks the backyard through French doors. A living room and a formal dining room are situated off the entryway.
  • Conveniently located near the garage entry, the mudroom connects to the attached 3-car garage.

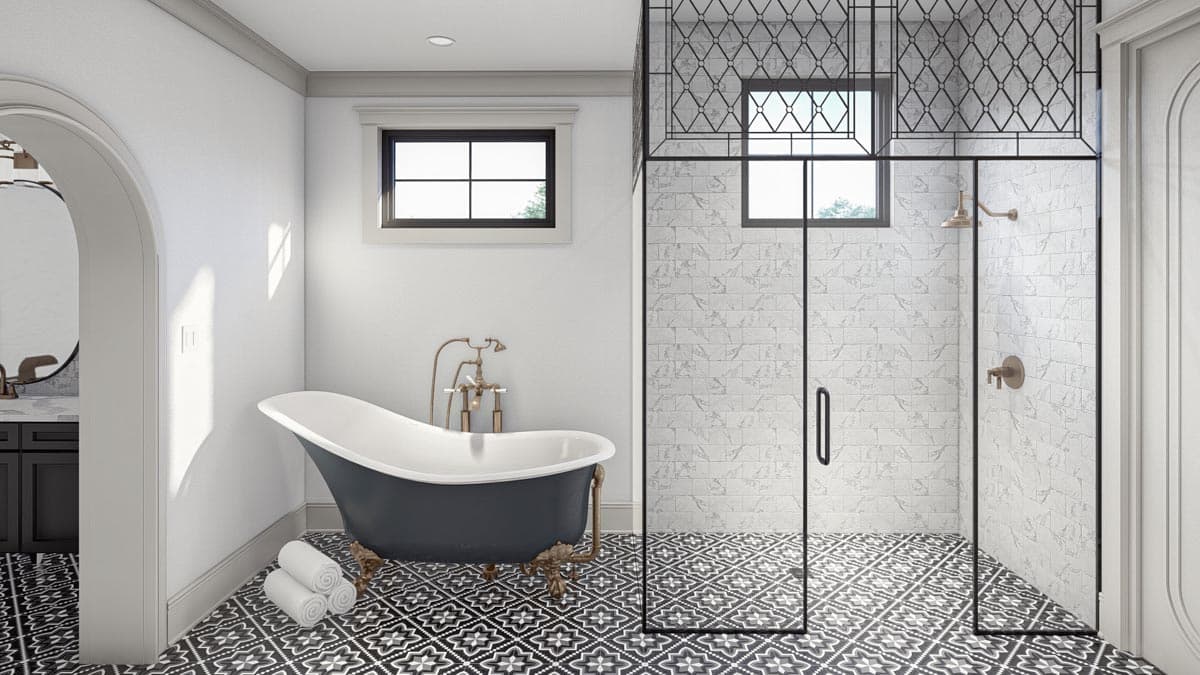

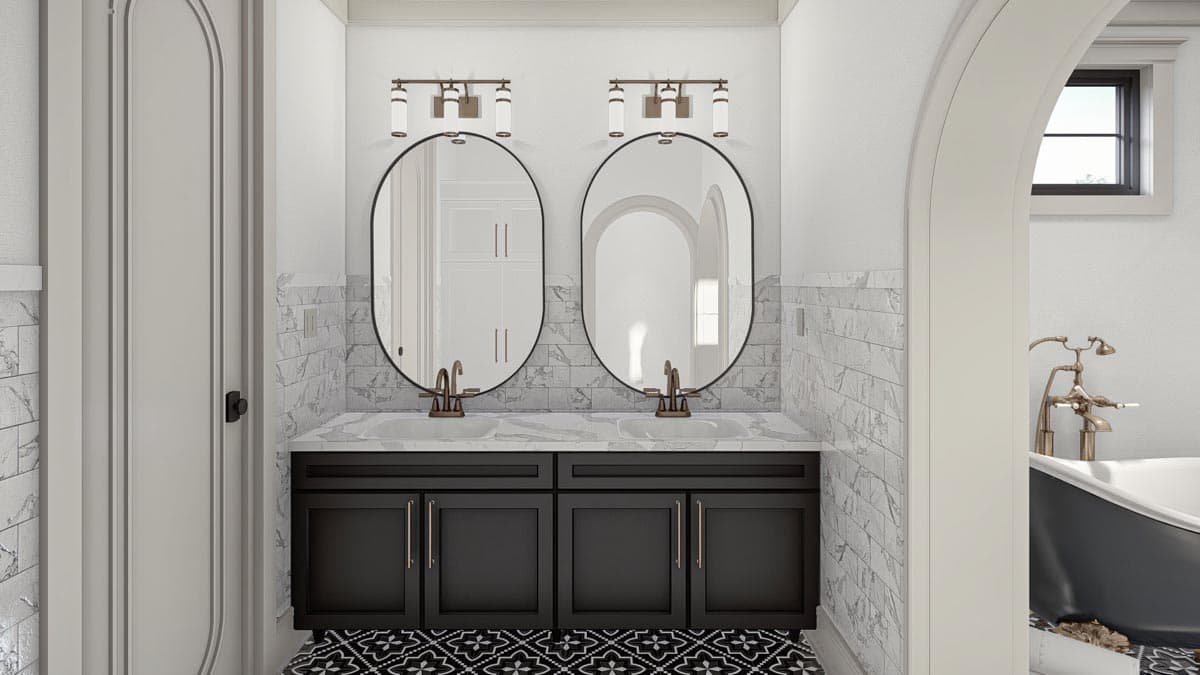

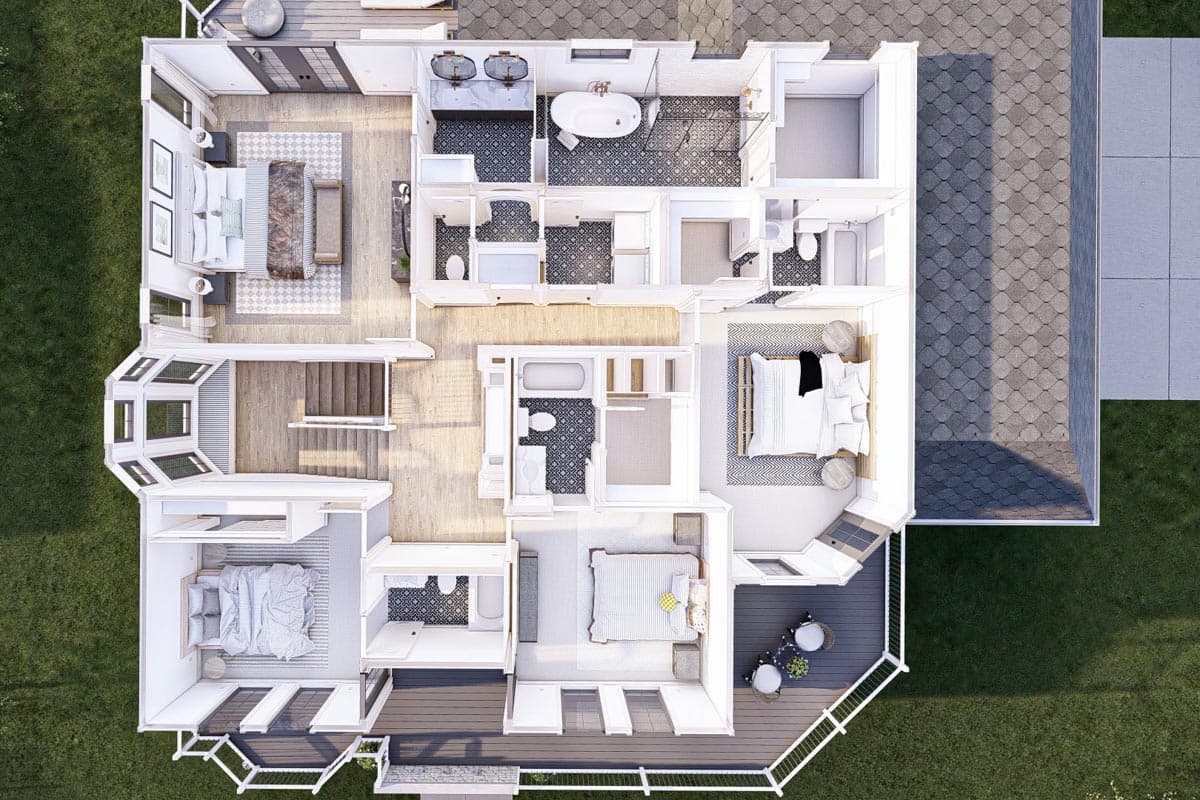

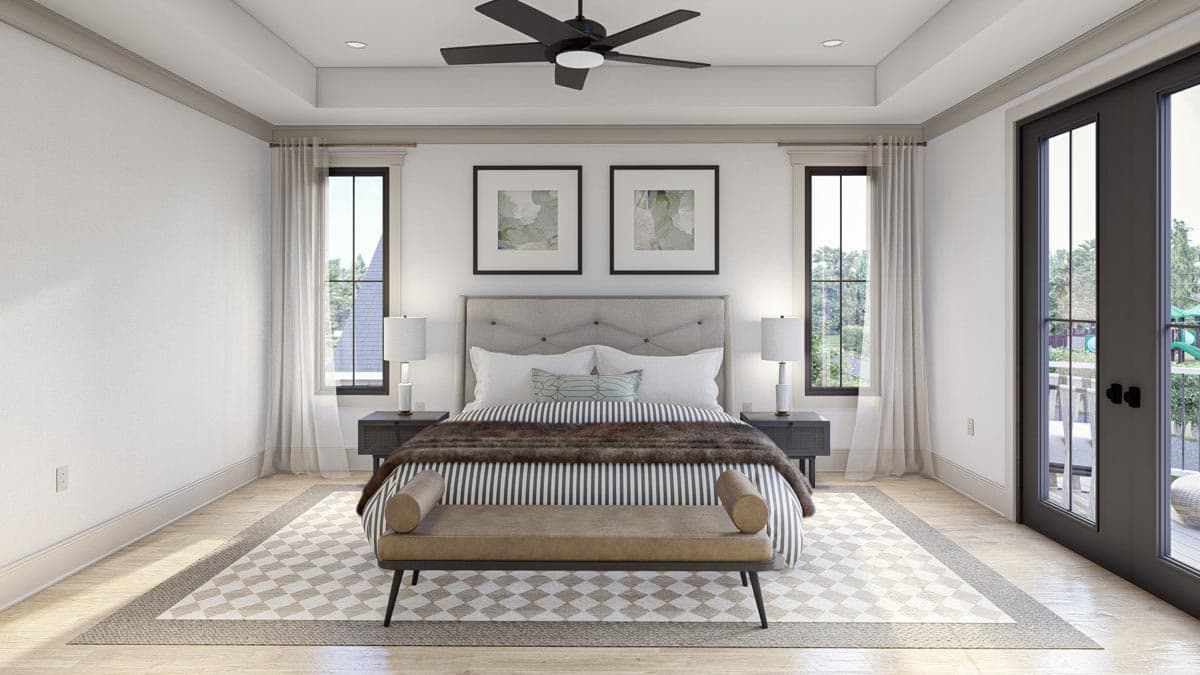

  • All four bedrooms are located upstairs and have their own bathrooms. The master suite has a walk-in closet, and a private outdoor sitting area. Beds 3 and 4 are vaulted and laundry is centrally located.
  • The Optional Finished Basement adds 1,250 square feet and the the unfinished mechanical room adds 145 square feet.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,140 sq. ft.

1st Floor

1,616 sq. ft.

2nd Floor

1,524 sq. ft.

Optional Lower Level

1,250 sq. ft.

Porch, Combined

469 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

57' 0"

Max Ridge Height

32' 1"

Garage

Type

Attached

Area

904 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Country
