Plan 871013JEN Contemporary Waterfront House Plan with Office and Large Covered Porch

3,461 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Waterfront House Plan with Office and Large Covered Porch

Plan 871013JEN

  • 3,461

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

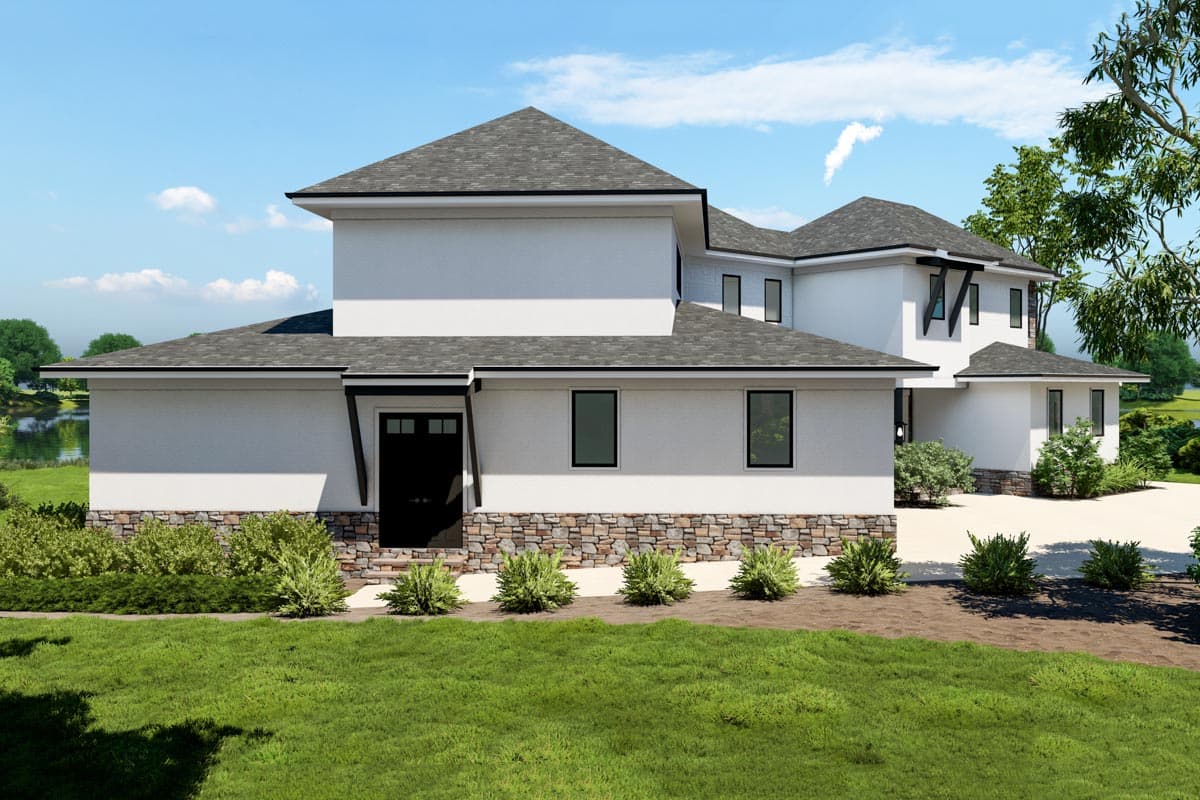

  • This Contemporary Waterfront house plan features an angled garage that creates a courtyard entry to welcome you home. This design is exclusive to Architectural Designs.
  • Three large windows and an oversized sliding door surround the sunlit great room, topped by exposed beams, with direct access to the kitchen and dining area.
  • The island kitchen offers lots of space for multiple cooks with its large range and corner sink with accordion-style windows connecting to an outdoor bar.

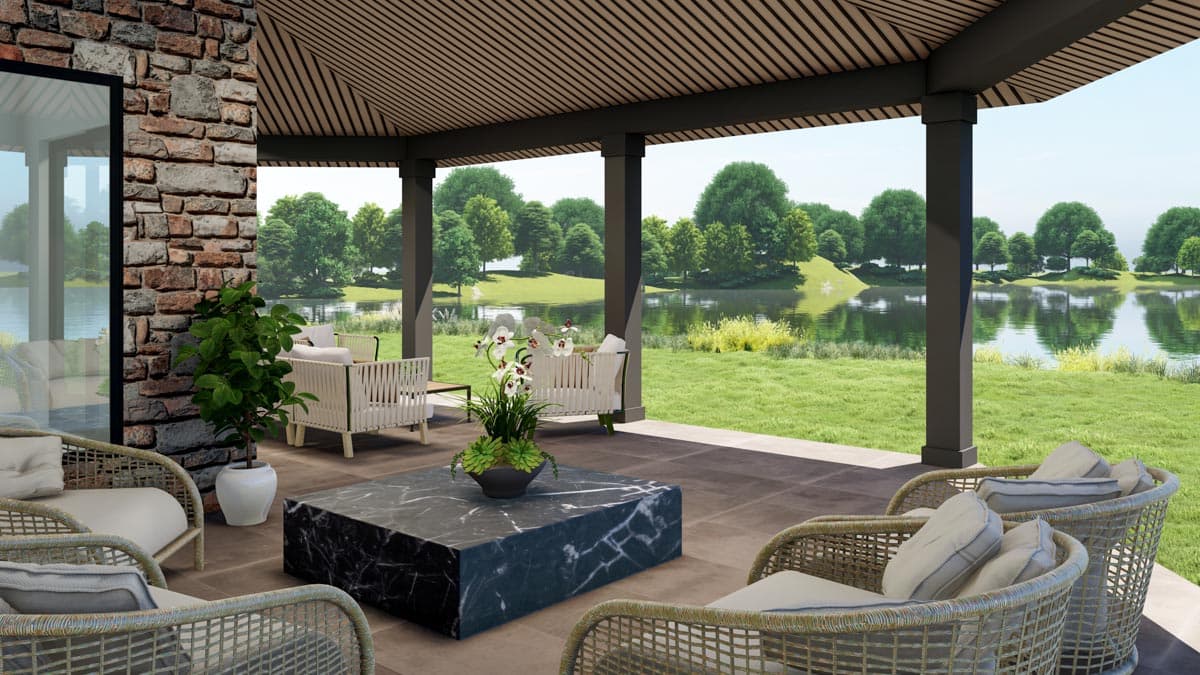

  • The master bedroom is tucked behind the 3-car tandem garage and includes access to the massive covered porch and a deluxe ensuite.
  • A cozy home office completes the main level and neighbors a dedicated storage room with exterior access. Upstairs, three sizable bedrooms can be found, along with a bonus room for future expansion.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

This house plan set has the following details:


Foundation plan
Detailed floor plans
Roof plan
Elevations (all four sides)
Sections
3D model views
Electrical plans
Framing details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

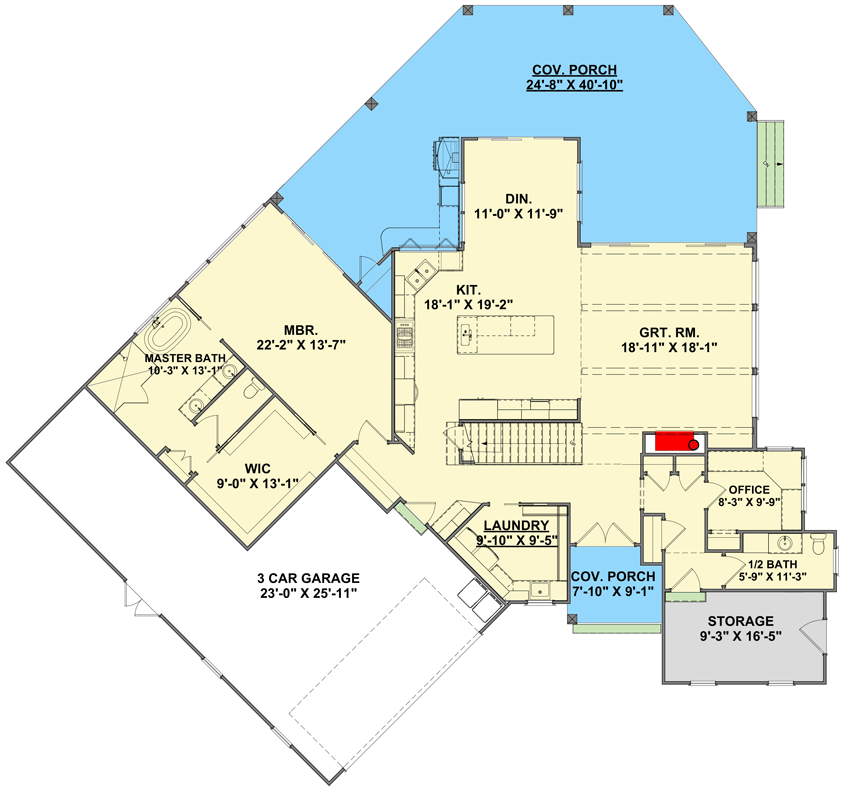

Contemporary Waterfront House Plan with Office and Large Covered Porch - 871013JEN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

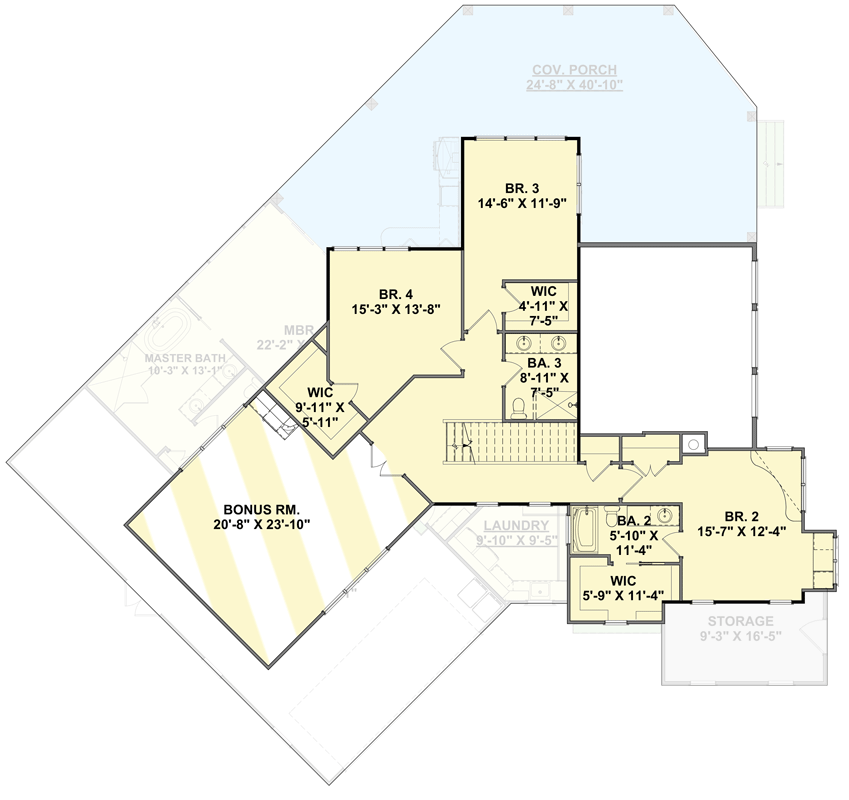

Contemporary Waterfront House Plan with Office and Large Covered Porch - 871013JEN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,461 sq. ft.
  • 1st Floor: 2,211 sq. ft.
  • 2nd Floor: 1,250 sq. ft.
  • Porch, Rear: 896 sq. ft.
  • Porch, Front: 78 sq. ft.
  • Bonus: 474 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 76' 11"
  • Depth: 82' 11"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 878 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room 18' 1" 18' 11" 14' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Waterfront House Plan with Office and Large Covered Porch

  • 3,461

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,395
  • 5 Sets + PDF $2,695
  • PDF - Unlimited Build $3,195
  • CAD - Single-Build $3,395
  • View all purchase option online

About This Plan

  • This Contemporary Waterfront house plan features an angled garage that creates a courtyard entry to welcome you home. This design is exclusive to Architectural Designs.
  • Three large windows and an oversized sliding door surround the sunlit great room, topped by exposed beams, with direct access to the kitchen and dining area.
  • The island kitchen offers lots of space for multiple cooks with its large range and corner sink with accordion-style windows connecting to an outdoor bar.
  • The master bedroom is tucked behind the 3-car tandem garage and includes access to the massive covered porch and a deluxe ensuite.
  • A cozy home office completes the main level and neighbors a dedicated storage room with exterior access. Upstairs, three sizable bedrooms can be found, along with a bonus room for future expansion.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,461 sq. ft.
  • 1st Floor: 2,211 sq. ft.
  • 2nd Floor: 1,250 sq. ft.
  • Porch, Rear: 896 sq. ft.
  • Porch, Front: 78 sq. ft.
  • Bonus: 474 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 76' 11"
  • Depth: 82' 11"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 878 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 871013JEN
View this and more for this plan by visiting www.architechtecturaldesigns.com/871013JEN
|
