Plan 340027STR
Contemporary West Indies-style House Plan with Two Connected Lanais
Heated S.F.
3,718
Beds
4
Baths
5
Stories
1
Cars
3
What's Included
Plan Details

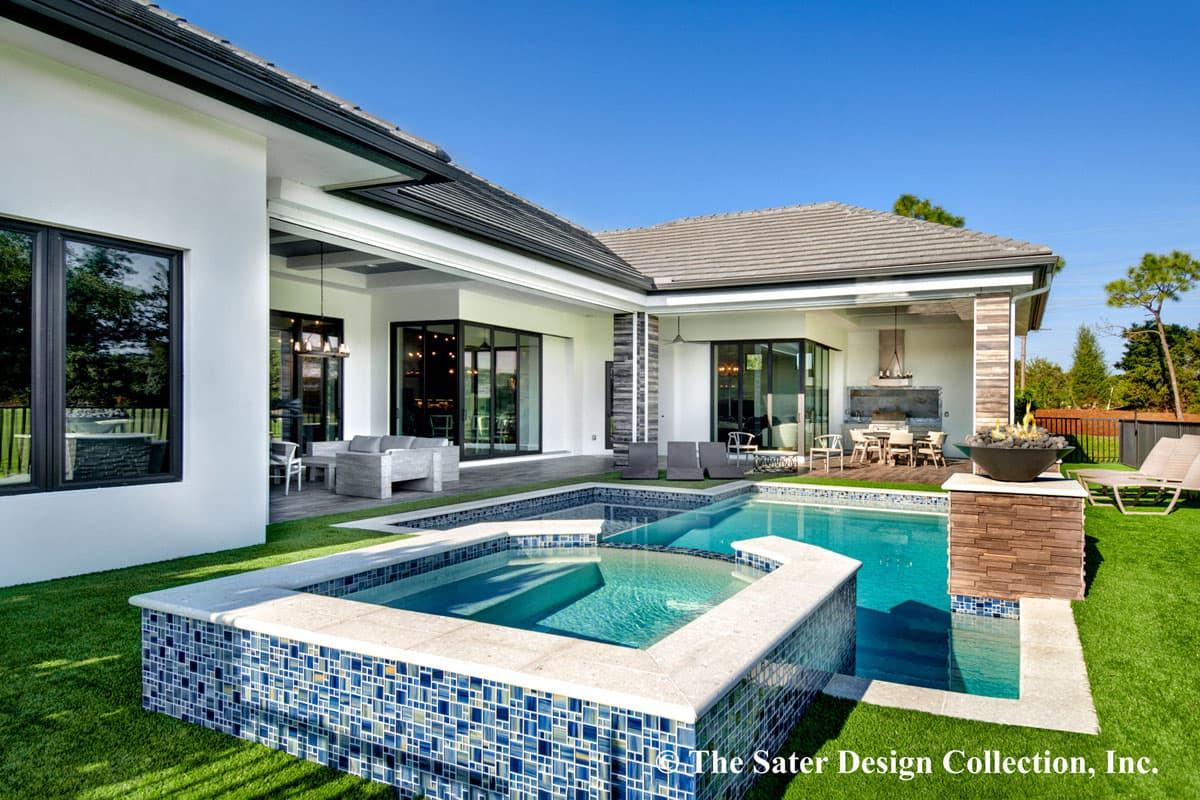

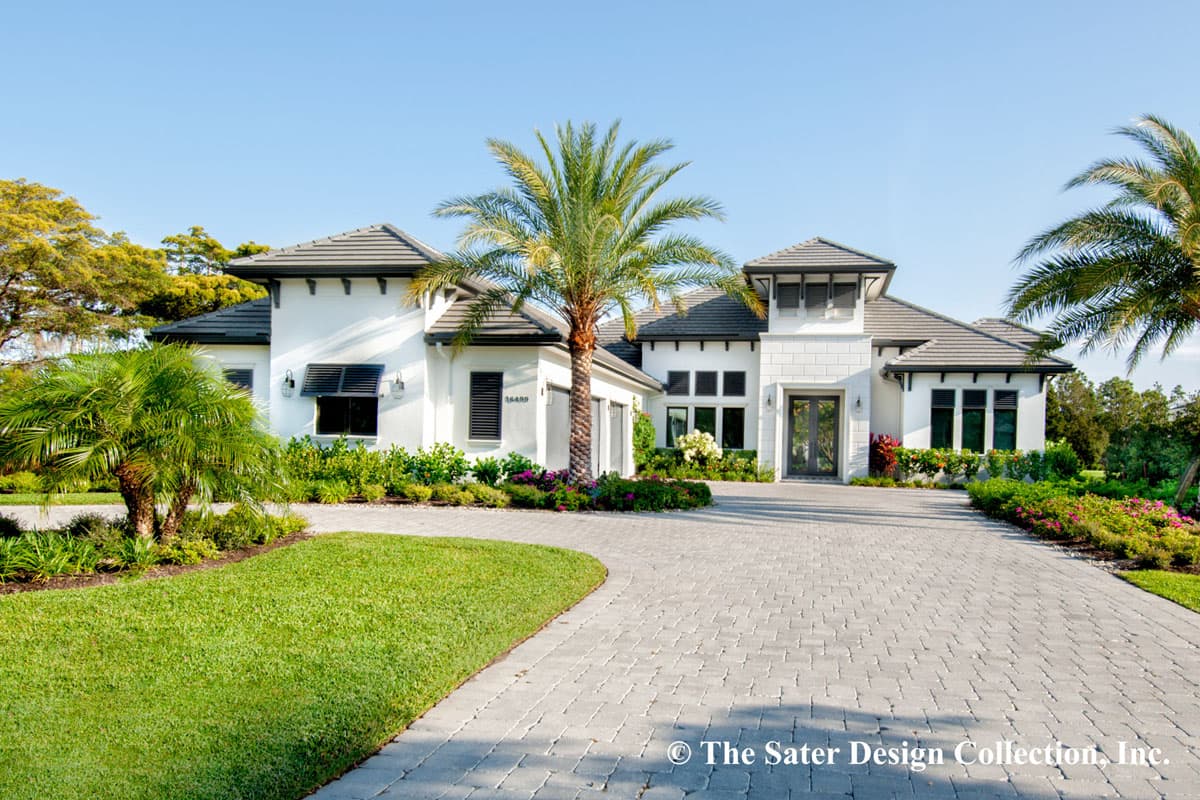

  • This contemporary, West-Indies style home plan has a tall entry that welcomes homeowners and guests. Shutter detailing stands out against the simple exterior stucco. A flat concrete tile roof completes the home.
  • Inside, the floor plan boasts four bedrooms and five full bathrooms in its 3,718 of heated and cooled living space. Intricate ceiling designs flow through the entire home, from the foyer to the lanai.
  • Three bedrooms are located in the front portion of the home, leaving the back for entertaining. One is located off the home’s foyer and the other two have an entrance off the gallery. All three are complete with private bathrooms and walk-in closets. A spacious utility room is also located off the gallery.

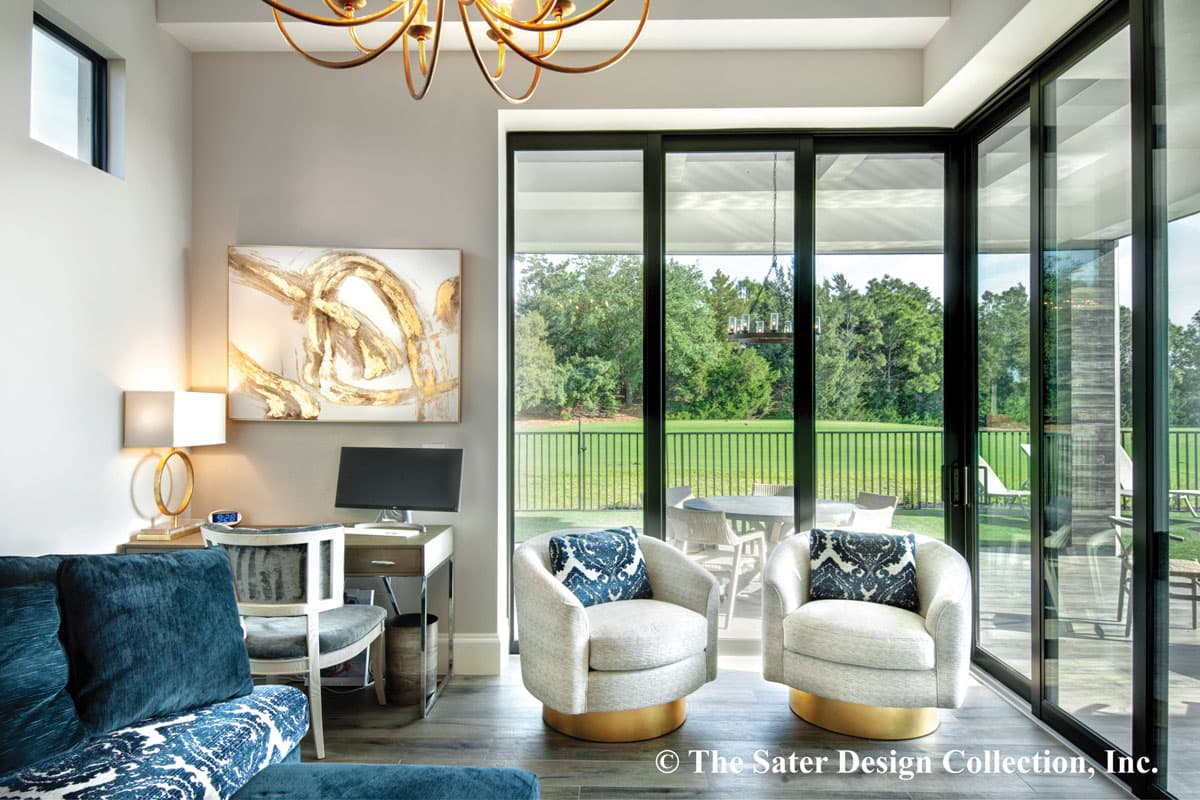

  • The nucleus of the home is the open concept portion. There, the kitchen opens to the great room and dining room. It offers an abundance of counter space and storage, as well as an oversized pantry and center island. There's also a convenient coffee bar. Sliding glass doors open the great room and dining room to the rear lanai. Off the dining room is a study and guest bath. The study has zero corner sliding glass doors which makes the room completely open to the outside.

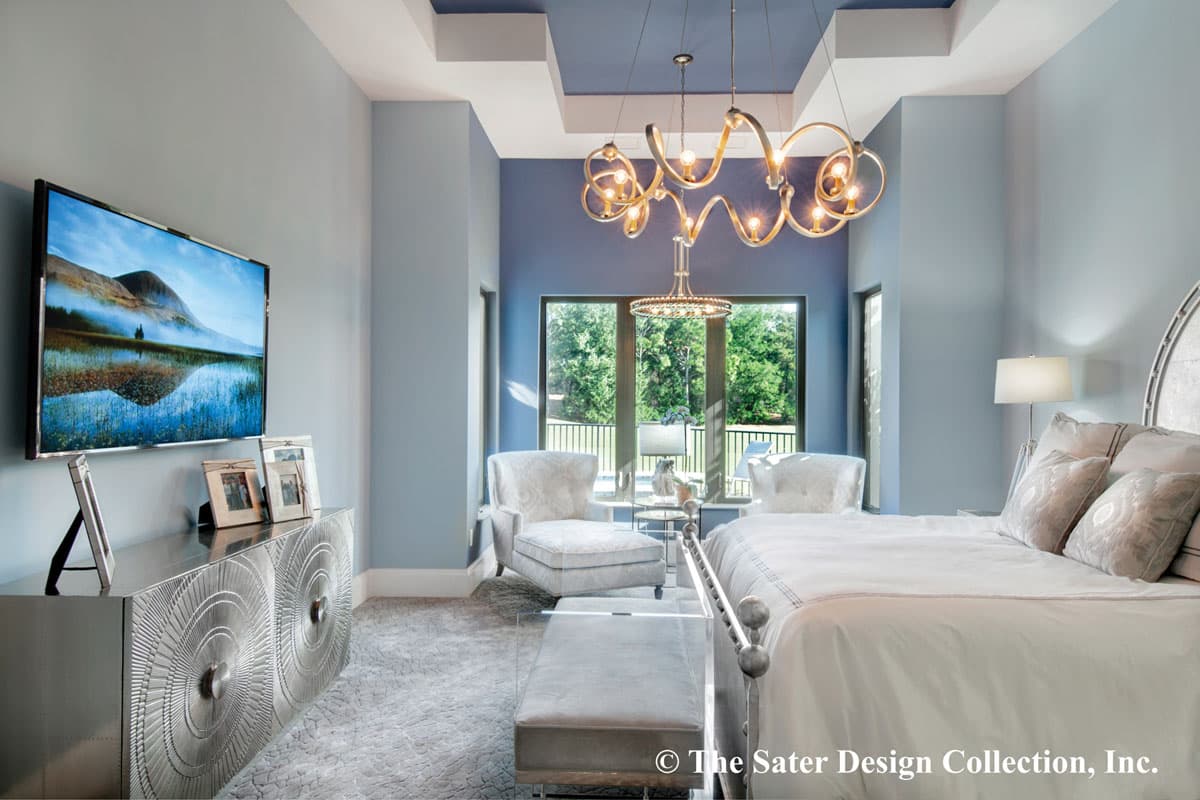

  • The majority of the right side is devoted to the master suite. The master foyer leads to the bedroom and sitting area on the left and two walk-in closets and the bathroom on the right. The generous master bath offers extra-long vanities, a freestanding tub and a two-person walk-in shower.

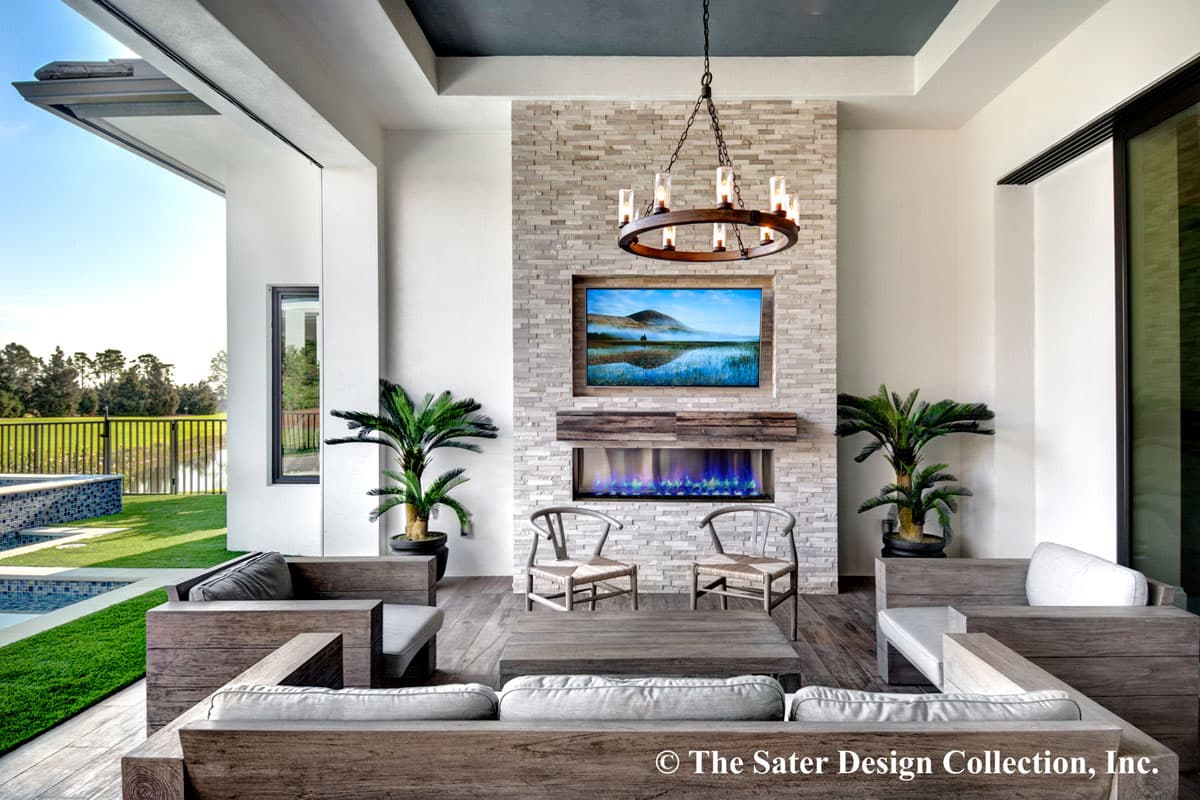

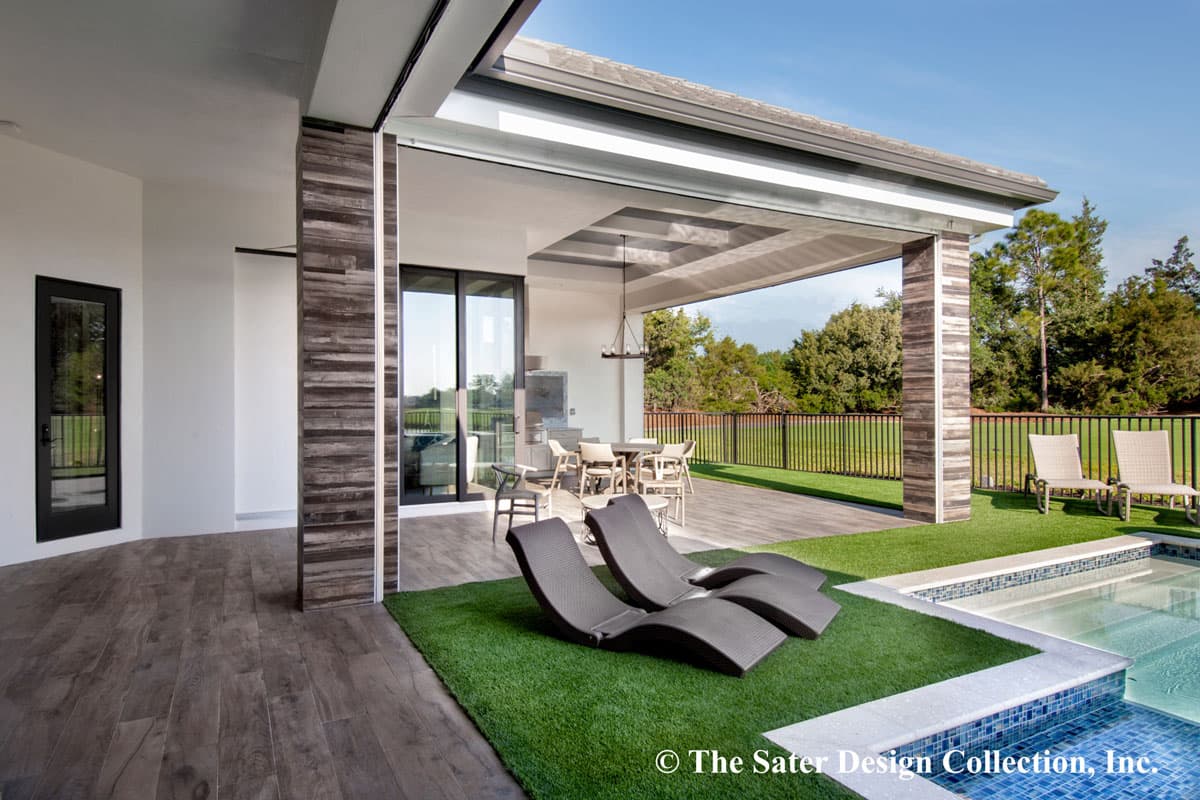

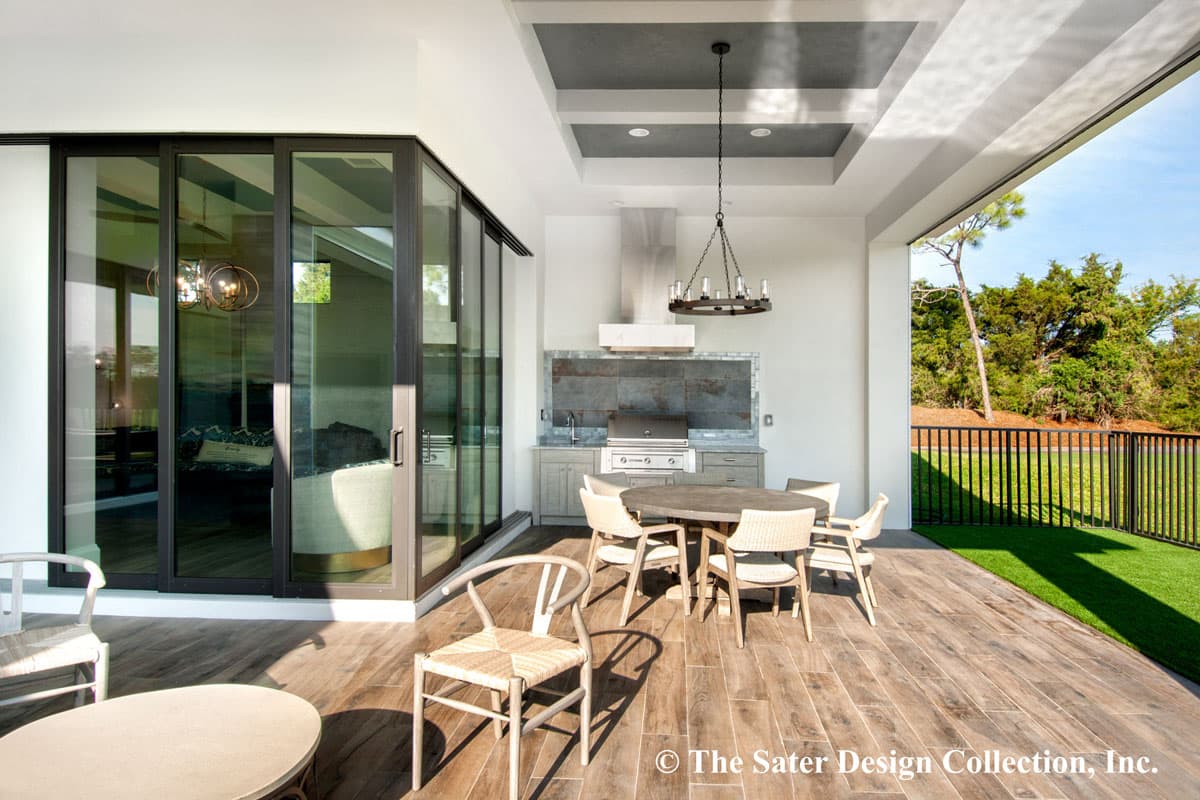

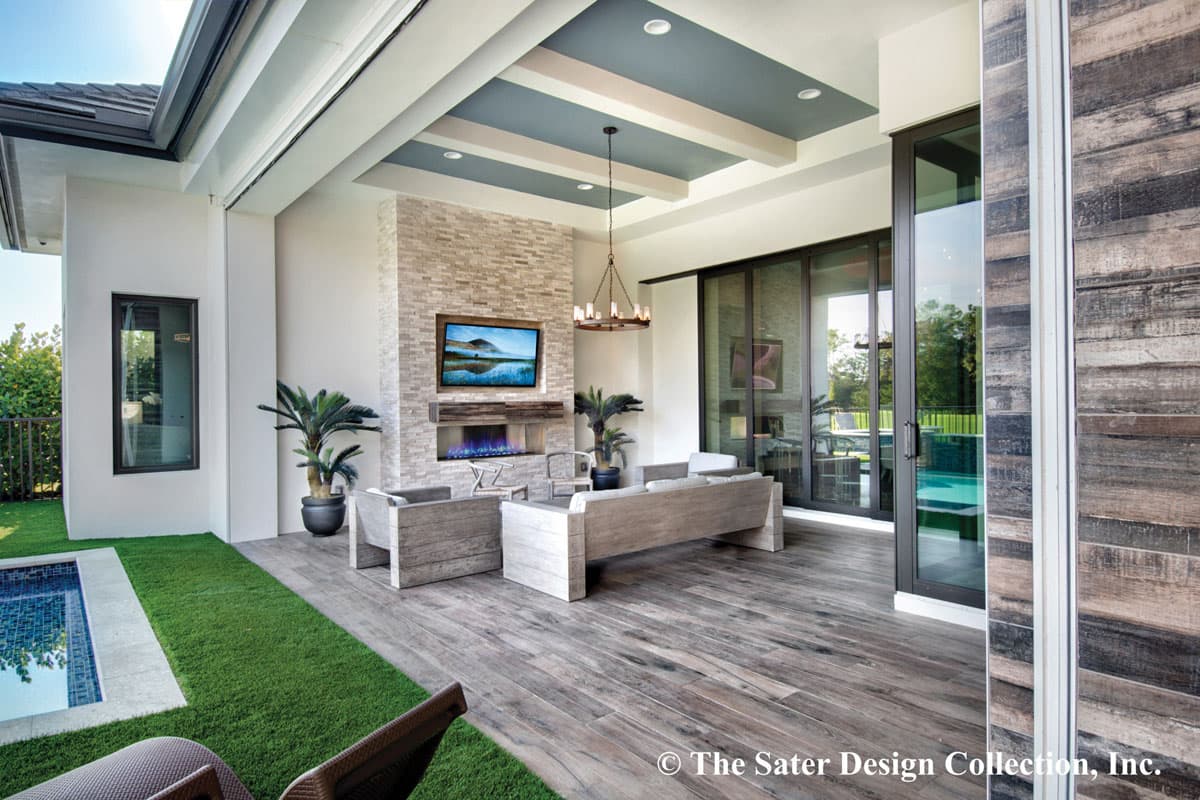

  • This home offers wonderful outdoor living with two connected lanais with a fireplace and an outdoor kitchen.
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan

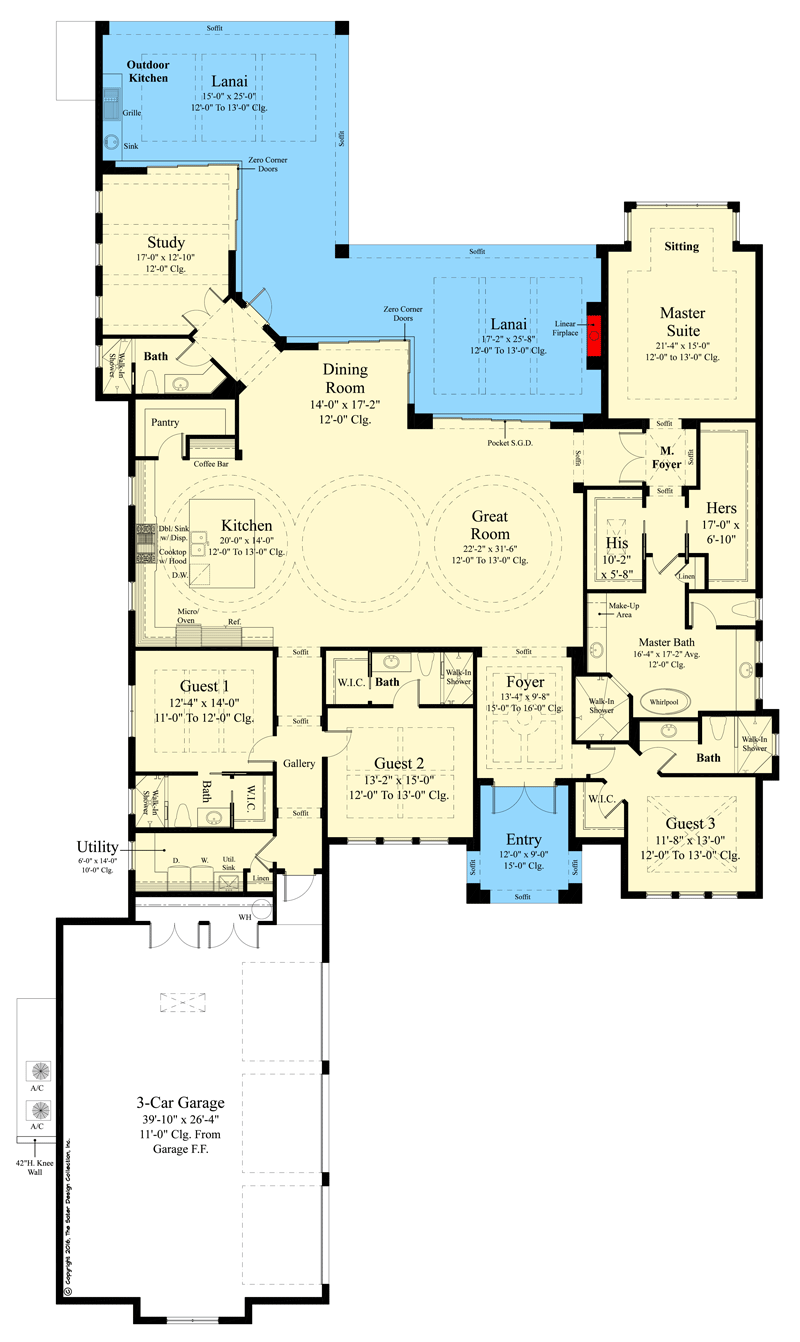

  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary West Indies-style House Plan with Two Connected Lanais

  • 3,718

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,718 sq. ft.
  • 1st Floor: 3,718 sq. ft.

Dimensions

  • Width: 73' 4"
  • Depth: 132' 2"
  • Max ridge height: 30' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 1165 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
