Plan 72471DA

Cottage Vacation House Plan with Loft and Lakefront Views

Heated S.F.
1,246
Beds
0
Baths
1
Stories
2

Floor Plan

Plan 72471DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72471DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

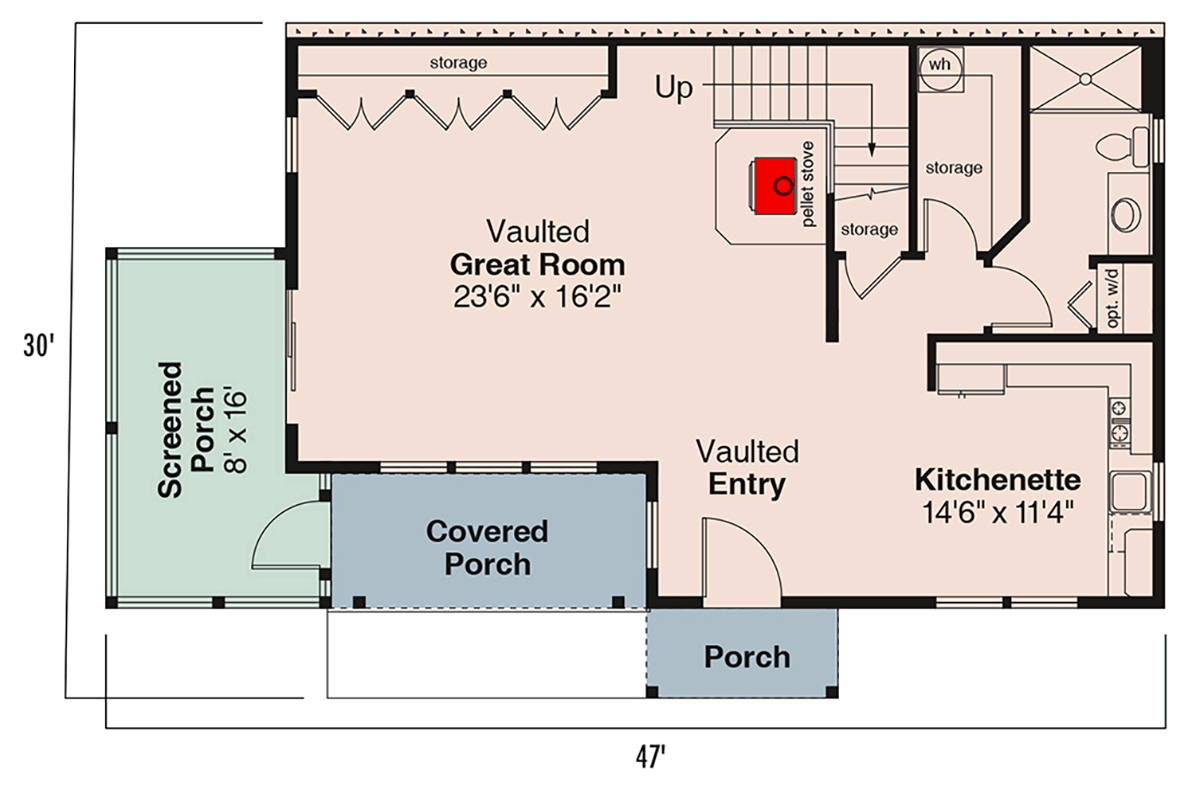

Plan 72471DA: Cottage Vacation House Plan with Loft and Lakefront Views - Floor Plan - Main Level - Cottage, Vacation

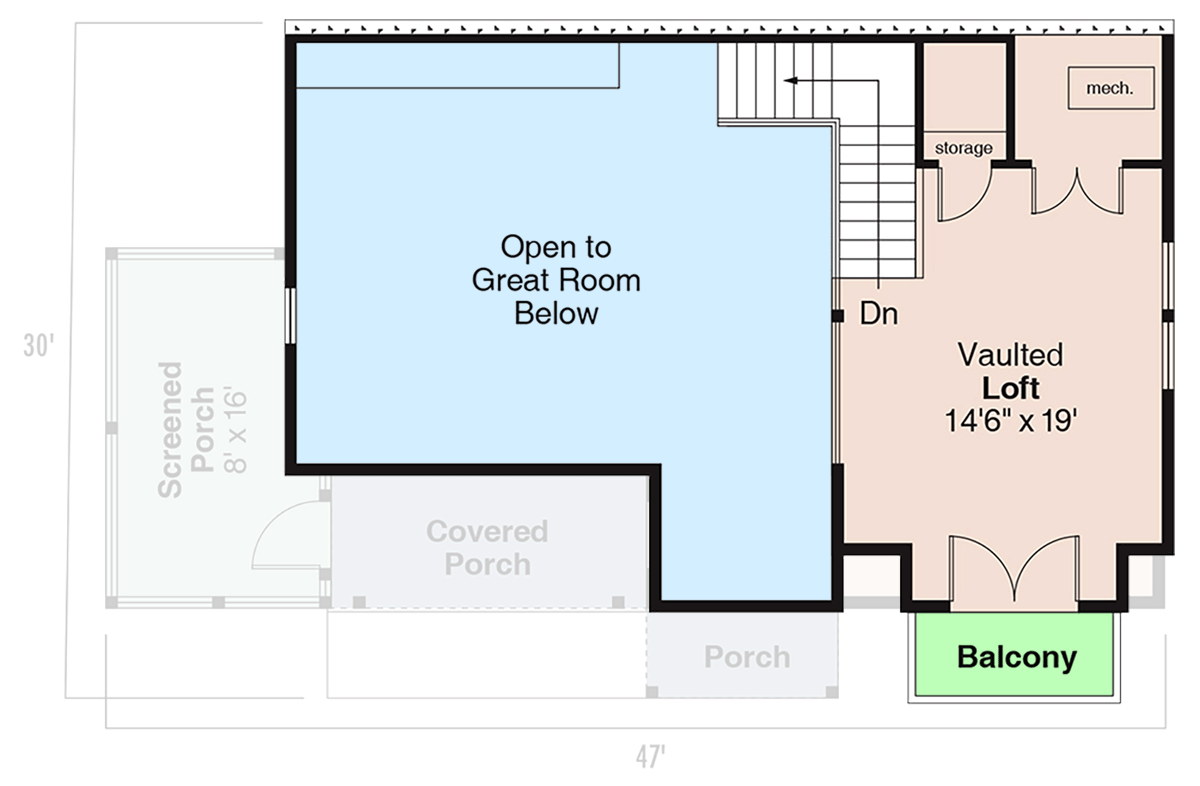

2nd Floor

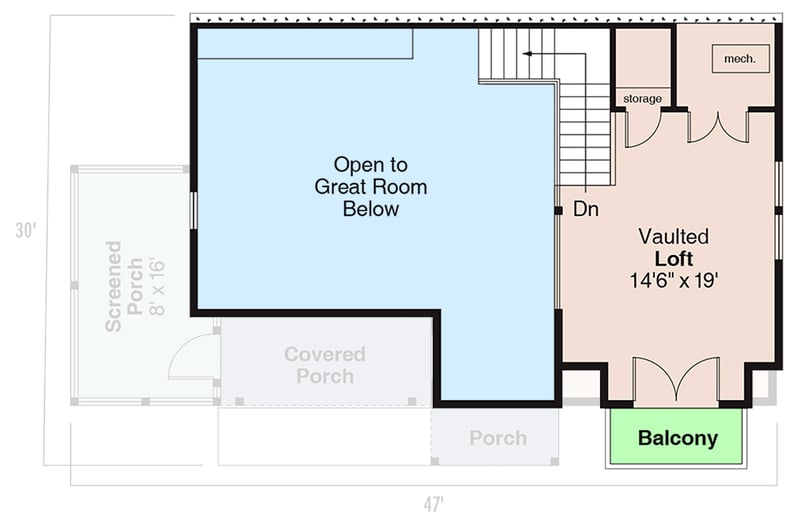

Plan 72471DA: Cottage Vacation House Plan with Loft and Lakefront Views - Floor Plan - 2nd Floor - Cottage, Vacation

Plan Details

  • This charming 1,246 square foot cottage vacation home offers a peaceful retreat with its classic shingle styling and scenic atmosphere.
  • The main floor features an open concept layout centered around a soaring two-story great room that floods the interior with natural light.
  • A spacious screened porch adds 140 square feet of versatile outdoor living space perfect for quiet mornings overlooking the water.
  • The upper level hosts a private loft area and a well-appointed master suite that provides a comfortable sanctuary above the main living area.
  • Thoughtful architectural details like the 10 on 12 roof pitch and custom siding create a timeless aesthetic suitable for any lakeside setting.
  • This efficient design includes one full bathroom and flexible living spaces that maximize every square foot for a relaxing lifestyle.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

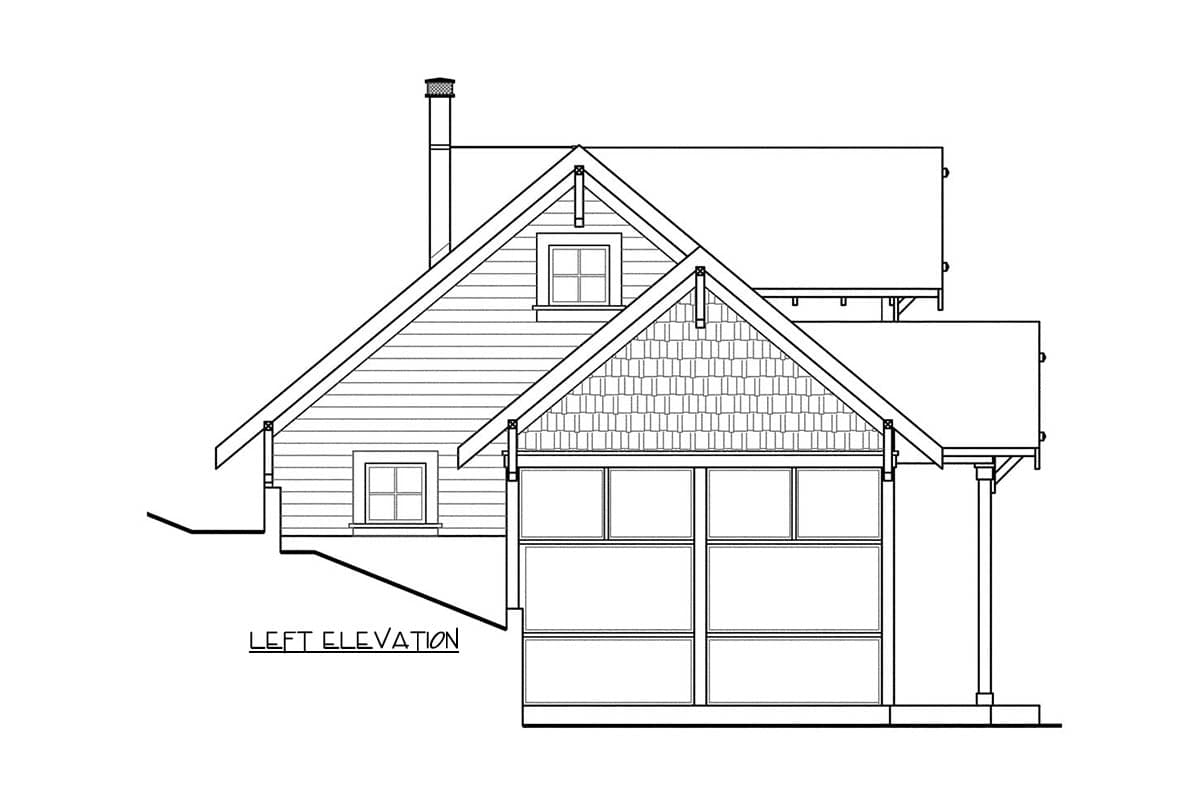

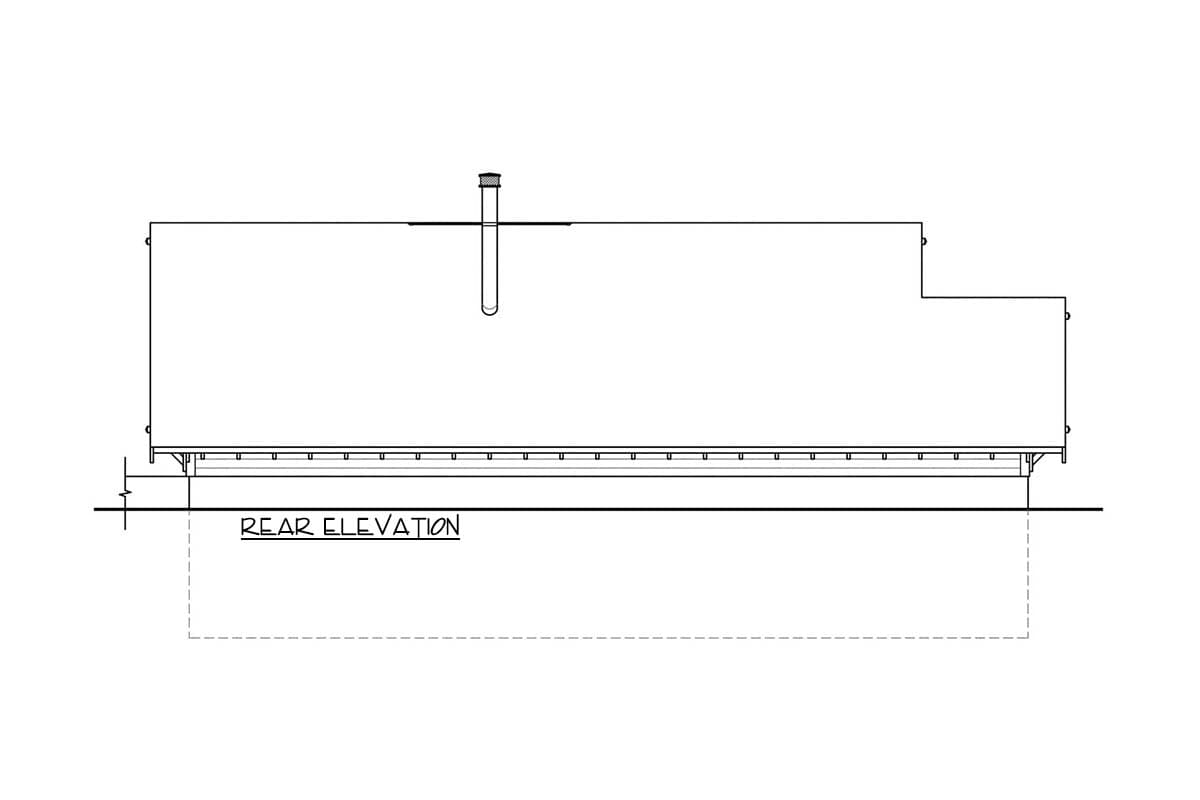

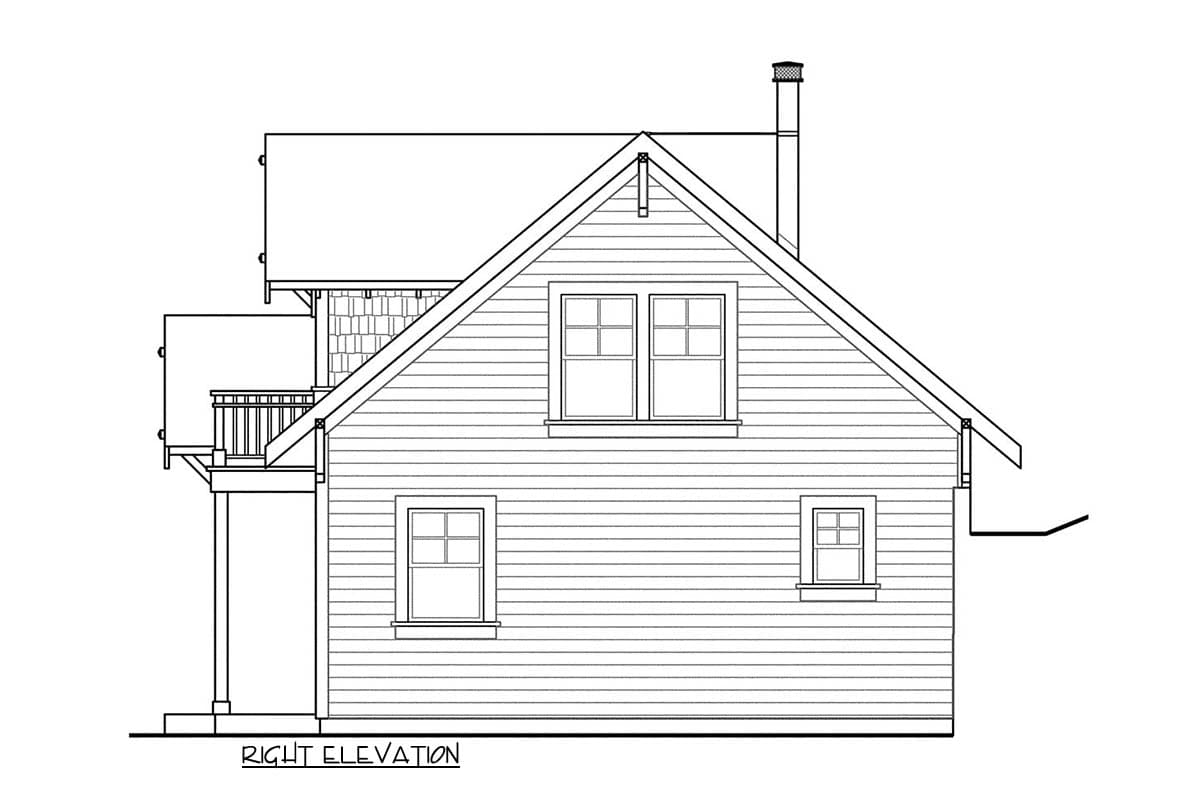

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,246 sq. ft.

1st Floor

918 sq. ft.

2nd Floor

328 sq. ft.

Screened Porch

140 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

30' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,246 sq. ft.

1st Floor

918 sq. ft.

2nd Floor

328 sq. ft.

Screened Porch

140 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

30' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Lake House Plans
