Plan 22390DR

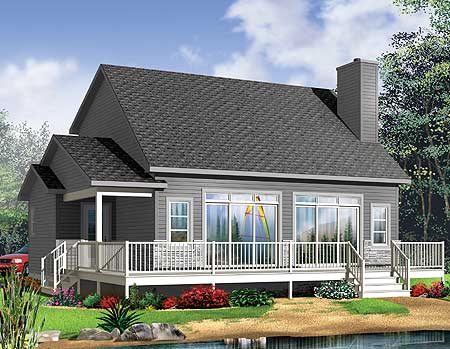

Cottage With Large Deck

Heated S.F.
1,479
Beds
3
Baths
2
Stories
2

Floor Plan

Plan 22390DR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22390DR

M-F 9am-5pm EST |

1-203-761-8500

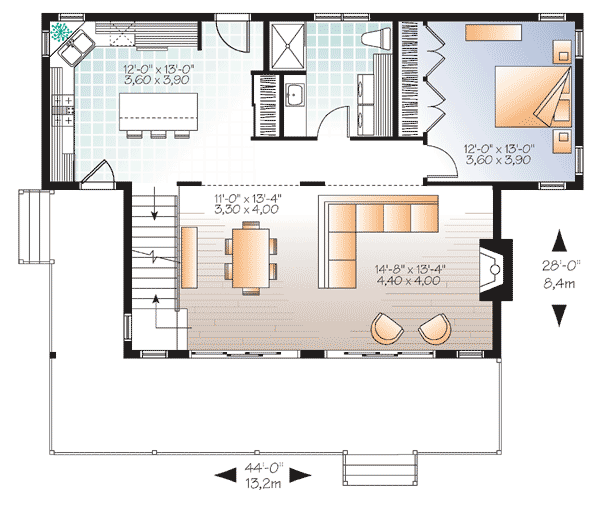

Main Level

Plan 22390DR: Cottage With Large Deck - Floor Plan - Main Level - Cottage, Traditional, Vacation

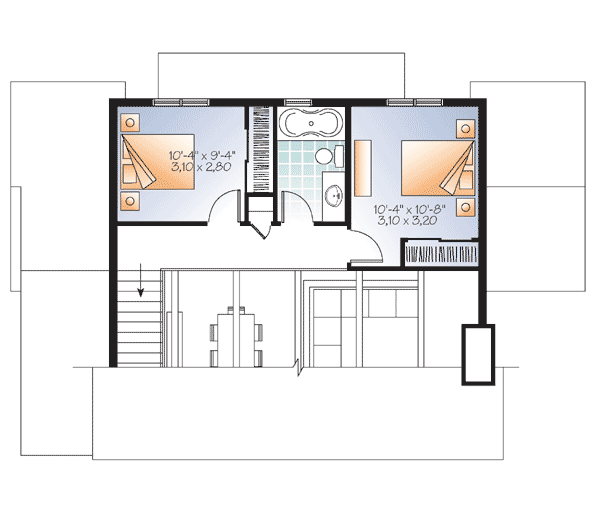

2nd Floor

Plan 22390DR: Cottage With Large Deck - Floor Plan - 2nd Floor - Cottage, Traditional, Vacation

Plan Details

  • Get great natural light with this one bedroom cottage house plan.
  • The living room is open to the kitchen and dining room and sliding doors extend your entertaining space to the large deck outside.
  • The ceiling has five horizontal beams at the height of second floor creating a dramatic space.
  • The kitchen has a large 76" x 36" lunch island.
  • Corner windows and back door open to covered deck.
  • The bedroom, bath and laundry are all on one floor. And the basement gives you room for storage and expansion.
  • Related Plan: Get a smaller version with house plan 21149DR (984 square feet).

What's Included

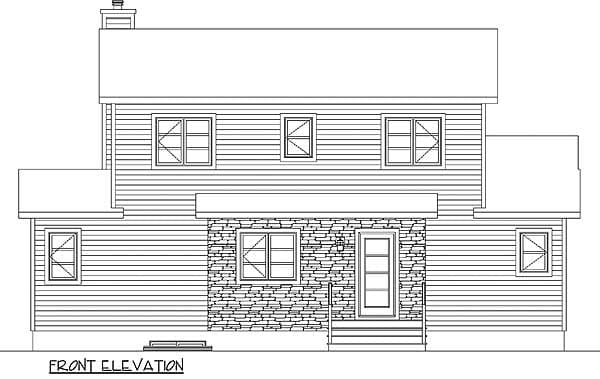

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,479 sq. ft.

1st Floor

1,050 sq. ft.

2nd Floor

429 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

28' 0"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Cottage

Traditional

Vacation

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,479 sq. ft.

1st Floor

1,050 sq. ft.

2nd Floor

429 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

28' 0"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Cottage

Traditional

Vacation

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
