Plan 21149DR Cottage With Great Natural Light

1,544 3 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Cottage With Great Natural Light

Plan 21149DR

  • 1,544

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Get great natural light with this one bedroom cottage house plan.
  • The living room has a cathedral ceiling and gets great natural light from the three large windows that raise from just above the floor to the ceiling. Three sunlights add more light to this space.
  • The living room is open to the kitchen and dining room and sliding doors extend your entertaining space to the large deck outside.

Each plan includes the following:

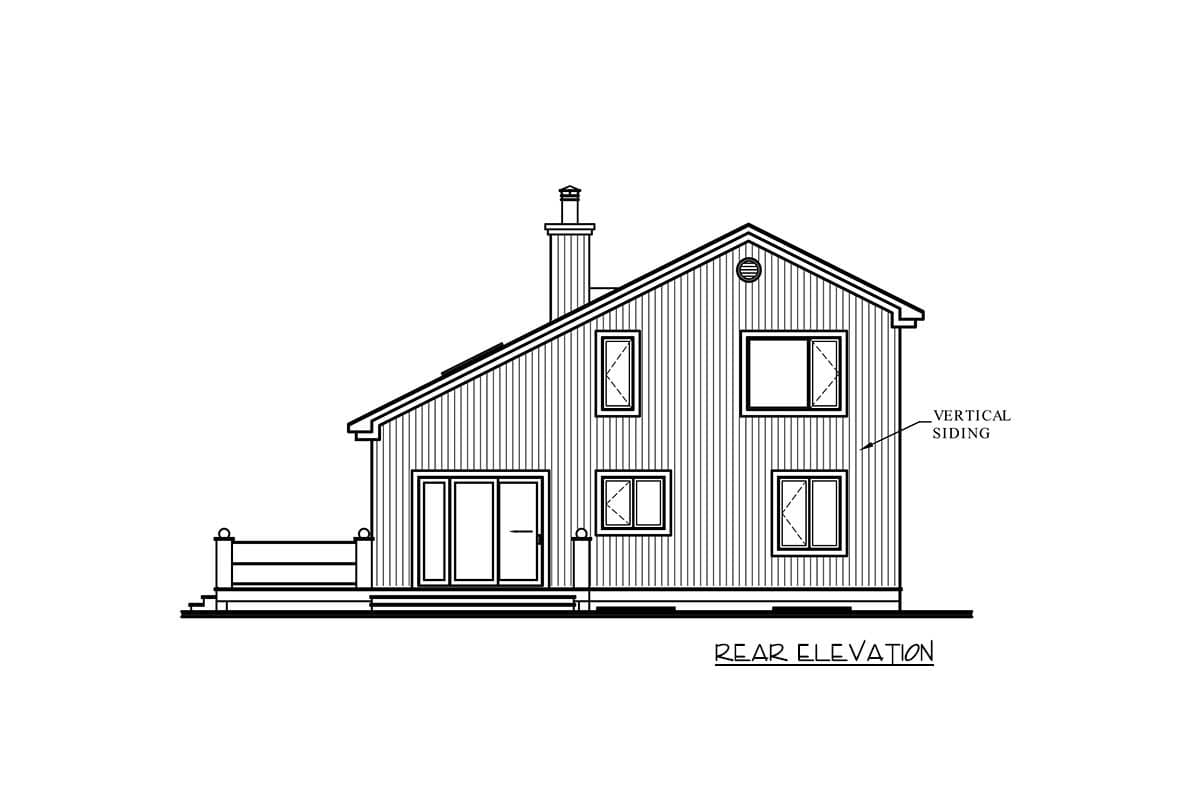

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

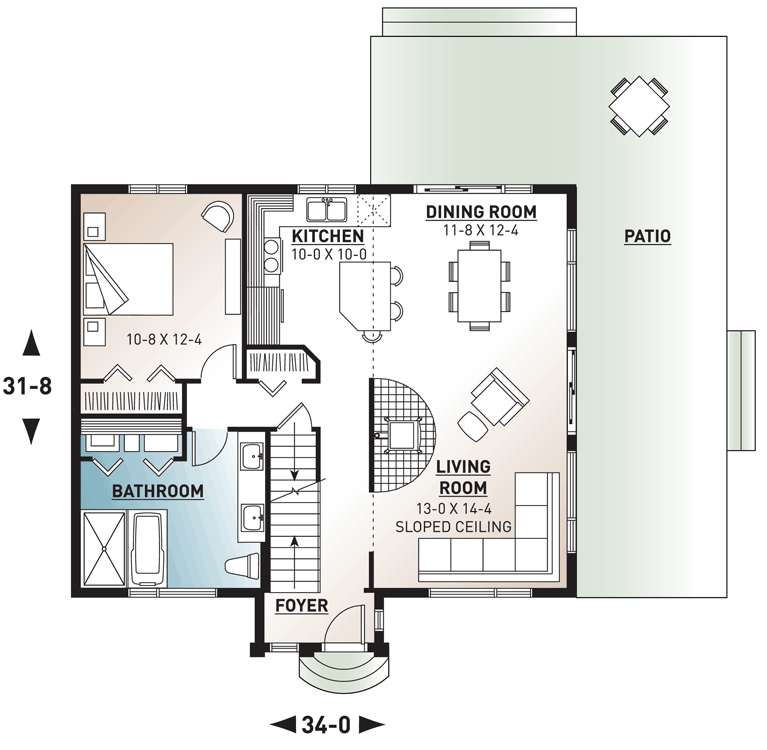

Cottage With Great Natural Light - 21149DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

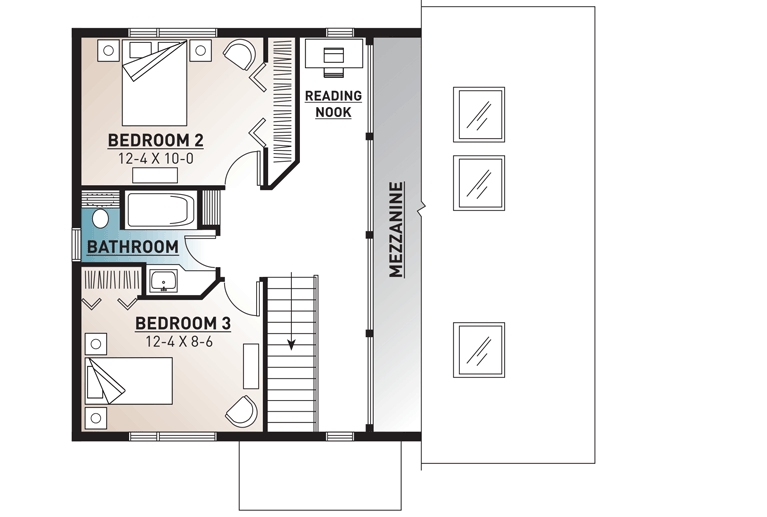

Cottage With Great Natural Light - 21149DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,544 sq. ft.
  • 1st Floor: 984 sq. ft.
  • 2nd Floor: 560 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 28' 0"
  • Max ridge height: 24' 4"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Cottage With Great Natural Light

  • 1,544

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,544 sq. ft.
  • 1st Floor: 984 sq. ft.
  • 2nd Floor: 560 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 28' 0"
  • Max ridge height: 24' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
