Cottage with Rear Views

Plan 9800SW

  • 1,235

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • A rear view oriented compact three-bedroom character cottage.
  • Abundant skylights and a window wall ensure maximum daylight for the vaulted living and dining rooms.
  • Decks situated on both levels capture all available views and encourage outdoor activities.
  • The entire second level is dedicated to the vaulted master bedroom suite.
  • 2x6 construction ensures you'll stay warm year round.

Each plan set includes the following:


Cover sheet with rendering
General notes and specifications
Foundation plan
Fully dimensioned floor plan - windows are called out as generic sizes
Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
Electrical
Cross sections
Details as required
All four elevations

Plans do not include interior cabinet elevations or separate window schedules

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

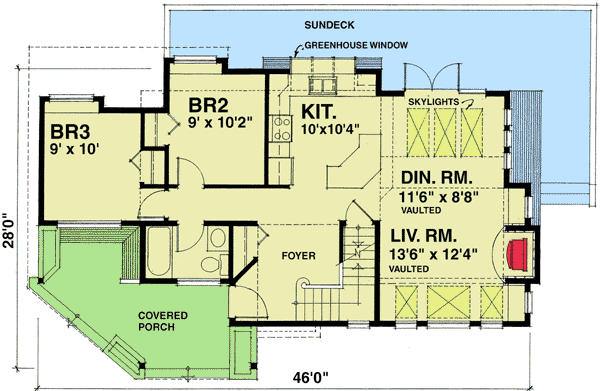

Cottage with Rear Views - 9800SW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

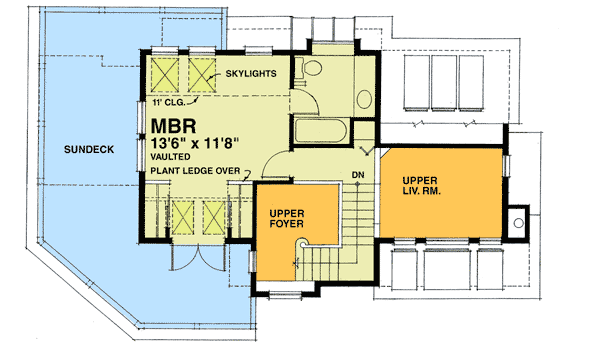

Cottage with Rear Views - 9800SW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,235 sq. ft.
  • 1st Floor: 893 sq. ft.
  • 2nd Floor: 342 sq. ft.
  • Deck: 366 sq. ft.
  • Porch, Combined: 169 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 30' 0"
  • Max ridge height: 35' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Cottage with Rear Views

  • 1,235

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $675
  • PDF - Single-Build $895
  • View all purchase option online

About This Plan

  • A rear view oriented compact three-bedroom character cottage.
  • Abundant skylights and a window wall ensure maximum daylight for the vaulted living and dining rooms.
  • Decks situated on both levels capture all available views and encourage outdoor activities.
  • The entire second level is dedicated to the vaulted master bedroom suite.
  • 2x6 construction ensures you'll stay warm year round.
