Plan 72886DA

Cottage witth Flex Room and Upstairs Loft

Pageloader

Cottage witth Flex Room and Upstairs Loft

Plan 72886DA

  • 2,219

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • Designed with a not-so-wide lot in mind, this is a delightful cottage home plan. From the exterior it appears to be a single level home but once you step inside a set of stairs takes you up to the second floor that is nestled into the roof.
  • To the left of the entry is a den which could also serve as a home office, guest suite or what ever other sort of flex space your family needs.
  • Down the entry hall the home opens up to a great room with corner fireplace and a kitchen with a generous work island.
  • In the rear right corner of the home is the owners' suite which features a dual vanity and large walk-in closet.
  • Upstairs are two additional bedrooms and a loft that is large enough to be a study space or cozy library.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

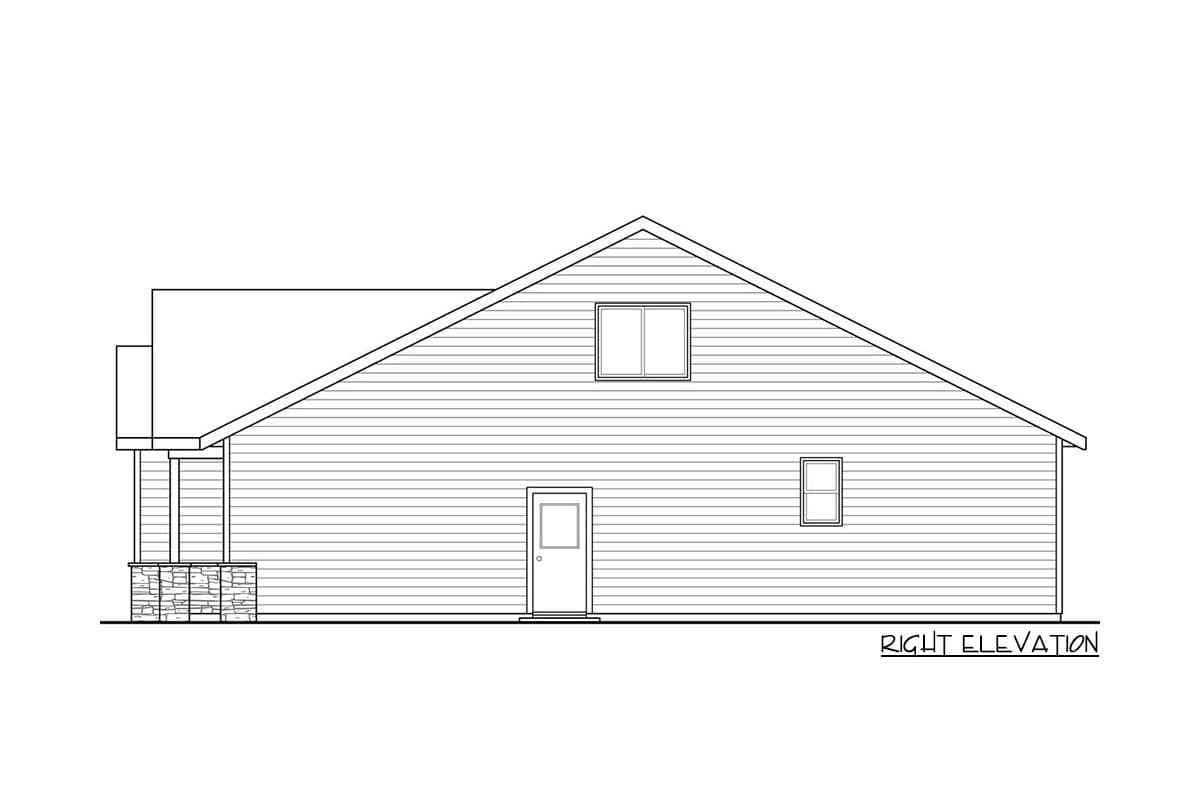

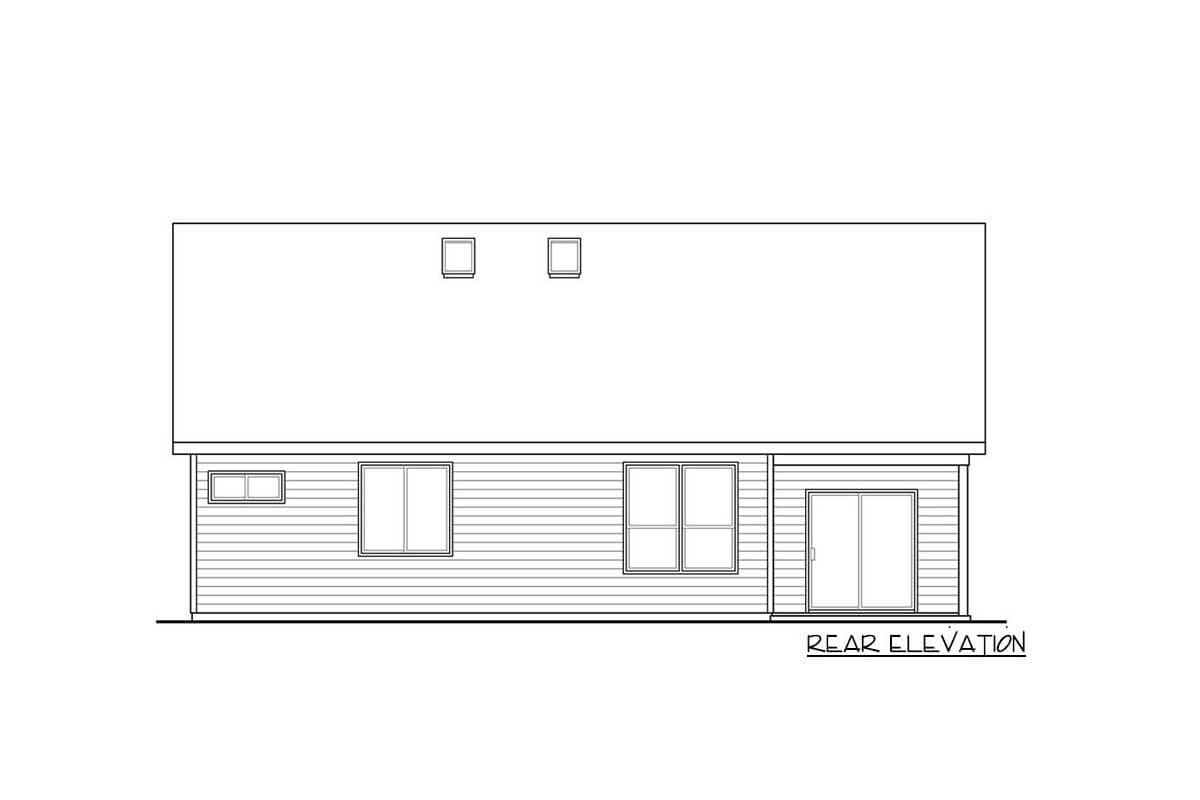

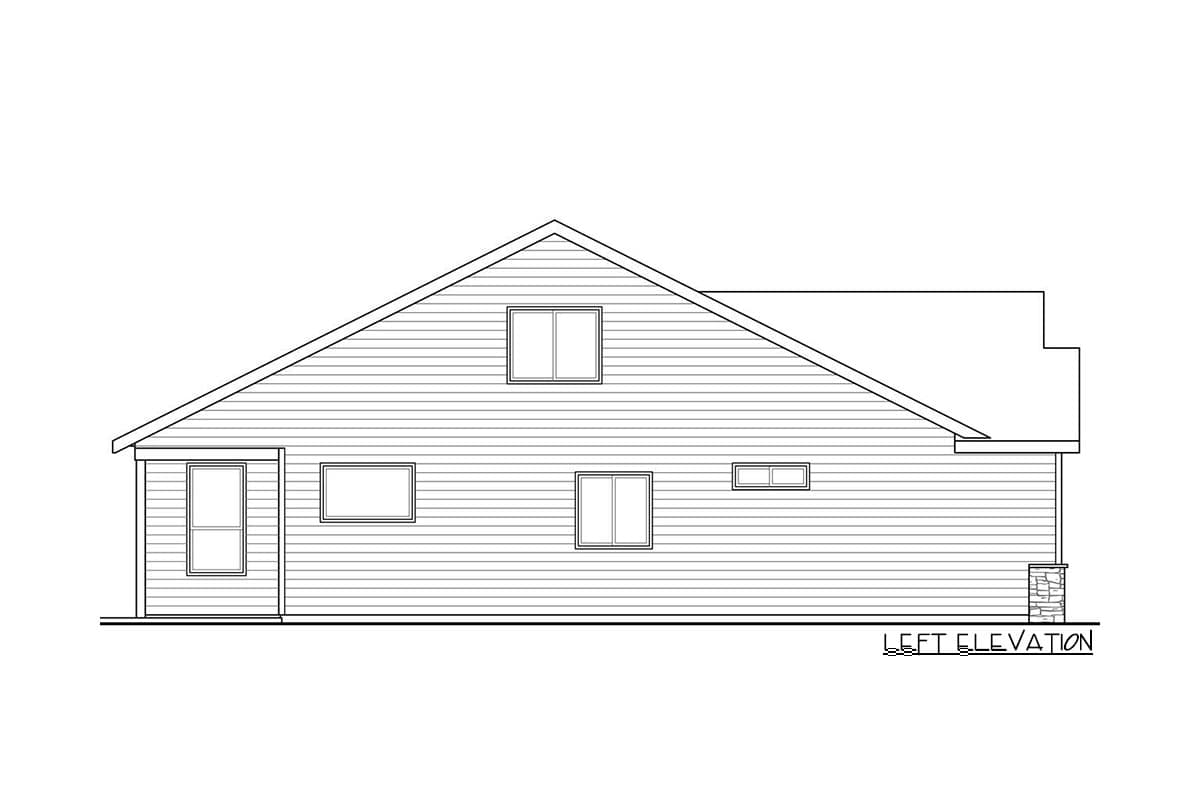

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Cottage witth Flex Room and Upstairs Loft

  • 2,219

    Heated s.f.

  • 3 - 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 5 Sets PLUS $1,085
  • 8 Sets $1,140
  • PDF - single-use $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Designed with a not-so-wide lot in mind, this is a delightful cottage home plan. From the exterior it appears to be a single level home but once you step inside a set of stairs takes you up to the second floor that is nestled into the roof.
  • To the left of the entry is a den which could also serve as a home office, guest suite or what ever other sort of flex space your family needs.
  • Down the entry hall the home opens up to a great room with corner fireplace and a kitchen with a generous work island.
  • In the rear right corner of the home is the owners' suite which features a dual vanity and large walk-in closet.
  • Upstairs are two additional bedrooms and a loft that is large enough to be a study space or cozy library.

Floor Plans

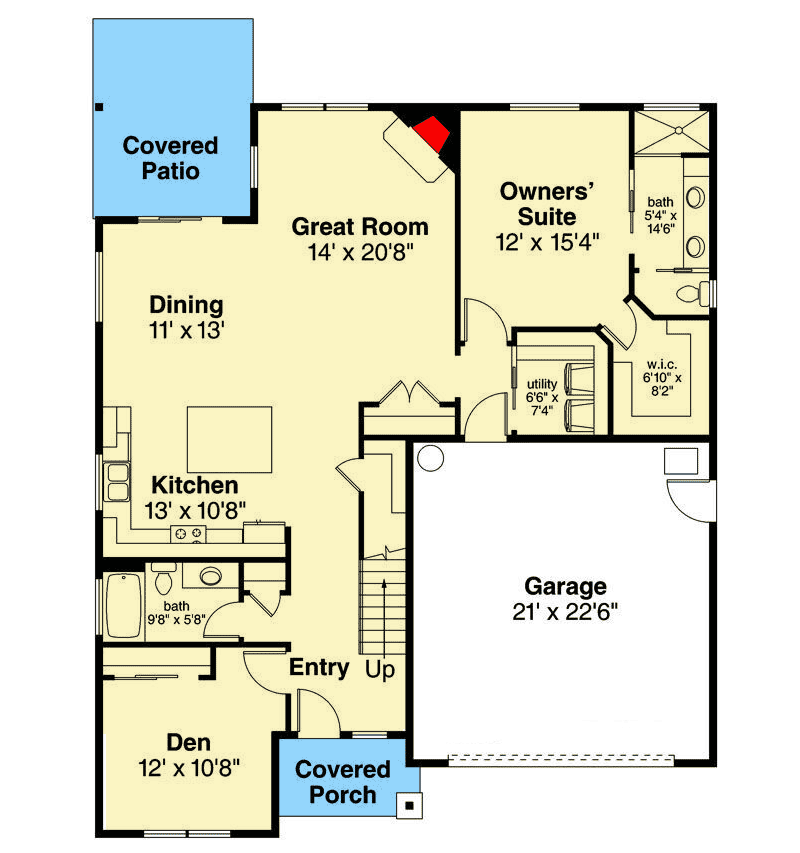

  • Main Level

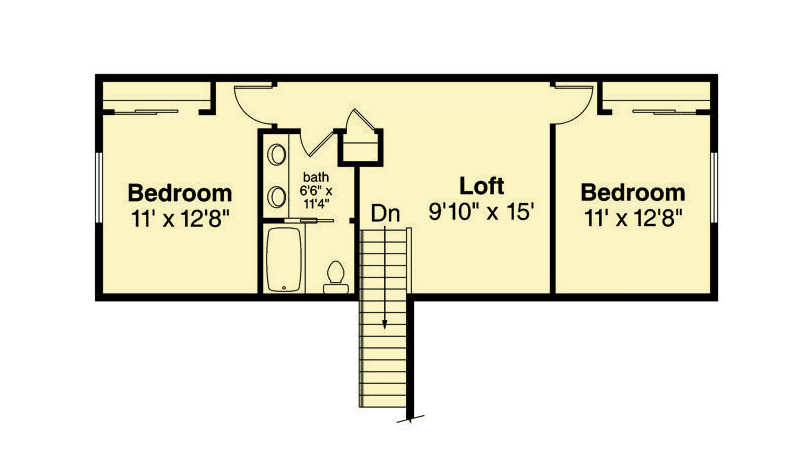

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,219 sq. ft.
  • 1st Floor: 1,532 sq. ft.
  • 2nd Floor: 687 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 52' 0"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 496 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
