Plan 19172GT

Country Cottage Home Plan

Heated S.F.

1,035

Beds

2

Baths

2

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

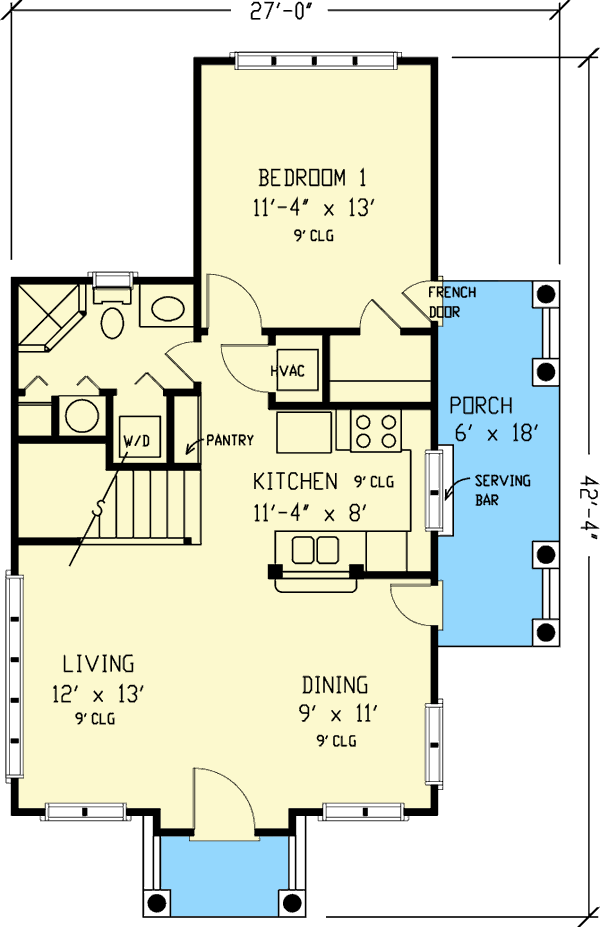

Country Cottage Home Plan - 19172GT floor plan - Main Level

2nd Floor

Reverse Floor Plan

Country Cottage Home Plan - 19172GT floor plan - 2nd Floor

Plan Details

This charming bungalow will delight smaller families with its quaint exterior and up-to-date interior.
The living and dining rooms are open to each other to create a large entertainment area. The kitchen features two handy serving bars.
The main floor bedroom accesses the side porch through a French door. The upstairs loft has a dramatic cathedral ceiling.

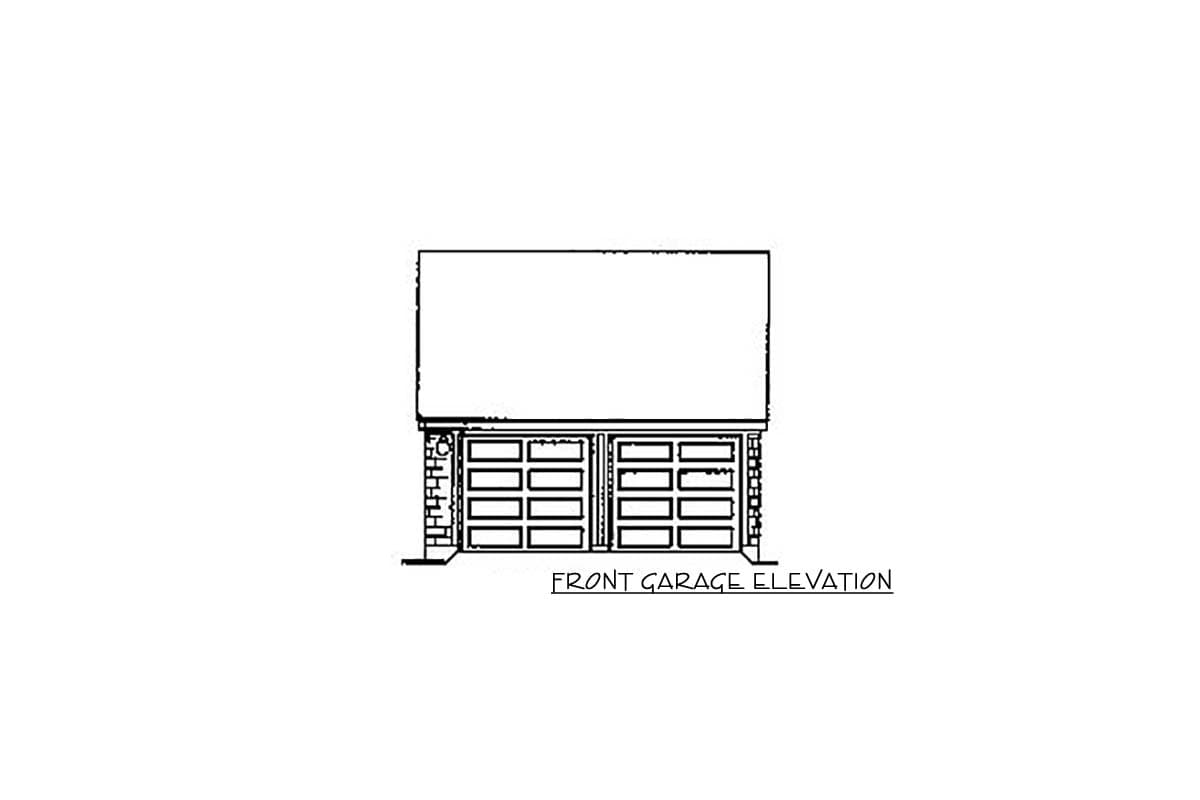

The house plan comes with plans for a detached two-car garage that measures approximately 20' by 22'.

What's Included

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

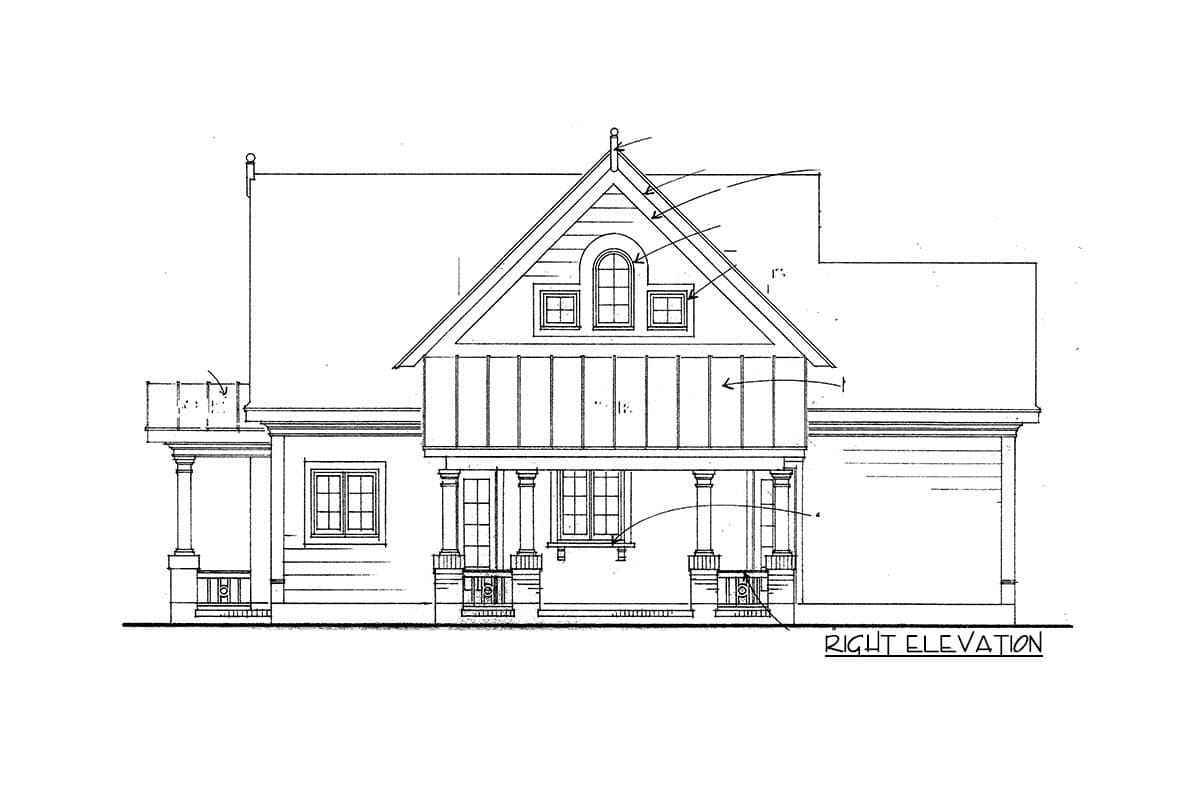

Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,035 sq. ft.

1st Floor:

693 sq. ft.

2nd Floor:

342 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

27' 0"

Depth:

42' 4"

Max Ridge Height:

24' 0"

Garage

Type:

Detached

Area:

552 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch:

12 on 12

Secondary Pitch:

4 on 12

Architectural Style

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
