Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft

Plan 51796HZ

  • 2,201

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • An 8'-deep front porch welcomes you to this country Craftsman house plan with a split bedroom layout. A board and batten exterior with timber accents give it great curb appeal.
  • French doors open to the vaulted great room. A fireplace on the right wall is flanked by built-ins and the entire space is open to the kitchen and dining, each with 10' flat ceilings. The kitchen has an island with an eating bar and a large walk-in pantry with shelves and a counter to help keep things organized.
  • A single door on the back wall takes you to the rear porch with an optional outdoor kitchen. A door opens to the garage so you can bring in the hot dogs and burgers right to the grill.
  • The master suite has direct access to the laundry room separated from the master walk-in closet by a pocket door. Two bedrooms across the home share a bath.
  • Stairs by the back entry take you to a bonus room over the garage with an optional full bath. This space would make a great space for another bedroom or a hangout for the kids or a quiet study.
  • Related Plan: Get a version without the upstairs with house plan 51864HZ.

This plan has 8 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

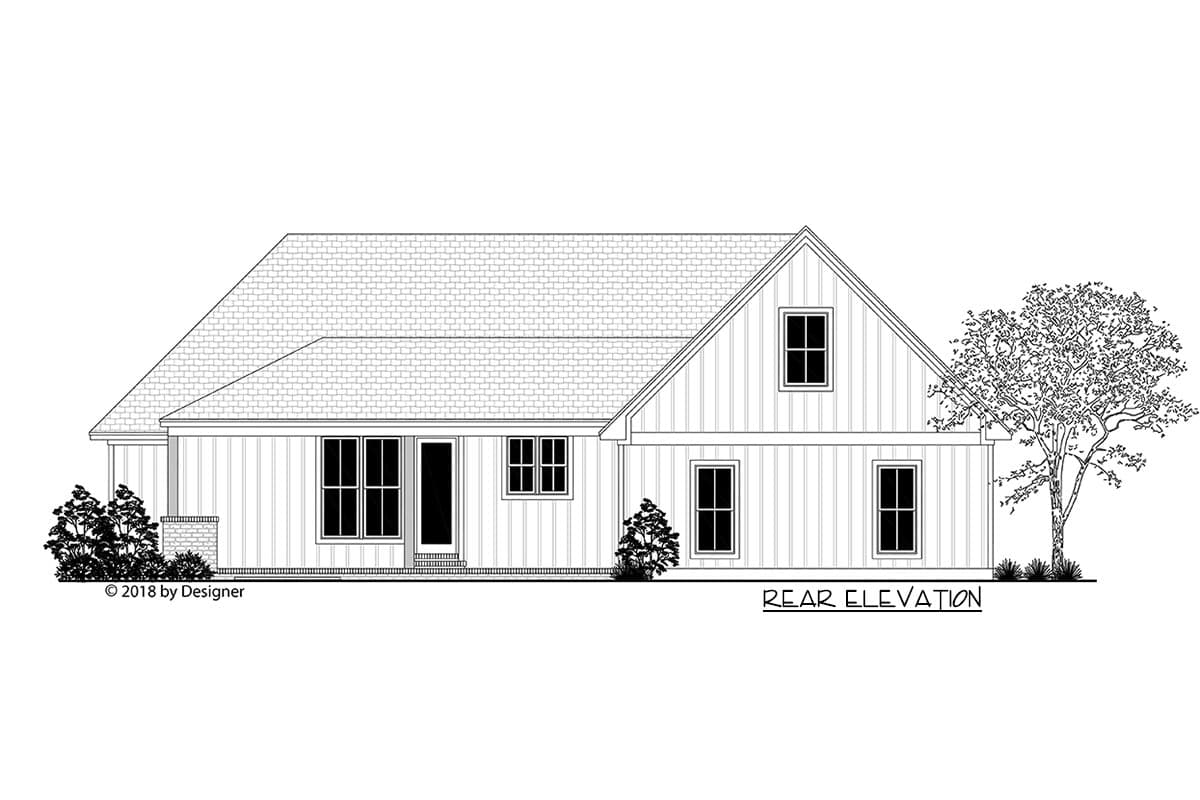

Page 4  Front and rear exterior views with notes and garage section

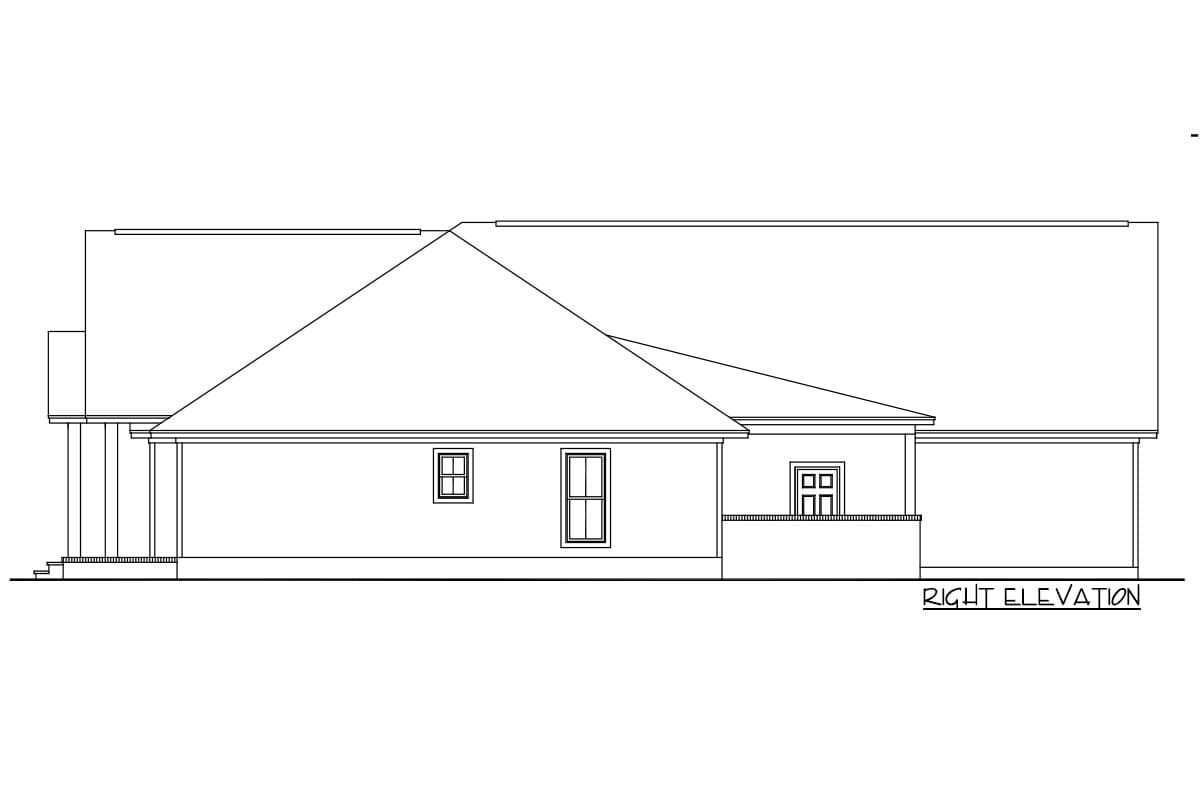

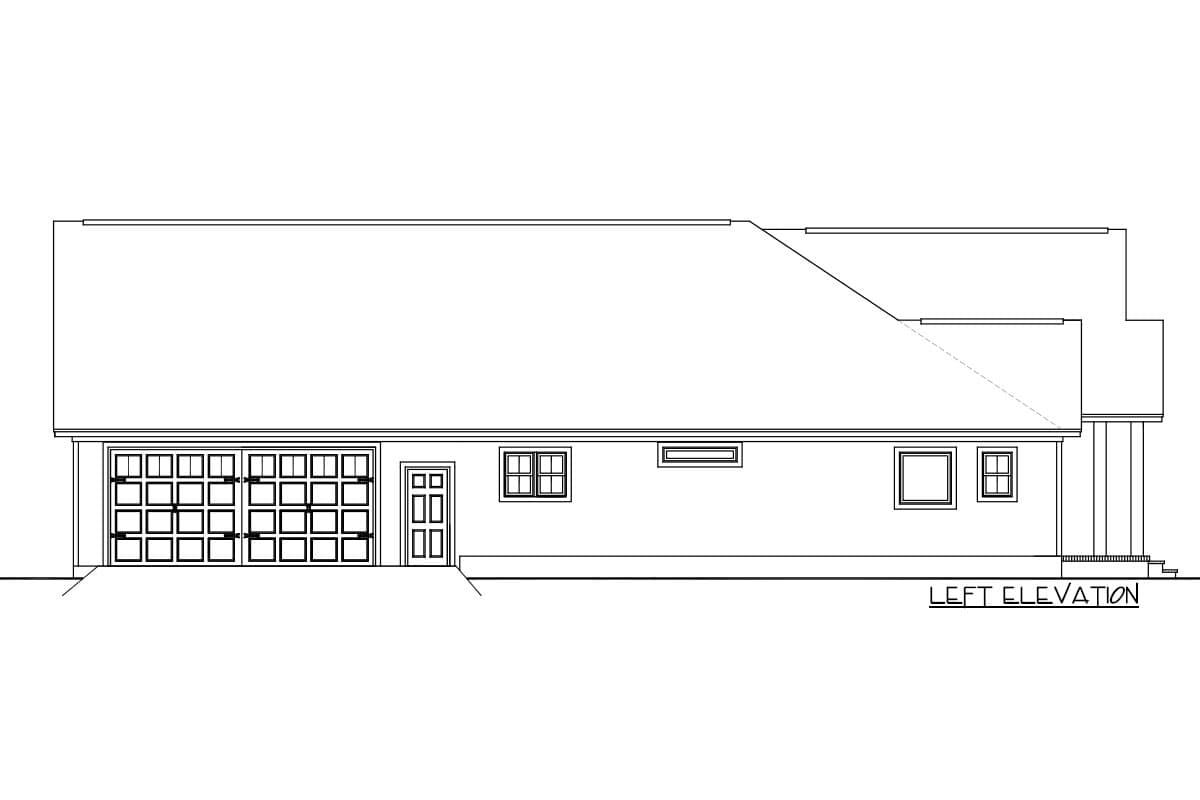

Page 5  Right and left exterior views with notes and wall sections
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan & span charts
Page 8  Electrical plans & notes/ legend

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

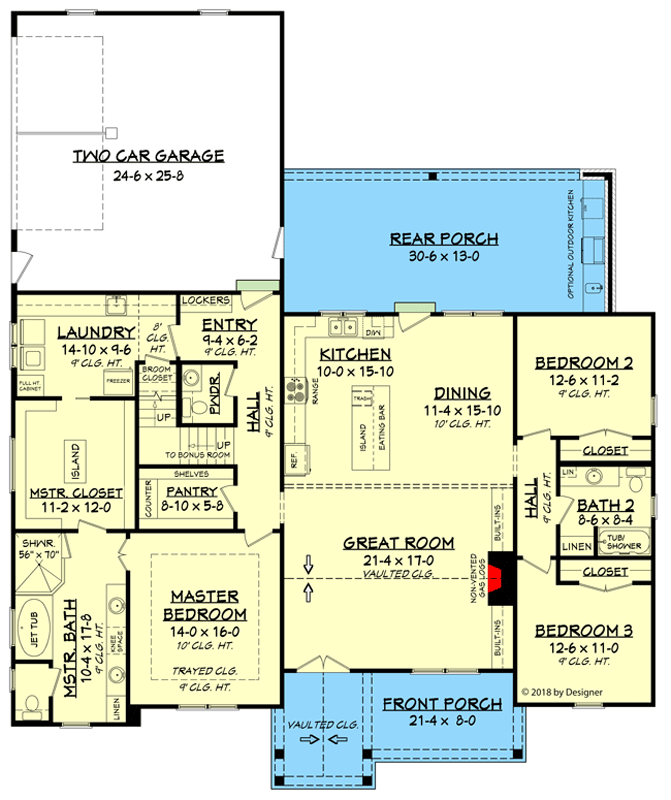

Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft - 51796HZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

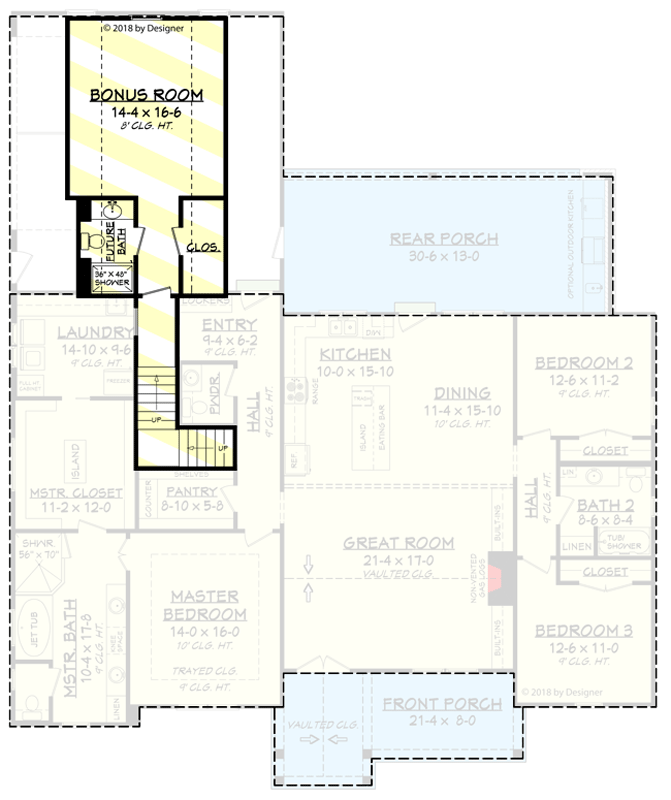

Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft - 51796HZ floor plan - 2nd Floor

3-Car Garage Option (929 sq. ft.)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

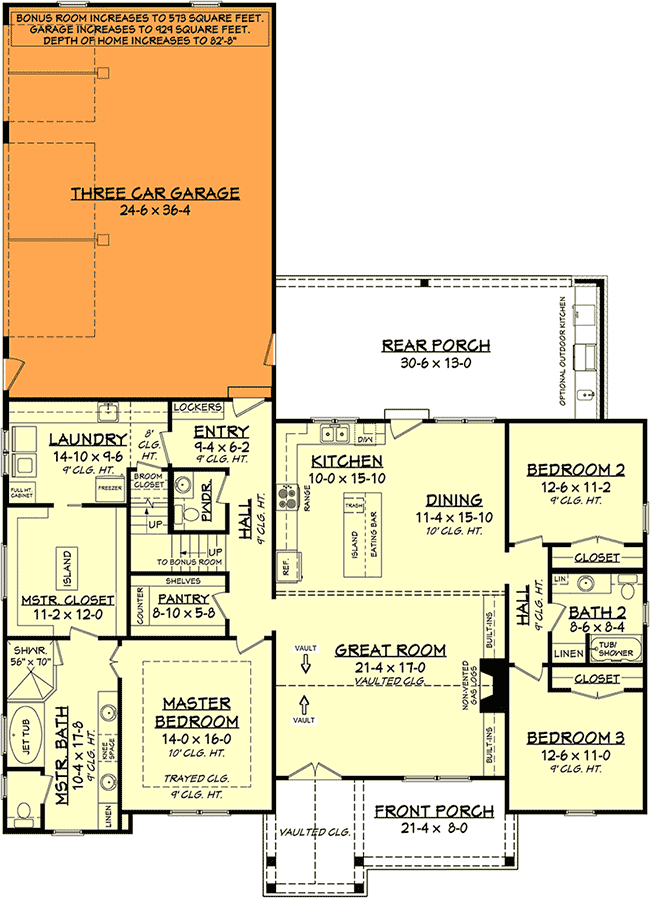

Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft - 51796HZ floor plan - 3-Car Garage Option (929 sq. ft.)

Basement Stair Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft - 51796HZ floor plan - Basement Stair Location

Unfinished Basements

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

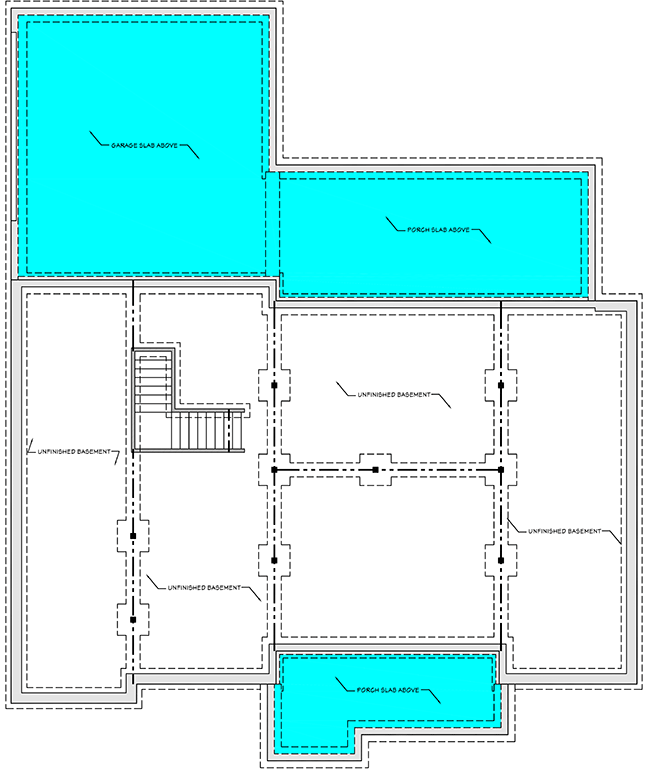

Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft - 51796HZ floor plan - Unfinished Basements

Country Craftsman House Plan with Split Bedroom Layout - 2201 Sq Ft

  • 2,201

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3-Car Garage Option (929 sq. ft.)

  • Basement Stair Location

  • Unfinished Basements

Plan Details

Square Footage Breakdown

  • Total: 2,201 sq. ft.
  • 1st Floor: 2,201 sq. ft.

Dimensions

  • Width: 59' 10"
  • Depth: 72' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 659 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
