Plan 40919DB

Country Farmhouse House Plan with Loft and Upstairs Laundry

Heated S.F.
3,367
Beds
5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 40919DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 40919DB

M-F 9am-5pm EST |

1-203-761-8500

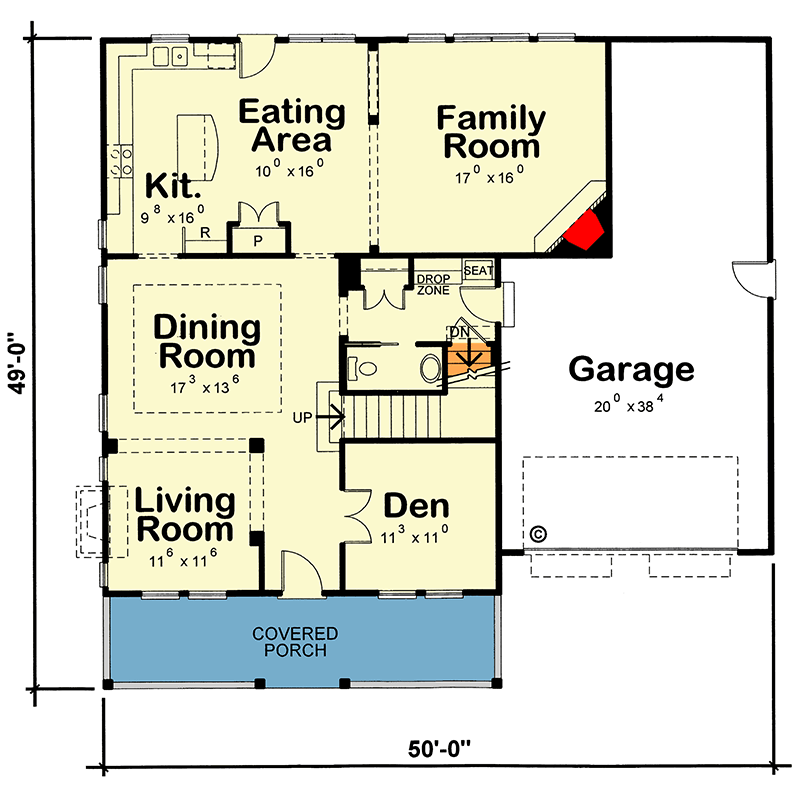

Main Level

Plan 40919DB: Country Farmhouse House Plan with Loft and Upstairs Laundry - Floor Plan - Main Level - Country, Farmhouse

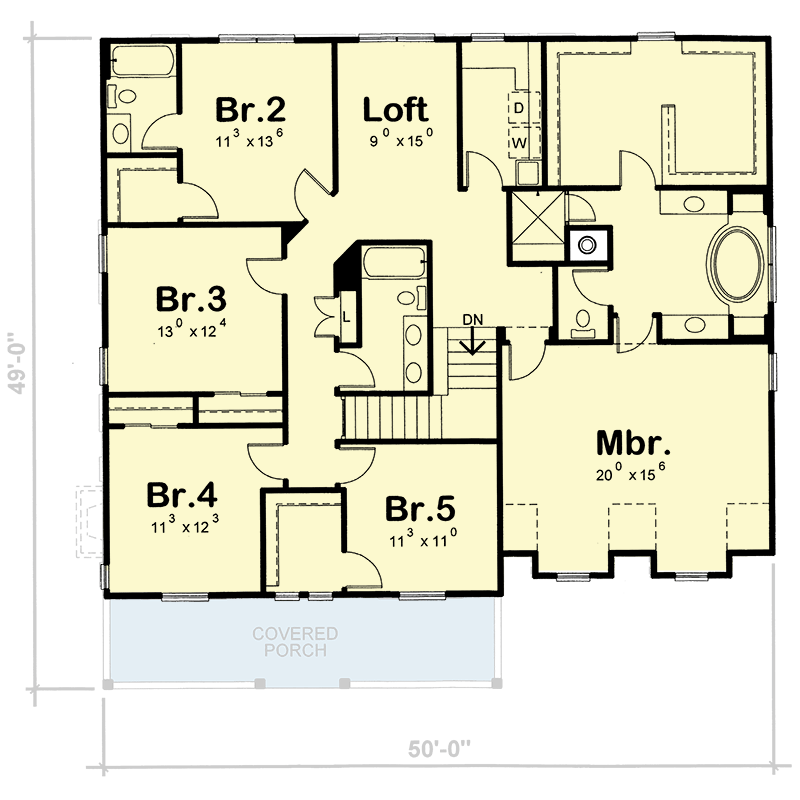

2nd Floor

Plan 40919DB: Country Farmhouse House Plan with Loft and Upstairs Laundry - Floor Plan - 2nd Floor - Country, Farmhouse

Plan Details

  • This home offers 3,367 square feet of living space with 5 bedrooms, 3.5 baths, and a spacious 2-car front entry garage, wrapped in classic country farmhouse charm.
  • An inviting covered front porch sets the tone, leading into a welcoming foyer framed by a den and generous windows that let natural light flow throughout the main level.
  • The kitchen stands as a social gathering spot with a central island, walk-in pantry, and seamless connection to the eating area and family room, all designed for easy entertaining and great sightlines.
  • Upstairs, the primary suite forms a private wing separated from four additional bedrooms and a flexible loft, ensuring a quiet retreat and thoughtful zoning for family or guests.
  • Functional daily living is enhanced by a dedicated mudroom and drop zone area near the garage entry, plus convenient upstairs laundry to keep things organized.
  • Step out back to a rear covered porch, offering a natural extension for outdoor dining or relaxation and rounding out the home's inviting feel.

What's Included

  • General Notes

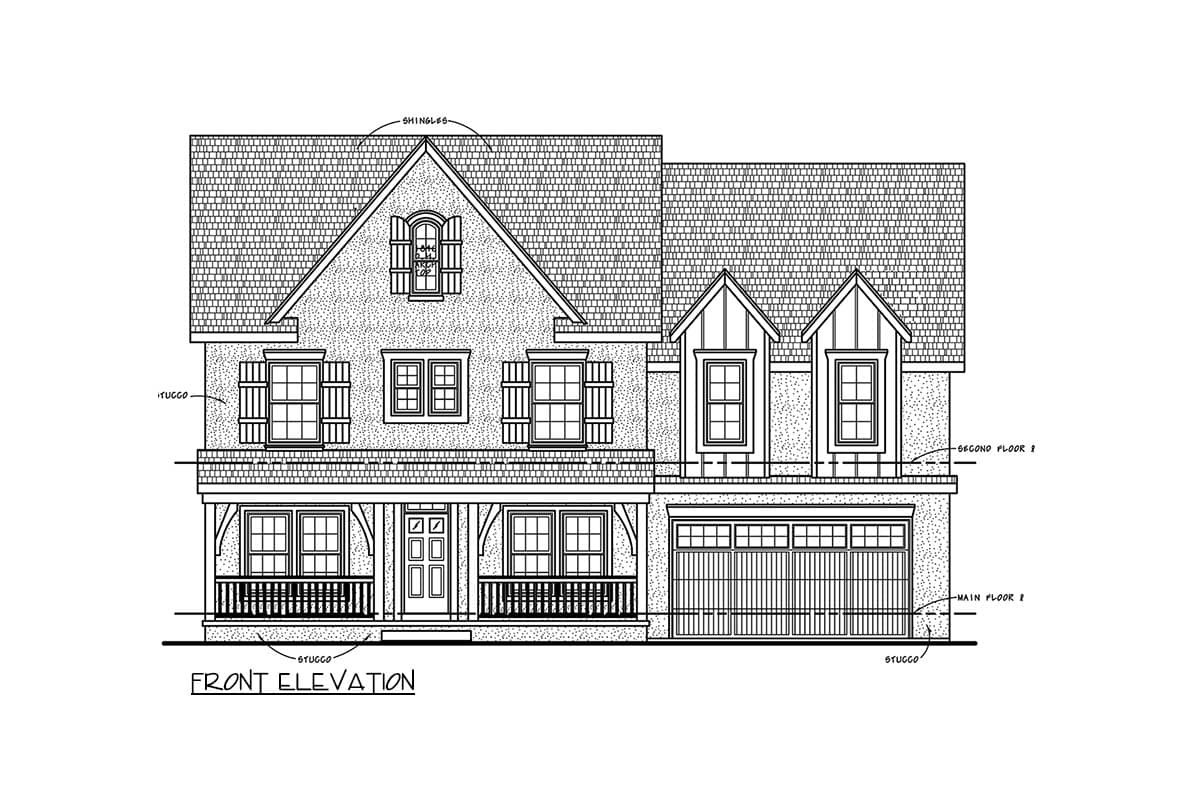

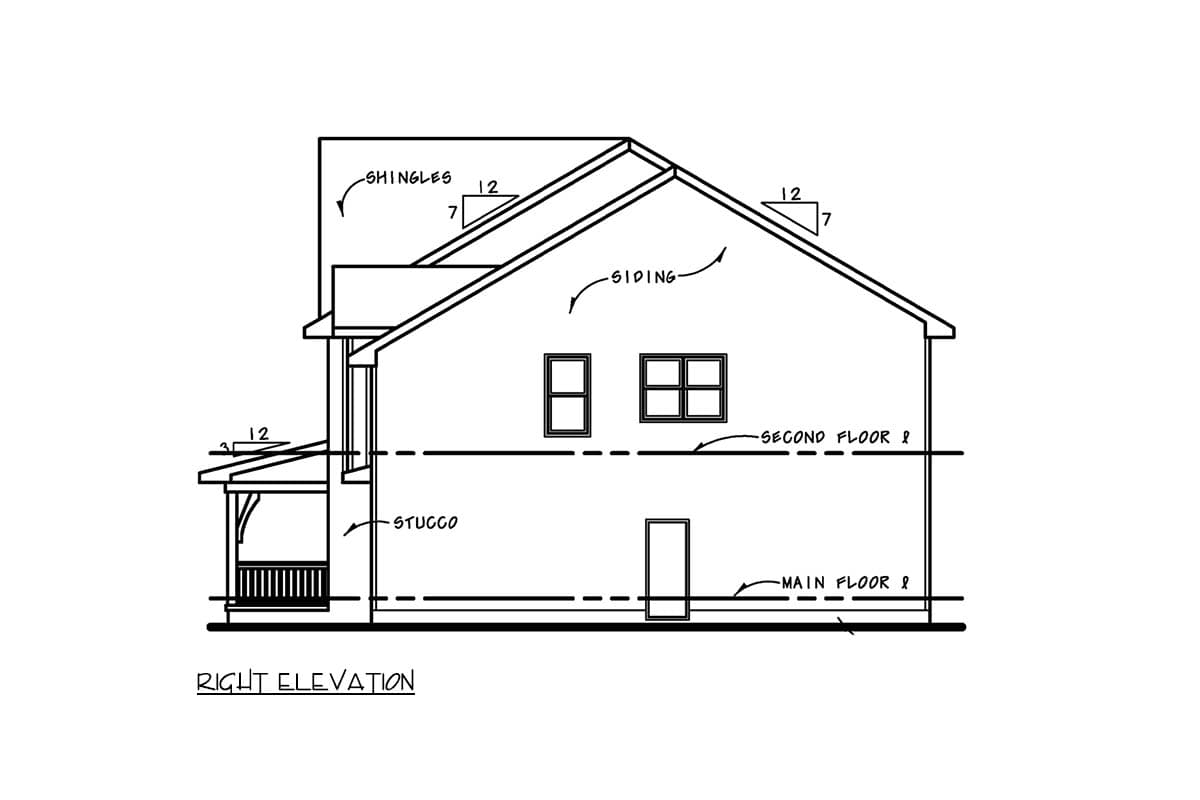

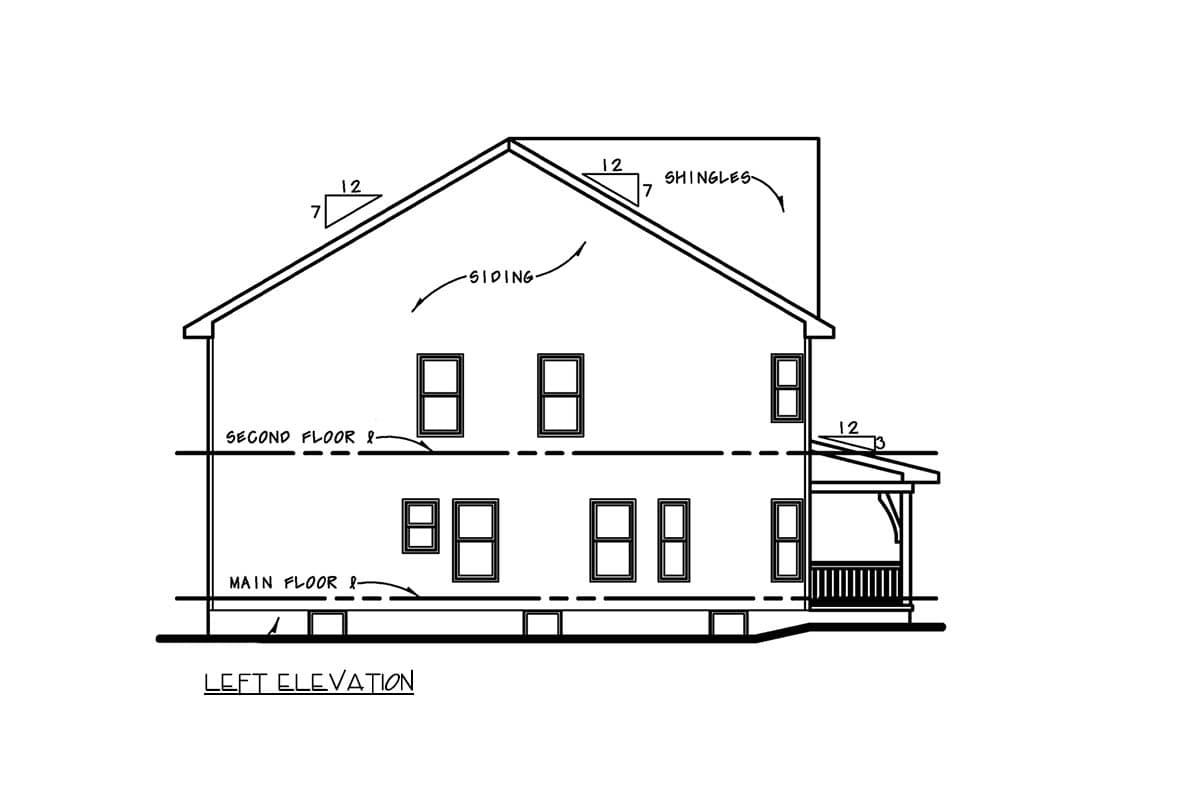

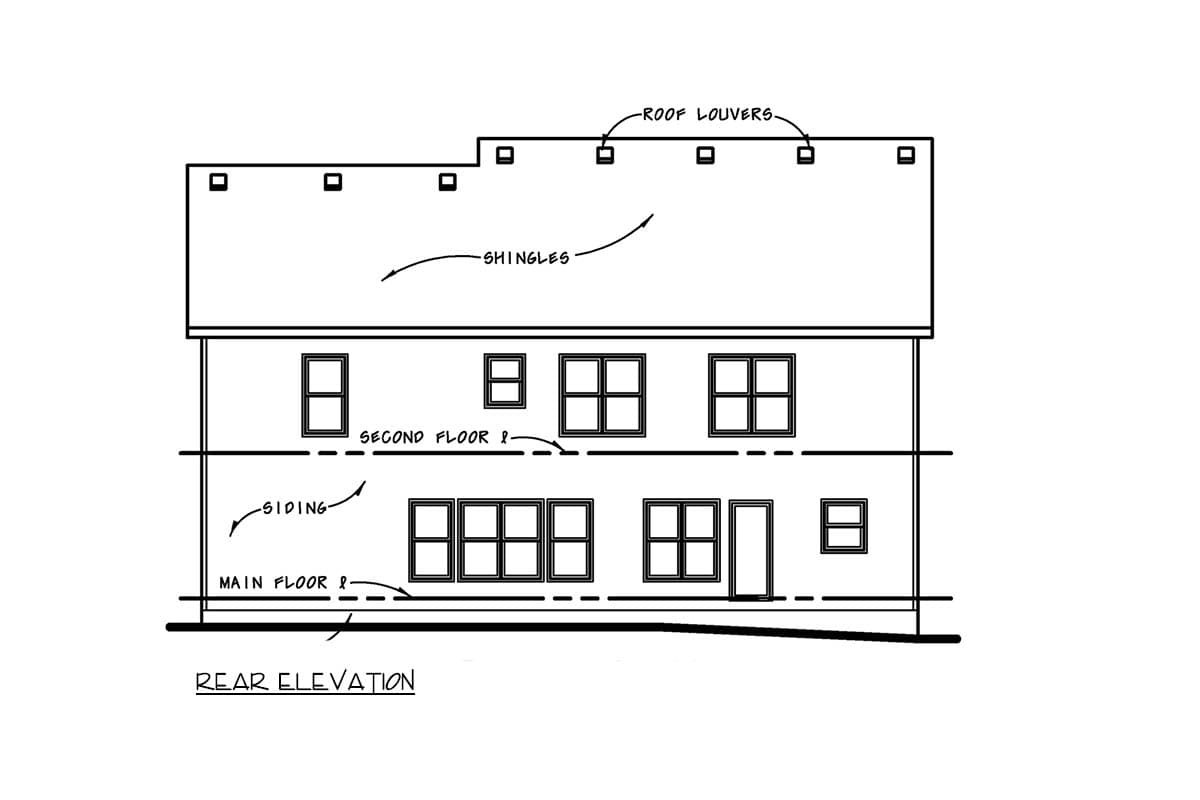

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,367 sq. ft.

1st Floor

1,385 sq. ft.

2nd Floor

1,982 sq. ft.

Porch, Front

172 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

49' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

654 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Architectural Style

Country

Farmhouse

Special Features

Den

Formal Dining

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom
